LYRA LED
1 / 5
| Model NO. | A60 |
| Pixel Pitch | 1.25/1.56mm |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 640,000dots/M2 |
| Scanning Mode | 1/45 Scan |
| System Operating Platform | Windows |
| Display Type | LED Video Display |
| Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | IP43 |
| Certification | CE, RoHS, CCC |
| Warranty | 3 Years |
| LED Chip | Nationstar/Kinglight |
| Brightness | 1000~5000 Nits |

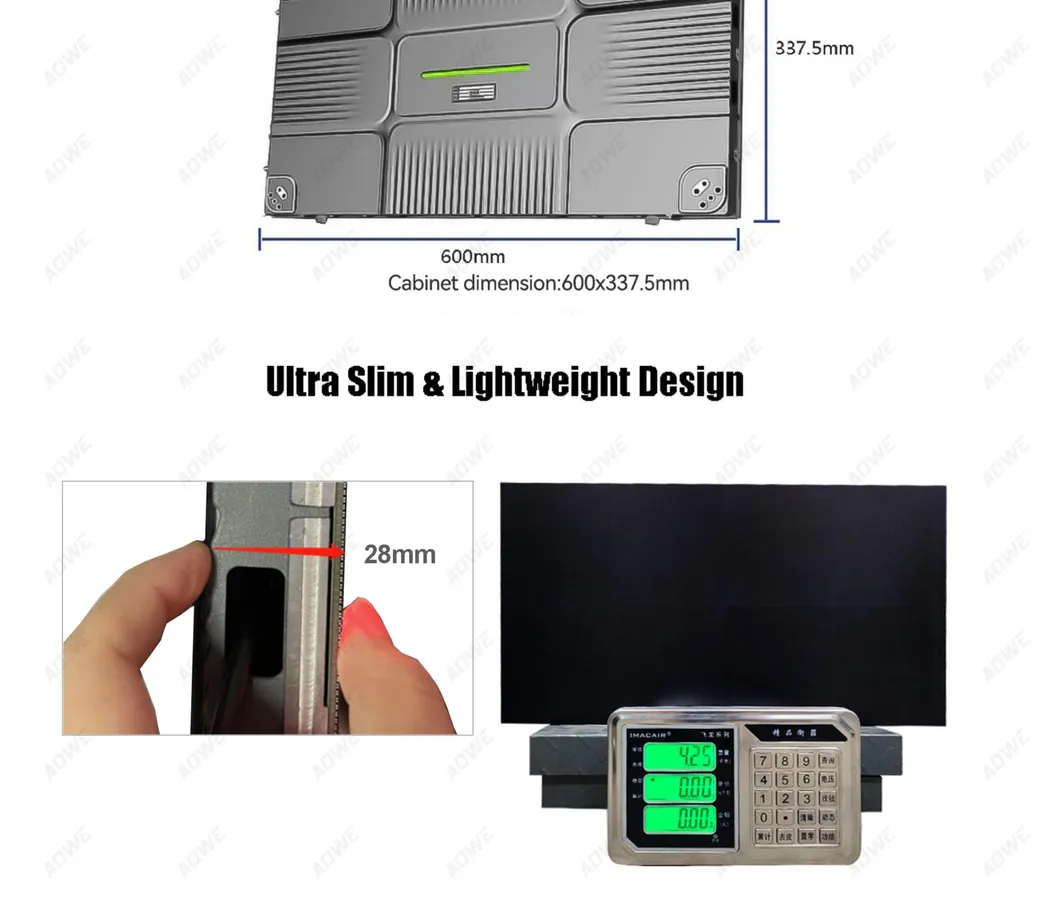

| Cabinet Size | 600 X 337.5mm |
| Service | Front Service |
| Material | Die-Casting Aluminum |

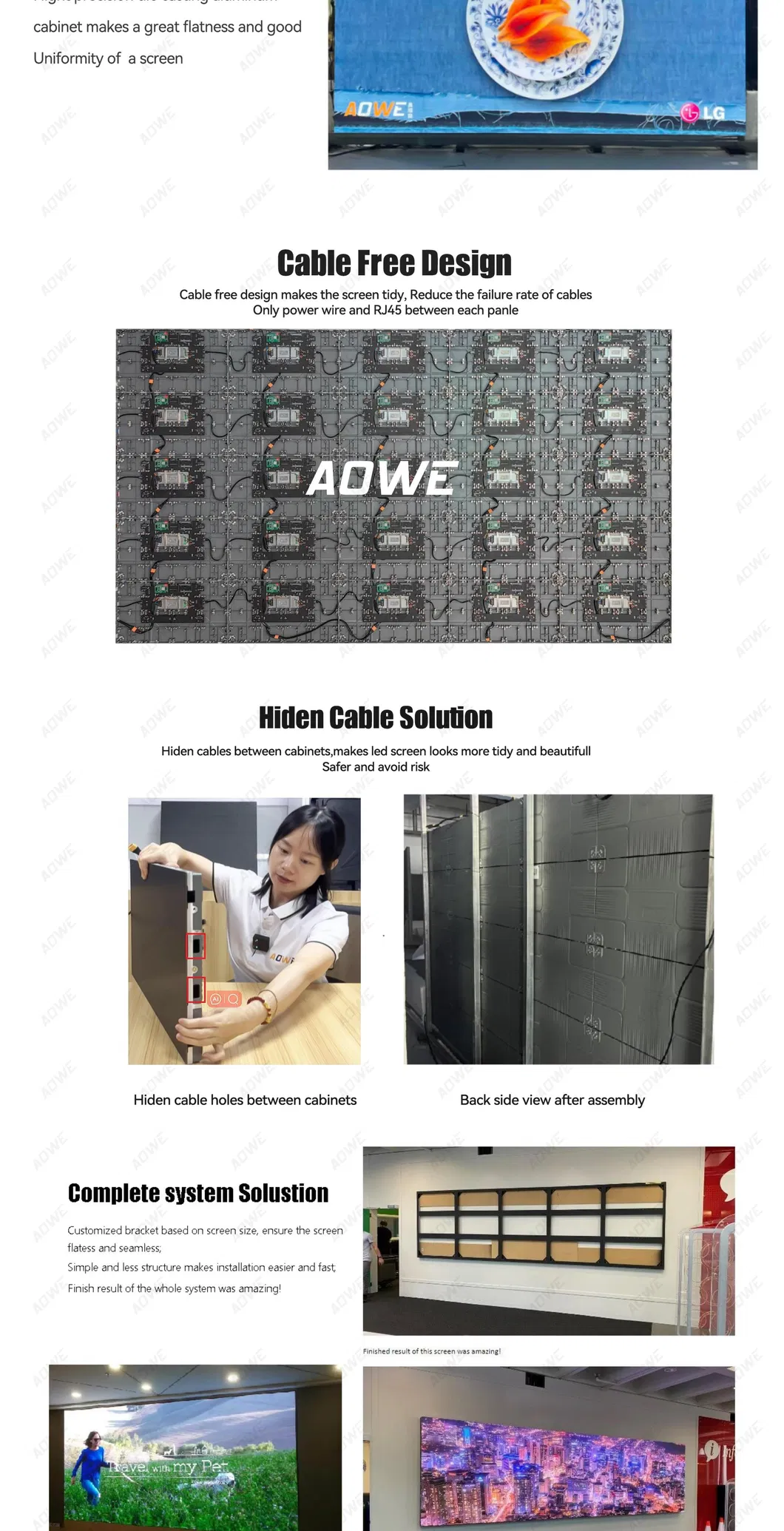

| Cabinet Design | Hard Connection with Cable Free Design |
| Cabinet Weight | 4.25kg |
| Refresh Rate | 3840Hz - 7,680Hz |

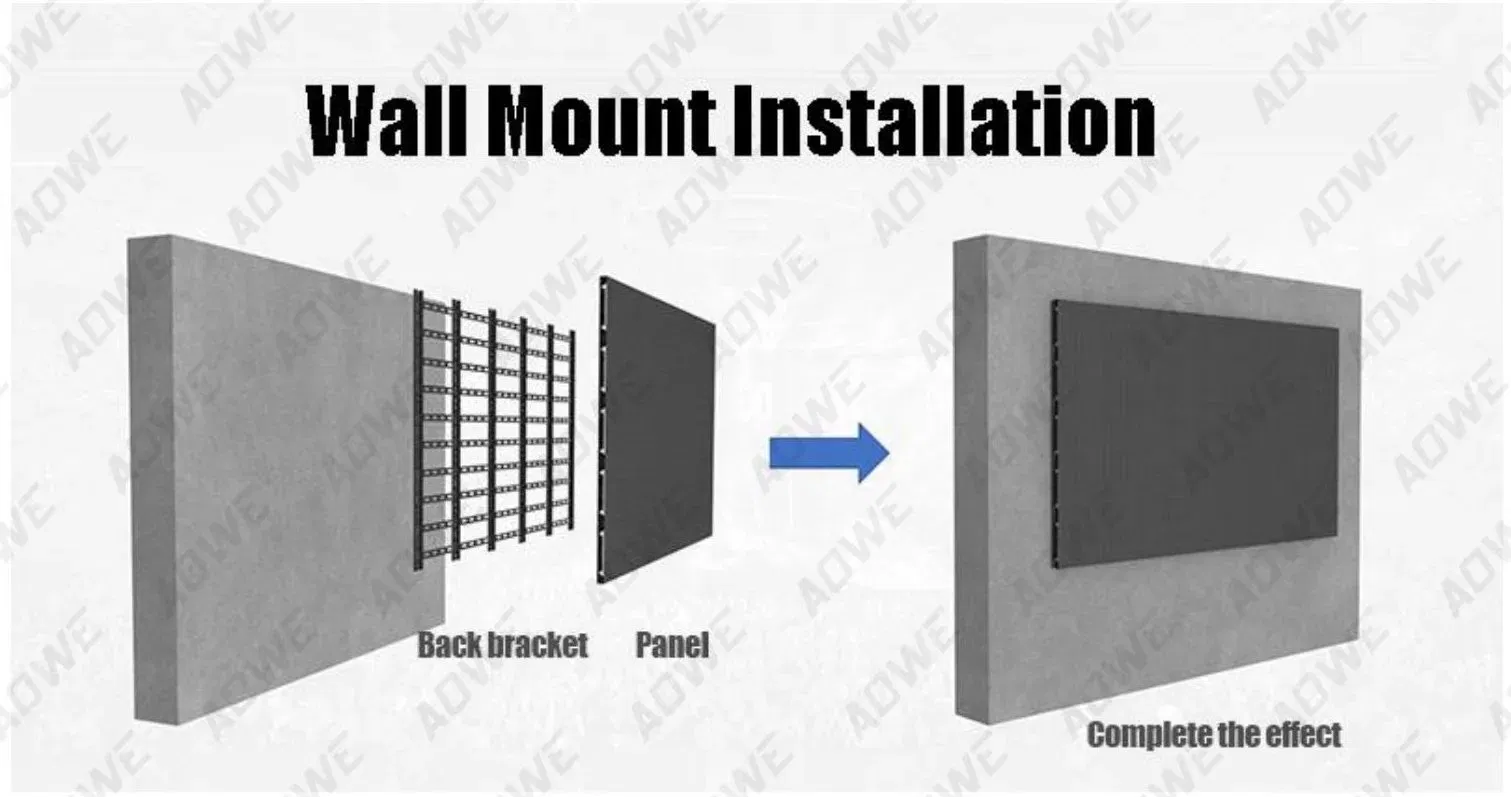

| Installation | Wall Mounted, Floor Standing, Hanging |
| Origin | Guangdong, China |
| HS Code | 8528591090 |

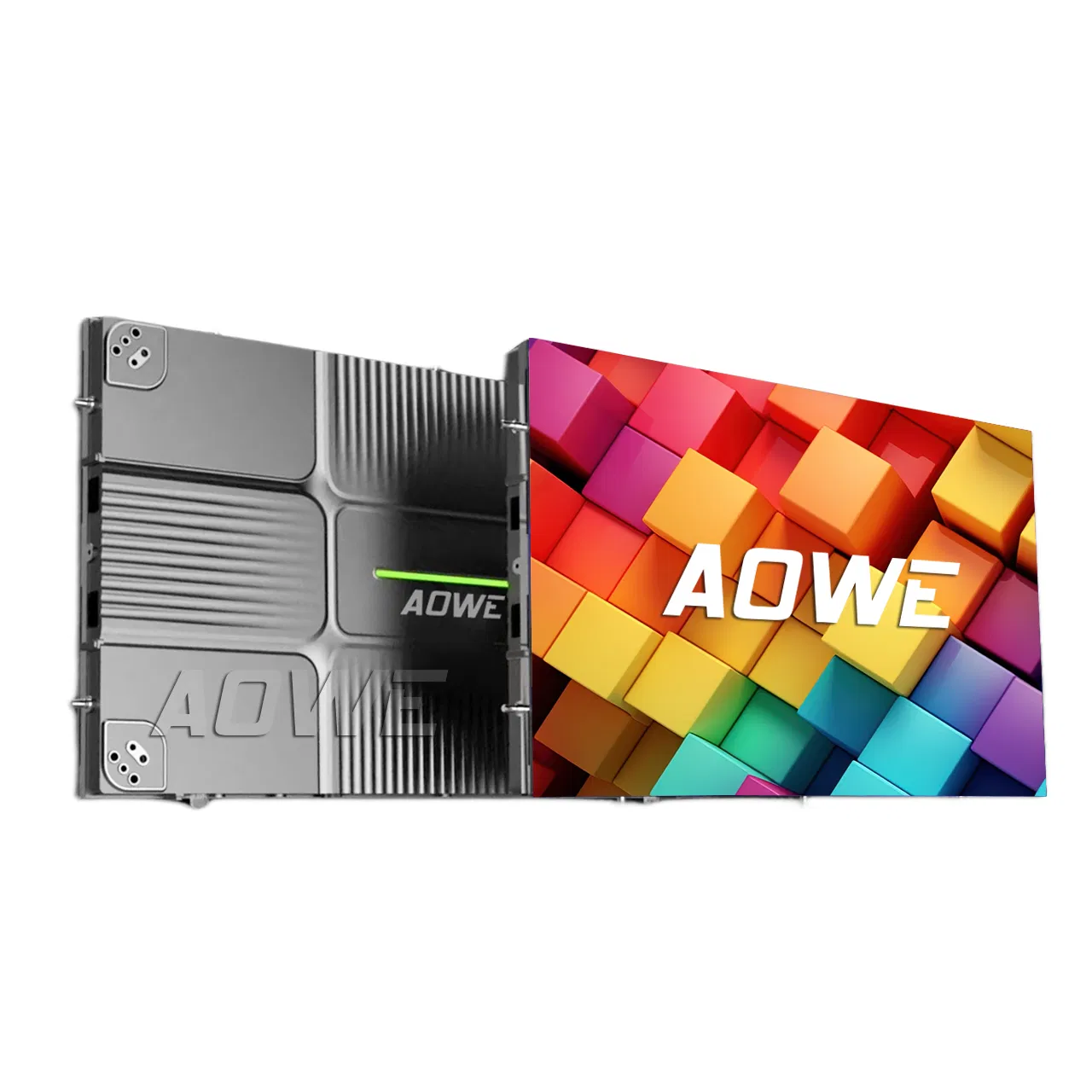

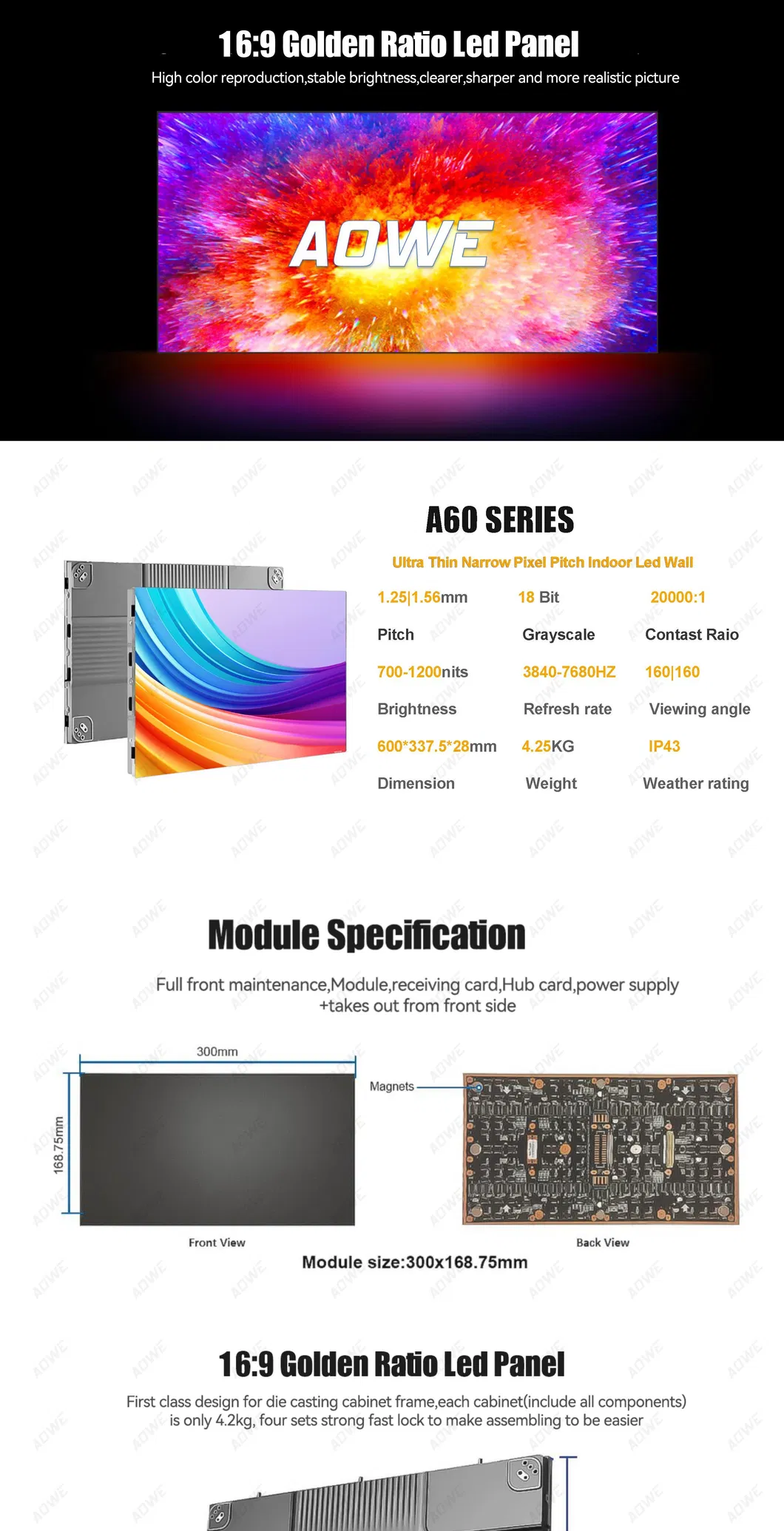

Introducing the High Density Ultra Thin Full Front Service Indoor LED Video Wall, designed for exceptional visual experiences. With a 16:9 ratio and a compact size of 600*337.5mm, this LED screen offers stunning image quality and seamless integration into any indoor environment. The ultra-thin design adds a modern touch while maximizing space efficiency.
The full front service feature allows for easy maintenance and hassle-free installation. Perfect for advertising, entertainment, or informational purposes, this LED video wall delivers vibrant colors and sharp details. Elevate your space with this high-density LED display that is sure to captivate your audience.
| Product Name | A60 |
| Pixel Pitch | 1.25mm / 1.56mm / 1.875 |
| Cabinet Size | 600*337.5mm |
| Cabinet Weight | 4.2kgs |
| Brightness | ≥800cd/m2 |
| Viewing Angle (V / H) | ≥160°(H), ≥160°(V) |
| Best Viewing Distance | 4-500 meters |
| Grey Scale | 65536 |
| Refresh Rate | 3840Hz - 7680Hz |
| Working Temperature | -30~60 Degree |
| Working Voltage | AC85-230V |
| Max. Power Consumption | 600W/m2 |
| Ave. Power Consumption | 268W/m2 |
| IP Protection Level | IP43 |

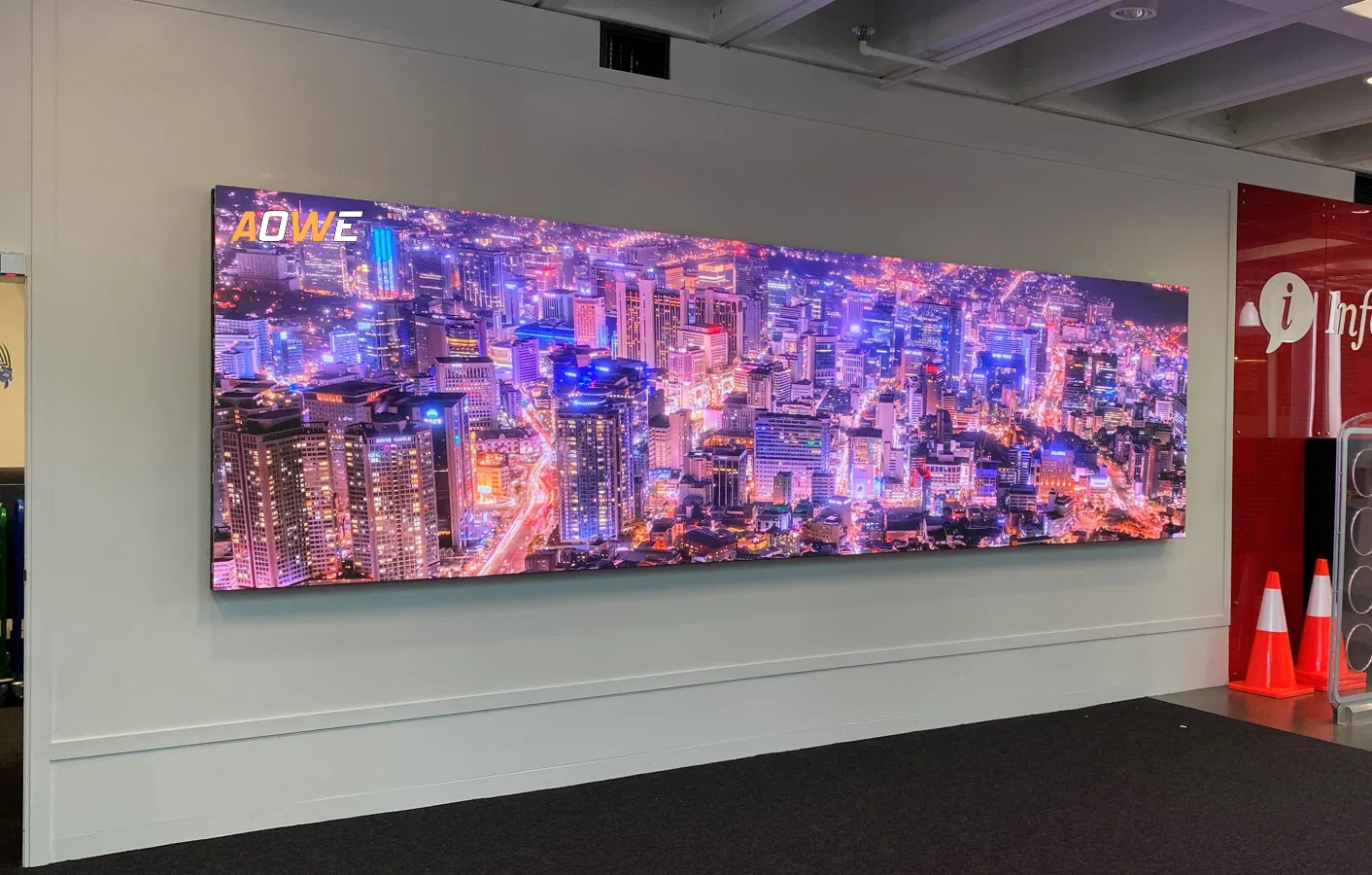

New Zealand: 6.4m x 1.44m

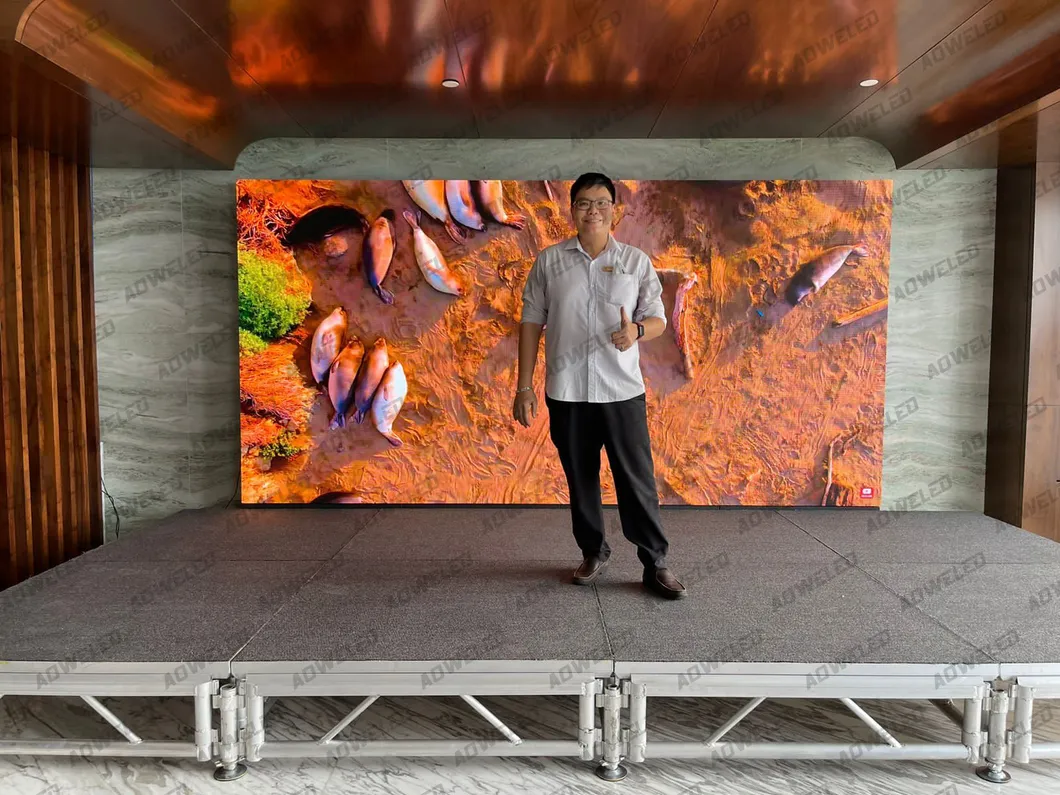

Malaysia: 4m x 2m

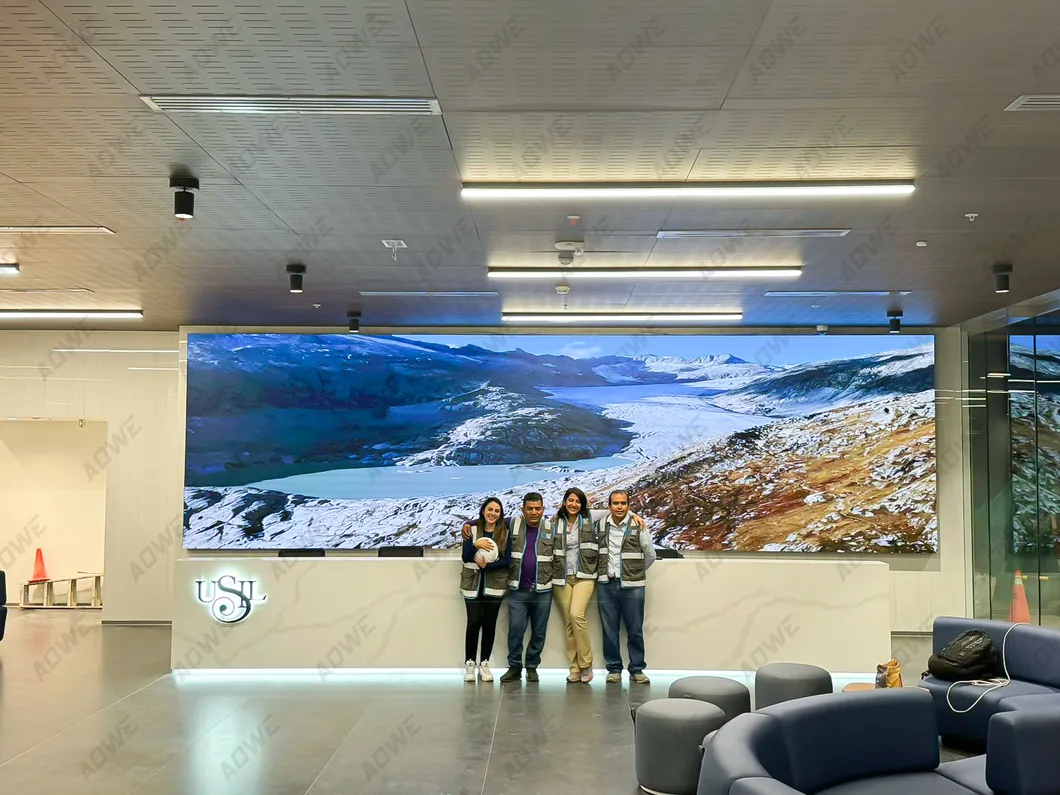

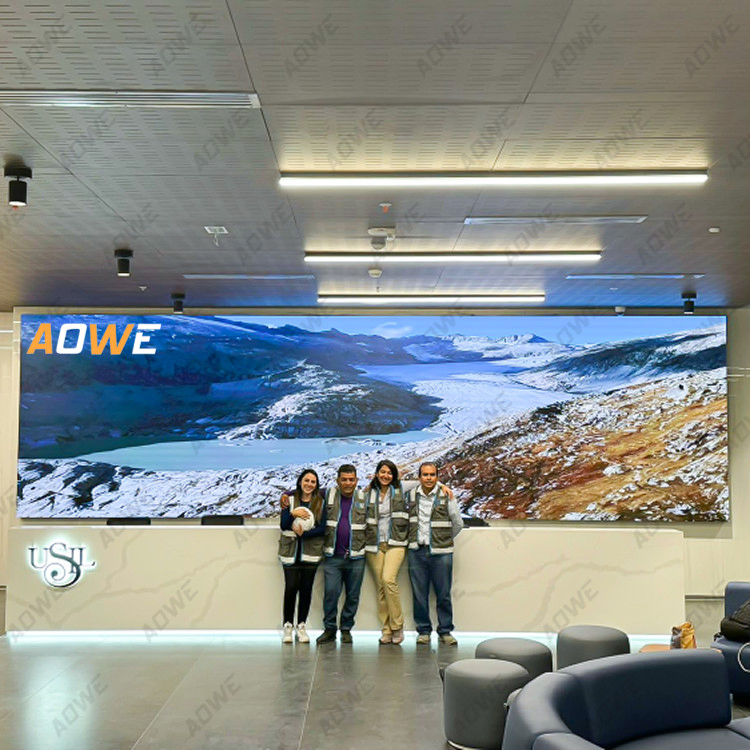

Peru: 8.32m x 2.4m, Wall Mounted

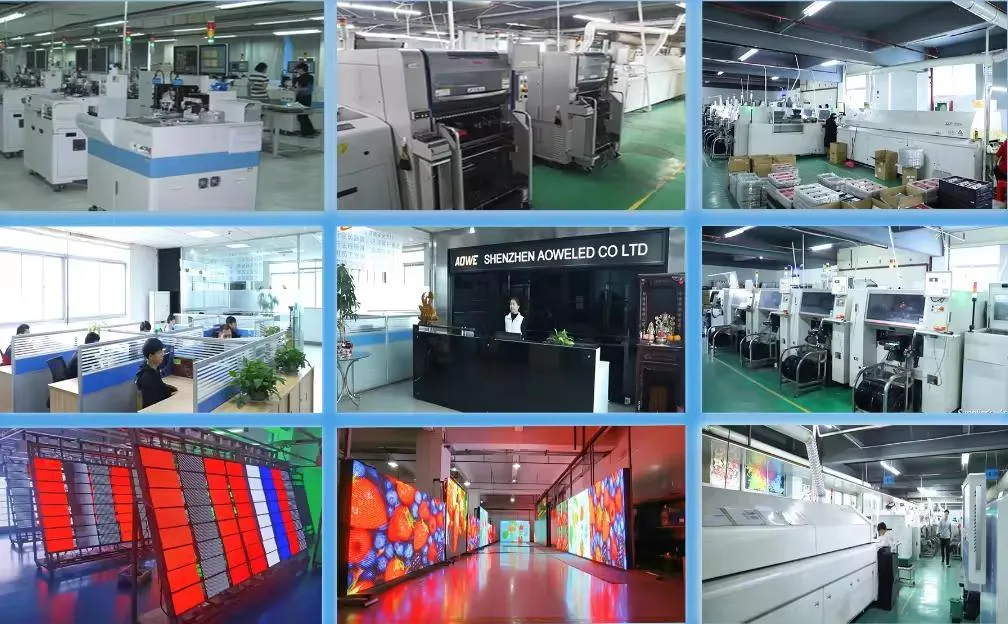

As a high-tech enterprise specializing in manufacturing LED displays since 2007, we operate with an independent purifying workshop, R&D center, and advanced producing/inspection equipment. Quality and service are our primary beliefs, supported by ISO certification and strong SMT assembly lines.

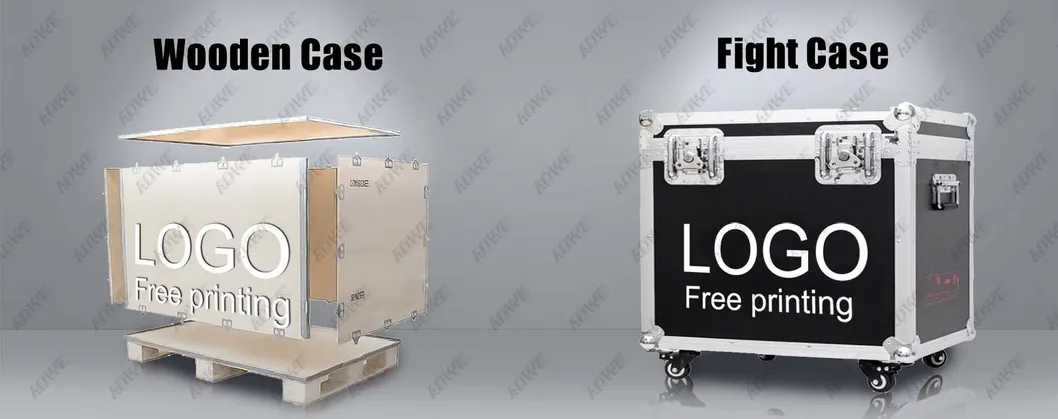

Wooden Case: For permanent installation
Flight Case: For mobile and rental installation
