Full Color P1.2 HD 4K SMD Small Pixel Pitch Indoor LED Advertising Billboard Video Wall Panel Screen Display

1 / 5

Full Color P1.2 HD 4K SMD Small Pixel Pitch Indoor LED Advertising Billboard Video Wall Panel Screen Display

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

AV1.2

Pixel Pitch

1.25mm

Pixel Configuration

1R,1G,1B

Pixel Density

129600dots/M2

Scanning Mode

1/60s

System Platform

Windows10

Display Type

LED Dot Matrix Display

Application

Stage Performance, Advertising, Shopping Guide

IP Rating

IP50

Certification

CE, RoHS, CCC

Maintenance

Front Maintenance

Refresh Frequency

3840Hz

Cabinet Resolution

480*270dots

Processing Depth

13bit

Lifespan

50000hours

Specification

600mm*337.5mm*27mm

Product Description

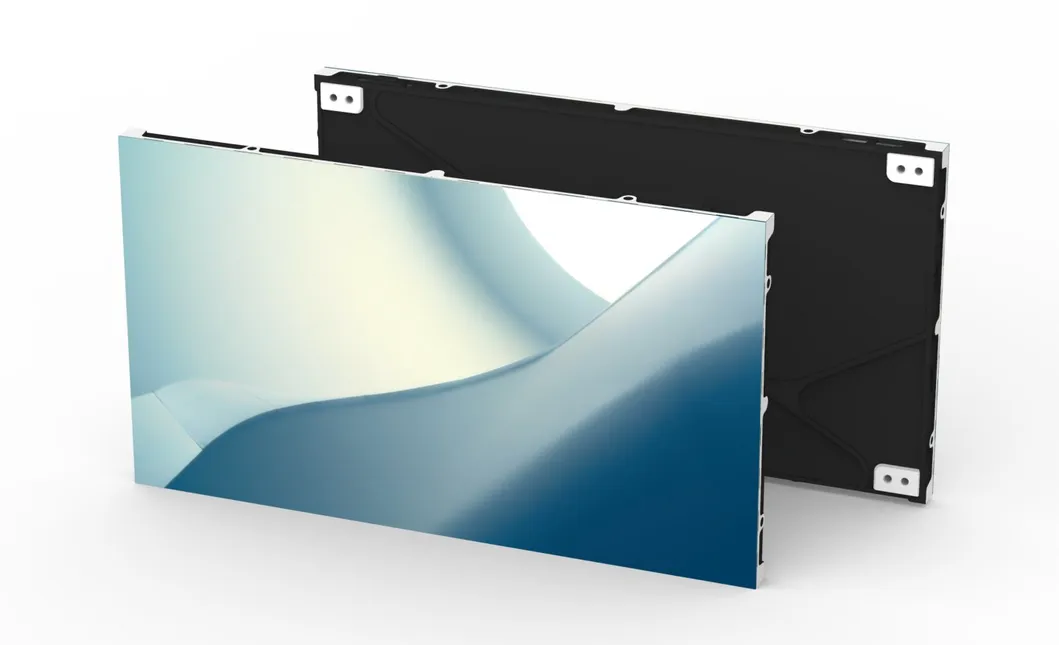

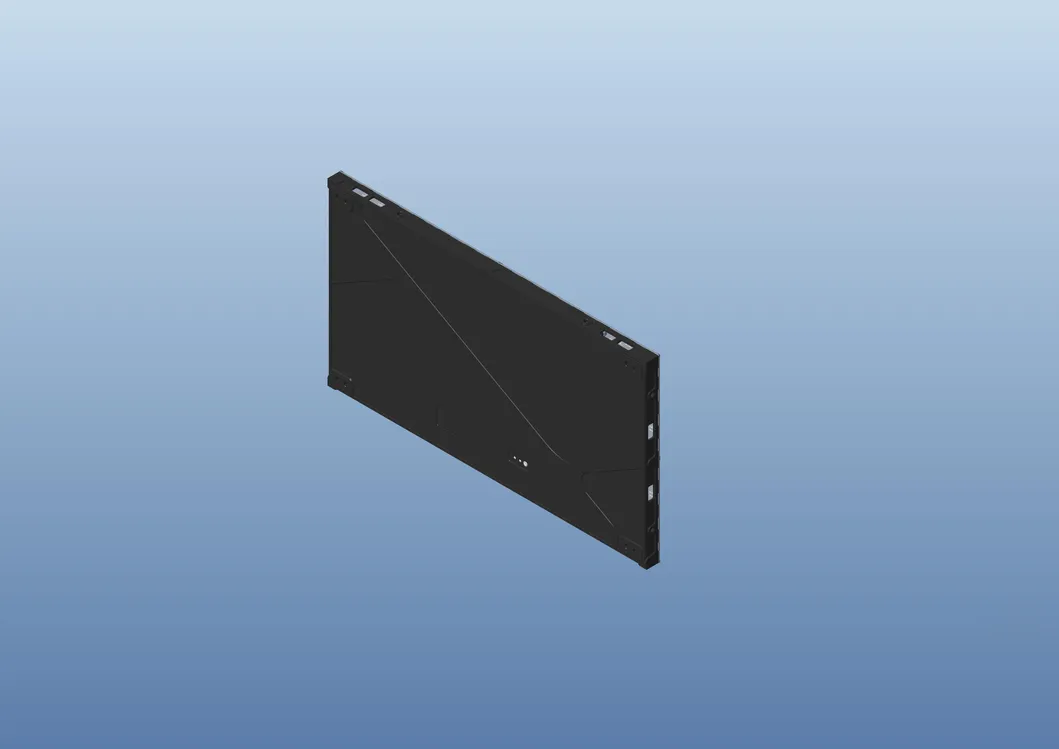

Ultra-thin design: The thickest part is only 27mm, and the panel weight is less than 5KG.

Integrated Architecture: Three-in-one design of power supply, HUB card and receiving card for easy maintenance.

Perfect Ratio: 16:9 aspect ratio realizes point-to-point splicing for 720P, 1080P, 4K, and 8K.

Visual Quality: Grayscale display above 14bit under 300nits brightness and 5000:1 contrast ratio.

Cast Aluminum: Heat dissipation technology with high precision and light weight.

Silent Operation: Fanless design ensures a completely silent environment.

Detailed Parameters

Parameter Name		Product Details
Unit Parameters	Pixel Pitch	1.25mm
	LED Type	SMD
	Unit Resolution	480*270 Dots
	Unit Weight	4.5kg/panel
	Unit Size (WxHxD)	600mm×337.5mm×27mm
	Unit Ratio	16:9
	Material	Die-cast aluminum
Optical/Electrical	Brightness	600nit (7500K)
	Max Power	90w per unit
	Viewing Angle	H: 160°; V:160°
	Contrast Ratio	5000:1
	Input Voltage	AC 90~264V (50/60Hz)
Performance	Gray Scale	16384 levels per color
	Frame Rate	50/60Hz
	Refresh Frequency	3840Hz

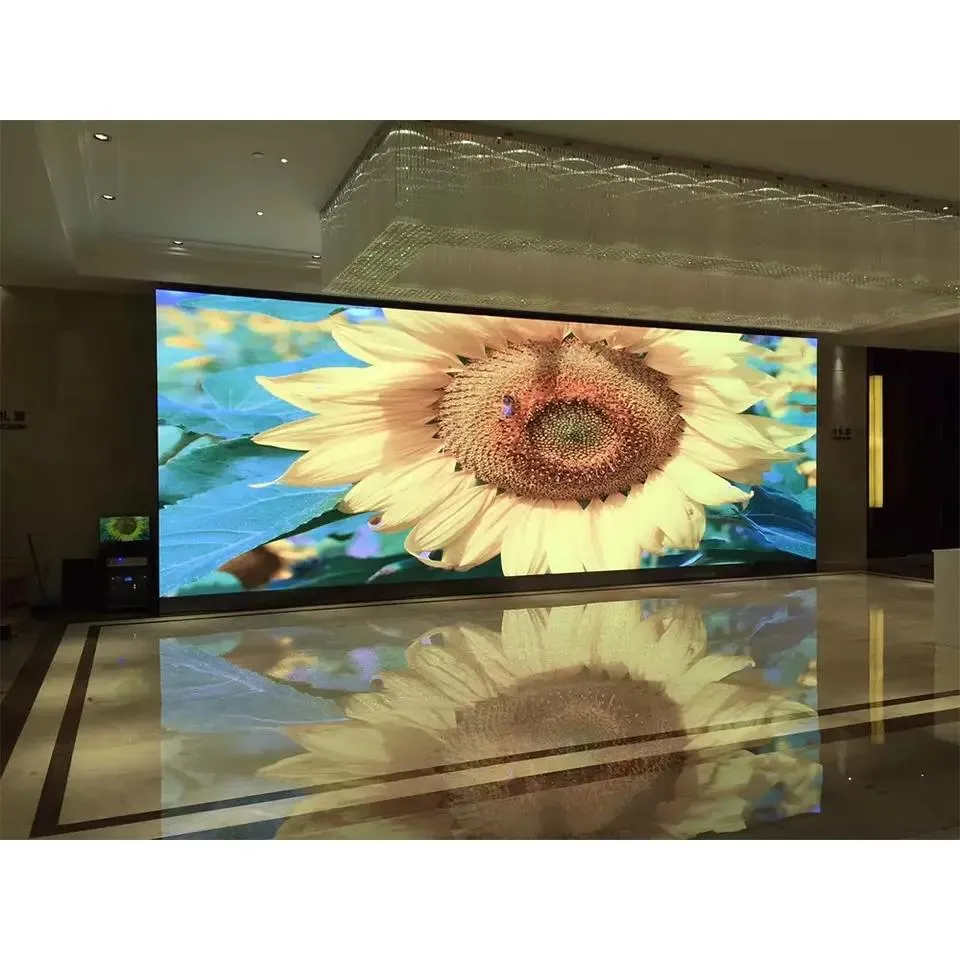

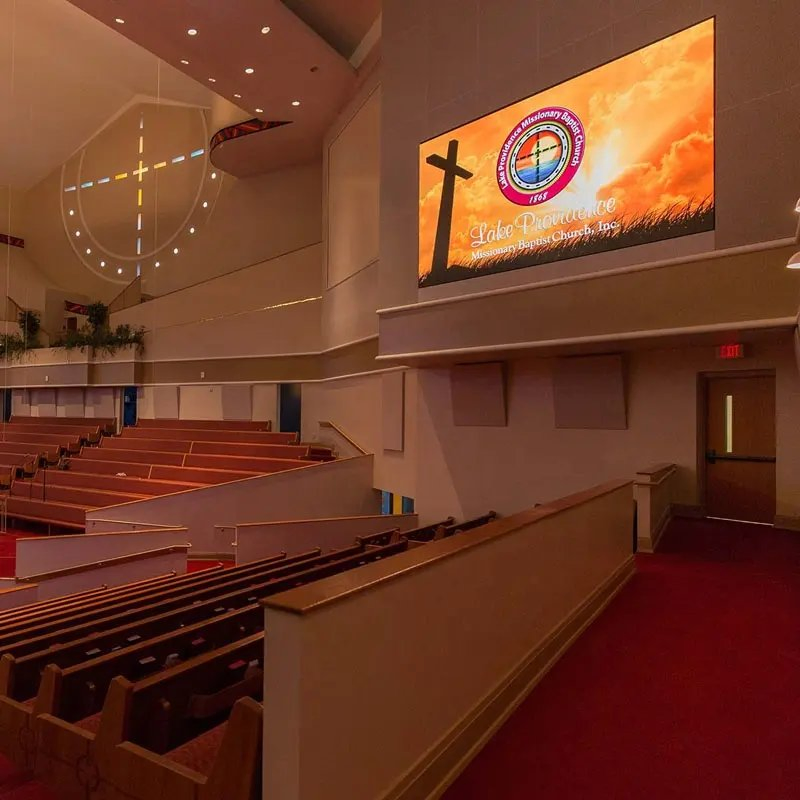

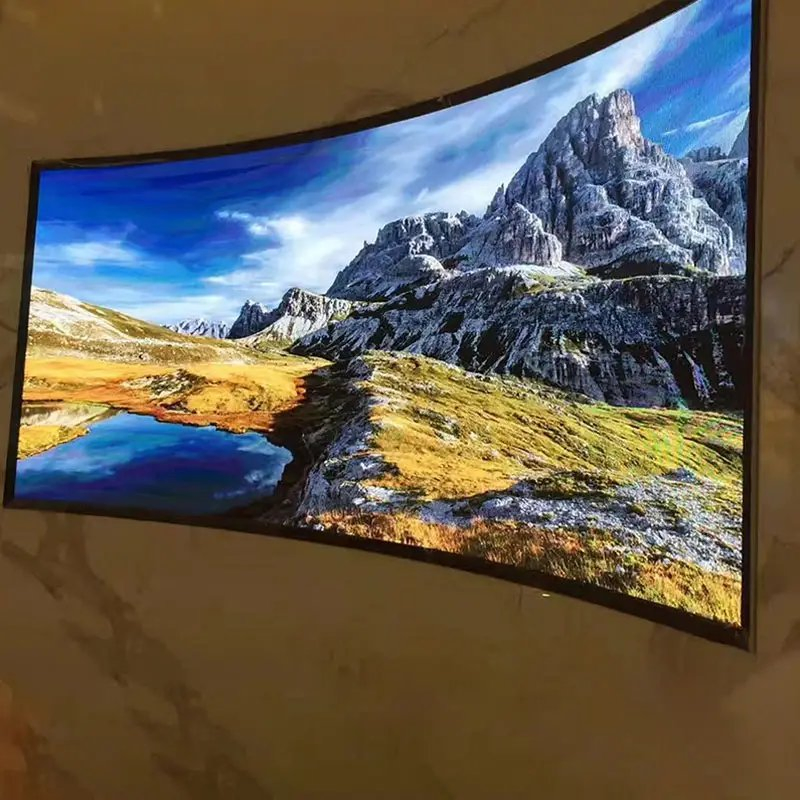

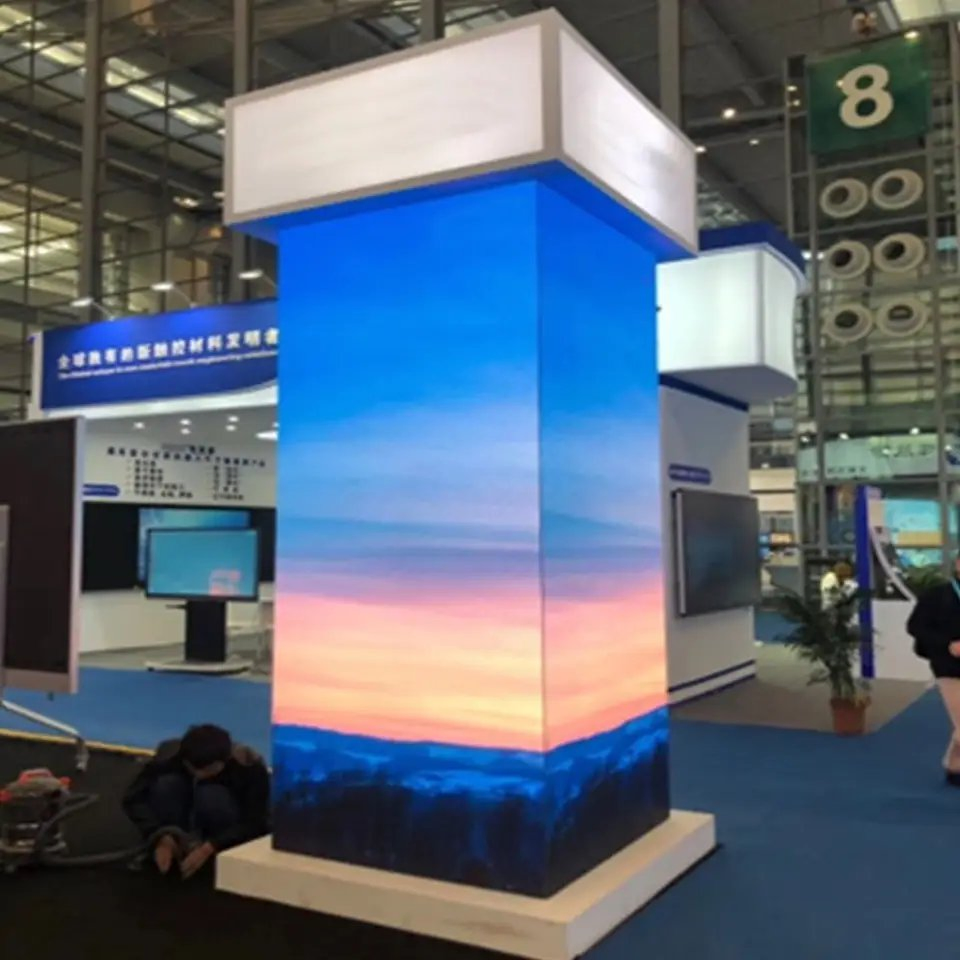

Product Gallery

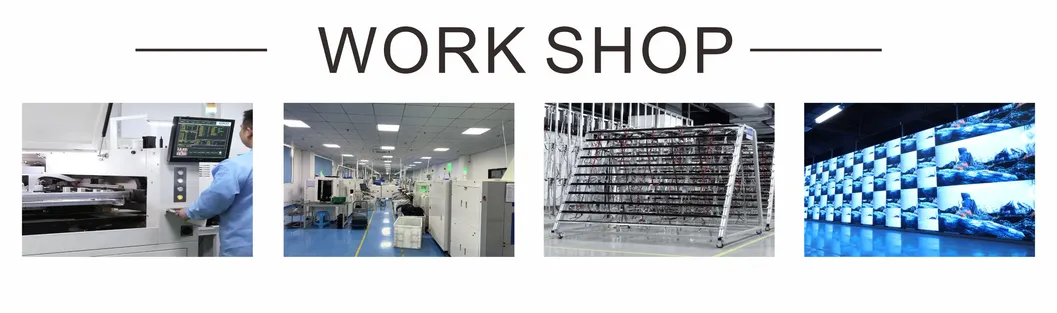

Production & Quality Control

Frequently Asked Questions

What is the pixel pitch and resolution of this model?

This model features a 1.25mm pixel pitch with a unit resolution of 480*270 dots, making it ideal for high-definition indoor displays.

Does this LED display support 4K or 8K resolution?

Yes, the unit aspect ratio is 16:9, which allows for perfect point-to-point splicing to achieve 720P, 1080P, 4K, 8K, and higher resolutions.

How difficult is the maintenance for this screen?

The product is designed for pure front maintenance, and the three-in-one integrated design of the power supply and cards makes it very easy to service.

Is the display noisy during operation?

No, the unit uses a fanless and silent design combined with cast aluminum technology for natural heat dissipation, ensuring quiet operation.

What is the typical lifespan and refresh rate?

The display has a lifespan of ≥50,000 hours and a high refresh frequency of 3840Hz, ensuring smooth and long-lasting performance.

What kind of applications is this LED wall suitable for?

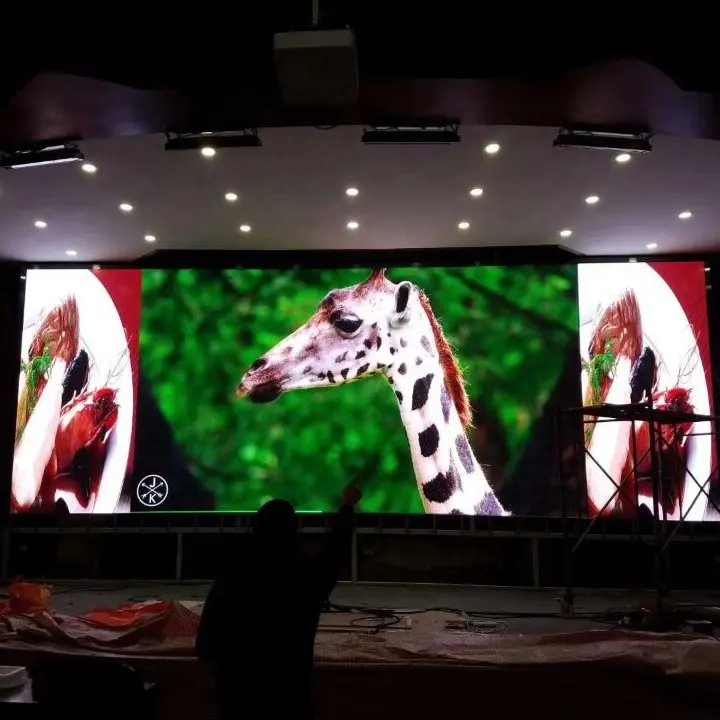

It is perfect for indoor environments such as stage performances, high-end advertising, shopping guides, and command centers.
