Product Description

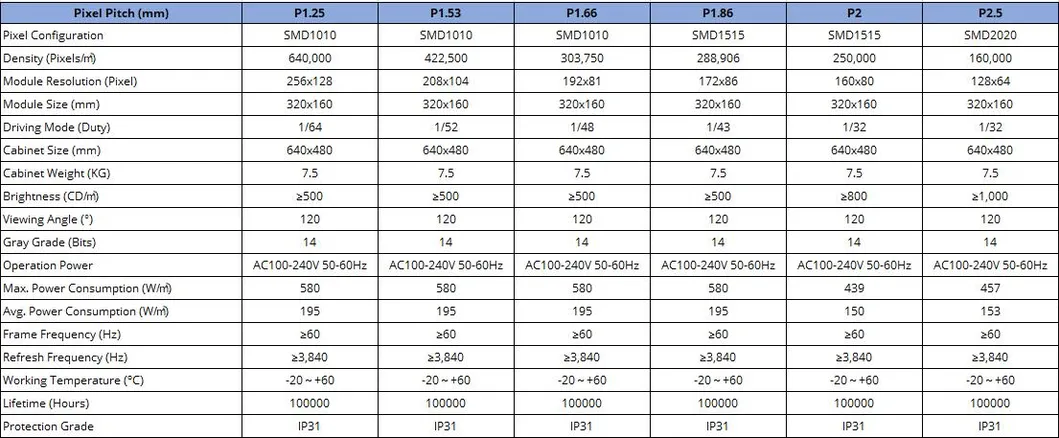

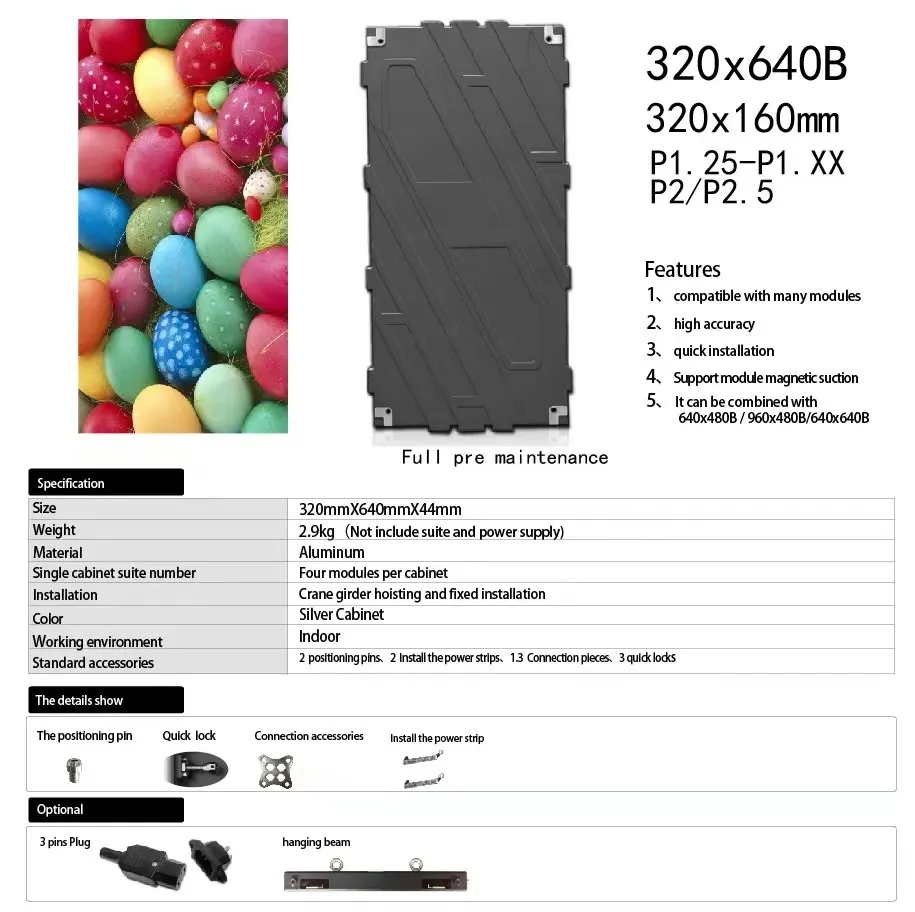

📊 Basic Specifications
Model NO.
FI-B 320*640 B
Pixel Pitch
2.5mm
Pixel Density
160,000 Dots /M^2
Scanning Mode
1/32 Scan
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP31
Cabinet Material
Aluminum
Cabinet Size
320mm*640mm*44mm
Cabinet Weight
2.9 Kg
Refresh Frequency
≥1920 Hz
Power Consumption
Avg 350 W / M^2
📝 Product Description

The FI-B 320*640 B series indoor LED display is a high-quality solution widely utilized globally across Europe, North America, and Southeast Asia. Its primary advantage lies in displaying high-definition images while maintaining remarkably low power consumption. Constructed with a die-casting aluminum cabinet, it is ultra-thin, ultra-light, and offers superior heat dissipation, making it ideal for various indoor environments.

✨ Main Features

Excellent Performance

Adopting high quality SMD2020, this series owns a high refresh rate and fine pixel pitch for extremely clear video playback. High brightness and wide viewing angles fully satisfy indoor display demands.

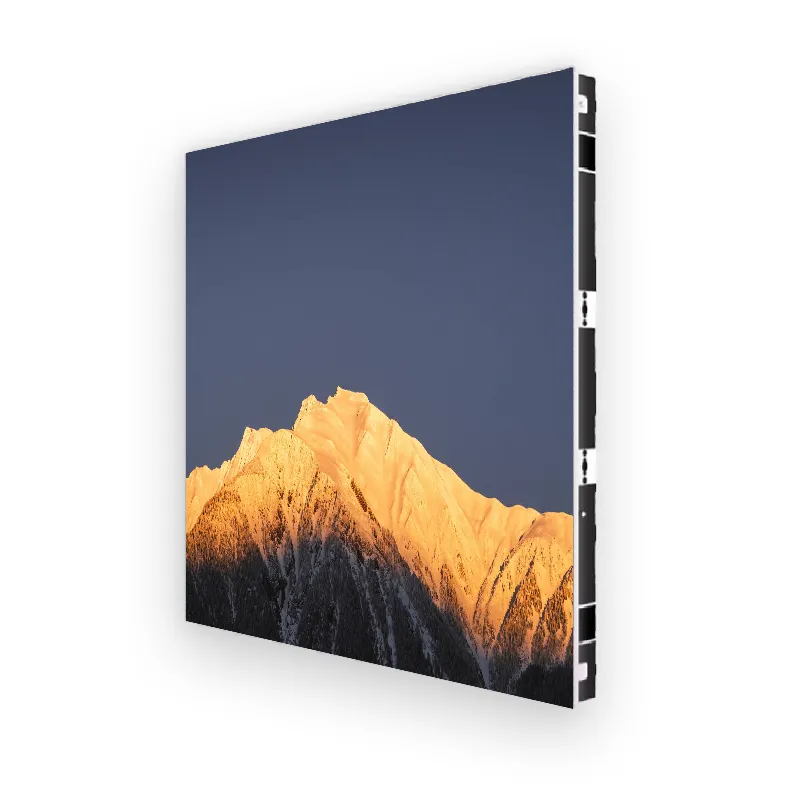

Performance Detail

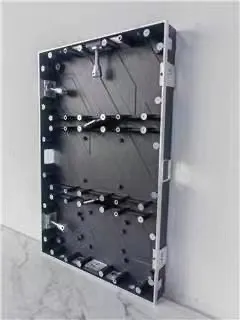

Light & Thin Design

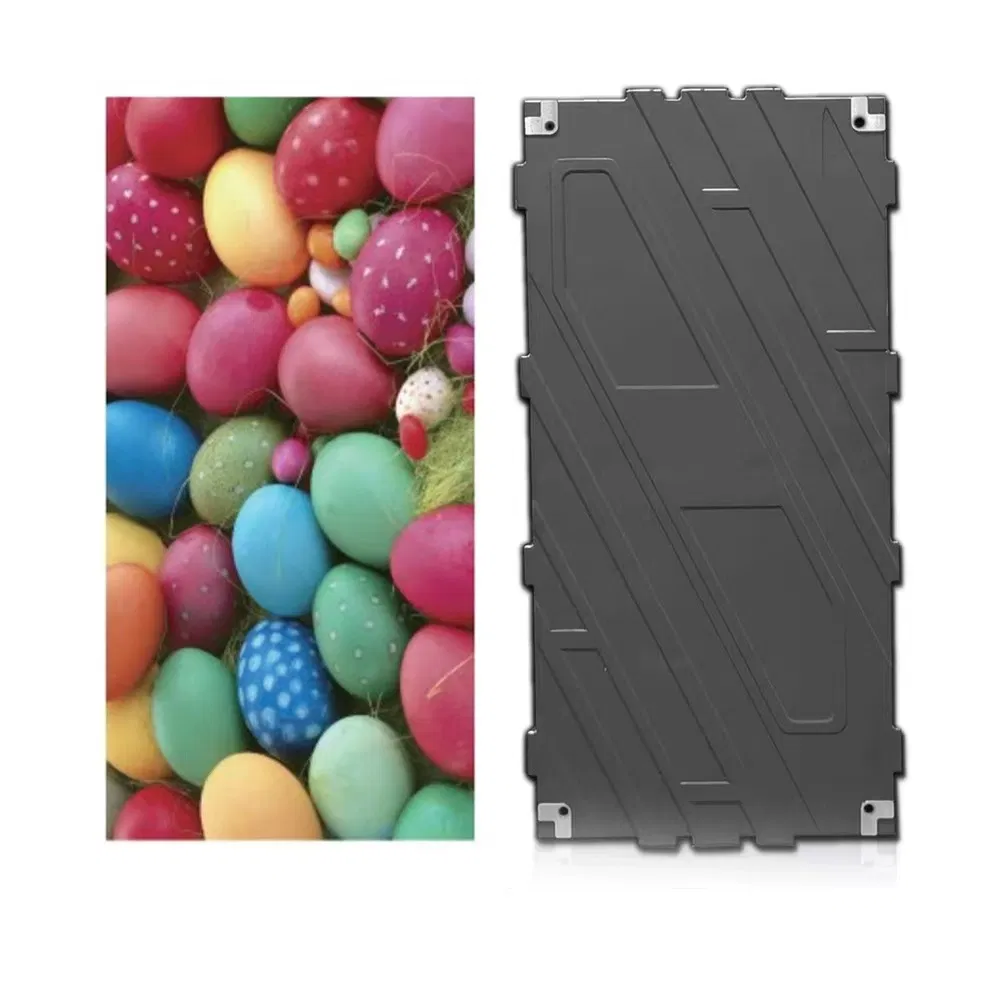

Utilizing a die-casting aluminum cabinet, the unit weighs only 2.9kg and is just 44mm thick. This exquisite appearance facilitates easy installation and saves significant space.

Lightweight Design

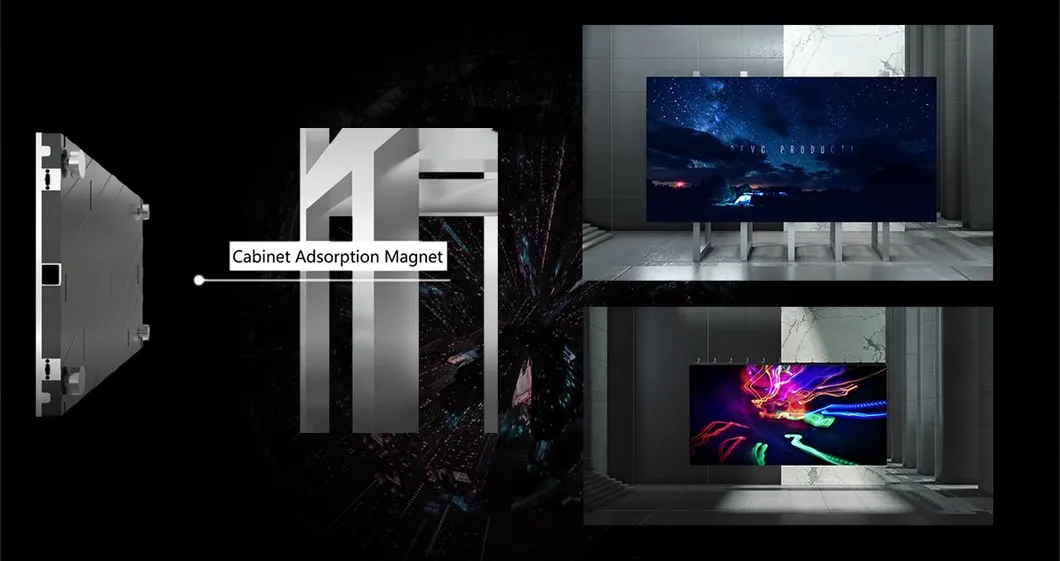

Multiple Installation Options

Supports wall-mounting, frame installation, magnet absorption, and hanging. It also supports 90-degree splicing to adapt to different structural requirements.

Installation Modes

Lower Energy Consumption

While maintaining powerful performance, the FI-B consumes less power compared to similar products, reducing electricity costs and environmental impact.

Energy Saving
🛠️ Hardware Features

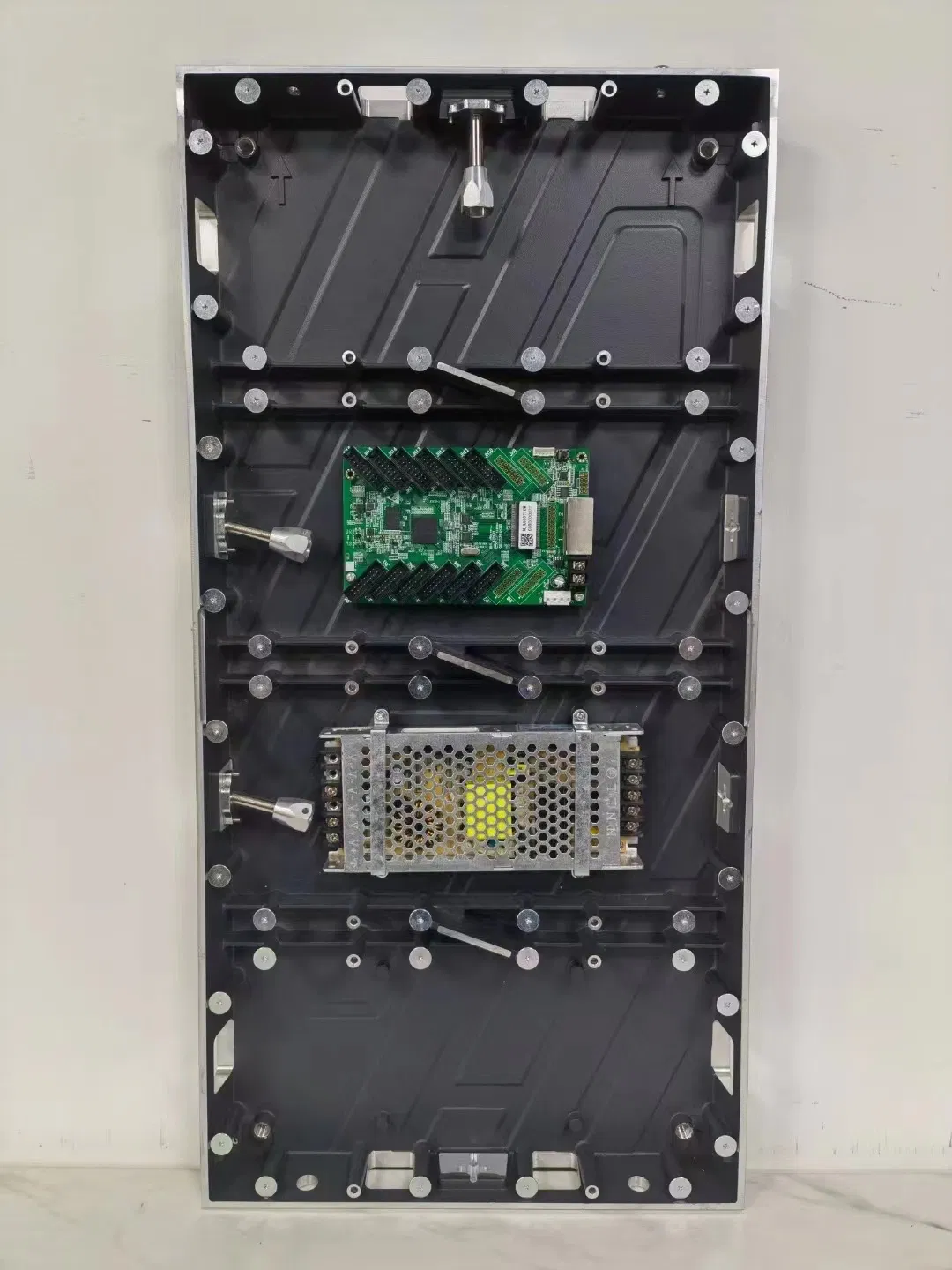

  • Plug-in connection design for improved stability and simplified maintenance.
  • New cast aluminum shell for lightweight precision and fast heat dissipation.
  • Point-to-point modular design supporting both front and back maintenance.
  • HD video wall modularity for seamless connection and smooth viewing experiences.

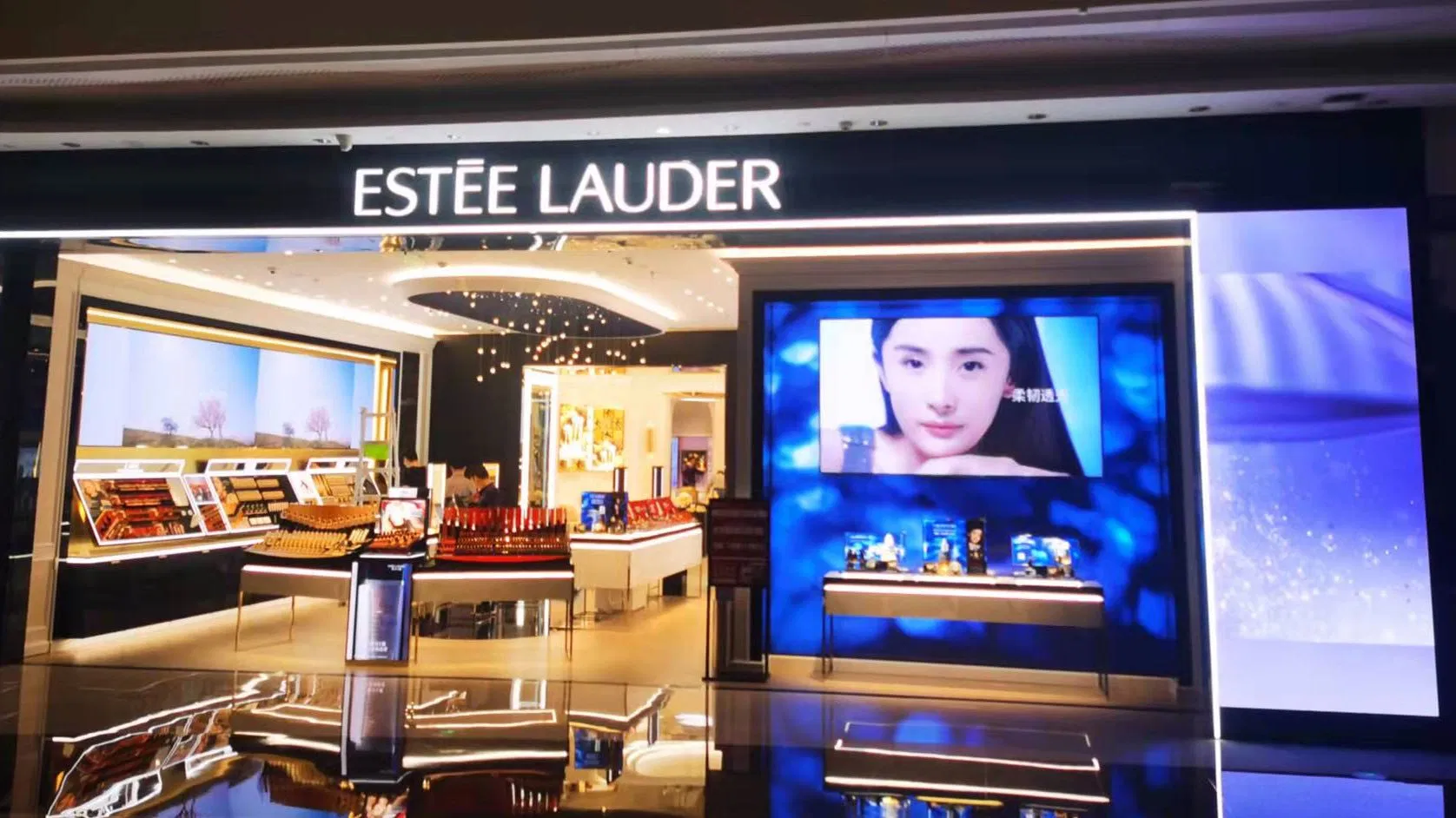

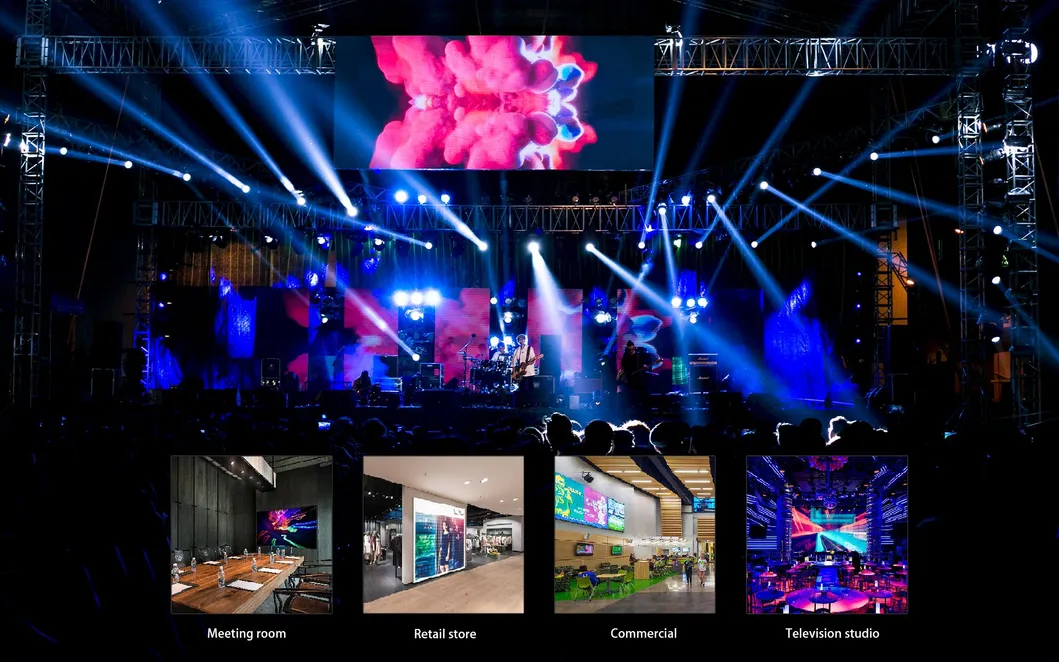

📍 Application Scenes
Distribution Mode
⚠️ Attention: It is recommended to purchase enough LED display modules for spare replacement at once. Modules from different batches may have slight color differences due to production variations.
❓ Frequently Asked Questions
Q1. Can I have a sample order for LED display? A: Yes, we welcome sample orders to test and check quality for both individual modules or complete displays.
Q2. What is the typical lead time? A: Approximately 2-3 weeks. For customized LED displays, the process normally requires around 35 days.
Q3. How do you ship the goods and how long does it take to arrive? A: We mostly accept FOB trade terms. Shipping by sea usually takes 20 to 30 days plus a few days for customs clearance.
Q4. How to proceed with an order? A: 1. Provide your requirements or application. 2. We quote based on those needs. 3. Confirm design documents and place a deposit. 4. Balance payment followed by production arrangement.
Q5: Do you offer a guarantee for the products? A: Yes, we offer a 1-2 year warranty depending on the specific product type.
Q6: Is maintenance difficult for these panels? A: No, the modular design supports both front and back maintenance, making it easy for field service.
