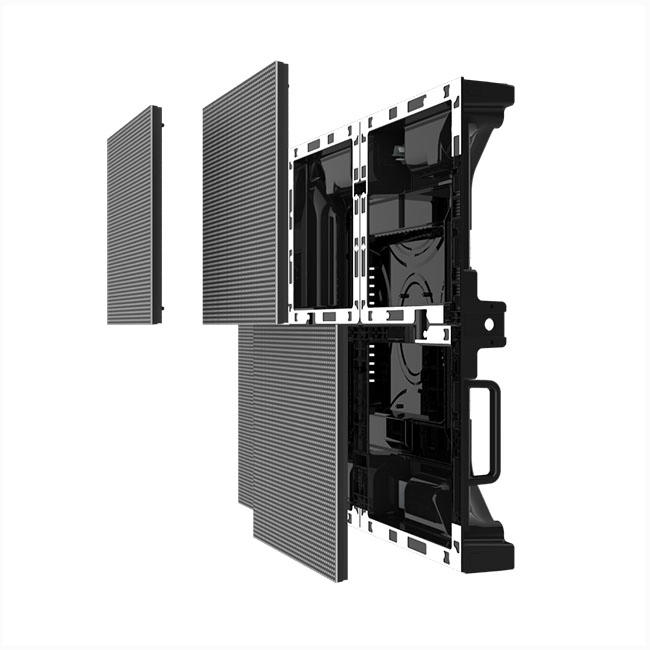

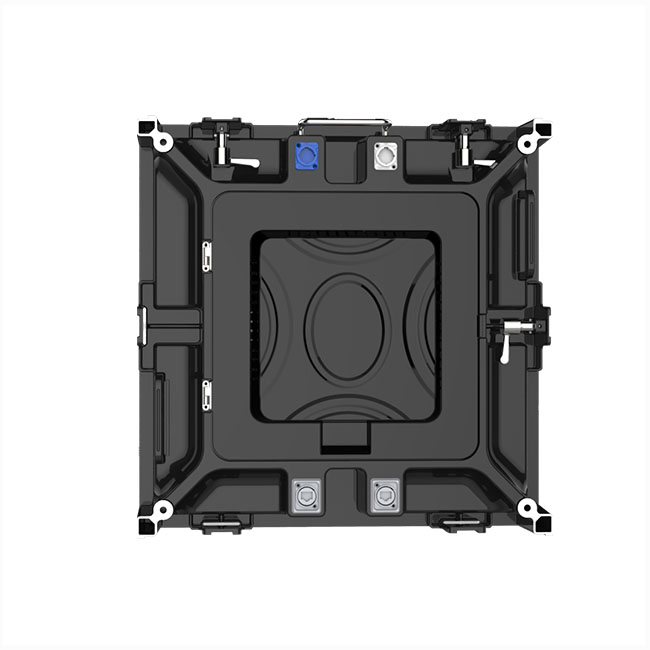

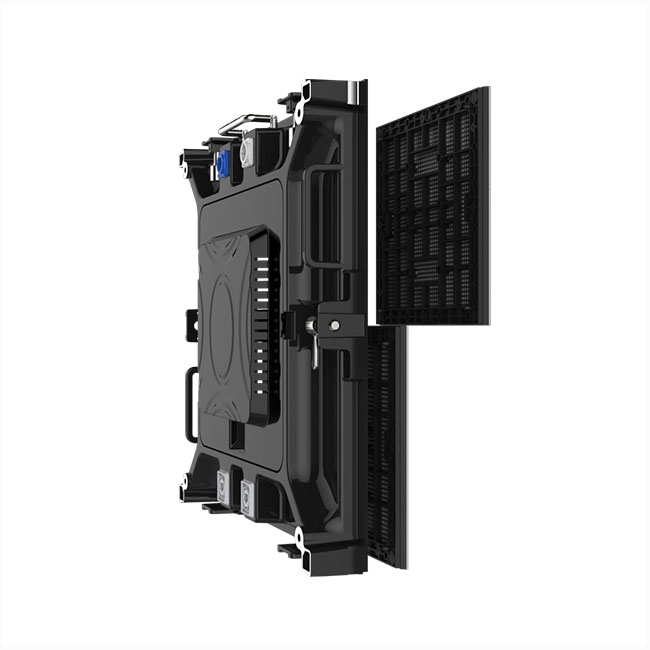

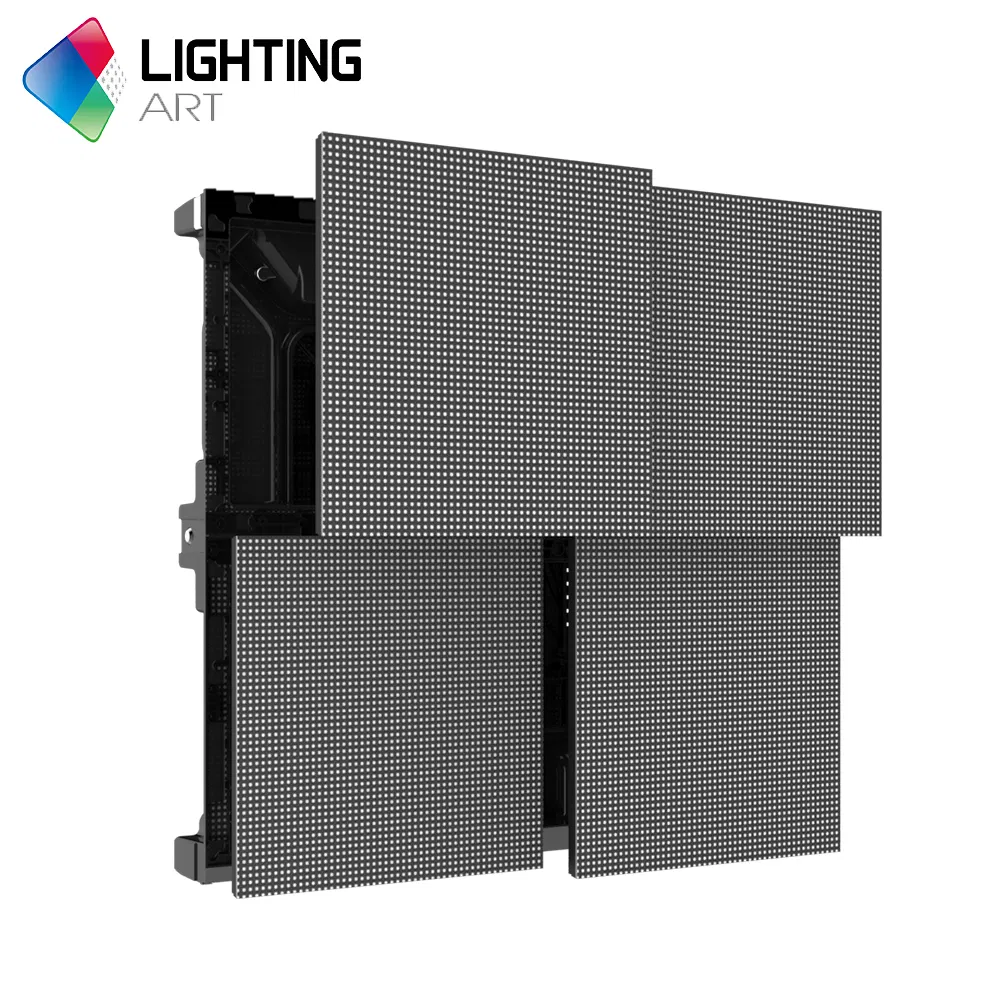

P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
1 / 5
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall
P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall

P1.579 Indoor LED Display Screen SMD HD Small Pixel Pitch Wall

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
UHD-1.579
Pixel Pitch
1.579 mm
Configuration
1R, 1G, 1B
Pixel Density
401,111 DOT/M2
Scanning Mode
1/26 Scan
Brightness
600 CD/Sqm
IP Rating
IP30
Cabinet Material
Die Cast Aluminum
Module Size
240*240 mm
Certification
CE, FCC
D

Product Description

Advanced Indoor Solutions: This high-definition LED screen is designed for indoor fixed and rental installations, featuring an ultra-small pixel pitch for superior clarity. The intimate design eliminates the need for a mask, ensuring a sleek appearance.

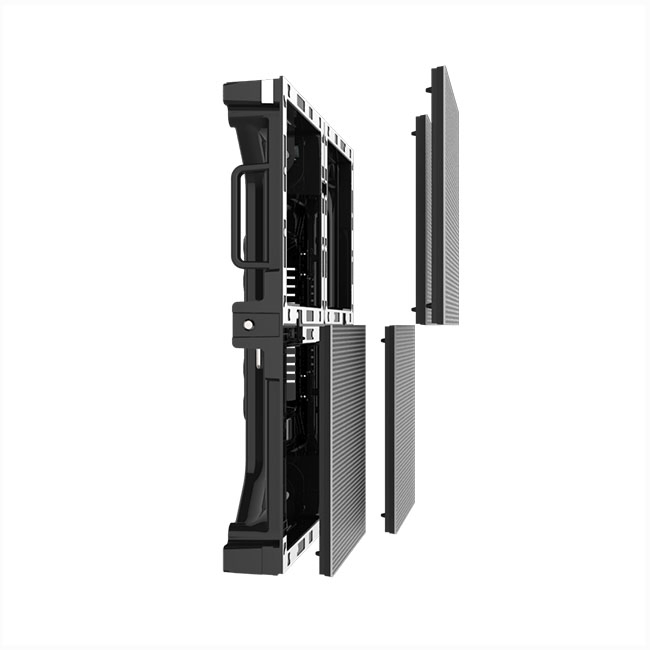

  • Supports both front and back maintenance for easy accessibility.
  • Exceptional color performance with high ingenuity and beauty.

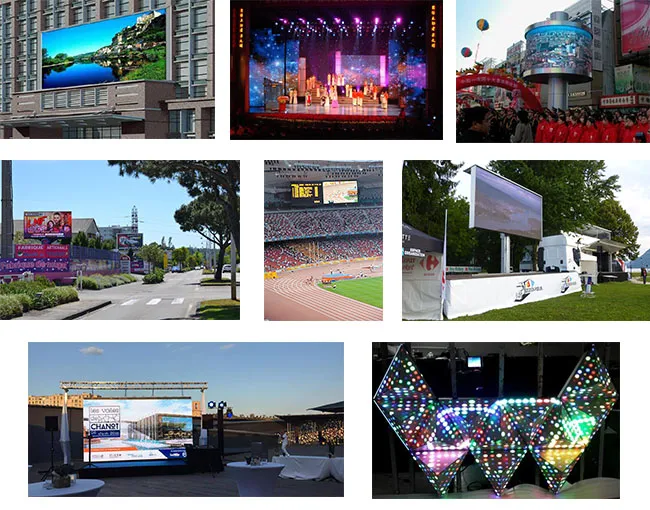

  • Versatile applications including stage performances, advertising, and shopping guides.
P1.579 Indoor LED Display
T

Technical Parameters

LED & Module Details
Pixel Pitch P1.579 LEDs Type SMD1010
Module Size 240*240 mm Module Resolution 152*152 dots
Working Voltage 5V Shell Material Hi-quality anti-fire PC
LED Chip
LED Module
Cabinet & Screen Specifications
Cabinet Size 480*480*88 mm Cabinet Resolution 304*304 dots
Cabinet Weight 6.8 KG Protection Level IP65 (Front/Back)
Viewing Angle H: 170° / V: 140° Refresh Rate >1920 Hz
Max Power 462 W/sqm Average Power 182 W/sqm

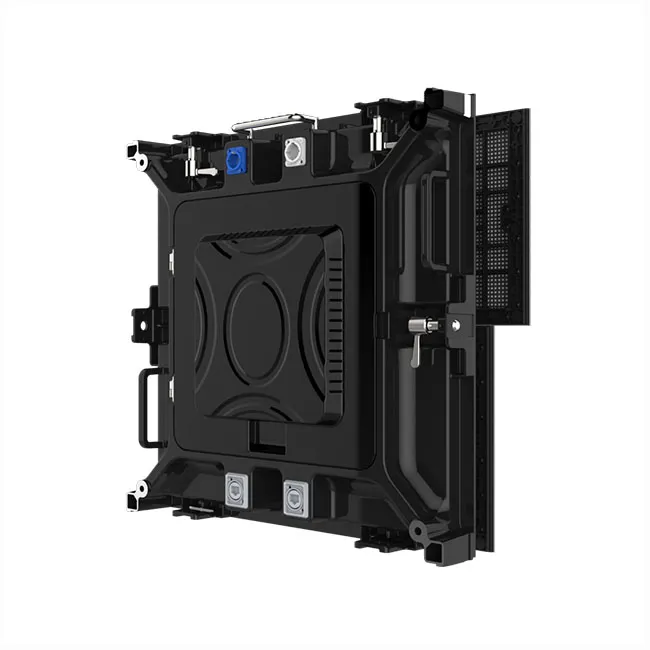

LED Cabinet

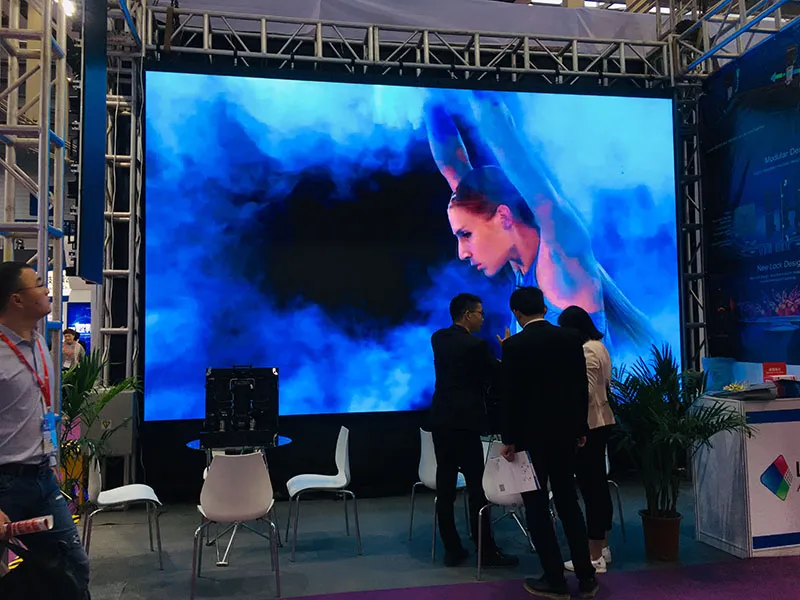

Whole LED Screen
P

Quality Control & Packing

Every module undergoes rigorous aging and grayscale testing. Our production facility utilizes high-technology automatic machines and skilled technicians with years of experience to ensure the highest quality standards.

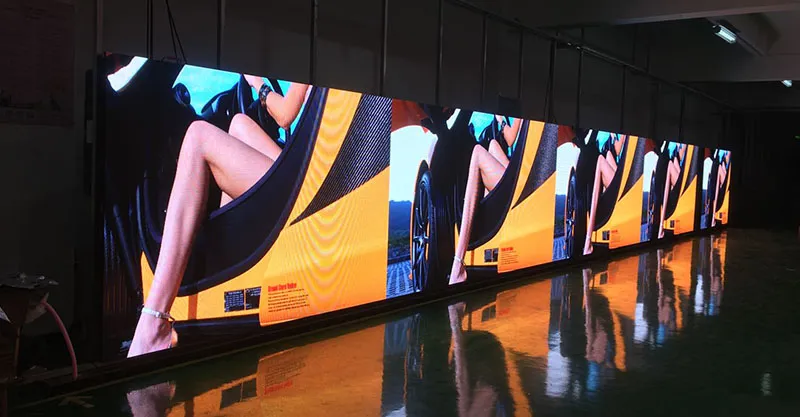

Aging Test

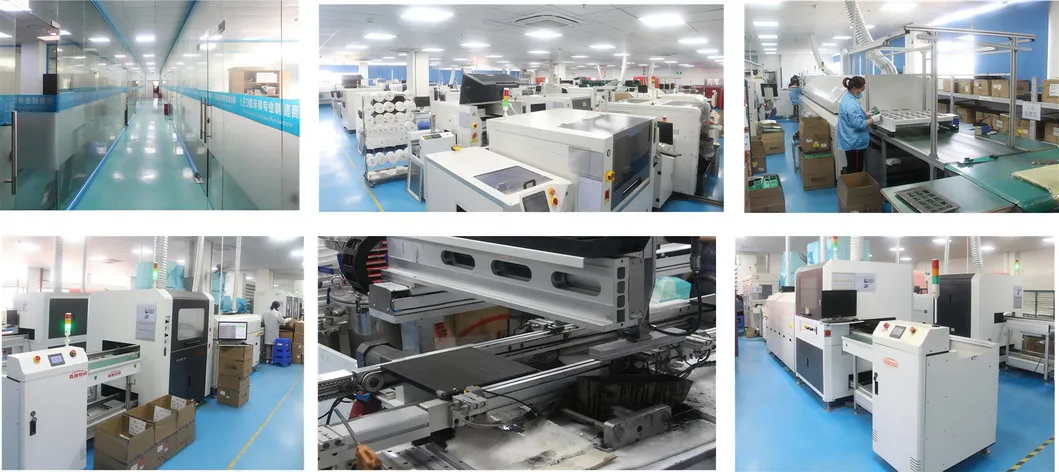

Production Line
Packing 1

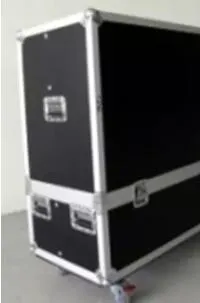

Packing 2
Delivery Preparation
S

Service & Terms

Warranty
Two years warranty
Support
24 hours online lifetime service
Production Time
Approx. 25 days (for 1-200 m²)
Payment
T/T, 30% advance, 70% before shipping
Trade Terms
EXW, FOB, CIF, DDU, DDP
?

Frequently Asked Questions

Q1: What is the pixel pitch and best viewing distance for this model? The pixel pitch is 1.579mm, and the recommended best viewing distance is greater than 2.5 meters.
Q2: Does this LED screen support front maintenance? Yes, the humanity product design supports both front and back maintenance for flexible installation.
Q3: What is the refresh rate of the display? The display features a high refresh rate of over 1920 Hz, ensuring smooth video playback.
Q4: Can this screen be used for rental purposes? Absolutely. It is designed for both indoor fixed installations and rental/movable applications.
Q5: What kind of packaging is provided for shipping? Depending on your needs, we provide either plywood cases (for fixed installation) or flight cases (for rental and movable types).
Q6: What certifications does the product have? The UHD-1.579 LED display is CE and FCC certified, meeting international quality and safety standards.
