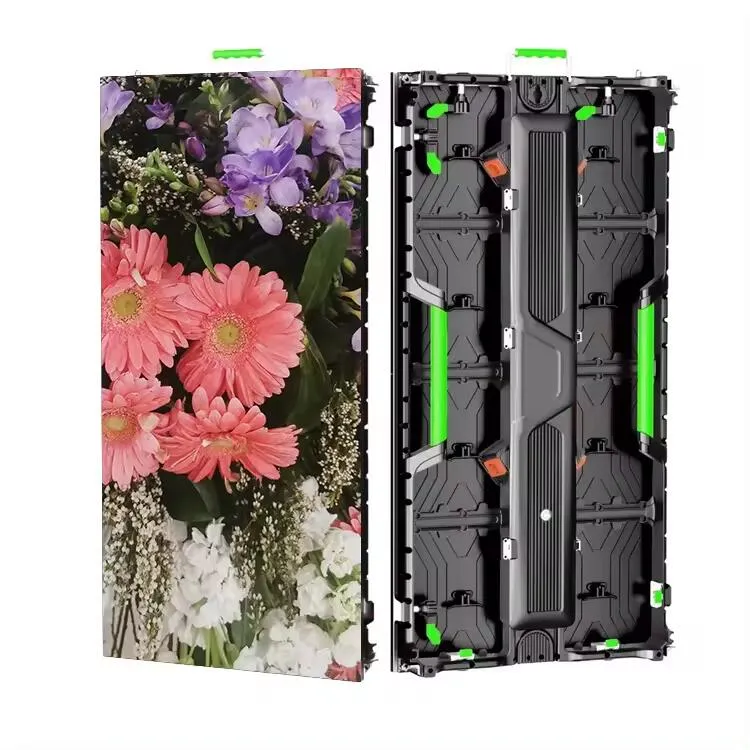

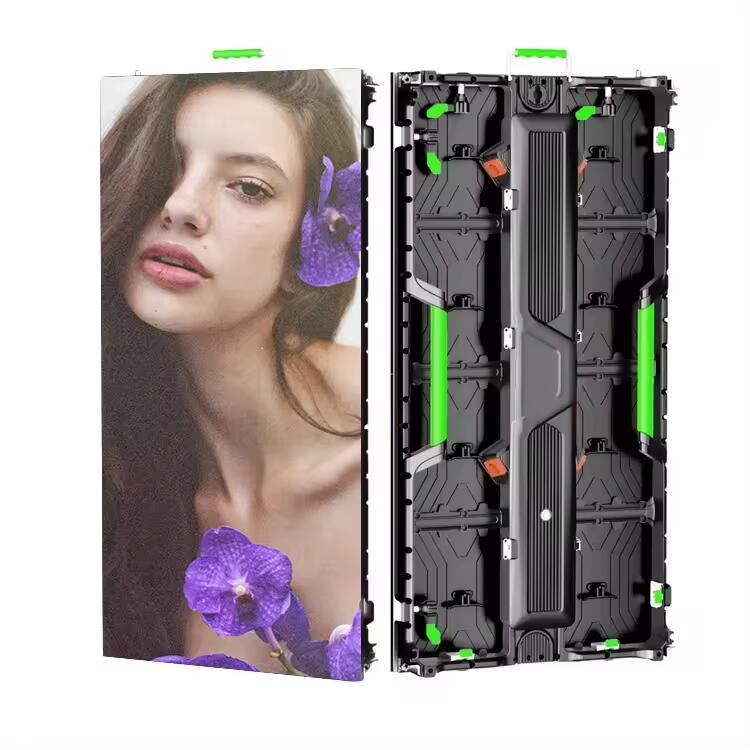

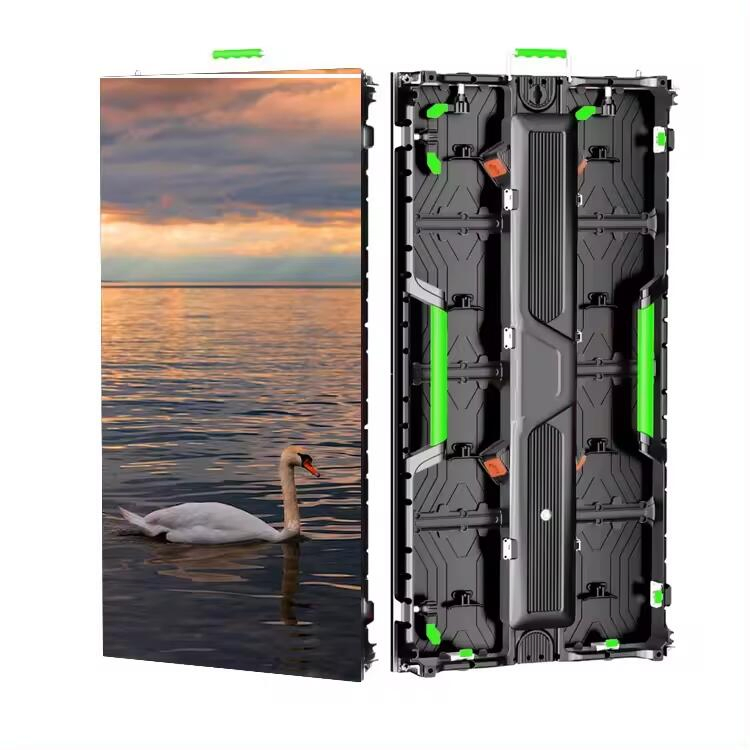

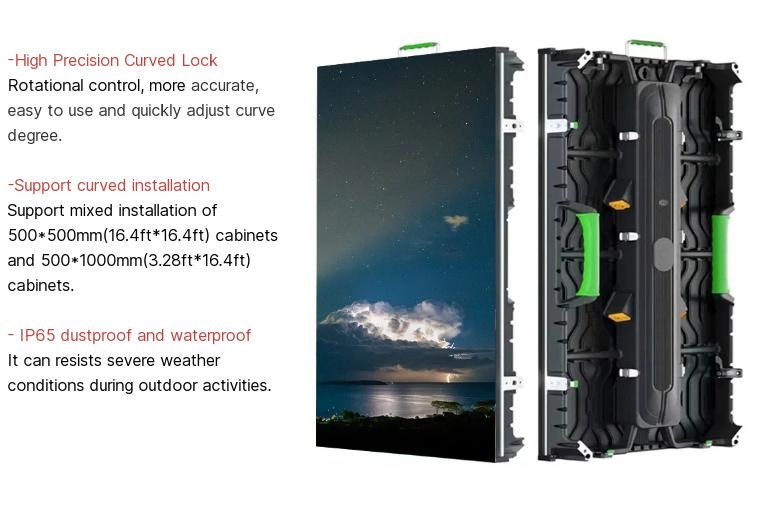

LYRA LED
1 / 4
| Model NO. | YS-1000-P2.604 |
| Pixel Pitch | 2.604mm |
| Display Function | Video Display |
| Average Power Consumption | 180W / m² |
| Scanning Mode | 1/16 Scan |
| Display Type | LED Dot Matrix Display |
| Application | Advertising |
| Certification | CE |
| Brightness(Nits) | 3000 |
| Cabinet Weight | 13.5kg |
| View Angle | 160°/140° |
| Refresh Rate(Hz) | 1920/3840/7680 |
| Grey Scale(Bit) | 16 |
| Color Temperature | 3000-10000K (Adjustable) |
| Power Supply | AC100-240V (50-60Hz) |
| Specification | 500*1000*90mm |
| Origin | Guangdong, China |
| Parameter Item | Specifications |
|---|---|
| Pixel Pitch(mm) | 2.604 mm |
| Pixel Matrix Per(Pixel/sqm) | 147456 |
| Pixel Configuration | SMD1515 |
| Brightness(nits) | 800-4500MCD |
| Cabinet Resolution(mm) | 192*384 |
| Power Con.(Max /Avg) | 600/180W/sqm |
| Module Dimension | 250x250 mm |
| Refresh rate (Hz) | 1920/3840/7680 |
| Working temperature | -10-40°C |
| Color temperature | 3000-10000k (adjustable) |
| Working life | ≥100,000 Hours |
Focusing on high-quality stage light products, including moving heads, LED par lights, LED wall washers, lasers, follow lights, LED dance floors, and studio lights. With professional design, sales, and technical teams, we serve markets across the Americas, Europe, Asia, and Africa.

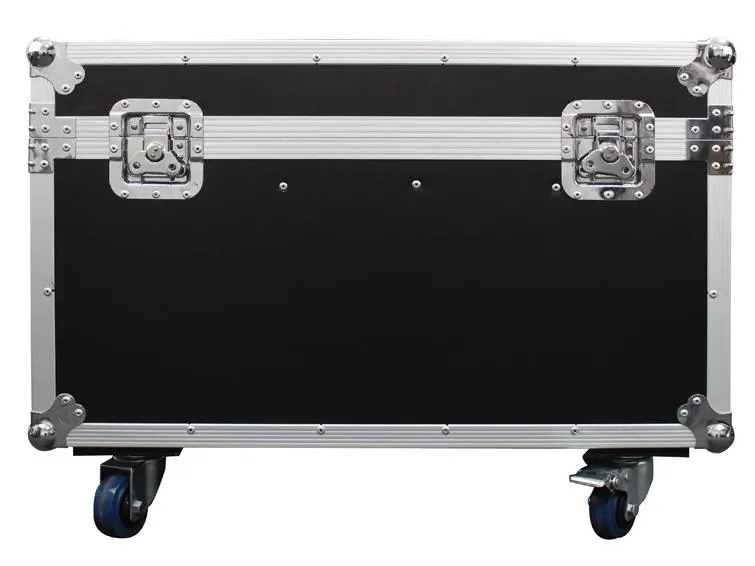

Flight Case Packaging Options Available for Secure Transport
