Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
1 / 5
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display
Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display

Indoor P1.2 Small Pixel Pitch Indoor COB LED Screen LED Advertising Display

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔍 Basic Information
Model NO.
AV1.2
Pixel Pitch
1.25mm
Pixel Configuration
1R,1G,1B
Pixel Density
129600dots/M2
Scanning Mode
1/60s
Display Type
LED Dot Matrix Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP50
Certification
CE, RoHS, CCC
Maintenance Type
Front Maintenance
Refresh Frequency
3840Hz
Cabinet Resolution
480*270dots
Processing Depth
13bit
Lifespan
50000hours
Specification
600mm*337.5mm*27mm
Package Gross Weight
4.500kg
💡 Product Features
Ultra-thin panel design, the thickest part is only 27mm, total weight less than 5KG.
Three-in-one design of power supply, HUB card and receiving card for easy maintenance.
16:9 unit aspect ratio, enabling point-to-point splicing for 720P, 1080P, 4K, and 8K.
Low brightness and high gray design: meets 14bit+ grayscale display at 300nits.
5000:1 maximum contrast ratio with 16.7M high color reproduction.
Die-cast aluminum unit for superior heat dissipation, light weight, and high precision.
Pure front maintenance design for convenient servicing.
Fanless and silent design for noise-sensitive environments.
📋 Technical Specifications
Category Parameter Name Product Details
Unit Parameters Pixel Pitch / Configuration 1.25mm / 1R1G1B SMD
Unit Resolution 480*270 Dots
Pixel Density 129600 pixels/tile
Unit Size (WxHxD) 600mm × 337.5mm × 27mm
Unit Weight / Diagonal 4.5kg / 27''
Material / IP Rating Die-cast aluminum / IP50
Scan Mode 1/60s Constant current driver
Optical & Performance Brightness 600nit (7500K)
Viewing Angle H: 160°; V: 160°
Contrast Ratio 5000:1
Refresh Frequency 3840Hz
Processing Depth 13bit (16384 levels per color)
Usage Info Input Voltage AC 90~264V (50/60Hz)
Operating Temperature -10ºC ~ +40ºC
Input Signal SDI, HDMI, DVI, etc.
📸 Product Gallery

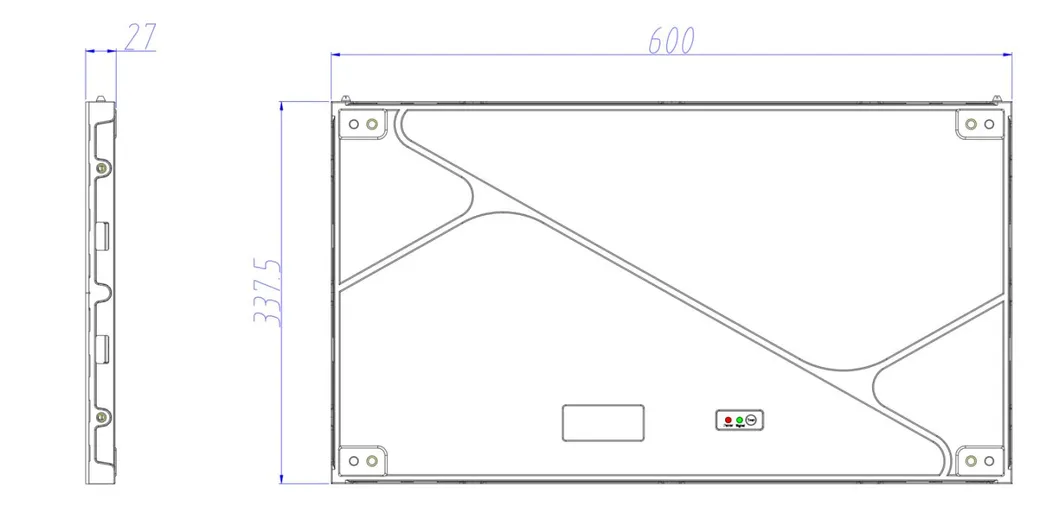

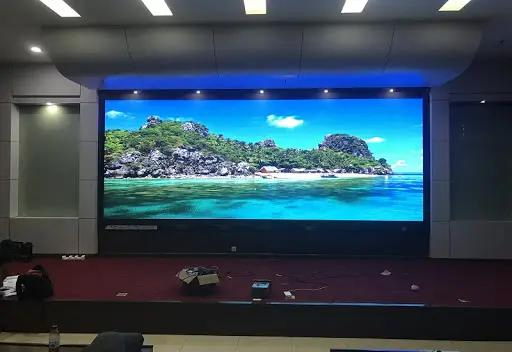

Indoor P1.2 LED Display Screen

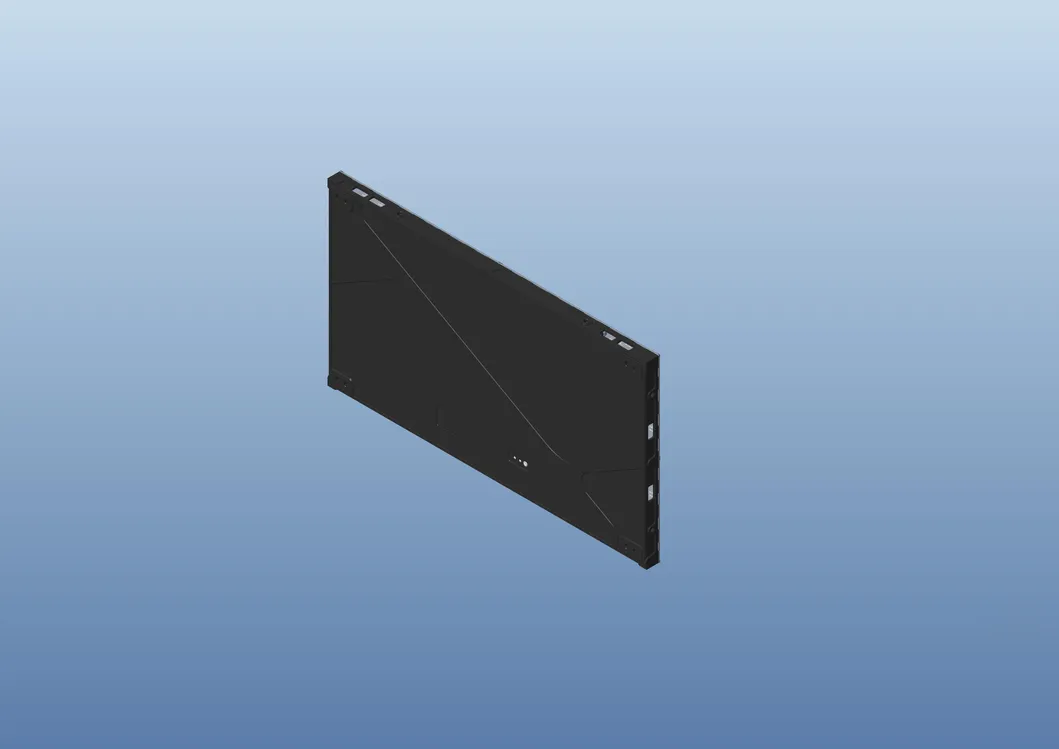

LED Screen Details

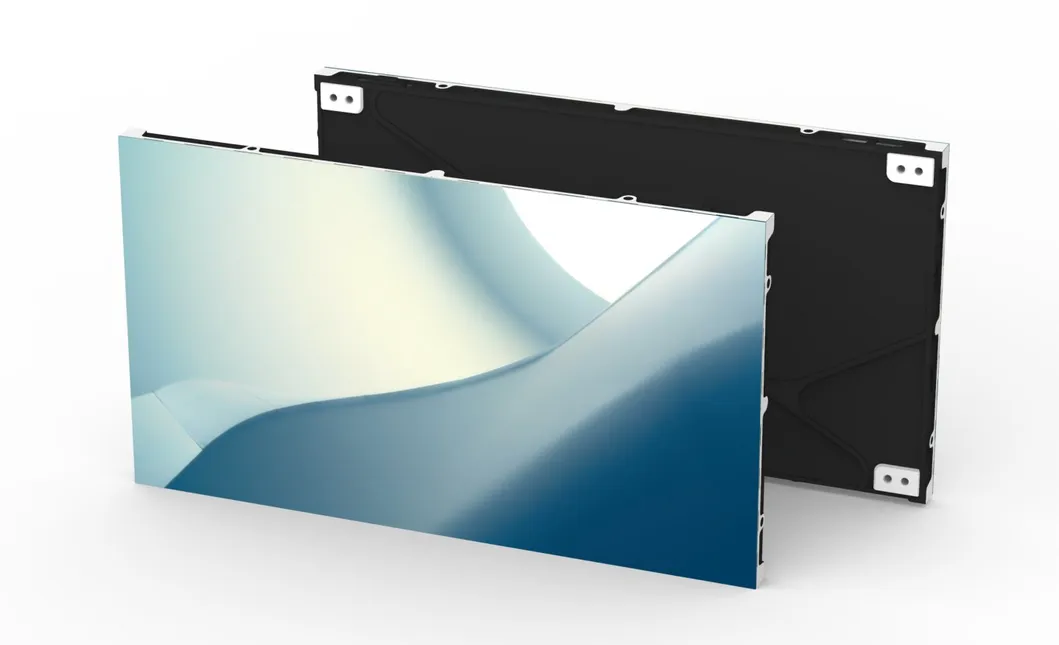

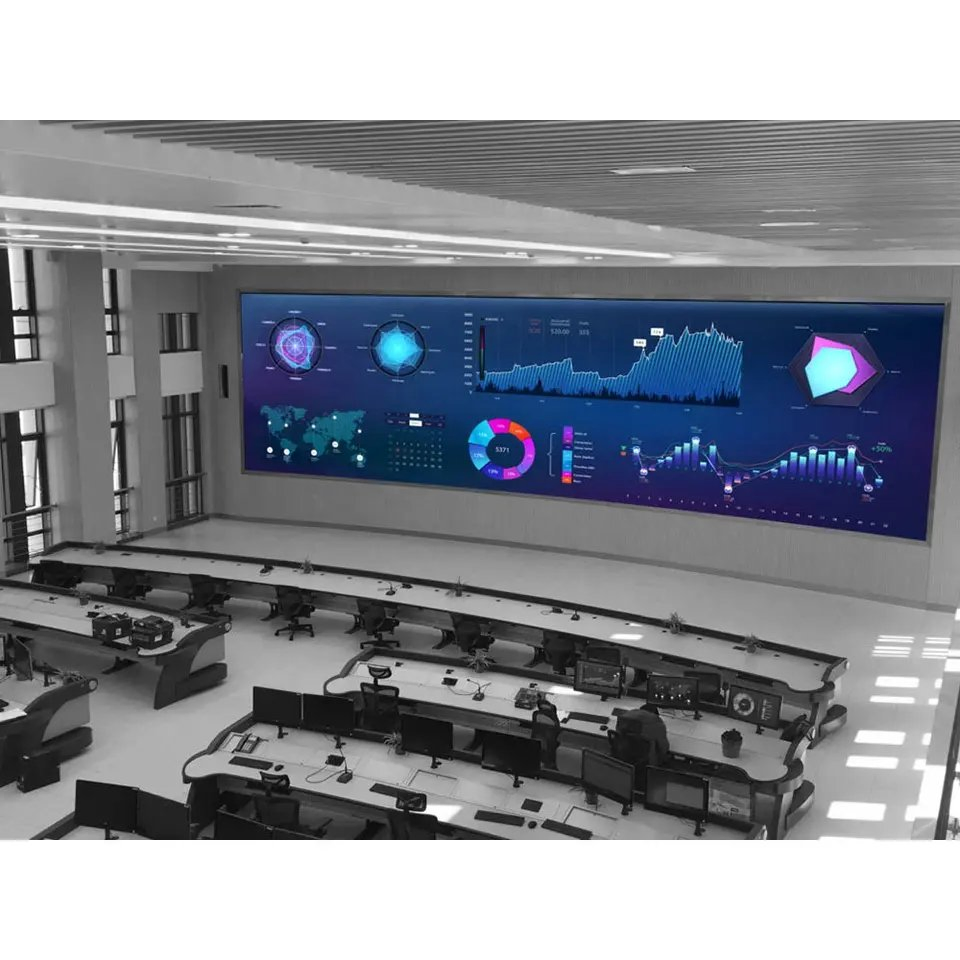

LED Advertising Display
🏭 Production & Display
Production Process 1
Production Process 2

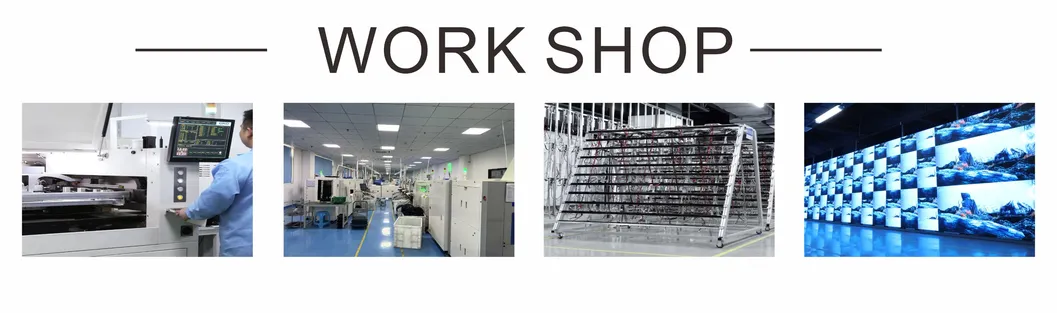

Production Process 3
Quality Control
❓ Frequently Asked Questions
What are the main design advantages of this LED panel?
The panel features an ultra-thin design (27mm) and is lightweight (under 5kg). It uses a die-cast aluminum housing for excellent heat dissipation and high precision.
Does this display support high-resolution splicing like 4K or 8K?
Yes, the unit has a 16:9 aspect ratio, which is designed specifically for point-to-point splicing into standard HD formats including 720P, 1080P, 4K, and 8K.
How is the maintenance performed on this model?
This product features a pure front maintenance design, allowing for easy access and servicing of internal components without needing space behind the screen.
What is the refresh rate and grayscale performance?
The display offers a high refresh rate of 3840Hz and a 13-bit processing depth, ensuring smooth visuals and excellent grayscale reproduction even at low brightness levels.
Is the system noisy during operation?
No, it utilizes a fanless and silent design, making it ideal for indoor environments like studios or high-end retail where noise control is important.
What are the typical applications for this LED screen?
It is widely used for stage performances, high-end advertising, shopping guides, and any indoor setting requiring small pixel pitch high-definition displays.
