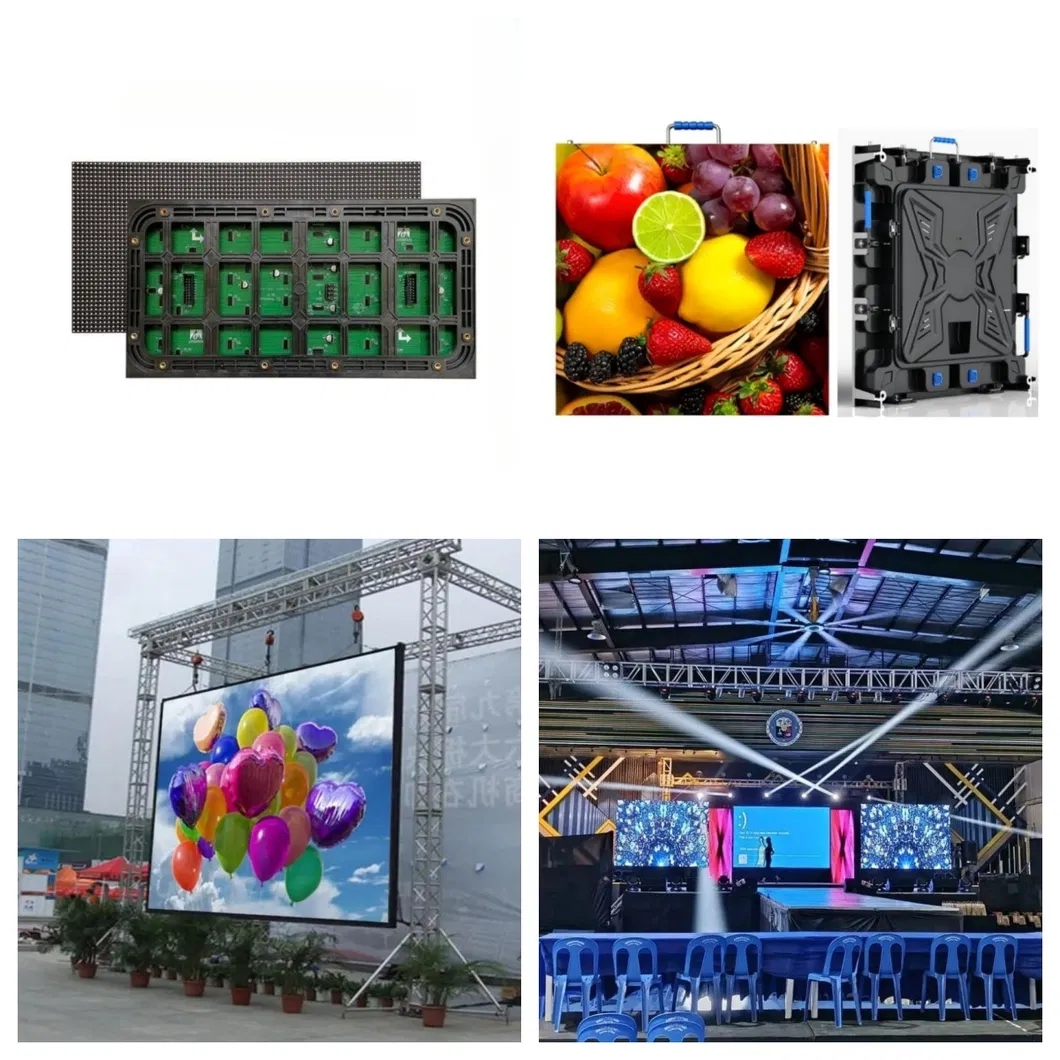

P2.5/P3.076/P4/P5 Indoor Outdoor Aluminum Cabinet Advertising Display Wall Electronic Sign Board Full Color LED Video Screen for Events Rental Purpose

i

Basic Specifications

Model NO.

SY-P4-10S-E

Pixel Pitch

4mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image & Text

Average Power

350W / m²

Pixel Density

62500 Dots/Sq.M

Scanning Mode

1/10 Scan

Cabinet Material

Die Casting Aluminum

Cabinet Size

640mm*640mm / 640mm*480mm

Certification

CE, RoHS, CCC, FCC, ISO9001

Pitch Option

P2.5 / P3.076 / P4 / P5

Application

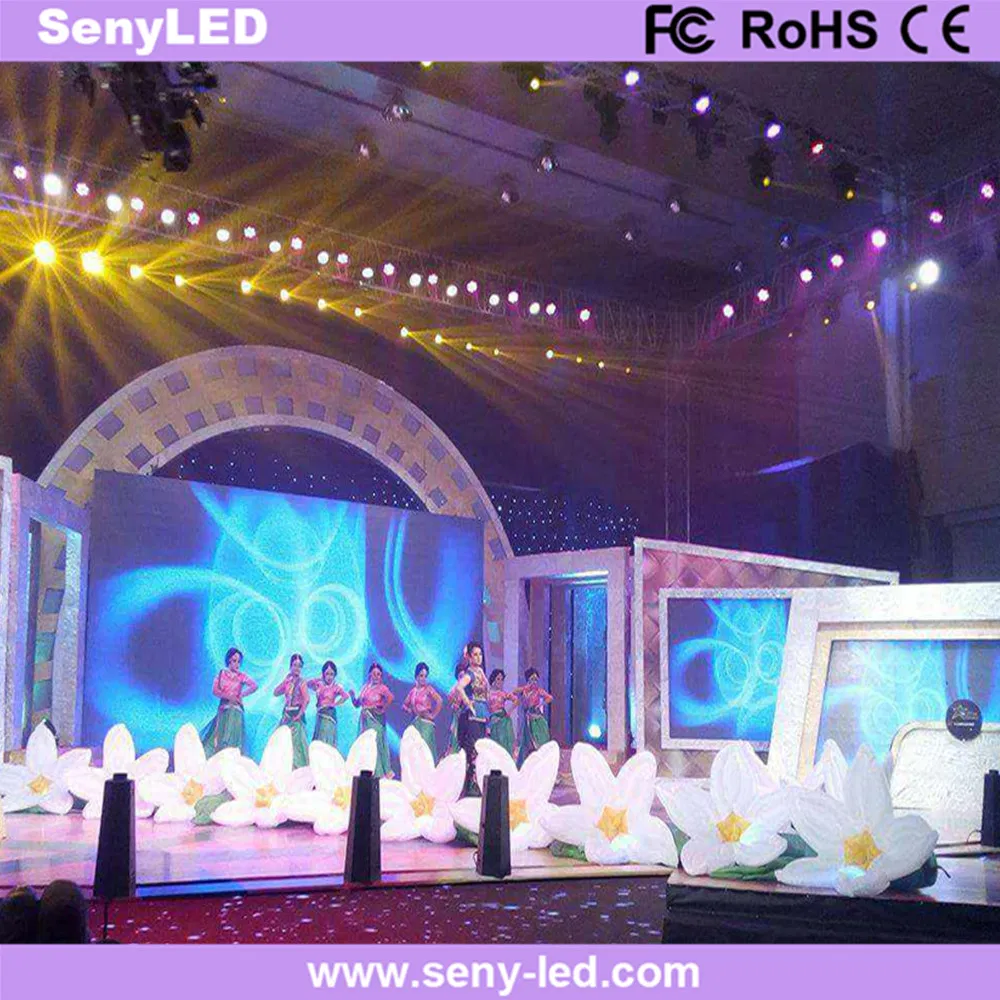

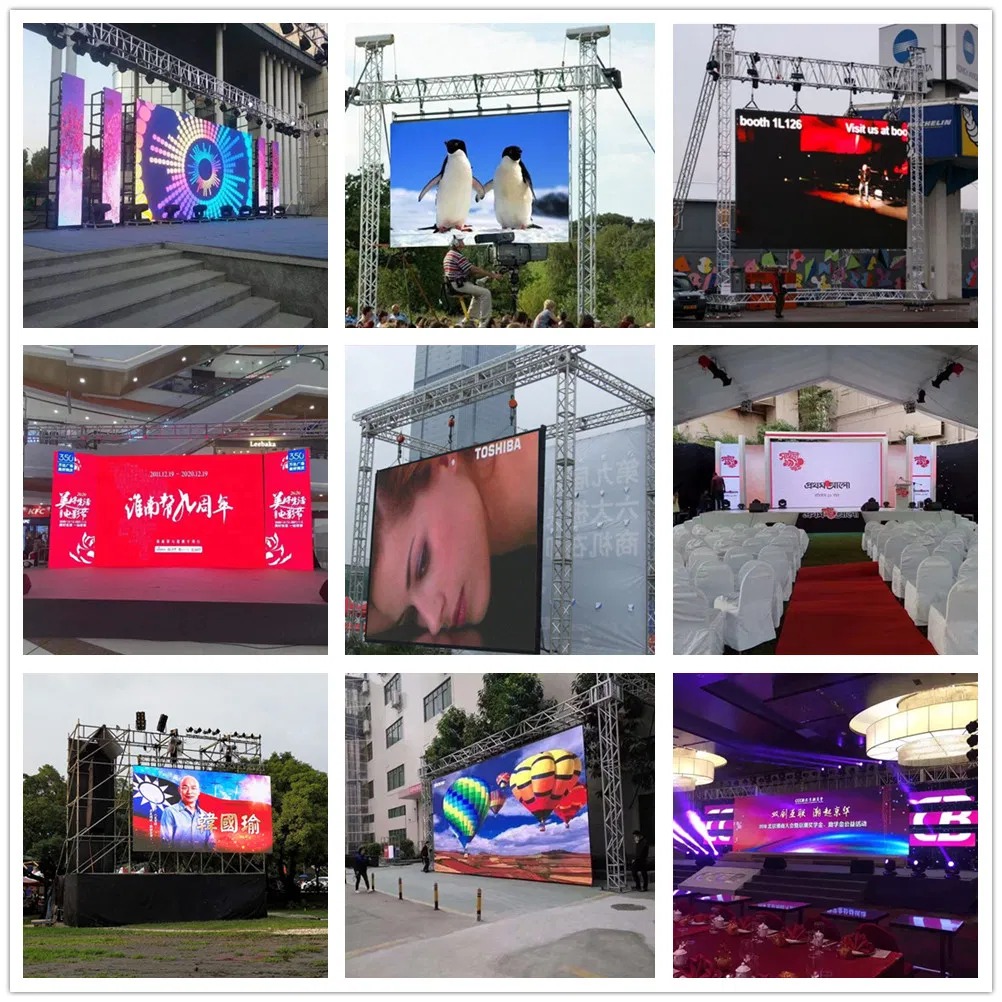

Stage Performance, Advertising

★

Product Features

P2.5/P3.076/P4/P5 Indoor Outdoor Aluminum Cabinet Advertising Display Wall

Quick Assembly: 2 persons can assemble 20sqm within one hour.

Lightweight: Only 35-38kg/sqm for easy transport and hanging.

High Resolution: Crystal clear images with wide viewing angles.

Flexible Config: Easily configured for various sizes and aspect ratios.

Adjustable Brightness: Depends on environment for optimal viewing.

Multi-Input: Compatible with S-Video, HDMI, DVI, SDI, and more.

⚙

Technical Parameters

Module Parameter		Specifications
Pixel Pitch	4mm	Module Size: 320mm x 160mm
Pixel Configuration	1R1G1B	Resolution: 80 x 40 pixels
Cabinet Parameter		Specifications

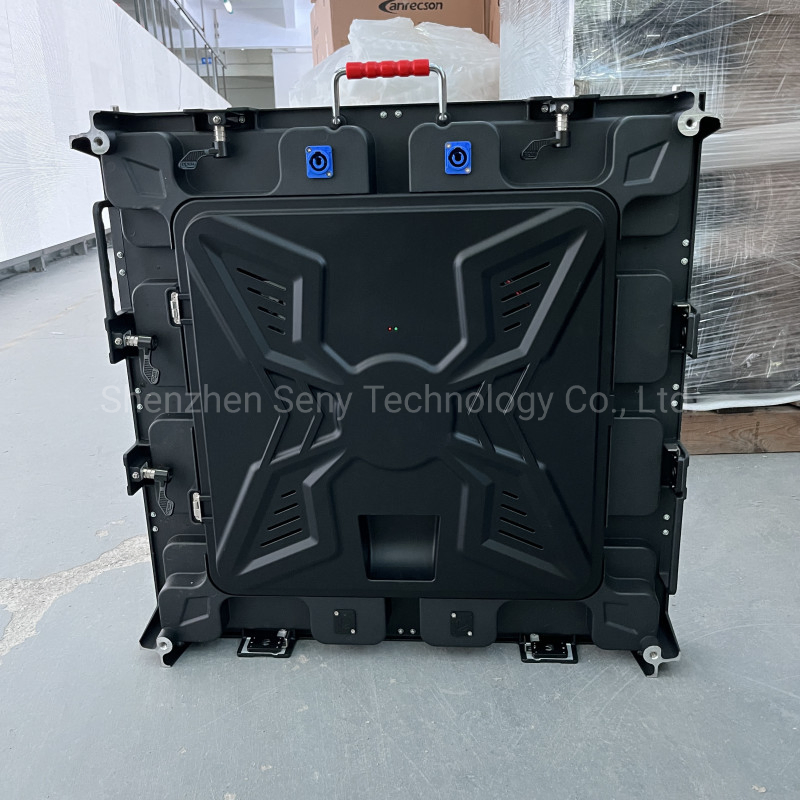

Cabinet Size	640mm x 640mm x 85mm	Material: Die casting aluminum
Cabinet Weight	13.5kg per cabinet	Pixel Density: 62500 pixels/m2
Whole Screen Parameter		Specifications
Brightness	5000cd/m2	Refresh Frequency: 1920Hz - 3840Hz
Driving Method	1/10 scan	Protective Scale: IP65
Life-span	≥100,000 hours	Power: Ave. ≤ 350W/m2

✔

Why Choose This Product?

Price Advantage: Highly competitive market pricing with superior quality control.

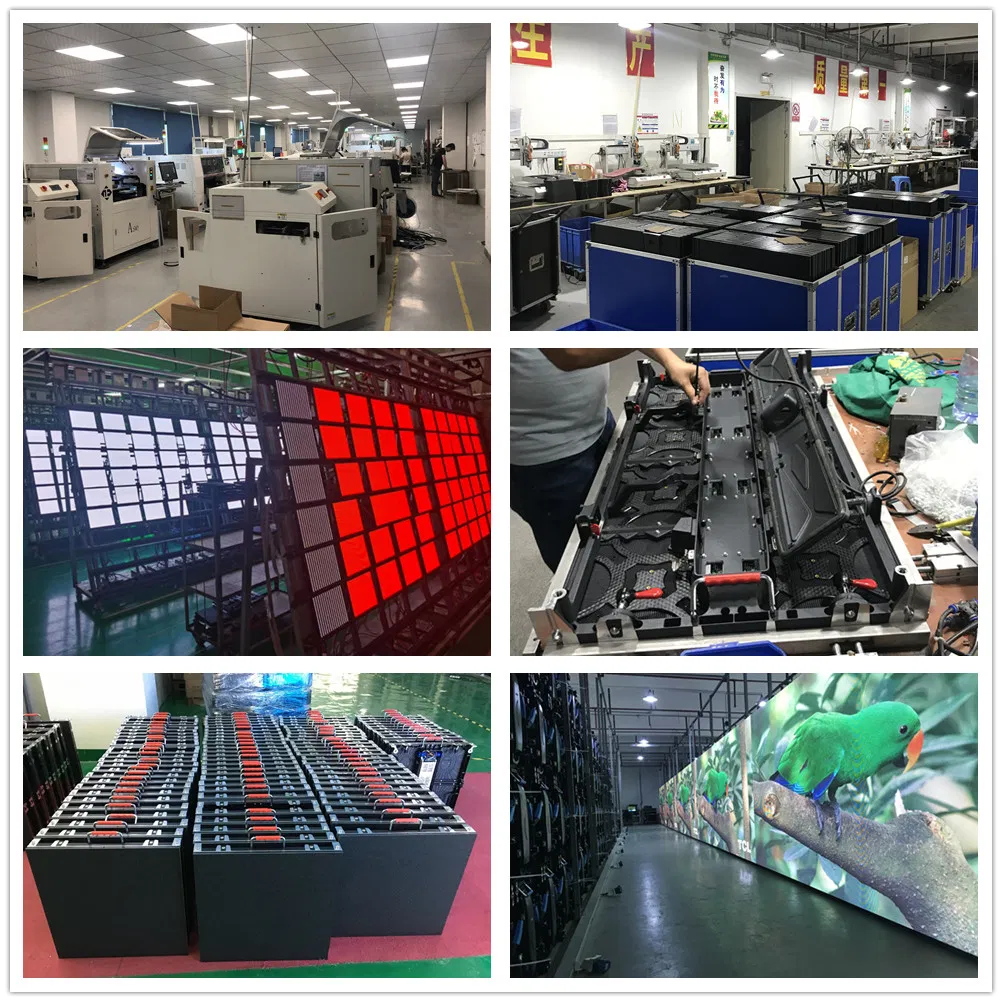

Quality Assurance: Full process monitoring from raw materials to finished products.
Service Commitment: Comprehensive technical support and cooperative service model.
Full Certification: CE certified, ROHS compliant, FCC identified, and ISO 9001 system passed.

?

Frequently Asked Questions

1. What pixel pitches are available for this series?

We offer multiple options including P2.5, P3.076, P4, and P5 to suit different viewing distances and resolution requirements.

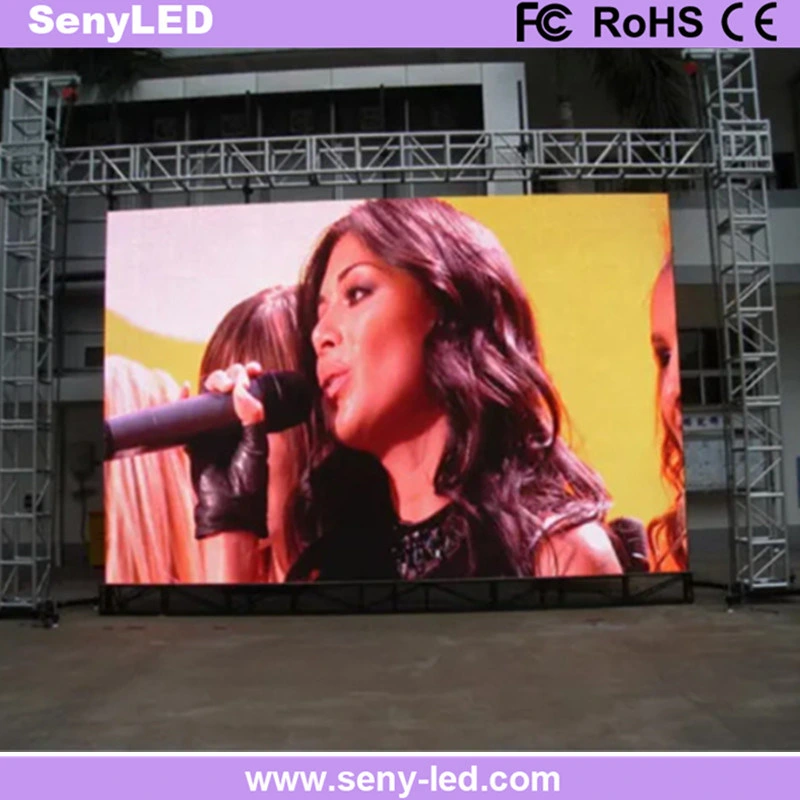

2. Can this LED screen be used for outdoor events?

Yes, the cabinet features an IP65 protection rating and high brightness (5000cd/m2), making it suitable for outdoor environments and rental purposes.

3. How long does the installation take?

Designed for quick assembly, 2 trained persons can typically install approximately 20 square meters of the display within one hour.

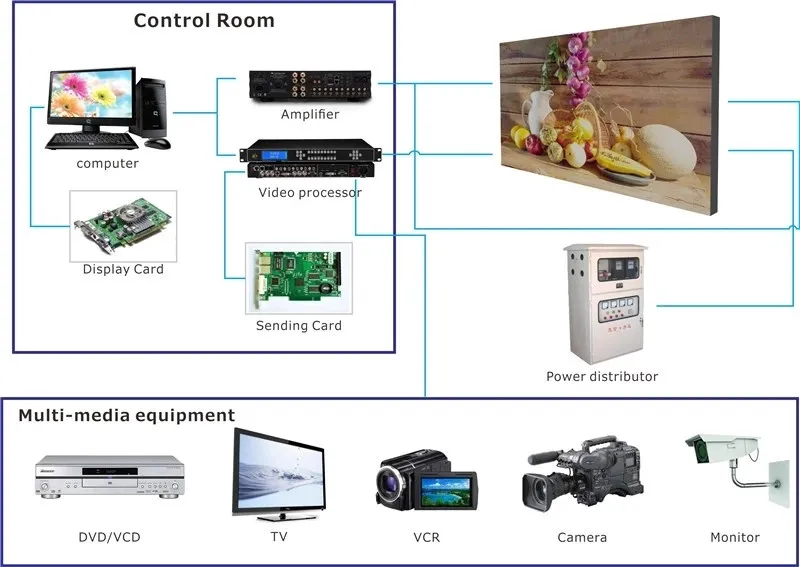

4. What control systems are compatible with the display?

The system is highly flexible and supports mainstream control systems including Novastar, Linsn, and Colorlight.

5. What is the expected lifespan of the LED video wall?

Our LED screens are built for longevity, with a rated lifespan of ≥100,000 hours and a high MTBF (Mean Time Between Failures).

6. Is the brightness adjustable?

Yes, the brightness can be adjusted manually or automatically to match the ambient environment, ensuring the best visual experience and energy efficiency.
