Waterproof Outdoor Fixed P3 Rear Access Service LED Display Billboard

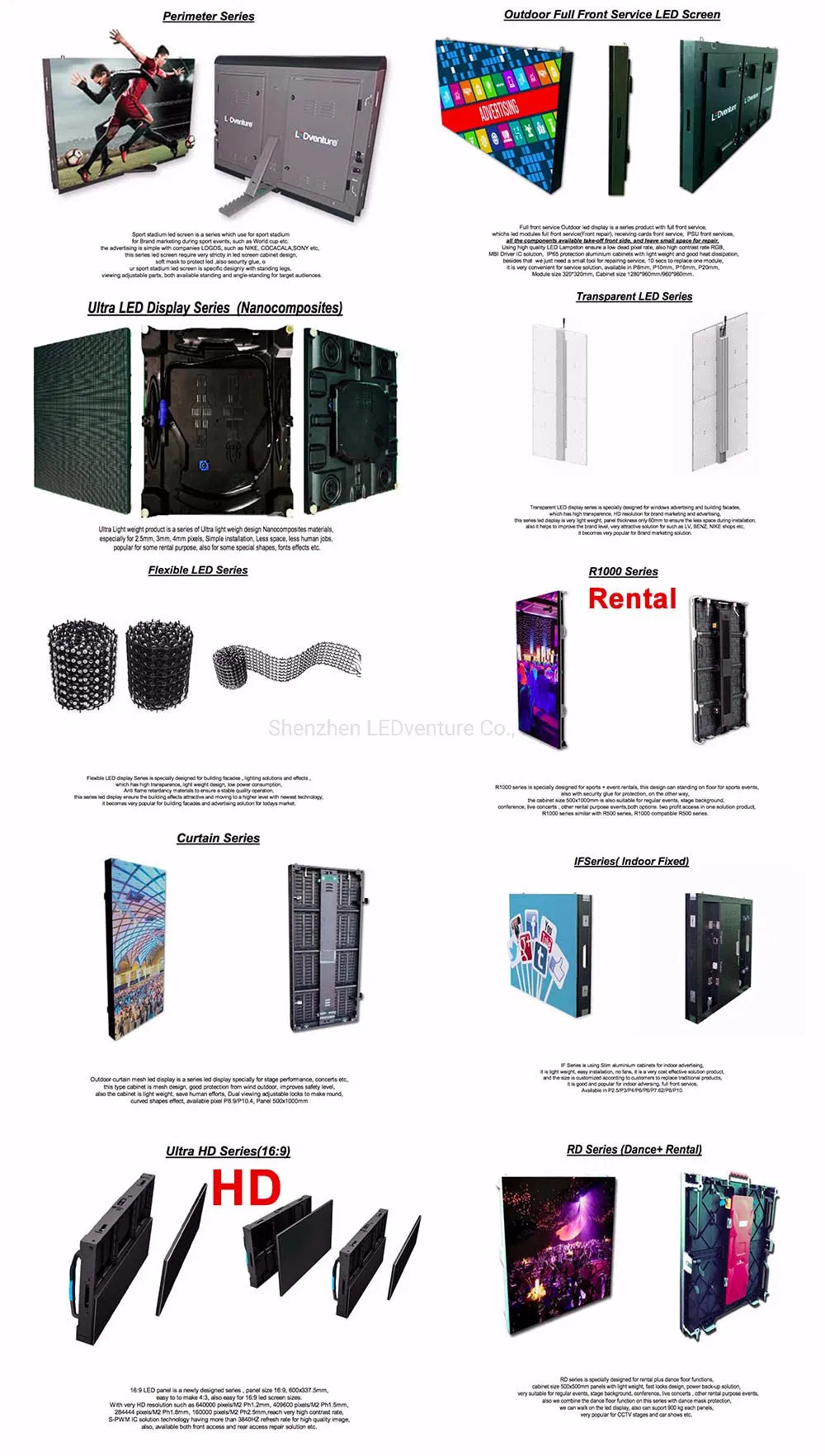

We provide comprehensive LED display solutions including indoor/outdoor fixed installations, rental series, flexible modules, and high-definition billboards. The outdoor P3 series is specifically engineered for high-impact media solutions, offering exceptional brightness and vivid imagery for 21st-century advertising.
| Feature | Specification Details |
|---|---|
| Pixel Pitch | 2.5mm to 20mm (P3 Default) |
| Brightness | >5000nits |
| Cabinet Size | 960x960mm (Optional) |
| Max Power Consumption | 720W/panel |

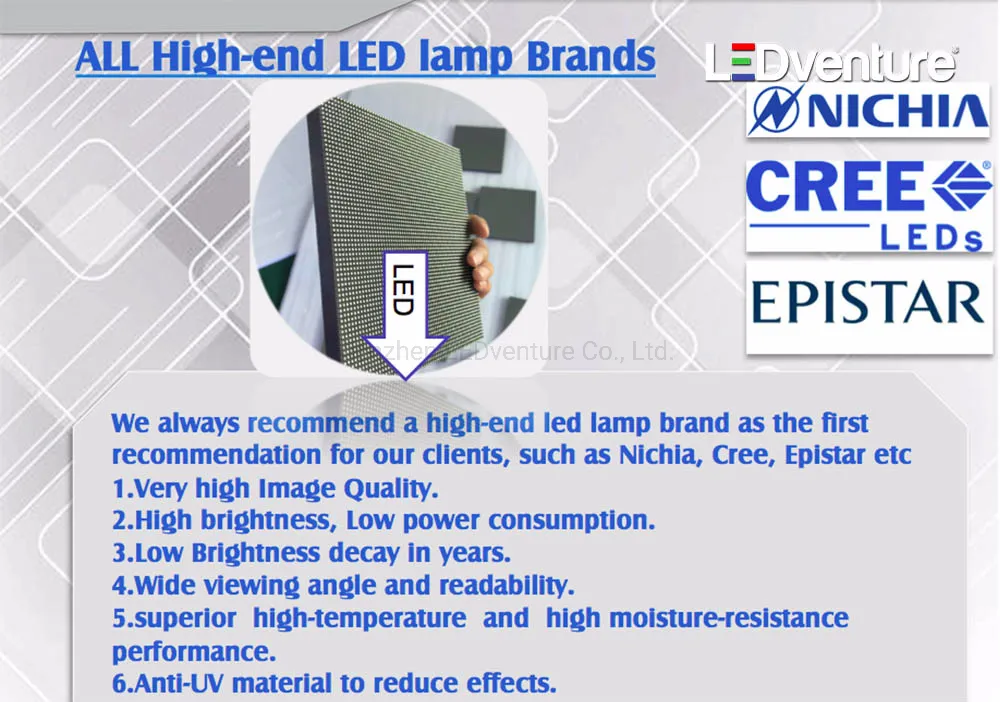

| LED Components | Epistar SMD |
| Service Solution | Rear Access |
| Pixel Density | 111,111 pixels/M2 |
| Module Size | 192x192 mm |
| Module Resolution | 64x64 pixels |
| Min. Viewing Distance | 3 Meters |
| Protection Level | IP65 Front / IP54 Rear |
| Viewing Angle | ≤140° (Horizontal/Vertical) |
| Input Voltage | AC110-240V, 50/60Hz |
| Gray Scale | 16 bits |
| Lifespan | ≥100,000 Hours |
| Operating Temp | -20°C ~ +45°C |

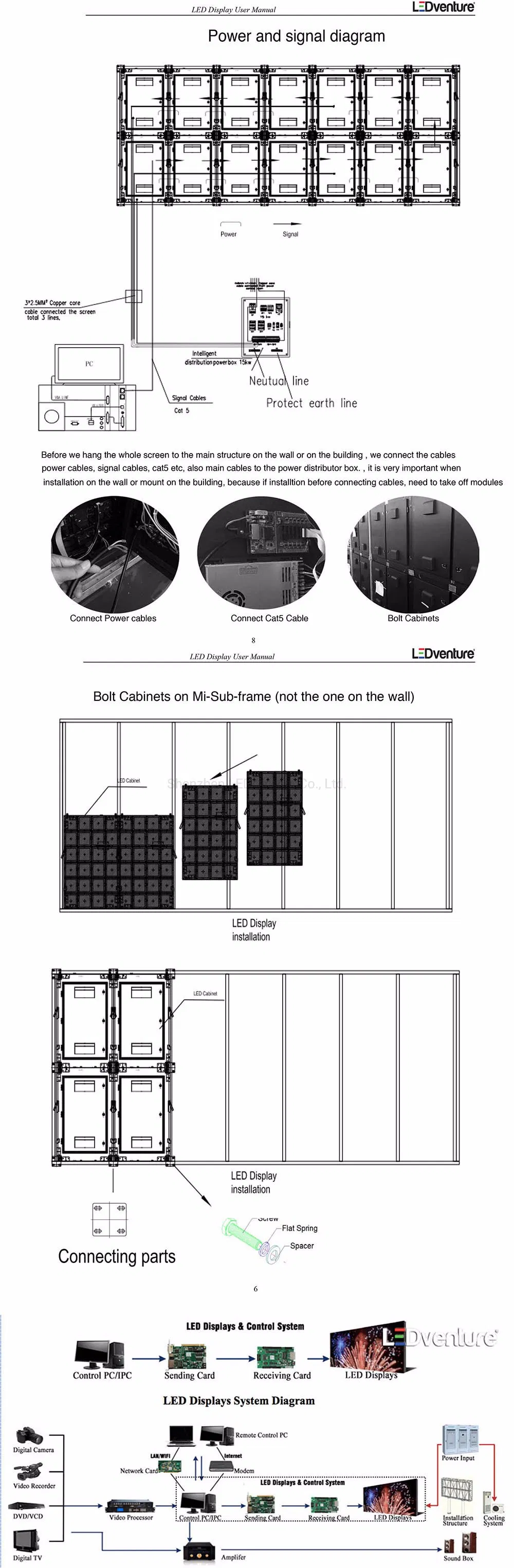

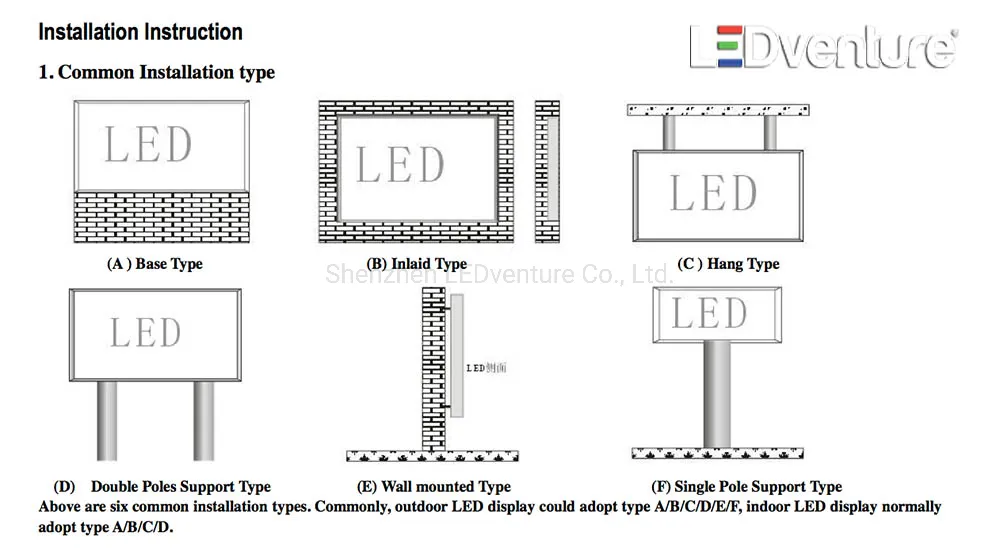

Our displays support multiple installation methods: Wall-mounted, Pillar-mounted, and Standing structures. The system package includes all necessary hardware: sending cards, processors, and receiving cards.

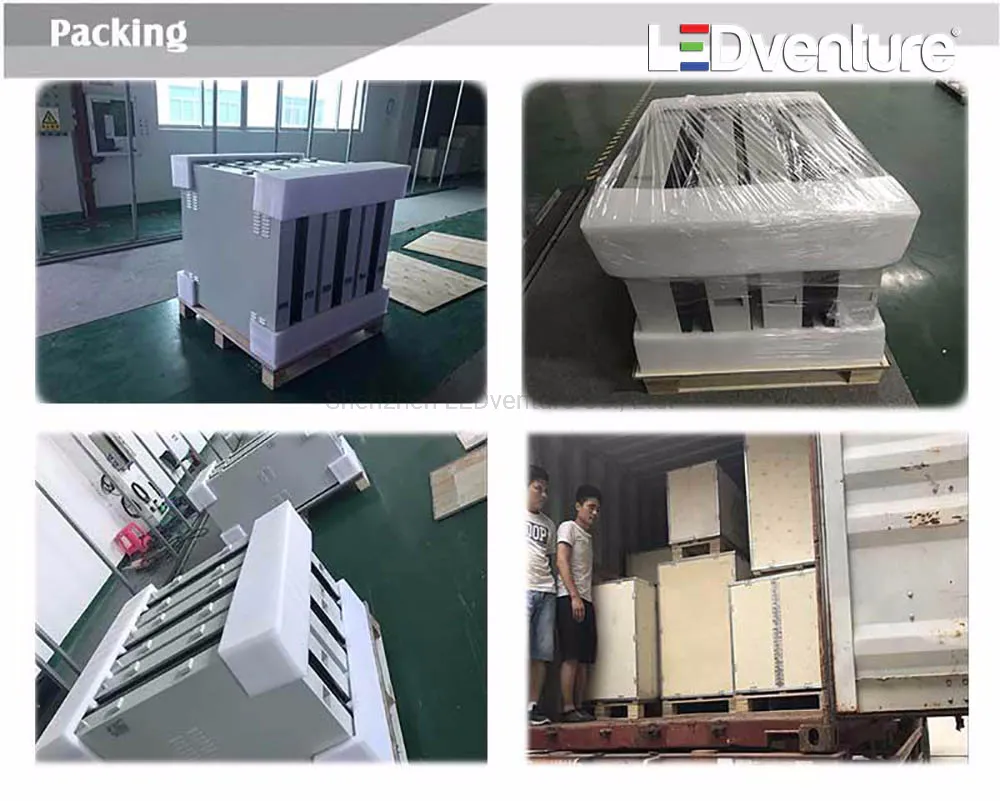

Packing Information: All units are secured in high-quality plywood cases to ensure safe transport and easy loading/unloading.
Our products have passed CE, EMC, FCC, UL and other security tests to meet international market laws and standards. We focus on premium material selection (SMD, IC, PCB, PSU) to reduce maintenance costs and ensure long-term stability.
