| Model | P6 Indoor LED Display |
| Pixel Pitch | 6mm |
| Configuration | 1R, 1G, 1B |
| Brightness | 900 - 4000 CD/m² |
| Refresh Rate | 7680Hz |
| Power Consumption | Avg: 180W / m² | Max: 600W / m² |
| Scanning Mode | 1/8 |
| Life Time | > 100,000 Hours |
| Operating Temp | -30°C ~ 60°C |
| Certification | CE, RoHS, CCC, EMC |
| Items | P6 | P8 | P10 | P15 | P20 |
|---|---|---|---|---|---|
| Pixel Config | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 25600 | 16500 | 10000 | 4356 | 2500 |
| Module Size | 1200x240mm | 1200x240mm | 1200x240mm | 1200x240mm | 1200x240mm |
| Brightness | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 | 2000/4000 |
| Avg Power | 200w/m2 | 200w/m2 | 200w/m2 | 200w/m2 | 350w/m2 |

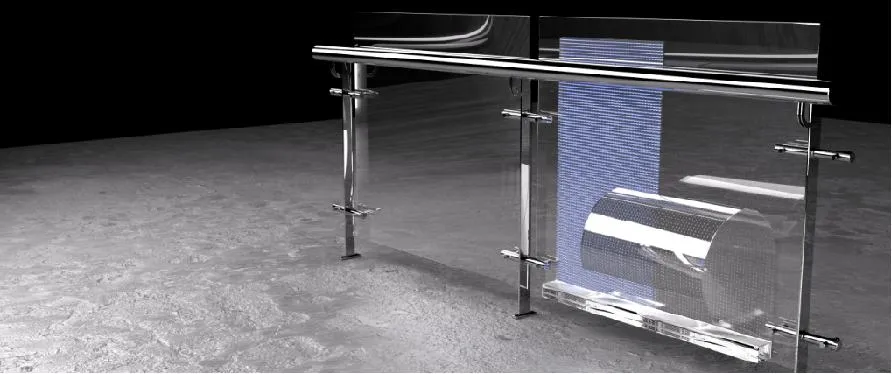

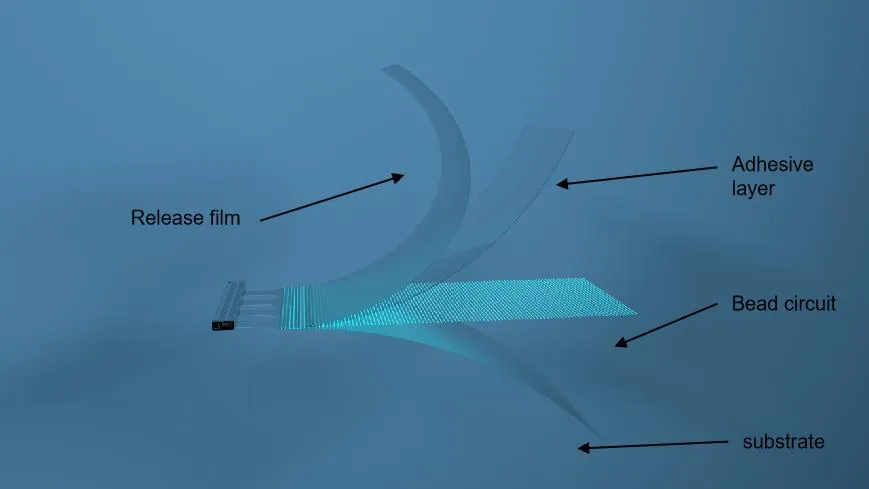

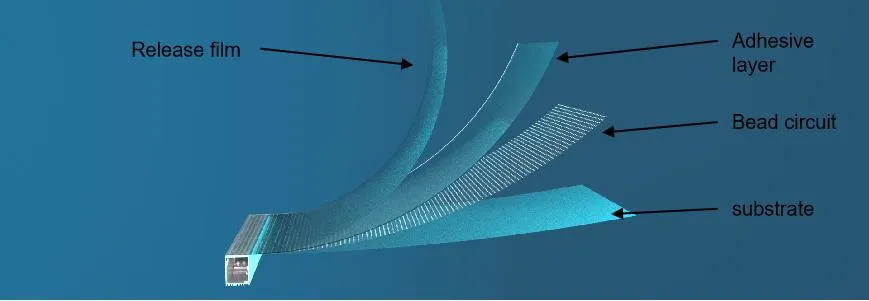

No steel structure is required. The screen features a self-developed glue filling process, allowing the body with its own viscosity to be directly attached to the glass surface. Colloid adsorption increases over time for maximum stability.

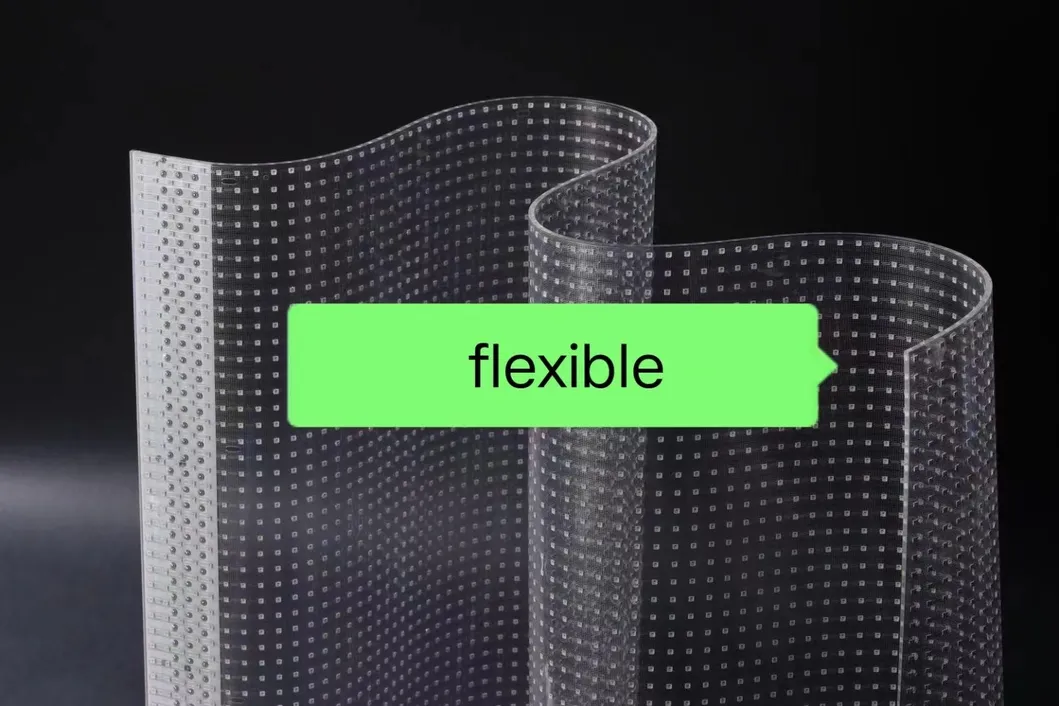

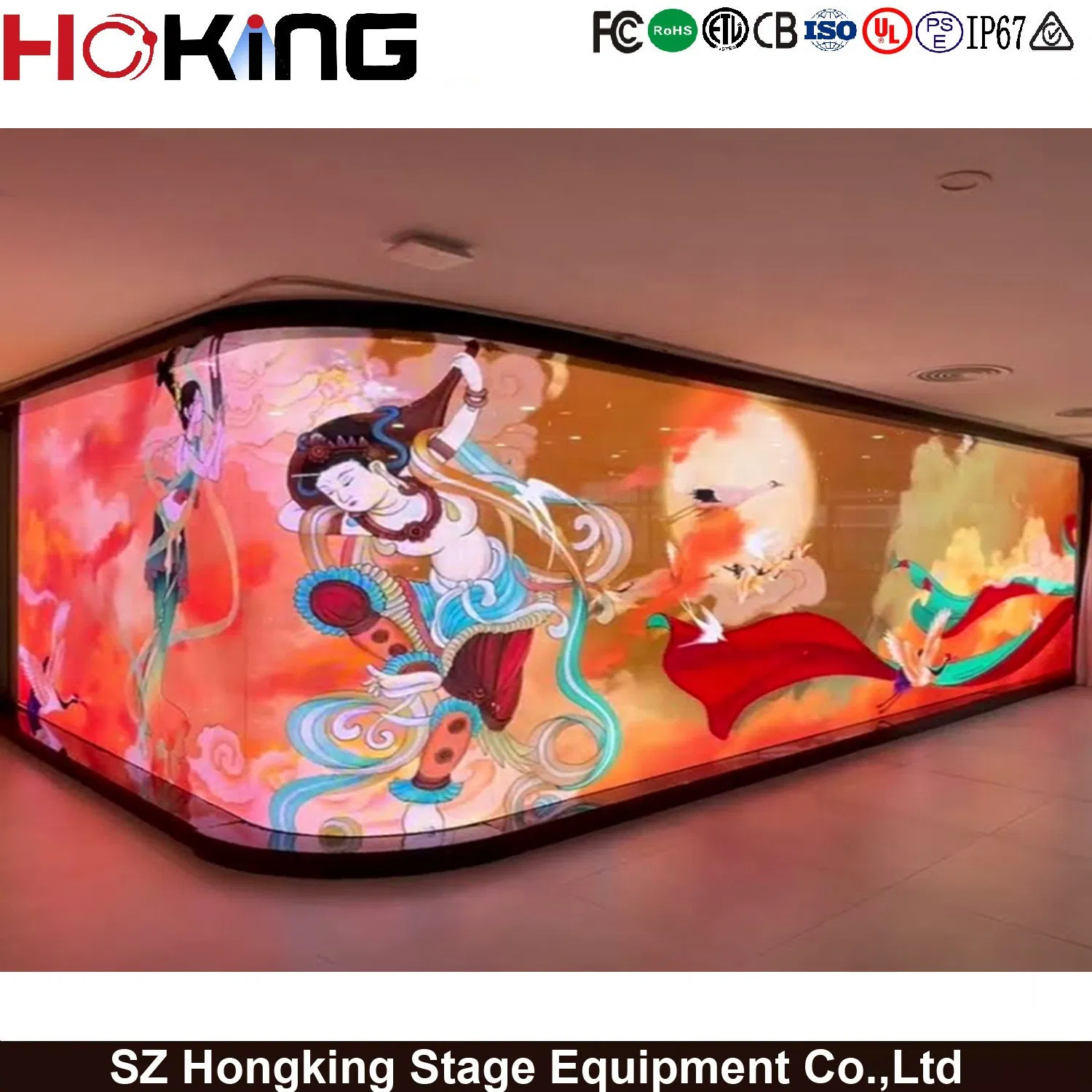

Create your own shape and size, even curved designs, to fit any glass window architectural requirement.

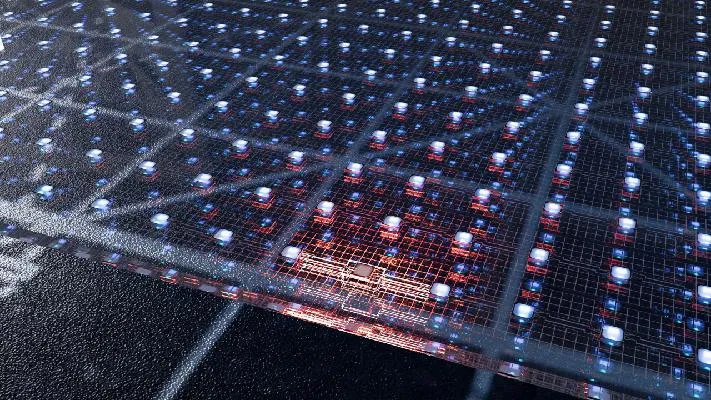

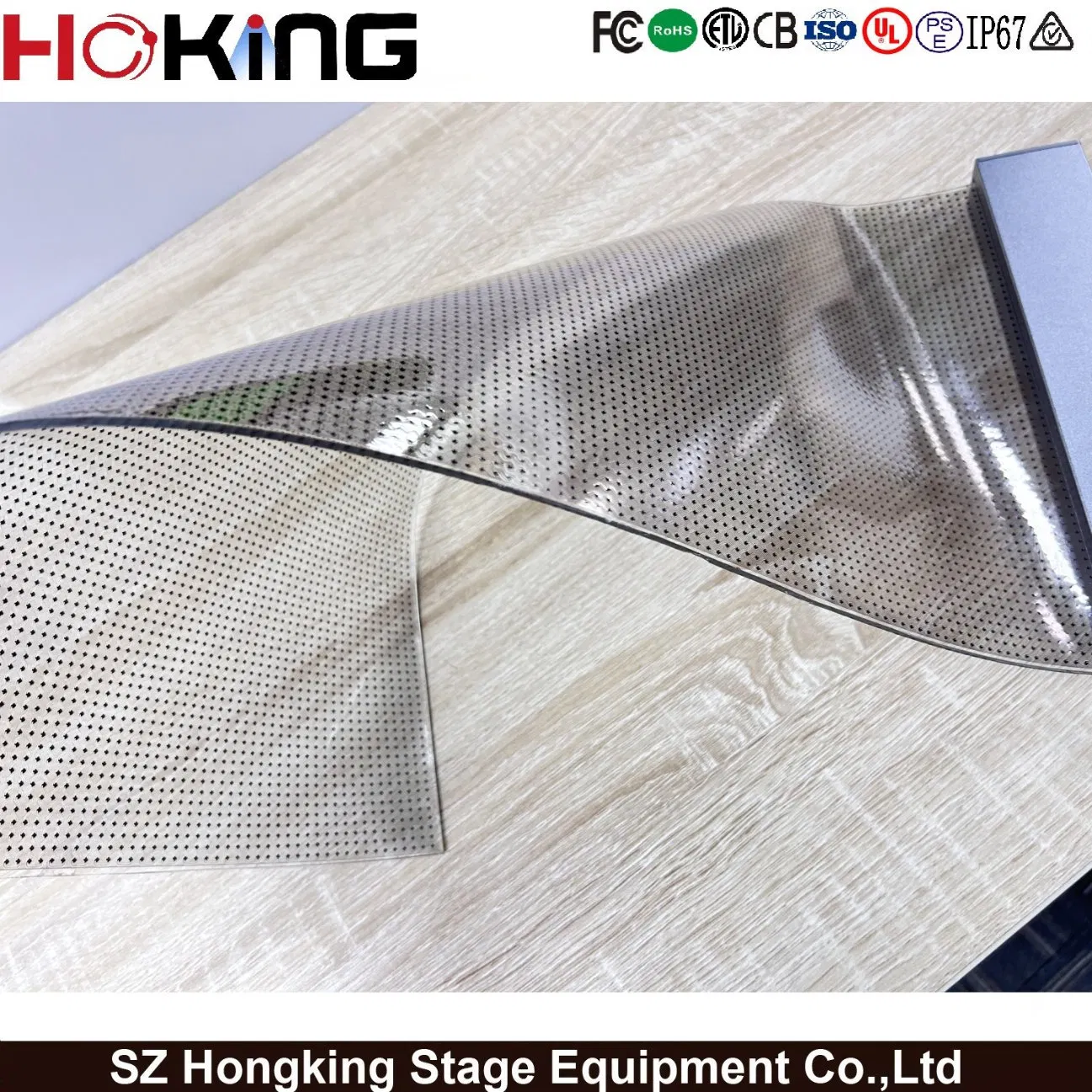

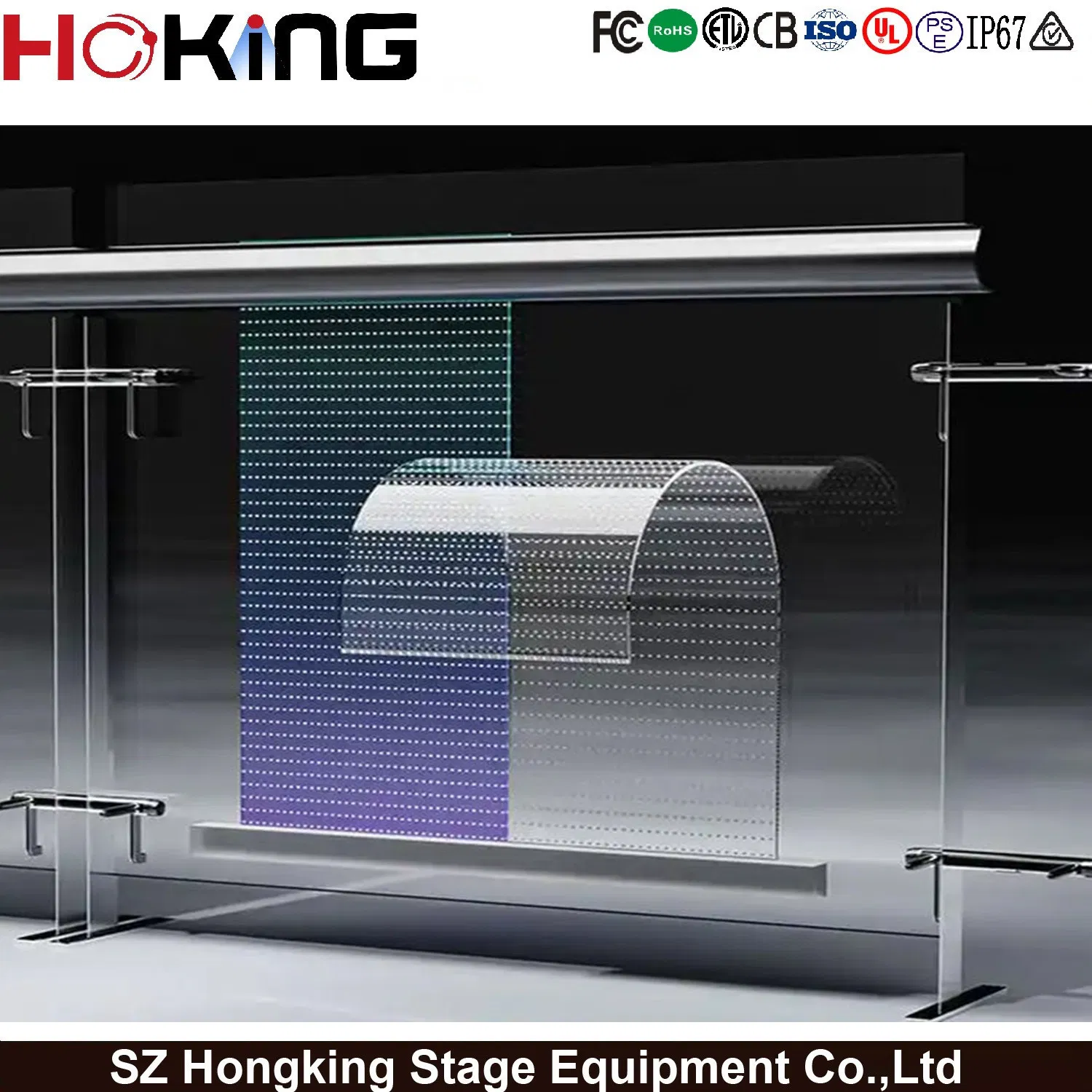

LED lights are embedded into special conductive glass without visible wires. The hidden circuits supply power without the need for drilling, meeting overhead safety protection requirements.
This technology allows for remote control of colors, messages, and lighting effects. Compatible with tempered, low-iron, tinted, and mirror glass.
