Product Description

Basic Specifications
Model NO.TS-3.96
Pixel PitchH3.96/V7.81mm
Pixel Configuration1R,1G,1B
Pixel Density32256 DOT/M2
Scanning Mode1/7 Scan
Display TypeLED Video Display
ApplicationAdvertising
IP RatingIP30
CertificationCE, FCC
Cabinet MaterialDie Cast Aluminum
Brightness4000 CD/Sqm
LED TypeNationstar SMD1921
Module Size500*125 mm
Cabinet Size1000*500 mm
Production Capacity4000 M2/Month
Application & Features
  • High brightness up to 4000 nits, specifically designed for indoor installation behind windows.
  • Perfect for street-facing store windows and high-traffic passages for effective advertising.
  • High transparency rate reaching 70%, ensuring background visibility is not blocked.
  • H3.96/V7.81 pixel pitch provides a balance between clarity and transparency.
  • Supports cabinet sizes of 1000mm*500mm and 1000mm*1000mm.

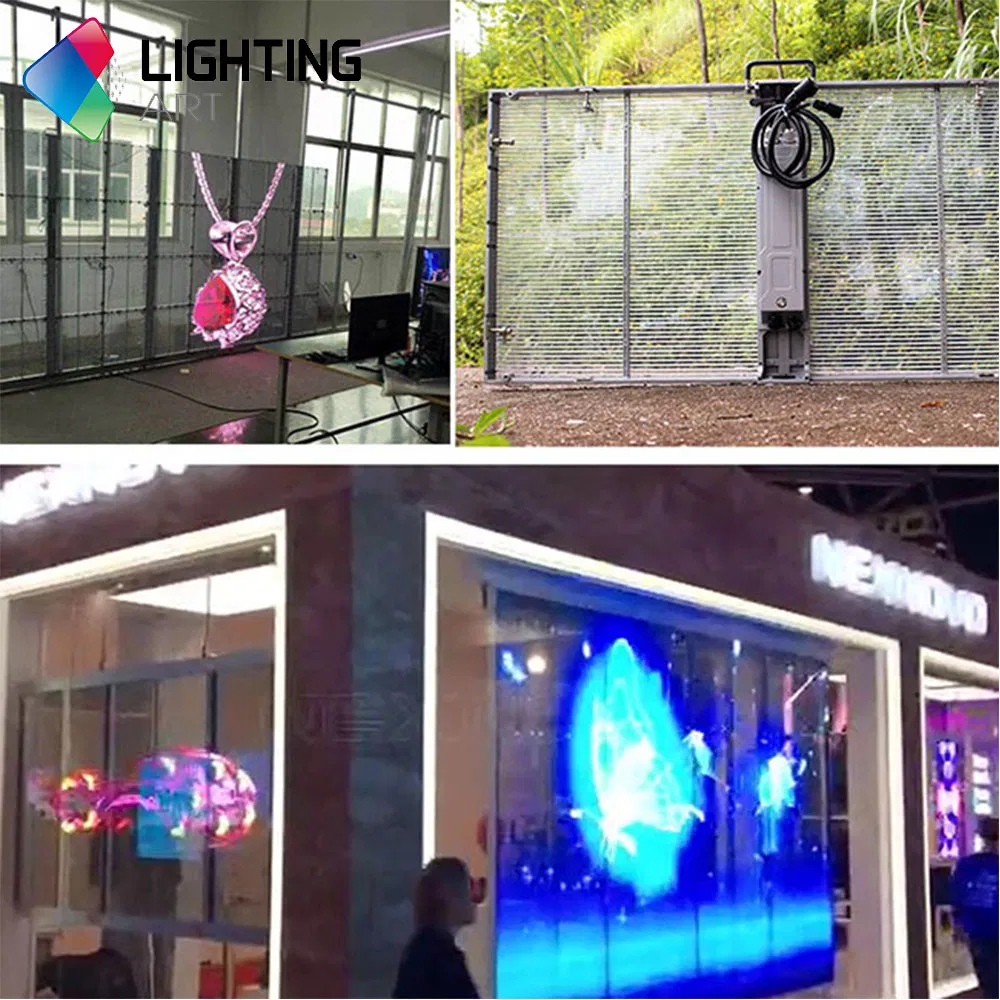

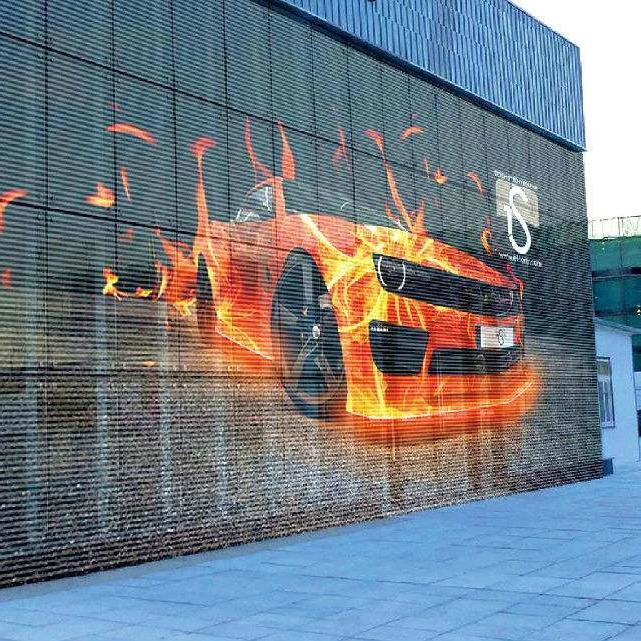

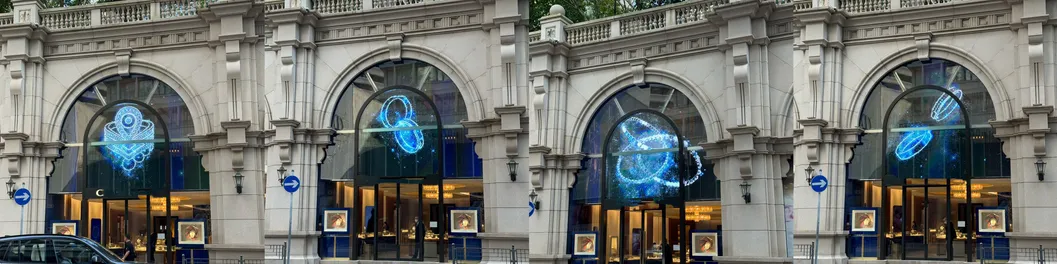

Transparent LED Display Window Application
Technical Parameters
LED Component Details
Pixel Pitch H3.96/V7.81 (1R1G1B) LEDs Type SMD1921 NationStar
Red LED Chip Epistar (450 mcd / 622 nm) Green LED Chip Epistar (730 mcd / 522 nm)
Blue LED Chip Epistar (105 mcd / 472 nm) Transmittance >75%
LED Parameter

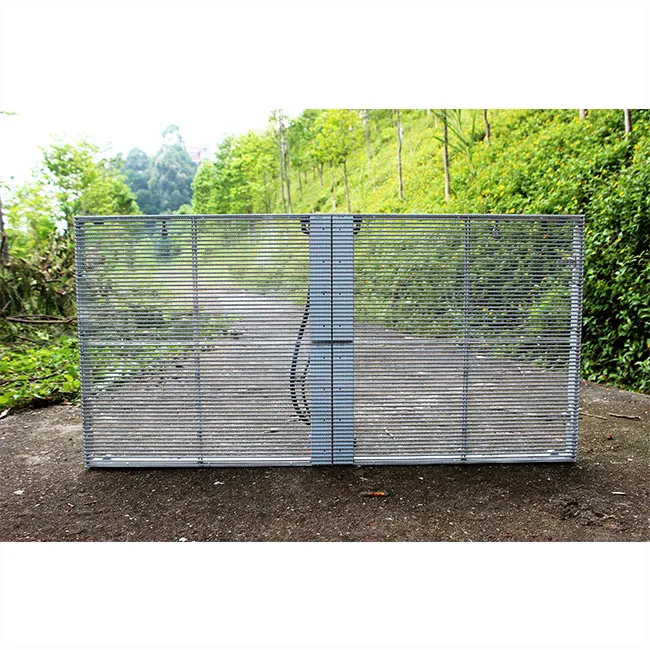

Cabinet View
Screen Performance Specifications
Pixel Density 32256 dots/sqm
Viewing Angle H 140°, V 140°
Refresh Rate >1920 Hz
Max Power Consumption 680 W/m²
Average Power Consumption 240 W/m²
Grey Scale 16 bit
Life Span ≥100,000 hours
Packaging & Logistics

Fixed Installation Packing

Plywood Case

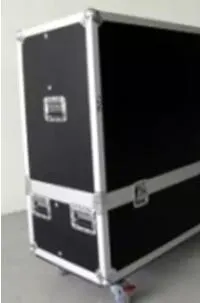

Rental/Movable Packing

Flight Case
  • Production Time: Approx. 25 days (including aging test).
  • Payment: 30% in advance, 70% before shipping.
  • Trade Terms: EXW, FOB, CIF, DDU, DDP.
After-sales Service
  • Two Years Warranty: Comprehensive coverage for peace of mind.
  • 24/7 Support: Lifetime free online technical service.
  • Repair Service: Depot repair with buyer bearing shipping costs during warranty; parts + shipping costs post-warranty.
  • Engineer On-site: Professional engineering services available worldwide.
Factory Overview & Certifications

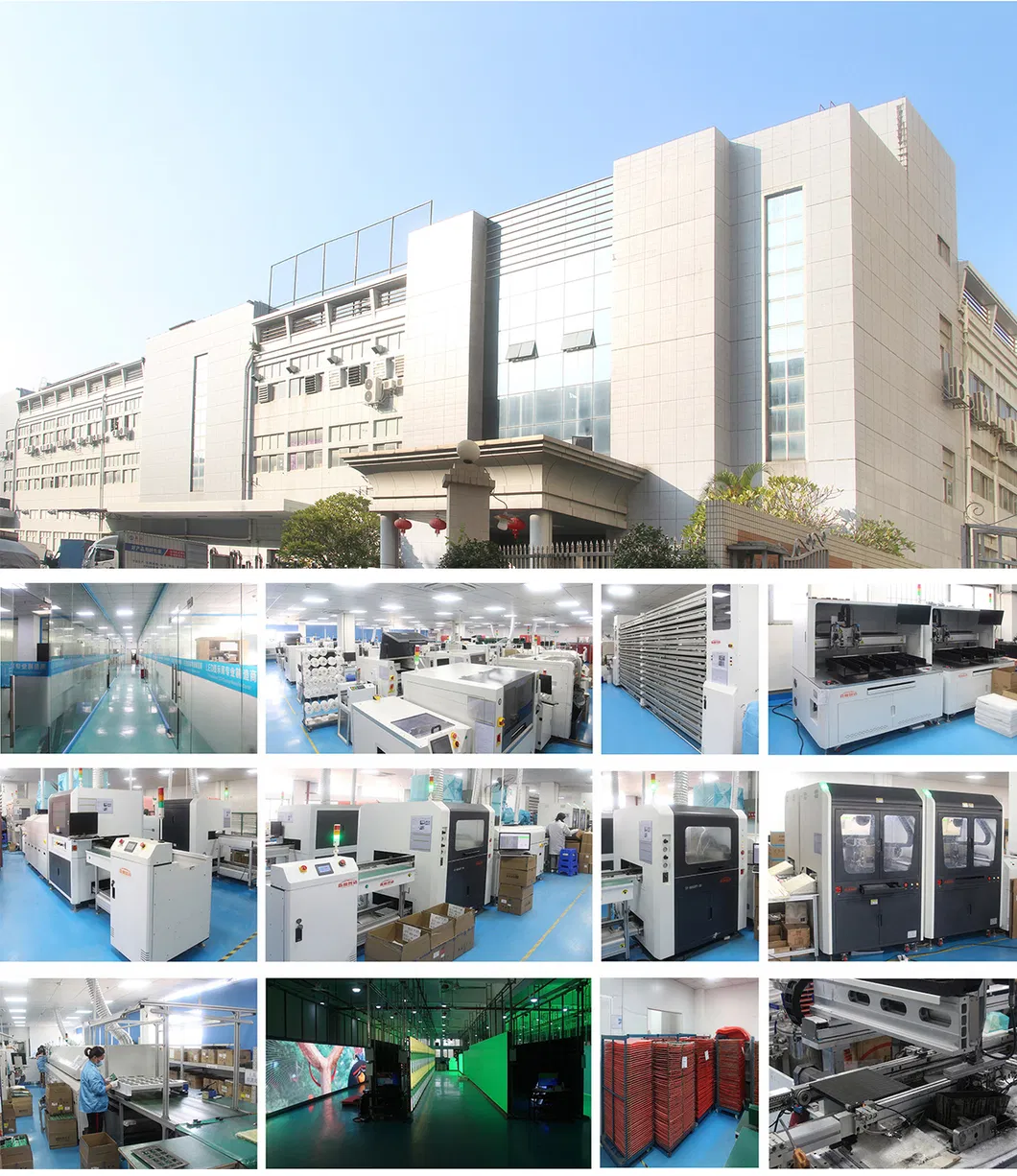

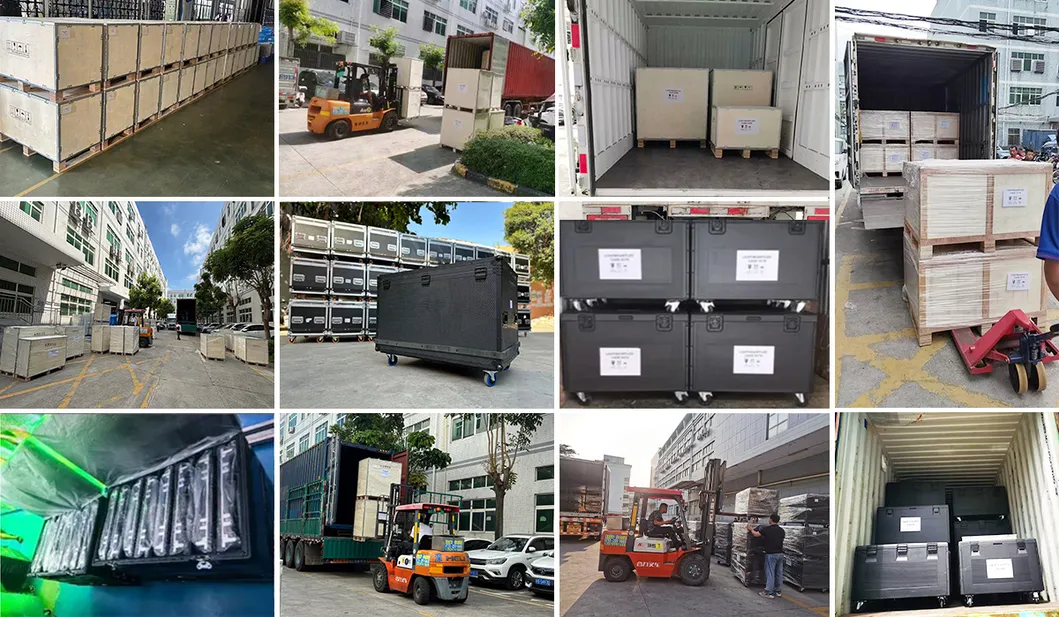

Factory Aging Test Packaging Area Certificates
Frequently Asked Questions
Q: What is the transparency rate of the TS-3.96 LED screen? A: The light transmittance reaches over 70%-75%, allowing background light and images to remain visible through the screen.
Q: Can this high-brightness screen be installed outdoors? A: While it has high brightness (4000 nits), this specific configuration is designed for indoor fixed installation, typically behind glass windows.
Q: What type of LEDs and chips are used? A: We use high-quality Nationstar SMD1921 LEDs paired with Epistar chips for reliable performance and longevity.
Q: What are the available cabinet sizes? A: The standard supported cabinet sizes are 1000mm*500mm and 1000mm*1000mm.
Q: What is included in the after-sales warranty? A: We provide a two-year warranty along with 24-hour lifetime online technical support. Repair services and engineer on-site visits are also available.
Q: What is the lead time for a standard order? A: For orders up to 200 m², the production time is approximately 25 days, which includes rigorous aging and grayscale testing.
