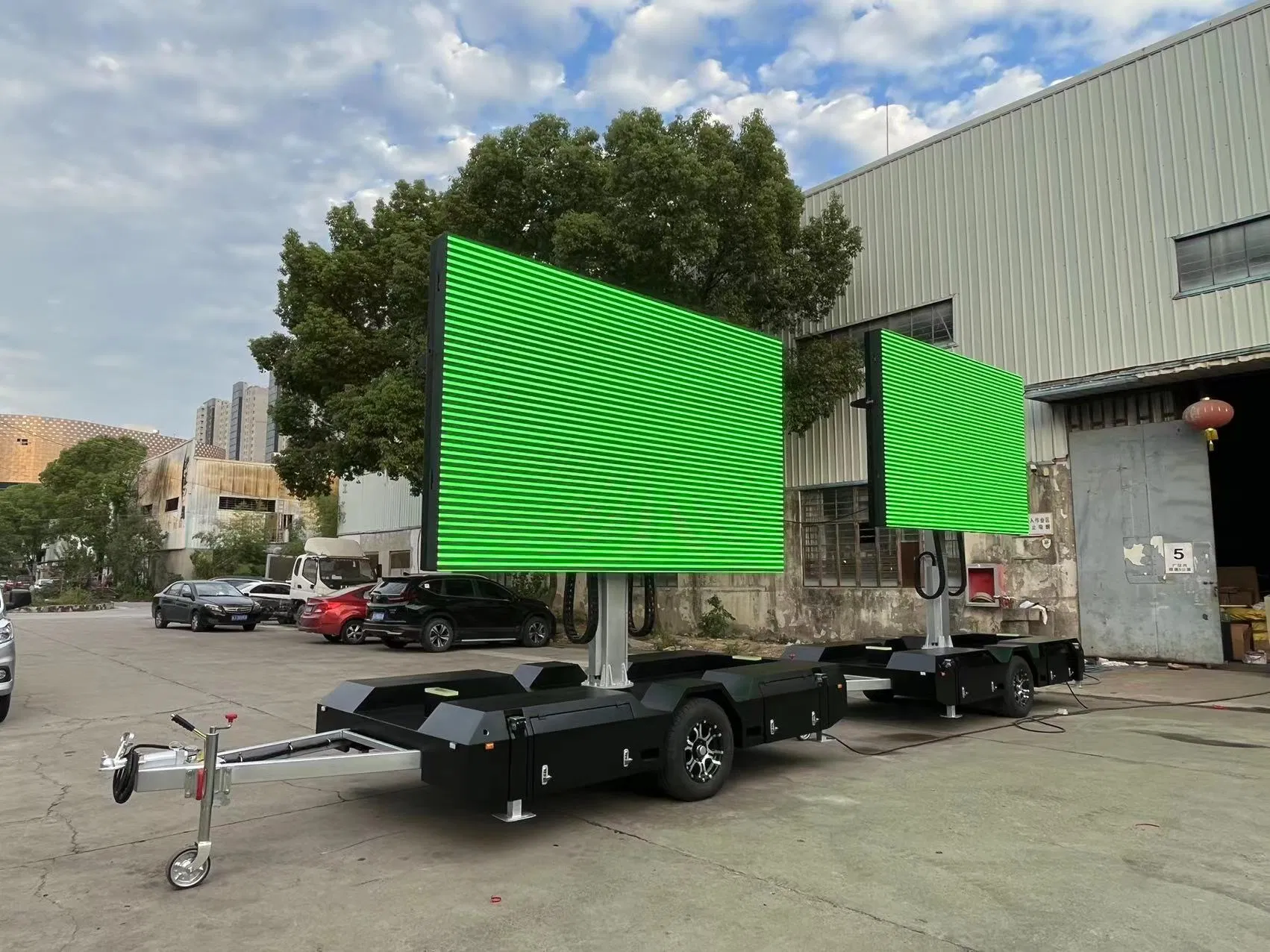

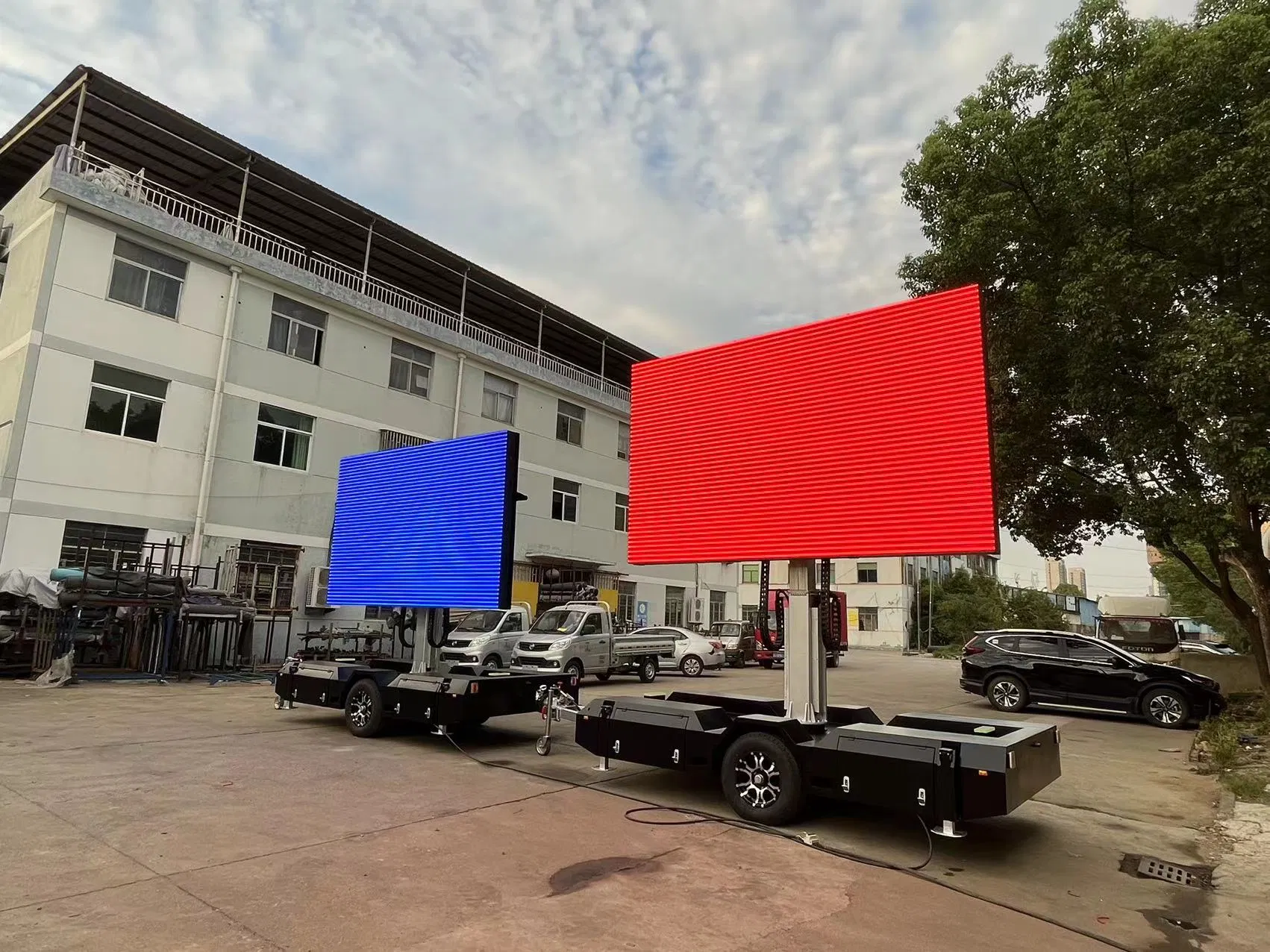

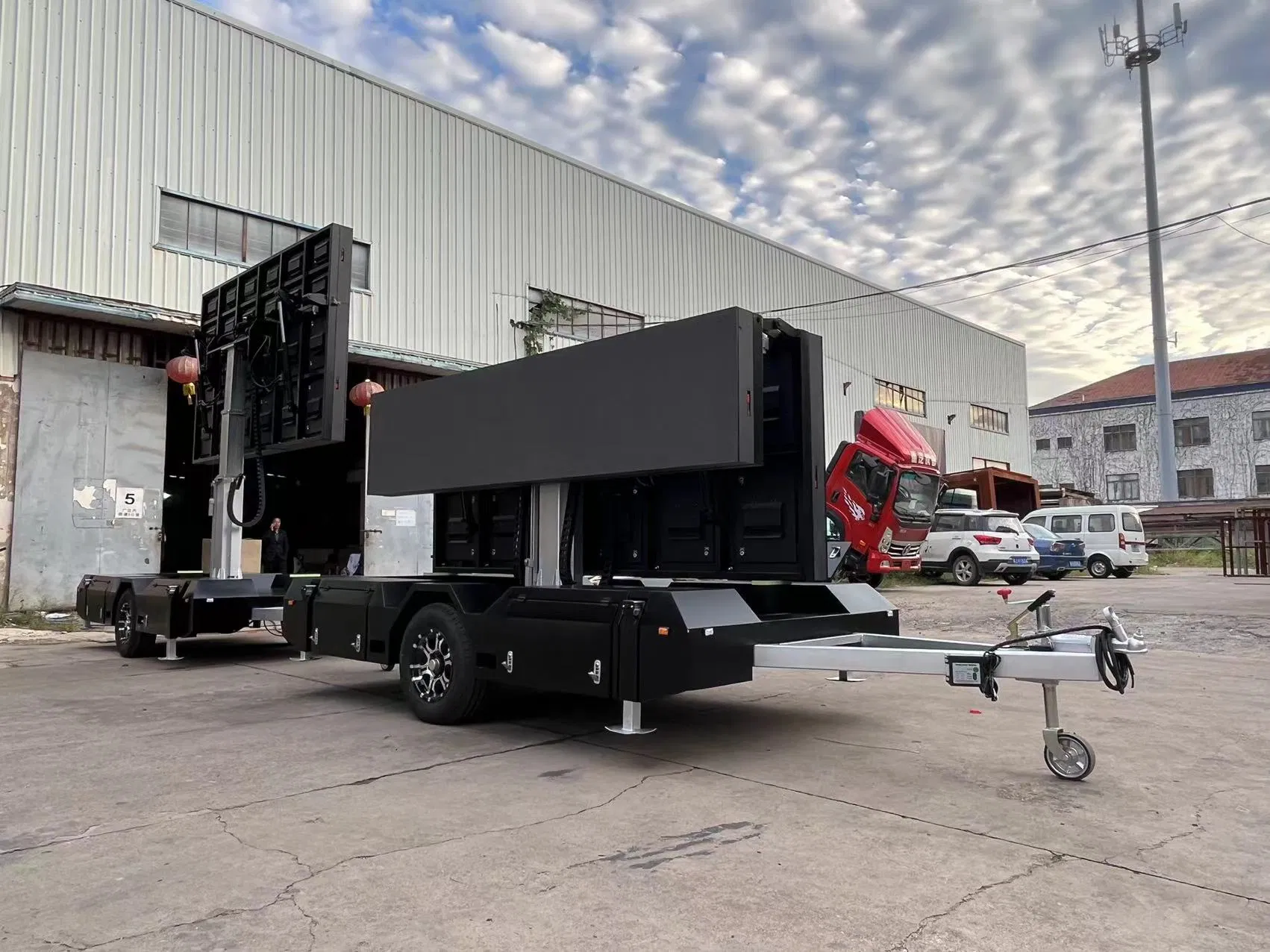

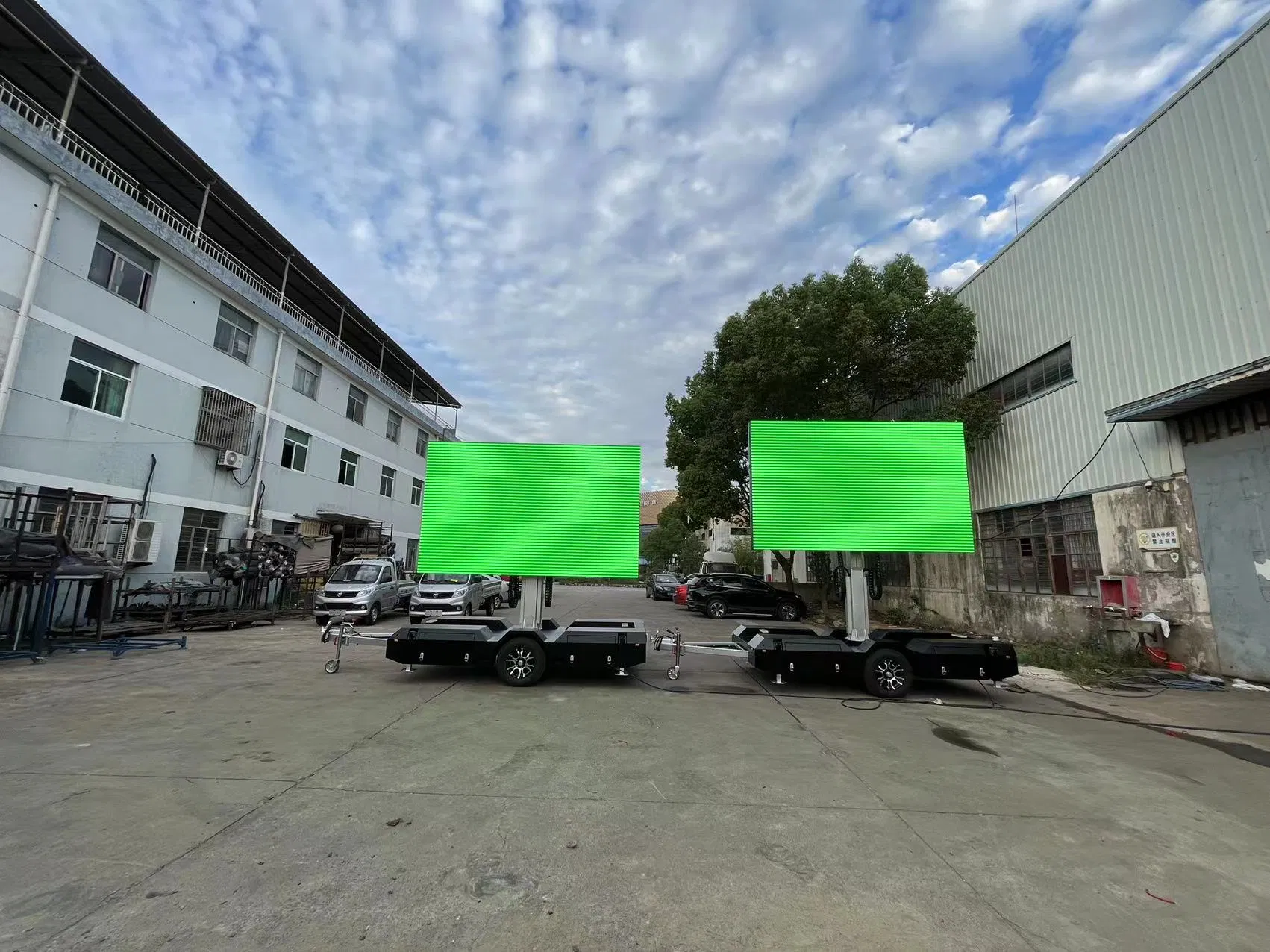

P8 Solar Mobile LED Truck Car Automatic Advertising LED Display

1 / 5

P8 Solar Mobile LED Truck Car Automatic Advertising LED Display

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP65

Send Inquiry

Product Description

🔹 Basic Specifications

Model NO.

P8-Outdoor solar led trailer 2240*1280mm

Pixel Pitch

8mm

Pixel Density

15625DOT/Sqm

Brightness

>5500CD/Sqm

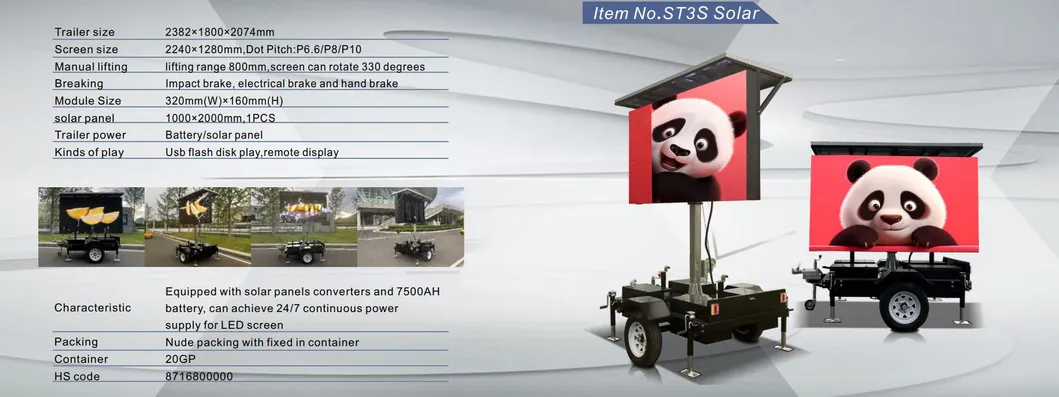

Trailer Size

2382*1800*2074mm

Total Weight

629kg

Refresh Rate

3840Hz

Power Consumption

Avg 30W/Sqm, Max 100W/Sqm

Certification

CE, RoHS, CCC, ETL, FCC

Cabinet Material

Iron

🔹 Product Features & Advantages

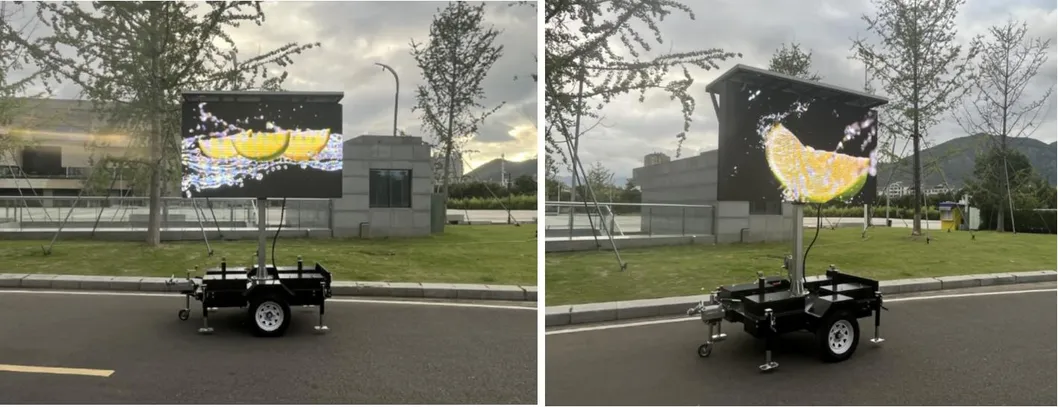

Dynamic Lifting & Rotation: Supports manual lifting of 800MM and 360-degree rotation for optimal viewing angles.

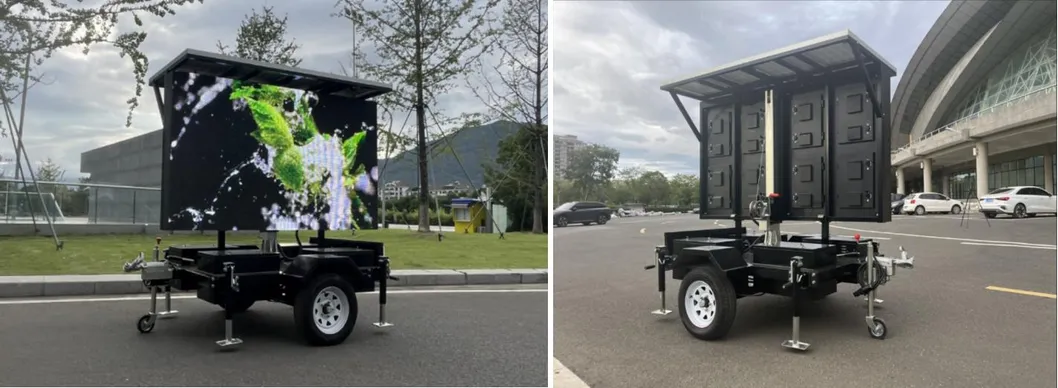

Eco-Friendly Power: Equipped with high-efficiency solar panels and a 9600AH battery system for year-round continuous power supply.
Safety First: Integrated braking device and safety chains (10mm, 80 grade).
Certified Road Safety: Trailer lights with EMARK certification, including indicator, brake, turn, and side lights.
Intelligent Control: GPS module for remote positioning and SMS-based LED sign control.
Auto-Adjustment: Built-in brightness control card to automatically adjust the display according to ambient light.
Durable Finish: The entire vehicle undergoes a galvanized process for superior corrosion resistance.

🔹 Technical Specifications

Parameter		Details
LED Screen Dimension	2240mm*1280mm	Module Size	320mm*160mm
Max Speed	120Km/h	Axle	Single Axle
Pixel Configuration	1R1G1B (SMD)	Viewing Angle	H:100° / V:100°
Solar Panel Power	410W	Battery Spec	12V 150AH * 4Pcs (7.2 KWH)
Control System	Nova TB30-4G	Operating Temp	-20°C ~ 50°C
Input Voltage	220V (External)	Maintenance	Rear Service

🔹 Important Remarks

1. Delivery: Approximately 5 to 15 working days following deposit confirmation.

2. Payment: Supports T/T, PayPal, and Western Union. Standard terms involve a 50% production deposit and 50% balance before dispatch.

3. Shipping: Available via sea, air, or express. Shipping details can be optimized to reduce costs.

4. Warranty: Includes a 2-year full warranty and lifetime technical maintenance support.

🔹 Frequently Asked Questions (FAQ)

What is the main application for this solar LED trailer?

This P8 outdoor solar LED trailer is designed primarily for mobile advertising, market displays, traffic information broadcasting, and event promotion in locations where fixed power may be limited.

How long can the LED screen operate on battery power alone?

Equipped with a 7.2 KWH battery system and high-efficiency solar panels, the trailer is designed to provide continuous power supply for the LED screen throughout the year under normal conditions.

Is the trailer height and direction adjustable?

Yes, it features a manual lifting mechanism that can raise the screen by 800mm and allows for 330 to 360-degree rotation to ensure the best visibility for your audience.

What certifications does this product hold for international markets?

The entire system, including the LED display and trailer components, has passed CE, RoHS, CCC, ETL, and FCC certifications. The trailer lights specifically hold EMARK certification.

How is the content on the LED screen managed?

The system utilizes the Nova TB30-4G player, which supports wireless control, SMS message updates for the LED sign, and remote GPS monitoring for the trailer's position.

What is the durability and maintenance of the vehicle?

The trailer is built with an iron cabinet and undergoes a full-vehicle galvanizing process for longevity. It supports rear-service maintenance, making it easy to access components if needed.
