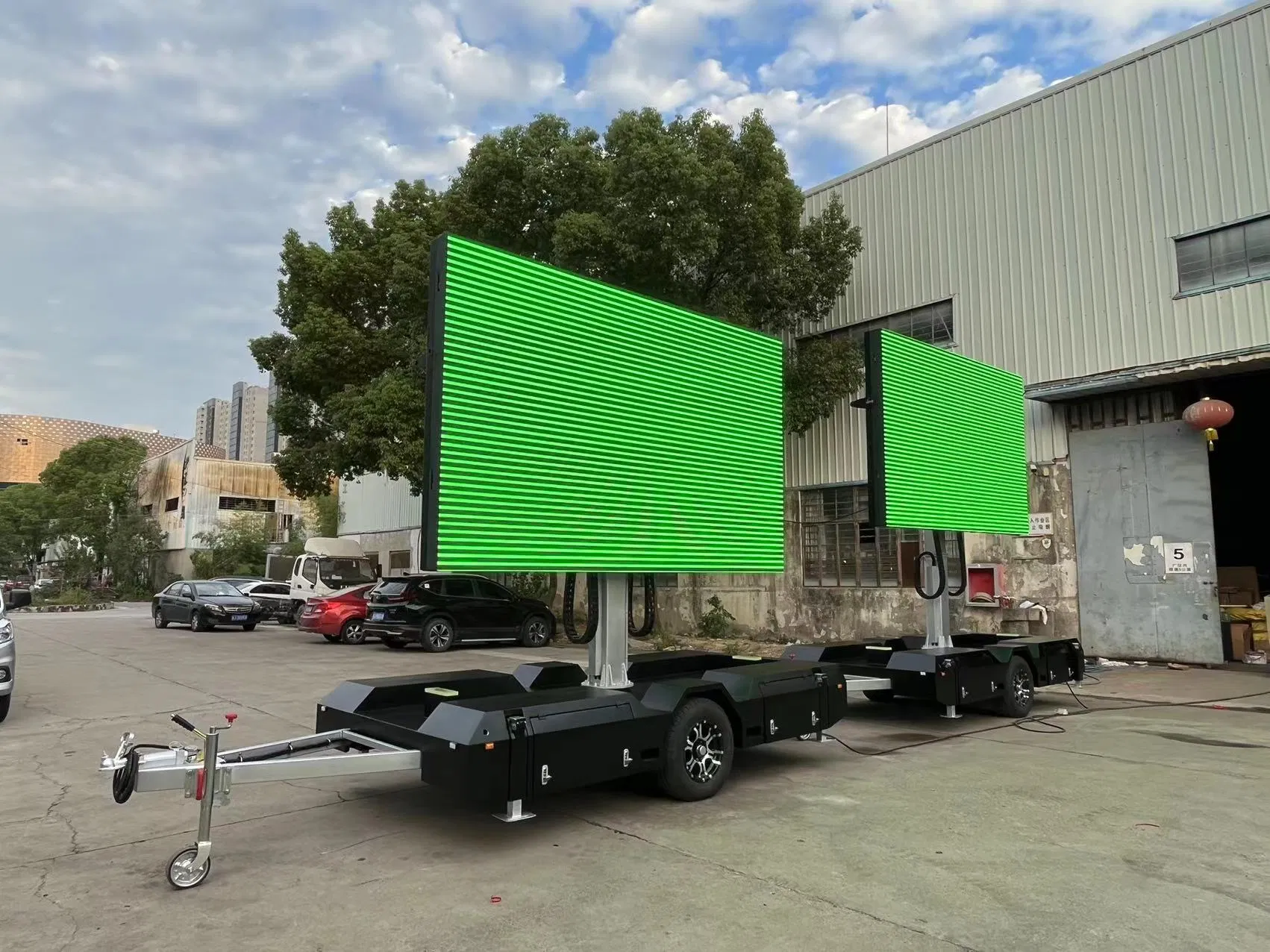

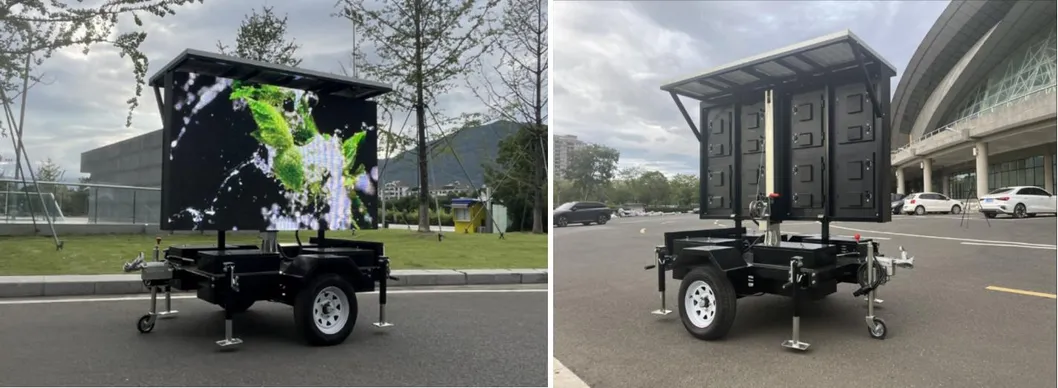

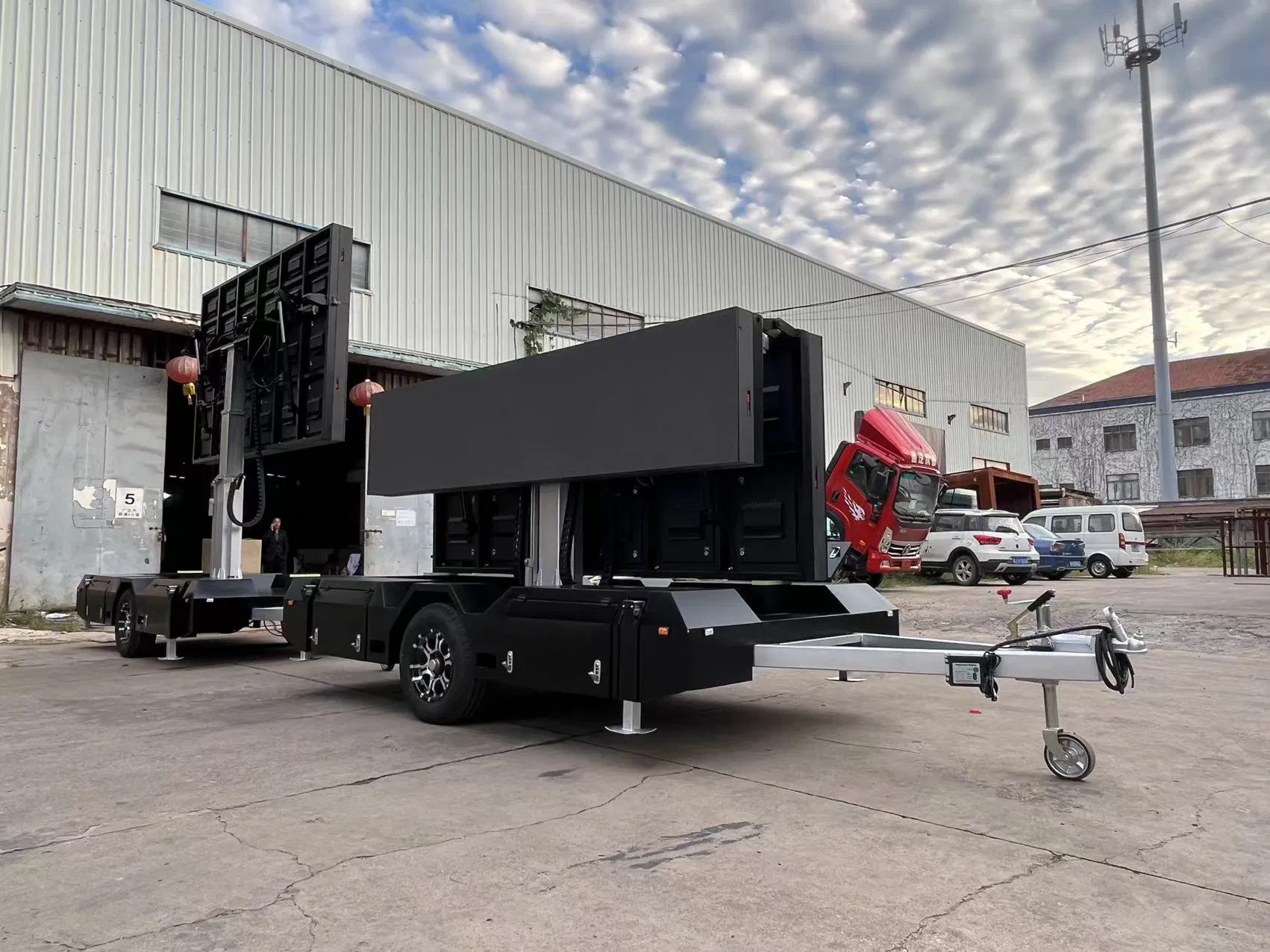

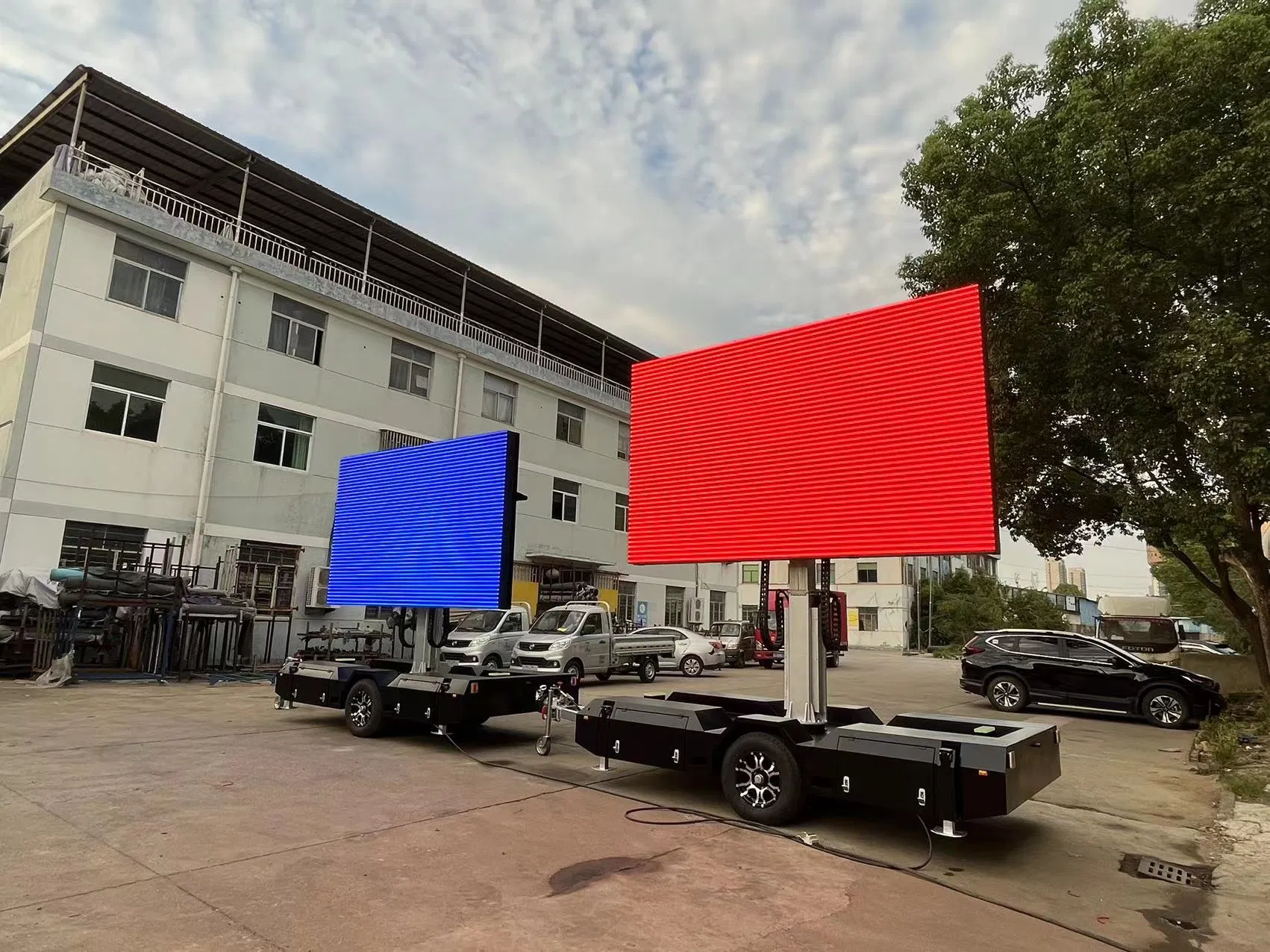

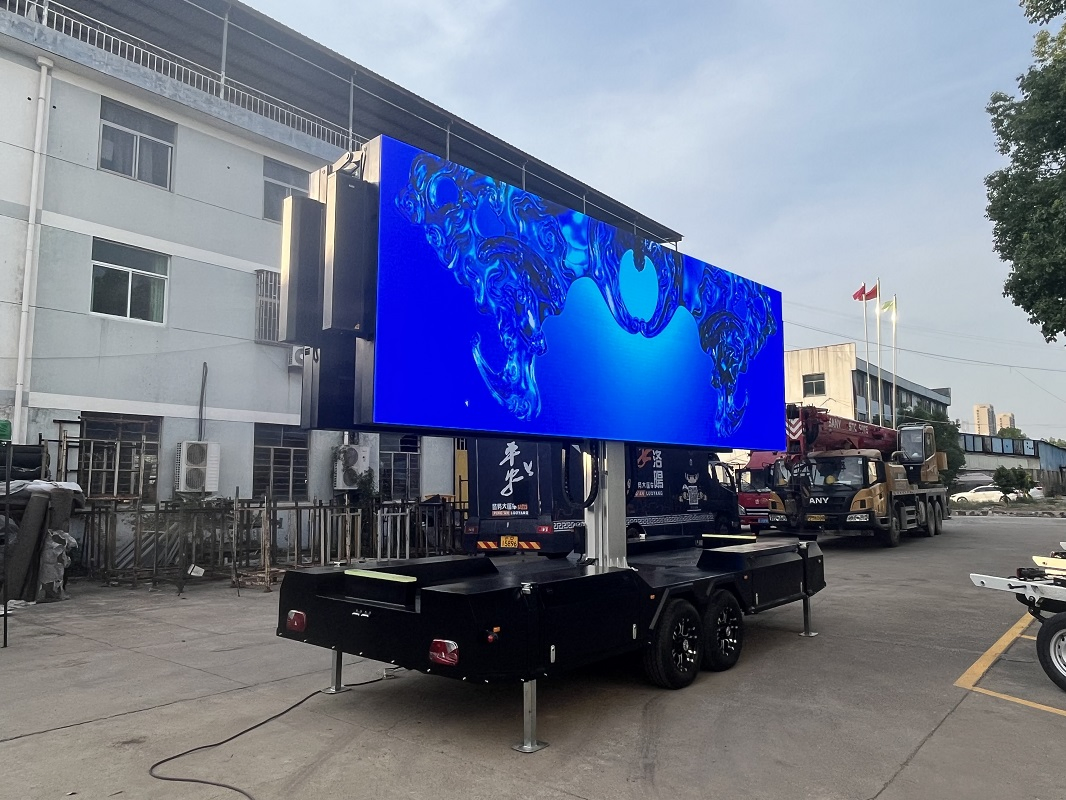

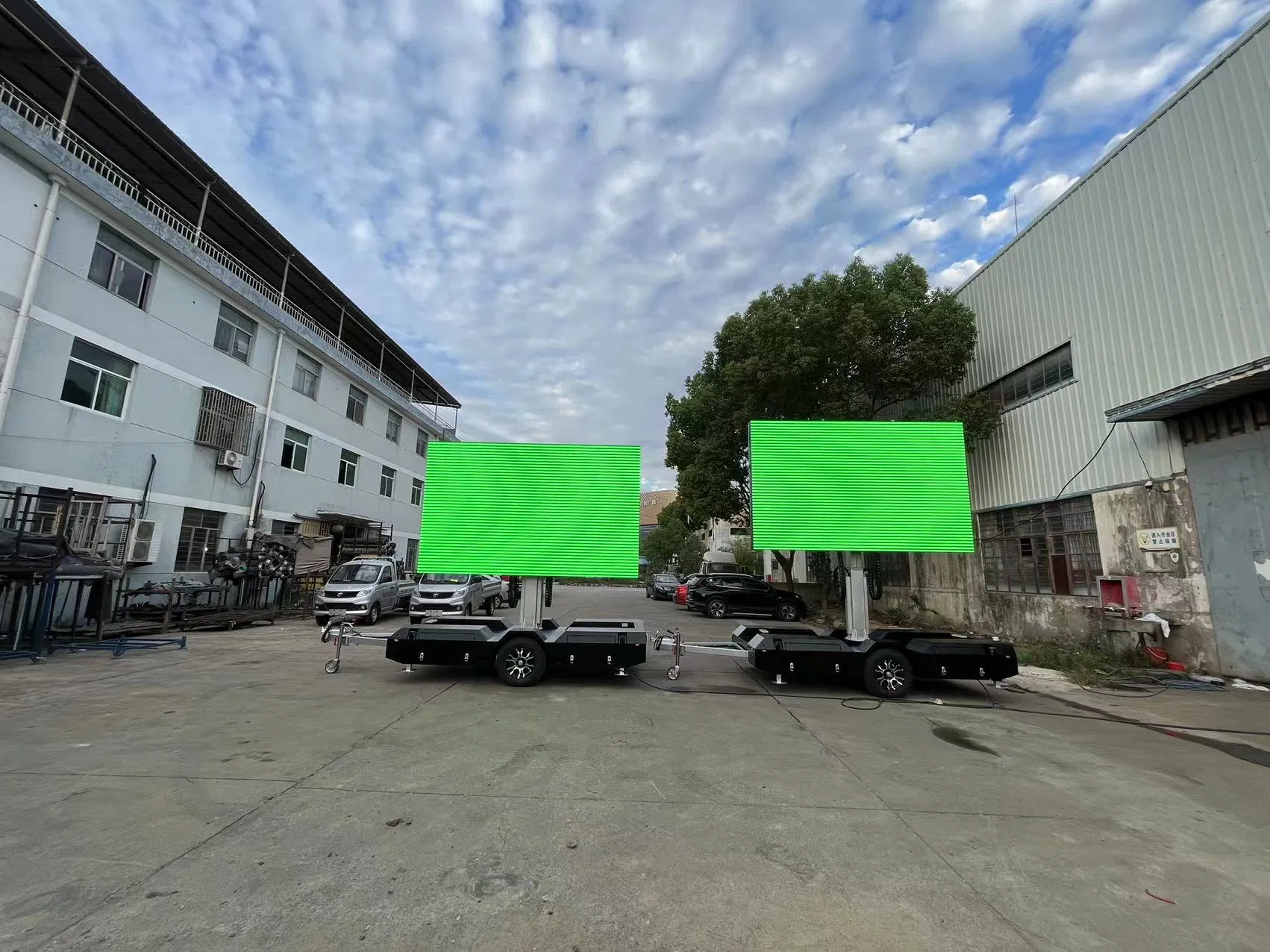

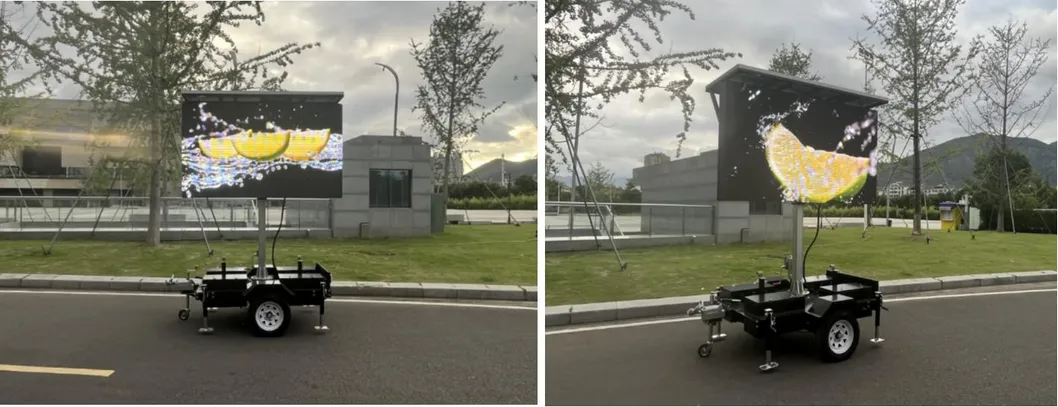

P8 Custom Outdoor Truck Trailer LED Screen Display Mobile Trailer Screen Panel LED Sign Screen Solar Cell Option

1 / 5

P8 Custom Outdoor Truck Trailer LED Screen Display Mobile Trailer Screen Panel LED Sign Screen Solar Cell Option

Customization:	Available
Tube Chip Color:	Full Color
IP Rating:	IP65

Send Inquiry

Product Description

📊 Basic Information

Model NO.

P8-Outdoor solar led trailer

Pixel Pitch

8mm

Display Function

Video, Image, Text

Pixel Density

15625 DOT/Sqm

Scanning Mode

1/8

Certification

CE, RoHS, CCC, ETL, FCC

Trailer Size

2382*1800*2074mm

LED Dimension

2240mm*1280mm

Brightness

>5500CD/Sqm

Fresh Rate

3840Hz

Production Cap.

50000/Years

HS Code

8528591090

📸 Product Showcase

⚙️ Technical Specifications

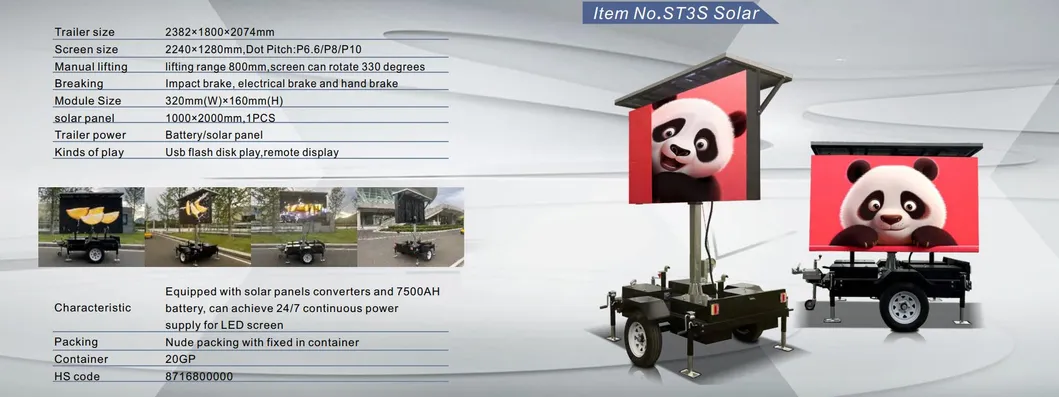

P8 Mobile Solar LED Trailer Specifications
Trailer & Chassis
Trailer Size	2382×1800×2074mm	Total Weight	629KG
Supporting Leg	4 PCS (1.5 tons load)	Tires	165/70R13
Max Speed	120Km/h	Connector	50mm ball head
Braking	Hand brake	Axle	Single axle
LED Screen System
Screen Dimension	2240mm*1280mm	Pixel Pitch	8 mm
Brightness	≥5500cd/m²	Lifespan	100,000 hours
Refresh Rate	3840Hz	Module Size	320mm*160mm
Power Consumption	Avg: 30w/m² \| Max: 100w/m²	Viewing Angle	H: 100° / V: 100°
Solar & Power System
Solar Panel	1000mm*2000mm (410W)	Battery	12V150AH*4Pcs (7.2 KWH)
Solar Controller	Tracer Series (9-36V Input)	Output Voltage	24V
Lifting & Control
Manual Lifting	800mm	Manual Rotation	330 degrees
Player	Nova TB30-4G	GPS	Equipped for remote monitoring

🌟 Key Advantages

✅ 800mm vertical lift and 360-degree rotation.

✅ Solar panels + 9600AH battery for 365-day operation.

✅ EMARK certified trailer lights (indicator, brake, side).

✅ Full vehicle galvanized process for durability.

✅ Automatic brightness adjustment control.

✅ Remote VMS control via wireless or SMS.

✅ GPS module for real-time position monitoring.

✅ 10mm safety chain and 80 grade rated ring.

📌 Remarks

1. Delivery: Approx. 5~15 working days after deposit.

2. Payment: T/T, PayPal, Western Union supported. 50% deposit, 50% balance before shipment.

3. Shipping: Sea, Air, or Express options available.

4. Warranty: 2 years warranty with lifetime maintenance support.

Frequently Asked Questions

❓ What is the pixel pitch and display quality of this trailer?

The trailer features a P8 pixel pitch (8mm) with a high refresh rate of 3840Hz and brightness exceeding 5500CD/Sqm, ensuring clear visibility even in direct sunlight.

❓ Can the LED screen operate without external power?

Yes, it is equipped with a 410W solar panel and a 7.2 KWH battery system designed to provide continuous power for the LED screen throughout the year.

❓ How does the lifting and rotation mechanism work?

The trailer includes a manual lifting system that can raise the screen by 800mm and a rotation mechanism allowing for 330 to 360-degree adjustment for optimal viewing angles.

❓ Is the trailer road-legal for international transport?

The trailer lights are EMARK certified, including indicators, brake lights, and side lights. It also features a galvanized chassis and a standard 50mm ball head connector for safety and compliance.

❓ How can I control the content on the LED screen remotely?

Content can be managed via a Nova TB30-4G player. Users can control the VMS wirelessly or even send SMS messages to change signs, supported by an integrated GPS module for location tracking.

❓ What is the warranty and maintenance policy?

We provide a 2-year comprehensive warranty on the hardware and offer lifetime maintenance services to ensure long-term operational reliability.
