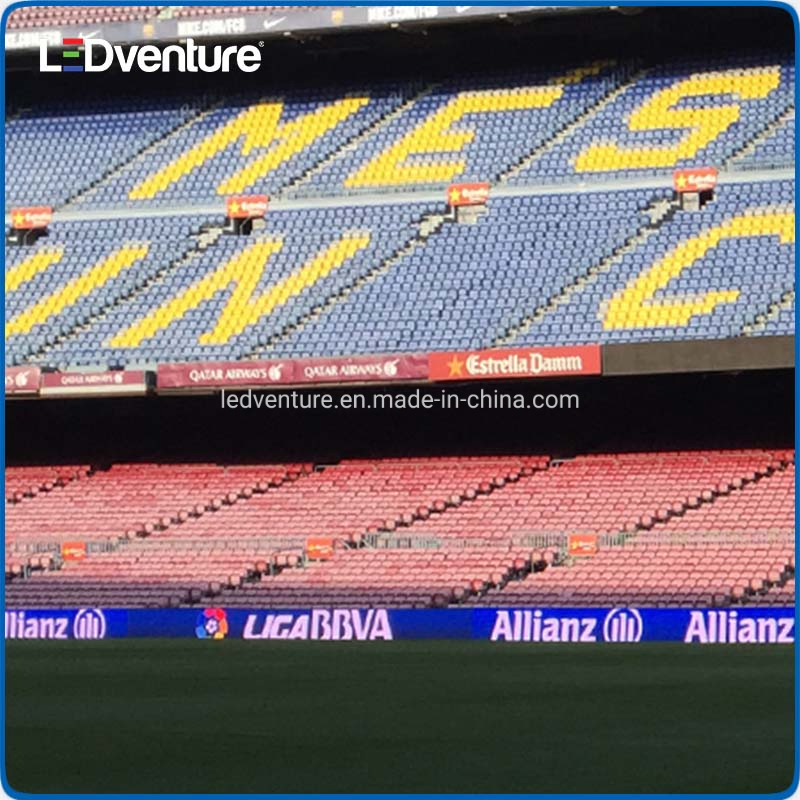

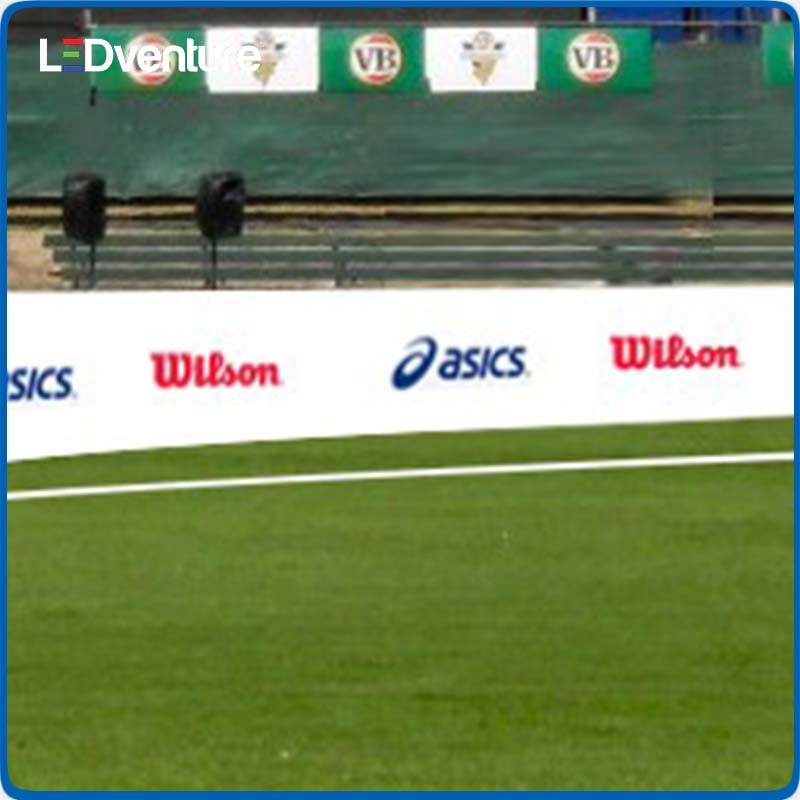

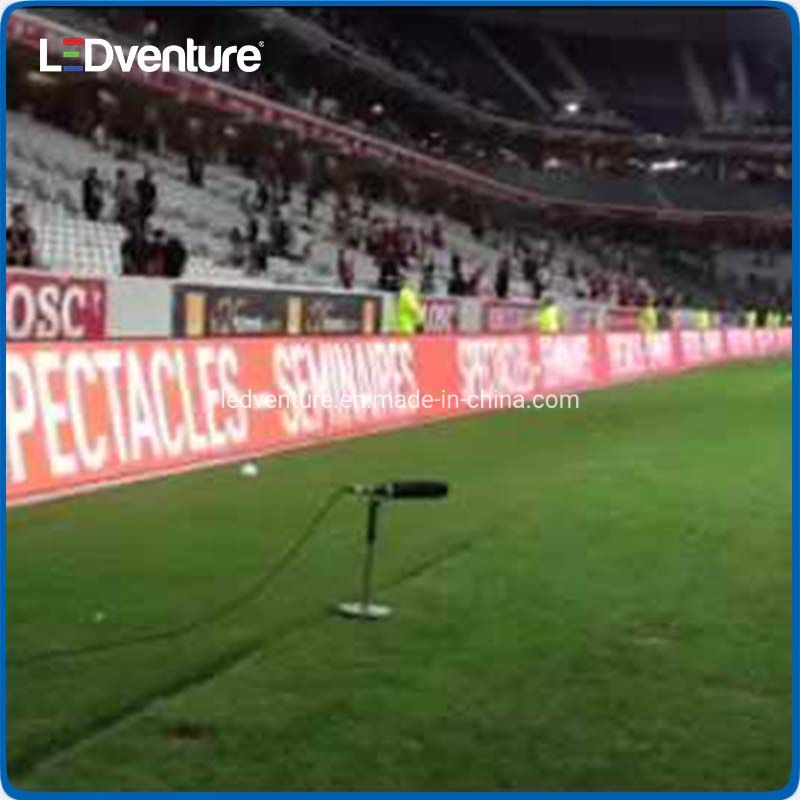

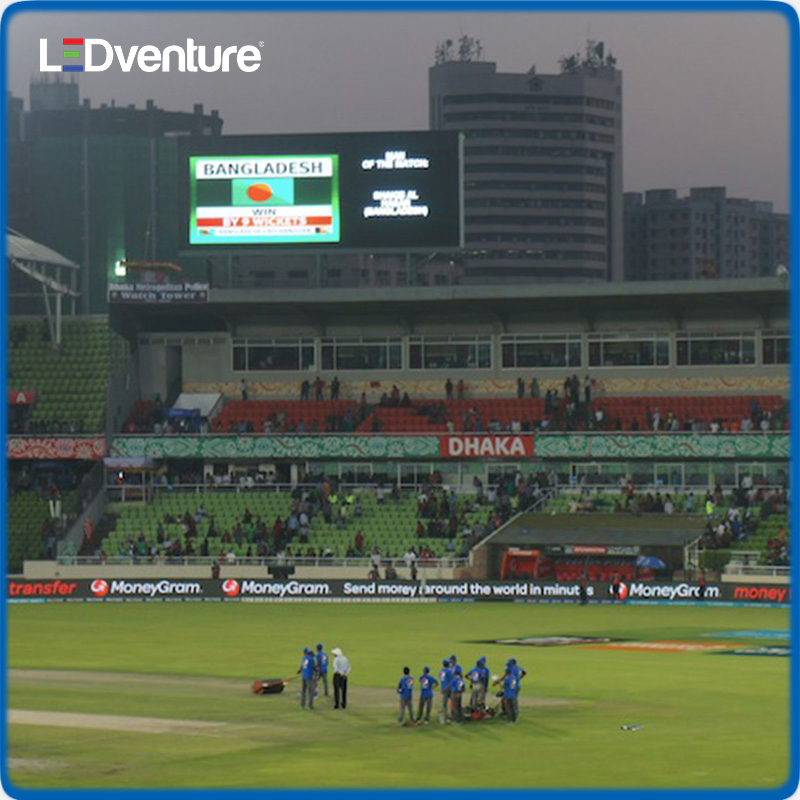

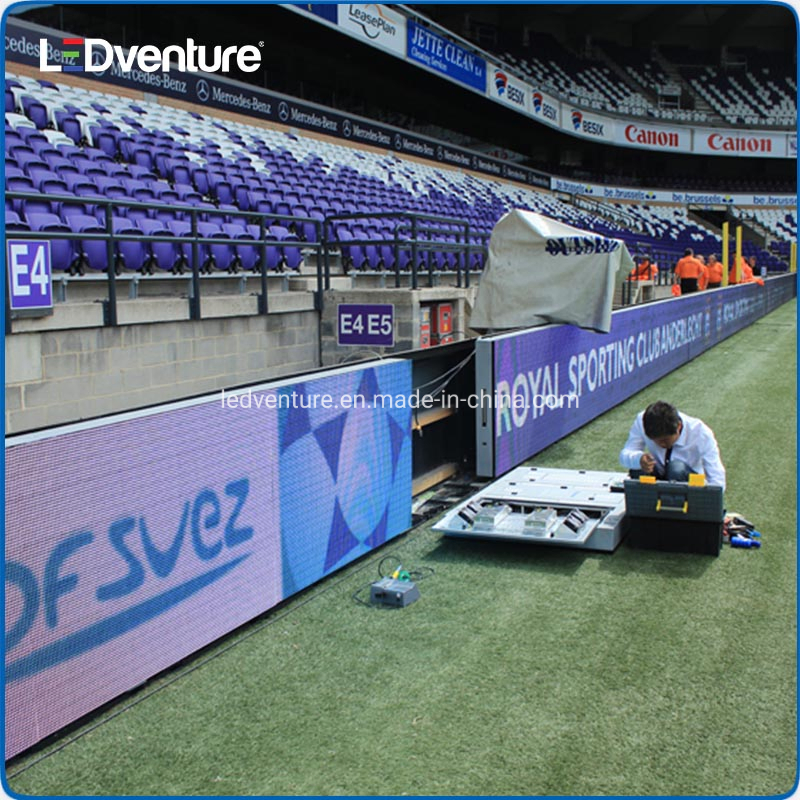

Full Color High Resolution P8 Outdoor Perimeter LED Display
Specialized in high-quality LED display solutions including indoor/outdoor screens, rental displays, flexible, and stadium perimeter series. This high-density solution is designed for stability and premium image quality in demanding environments.

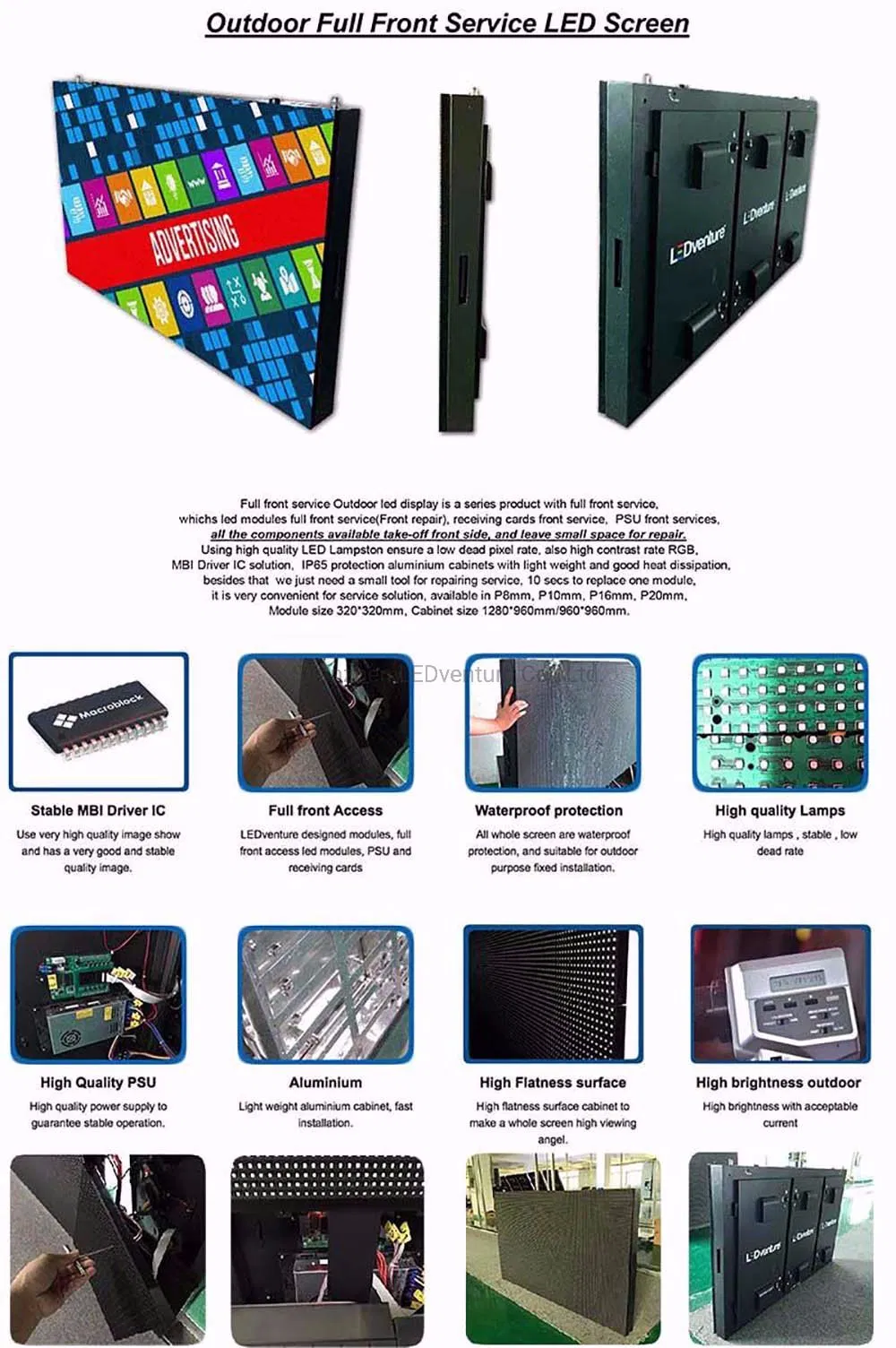

The P8 Outdoor Perimeter LED Display is a cost-effective media solution featuring a high refresh rate (>1920Hz) and lightweight cabinet options. It provides high-density resolution and simple installation, making it a top choice for outdoor media screens.
| Pixel Pitch | P4.81, P6.67, P8, P10, P12.5, P16, P20 |
| Brightness | >6000nits |
| Cabinet Size | 960x960mm |
| Refresh Rate | >1920HZ |
| LED Brand | NS |
| Driver IC | MBI |
We utilize top-tier materials including SMD components, high-grade ICs, durable PCBs, and reliable power supply brands to minimize maintenance costs and ensure long-term stability.
| Item | Specifications |
|---|---|
| Model Number | SP-P8S |
| Pixel Density | 15625 pixels/M2 |
| LED Type | NS SMD 3 IN 1 |
| Module Size | 320x320 mm |
| Viewing Angle | ≤140° |
| Protection Level | IP65 (Outdoor) |
| Color Temperature | Adjustable via software |
| Input Voltage | AC110-240V, 50/60Hz |
| Lifespan | ≥100,000 hours |
| Operating Temp | -20°C ~ +45°C |

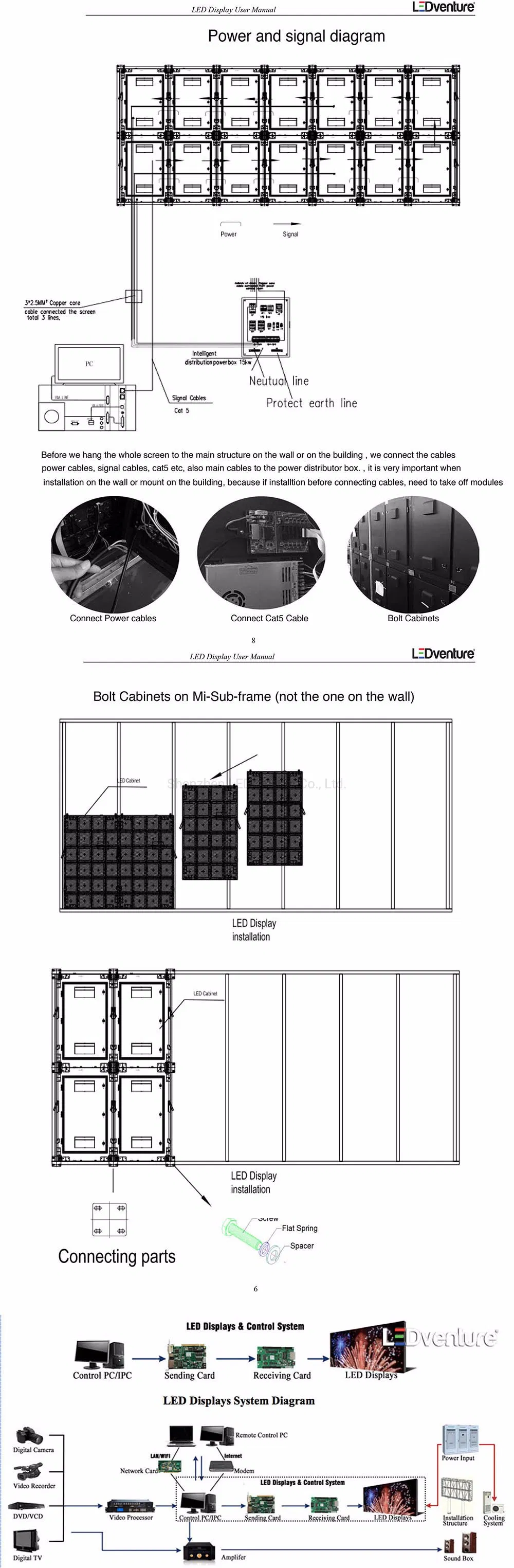

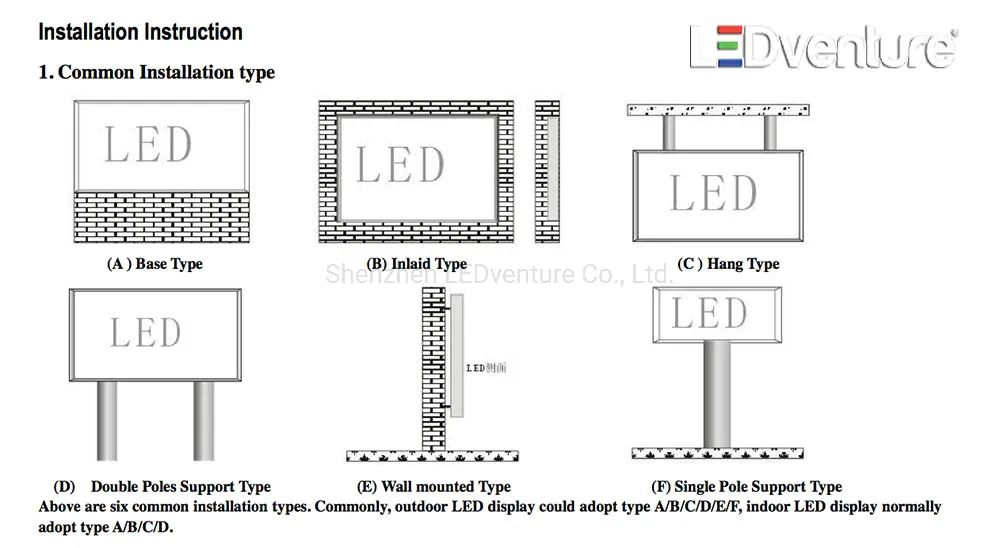

Multiple installation methods are available: fixed on walls, mounted on pillars, or standing configurations. All necessary system hardware (sending cards, processors, and receiving cards) is supported.

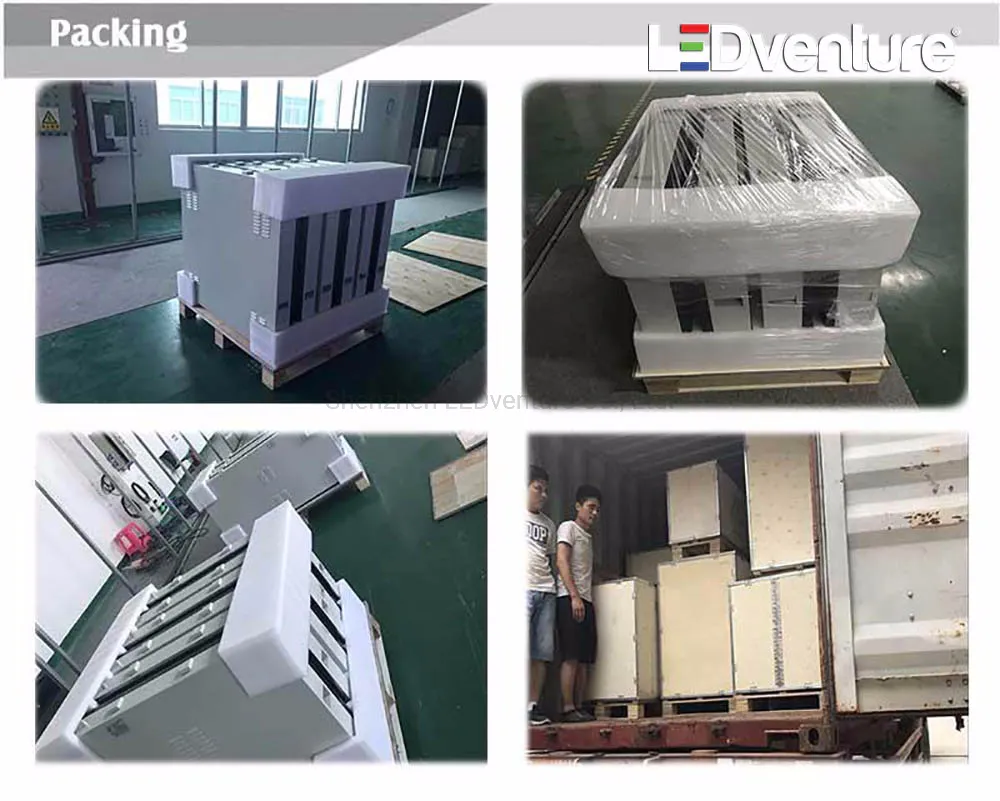

Products are securely packed in plywood cases for safe transport and easy loading/unloading.
Our displays meet CE, EMC, FCC, and UL safety standards, ensuring compliance with global market regulations.
