Basic Information
| Model NO. | OX-P6.67 |
| Pixel Pitch | 6.67mm |
| Pixel Configuration | 1R, 1G, 1B |
| Display Function | Video Display, Image & Text Display, Market Display |
| Average Power Consumption | 300W / m² |
| Pixel Density | 22477dots/M2 |
| Scanning Mode | 1/8 Scan |
| Certification | CE, RoHS, CCC, ETL |
| Brightness | >5500nits |
| Refresh Rate | >1920Hz |
| Contrast Rate | 3000:1 |
| System | Nova |
Product Description

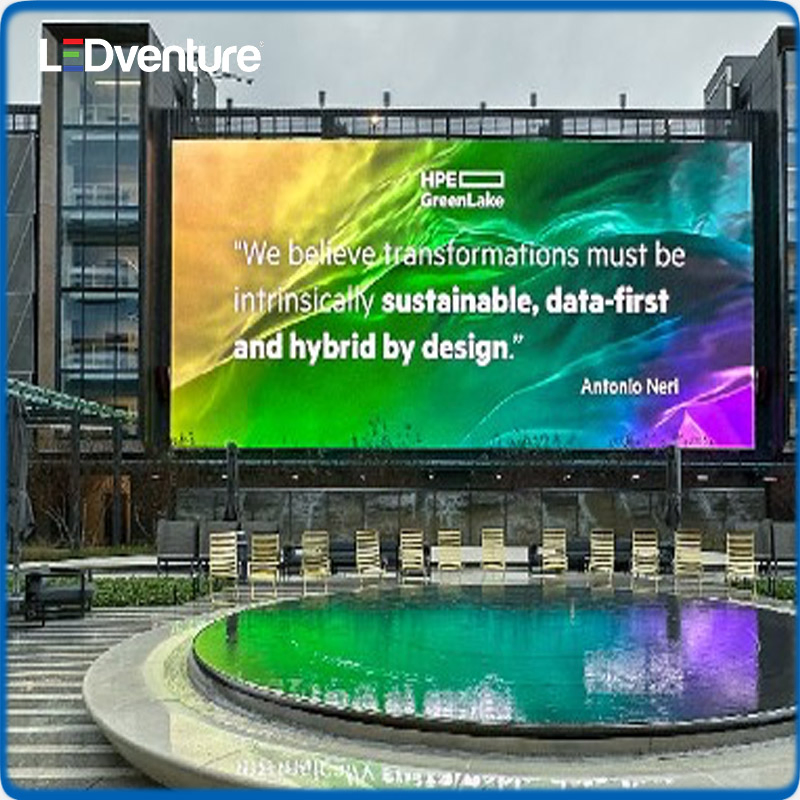

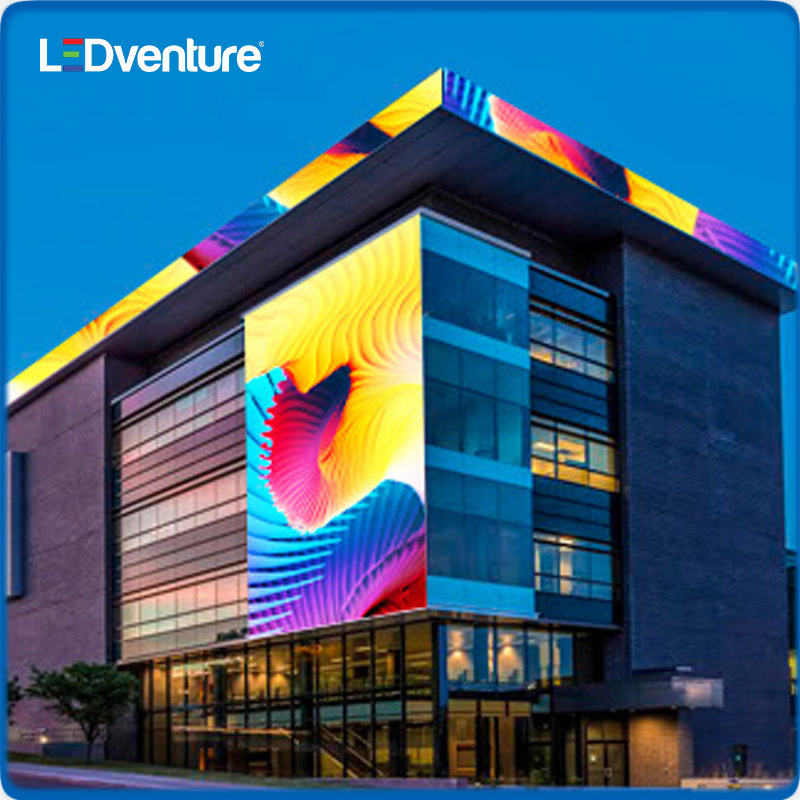

P6.67 3D Outdoor Large LED Advertising Digital Fixed Screen Billboard
Focusing on high-quality LED display manufacturing, this series includes outdoor fixed solutions, rental displays, and high-definition resolution screens. Designed for cost-effectiveness and durability, it features a high refresh rate and stable performance for diverse media solutions.
Outdoor New Technological Full Color LED Screen Display is a premium solution for outdoor media. It offers a light-weight cabinet design, high density resolution, and simple installation, making it increasingly popular for both indoor and outdoor advertising screens.

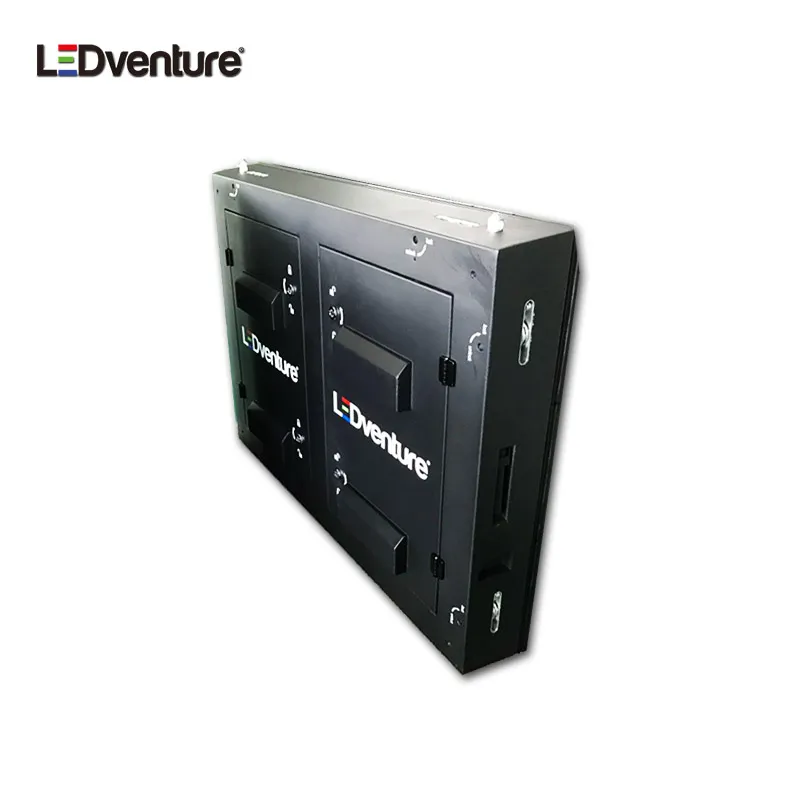

Product Detail & Material Quality
All materials are chosen for top-tier quality levels, including SMD, IC components, PCB, and PSU brands. This focus on premium hardware helps cut down after-sale service costs and ensures the LED display remains stable over long-term use.
Technical Specification
| Module Size | 320x320mm |
| Module Resolution | 60*60 pixels |
| Min. Viewing Distance | 3m |
| Viewing Angle | ≤140° degree |
| Protection Level | IP65 / IP54 |
| Cabinet Size | 960x1280mm |
| Input Voltage | AC110-240V, 50Hz|60Hz |
| Lifespan | ≥100,000 hours |
| Environment Temperature | Storage: -40°C~+85°C, Operation: -20°C~+45°C |
| Control Mode | Video frequency synchronization |
Installation & Packing

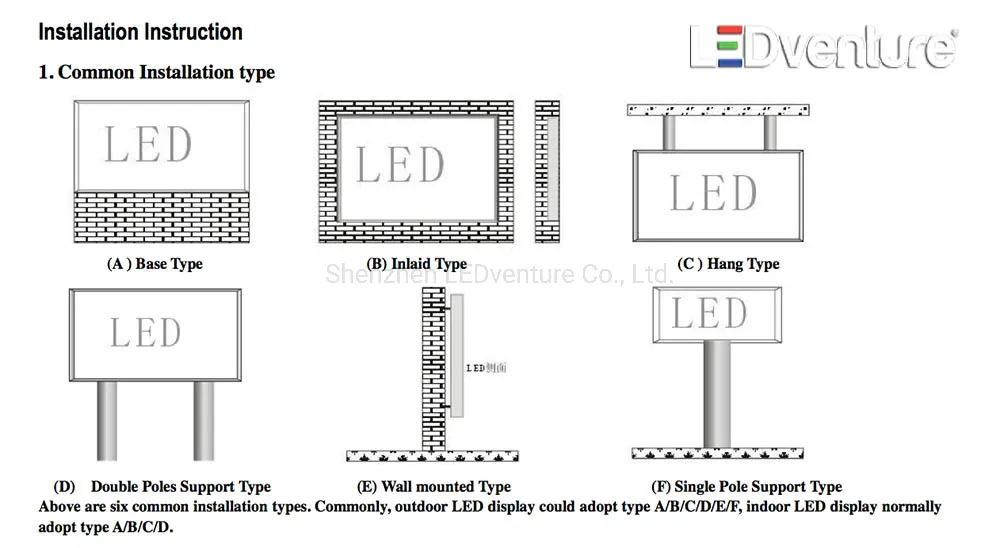

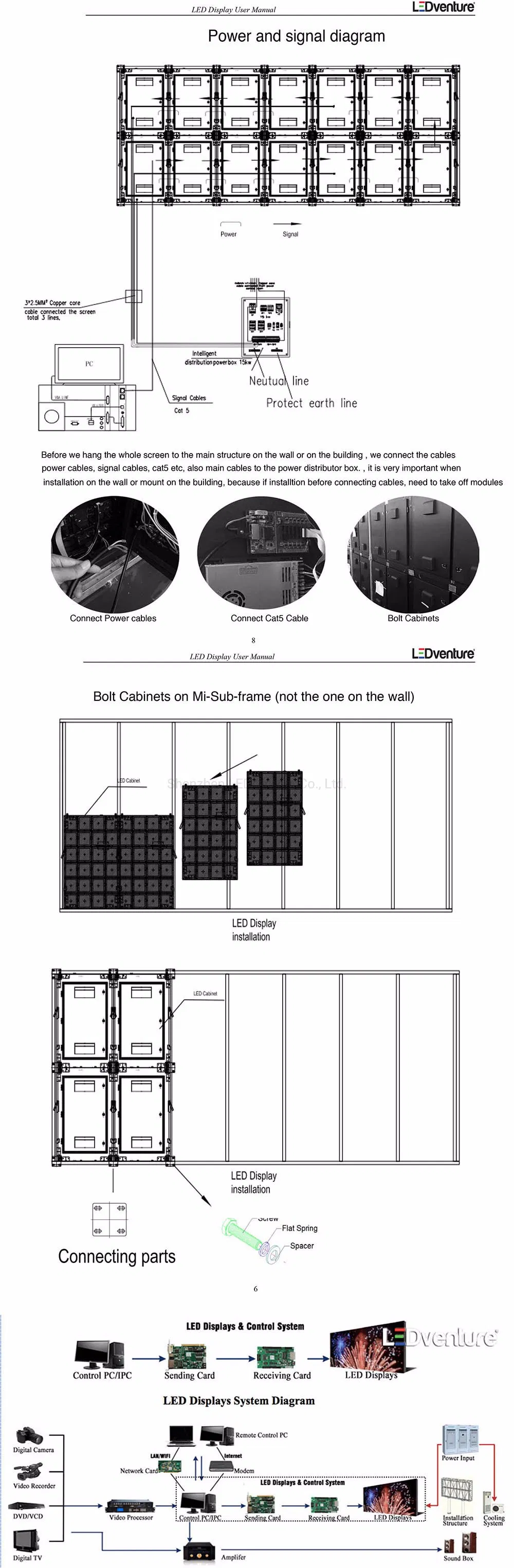

Flexible installation methods are available: fixed on the wall, mounted on pillars, or standing structures. The full system hardware includes sending cards, processors, and receiving cards.

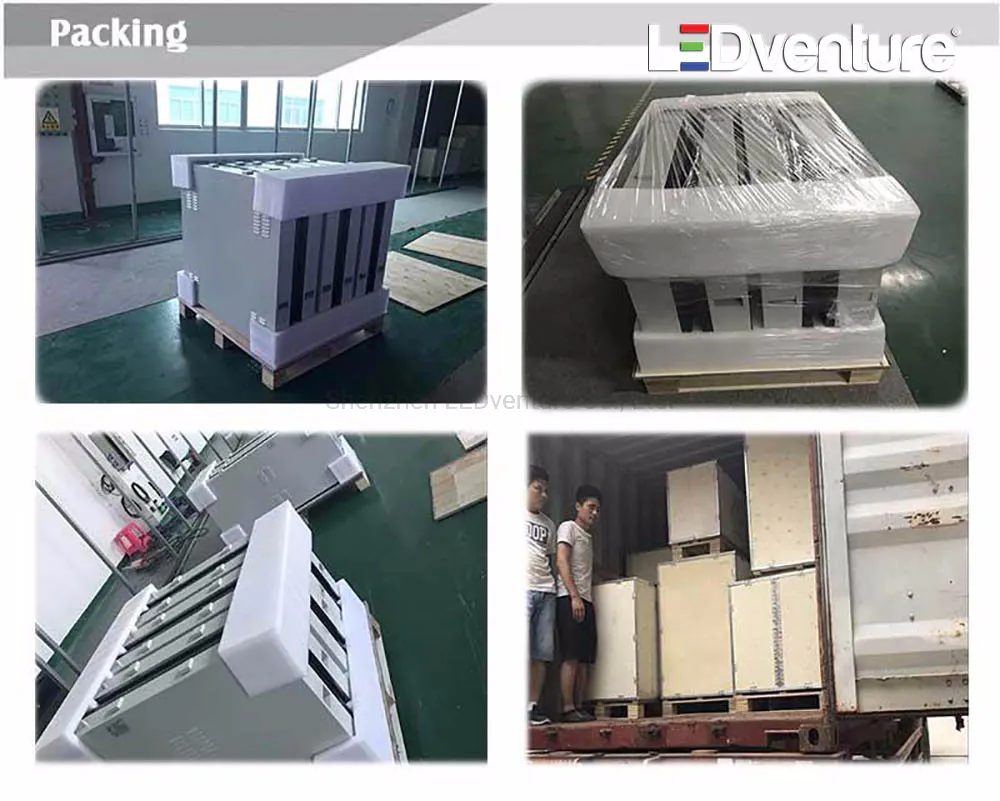

Packing is handled via reinforced plywood cases to ensure protection during transport and ease of loading.
Certificates & Quality Assurance
All products have passed CE, EMC, FCC, UL, and other security tests to meet international market laws and standards.

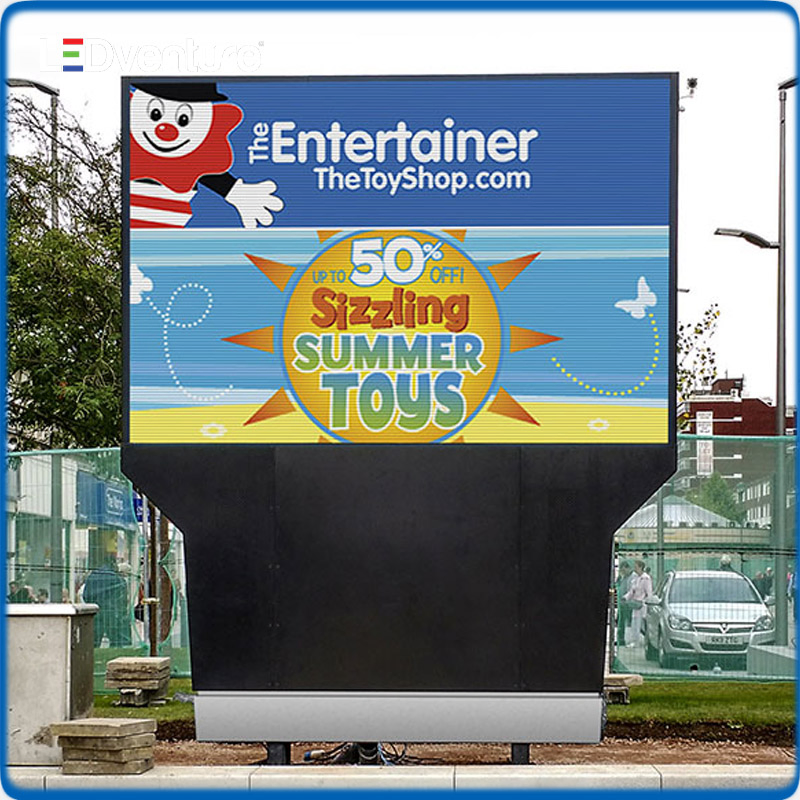

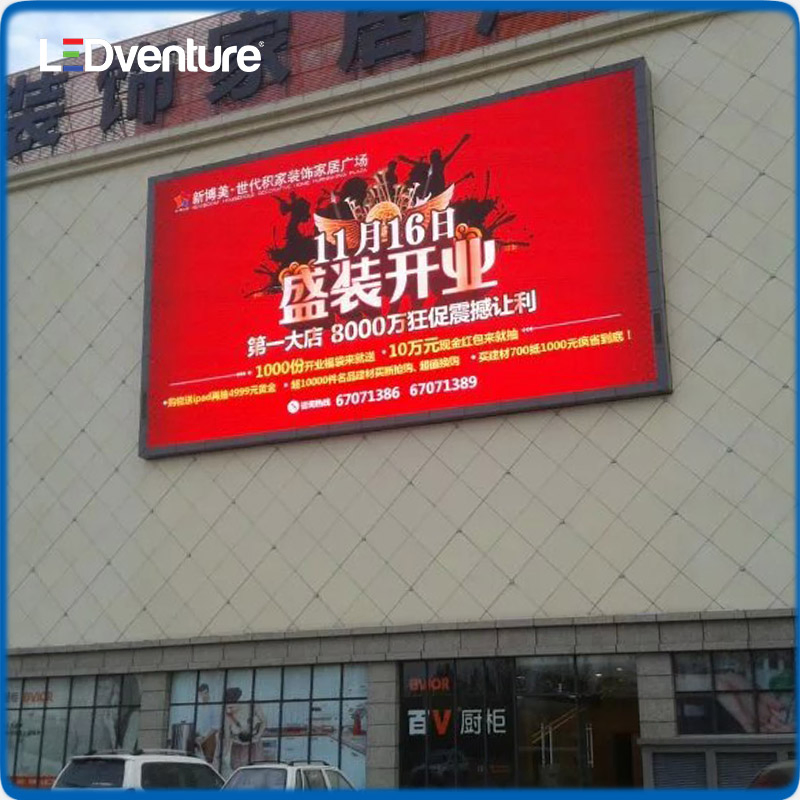

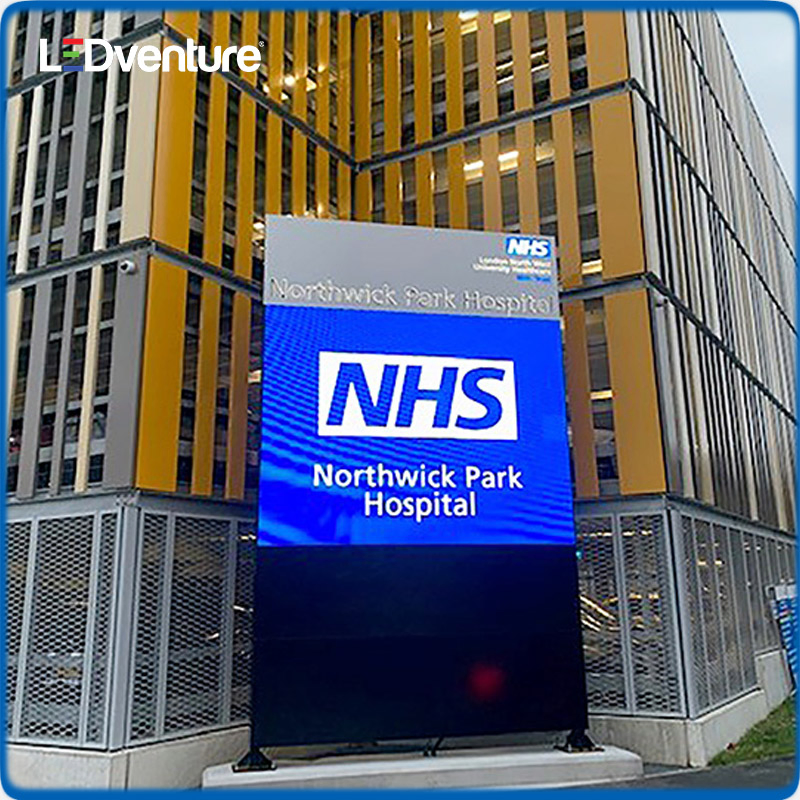

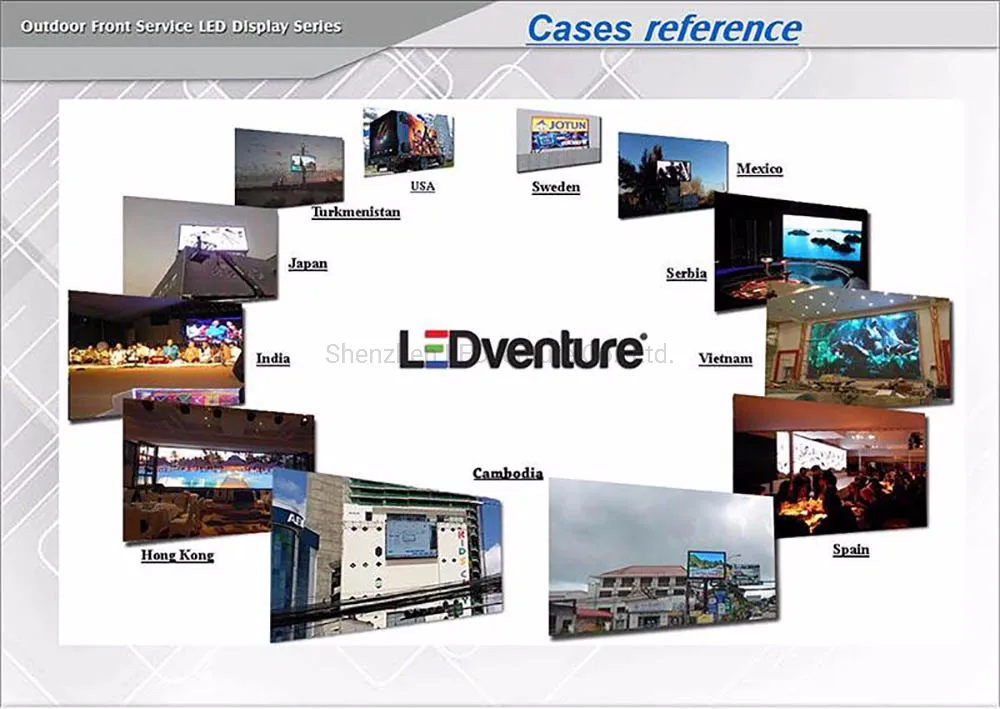

Installation Cases
Frequently Asked Questions
What is the pixel pitch of the OX-P6.67 model?
The pixel pitch is 6.67mm, which provides a high-density resolution of 22,477 dots per square meter.
Is this LED screen suitable for outdoor weather conditions?
Yes, it features an IP65/IP54 protection level, making it dust-proof and water-resistant for outdoor environments.
What is the expected lifespan of the display?
The LED display is designed for long-term use with an expected lifespan of 100,000 hours or more.
How bright is the outdoor billboard?
The screen offers a brightness level of over 5,500 nits, ensuring clear visibility even in direct sunlight.
What installation methods can be used?
The display supports multiple installation options including wall-mounted, pillar-mounted, or free-standing structures.
What certifications do these LED screens have?
Our products are fully certified with CE, RoHS, CCC, and ETL to meet global safety and quality standards.
