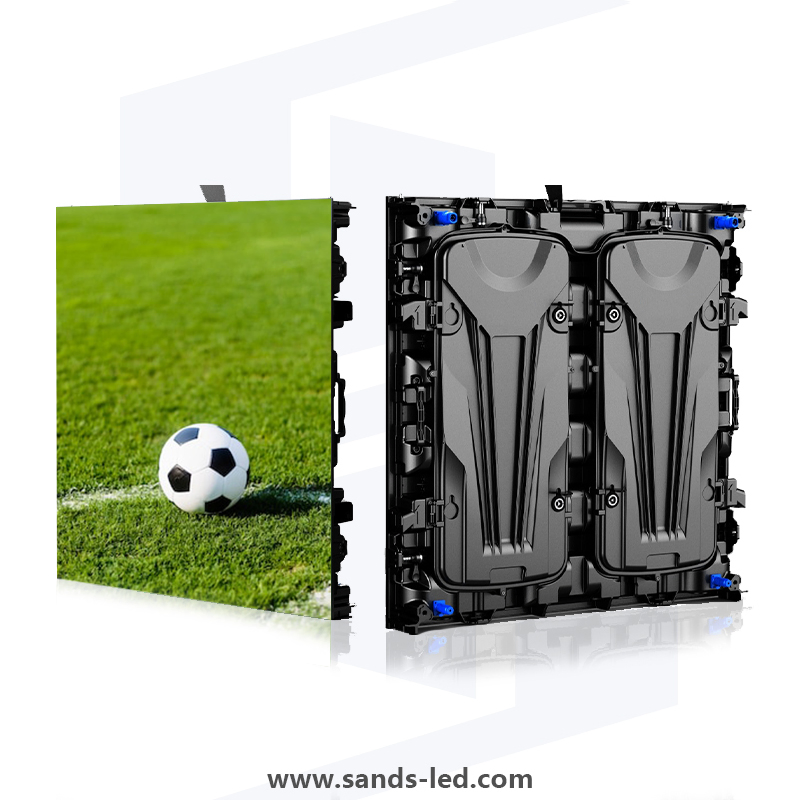

P6 2 Scan Full Color High Refresh High Definition Waterproof Outdoor LED Display Screen for Sports Stadium

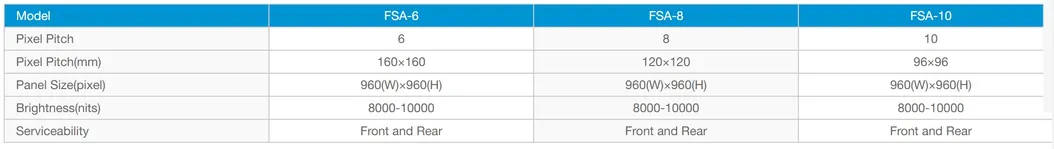

Basic Specifications

Model NO.

FS-A 960*960

Pixel Pitch

6mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image, Text, Market Display

Power Consumption

300W / m² (Avg)

Pixel Density

27,777 Dots/M²

Scanning Mode

1/2 Scan

Application

Stadium

Certification

CE, RoHS, CCC, ETL, ISO

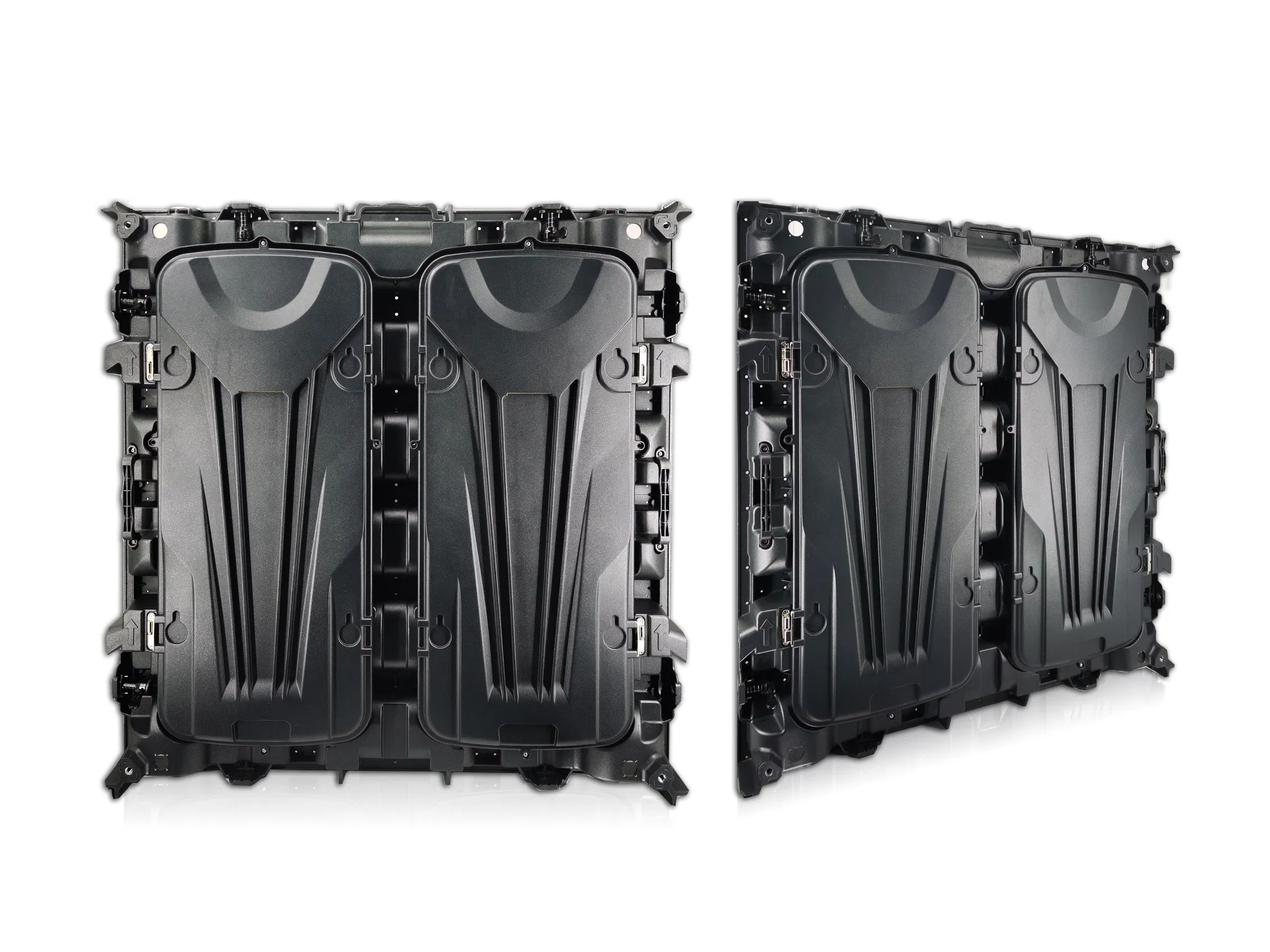

Cabinet Material

Die-Casting Aluminum

Cabinet Size

960mm*960mm

Equilibrium Brightness

≥5500 CD/M²

Refresh Frequency

≥1920 Hz

Life Span

Approx. 100,000 Hours

Product Overview

FS-A Series Stadium LED Displays feature superior heat dissipation, low power consumption, and excellent waterproof performance. With high contrast, wide color gamut, and high color reproduction, these displays provide constant brightness and large viewing angles. Designed for cost-effectiveness, they offer perfect seamless stitching and customizable sizing.

Excellent Performance

High refresh rates prevent flickering, while 16-bit color processing ensures smooth gradients. Nature gray scale shifting effectively reduces shooting stripes, complemented by robust waterproof functions.

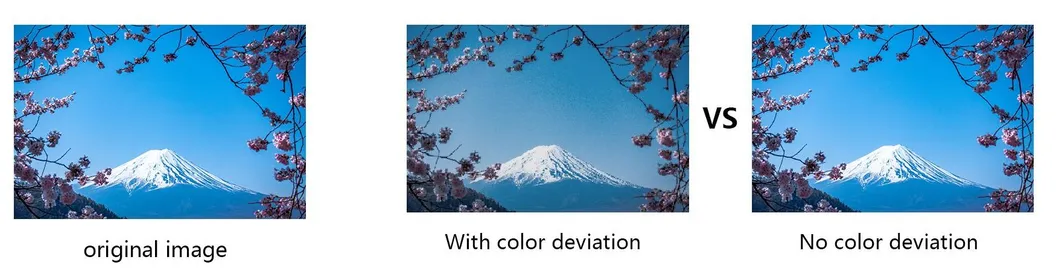

Uniform Color & High Contrast

Broadcast-level color gamut, color temperature, and brightness are intelligently adjustable, delivering beautiful and natural imagery for any stadium environment.

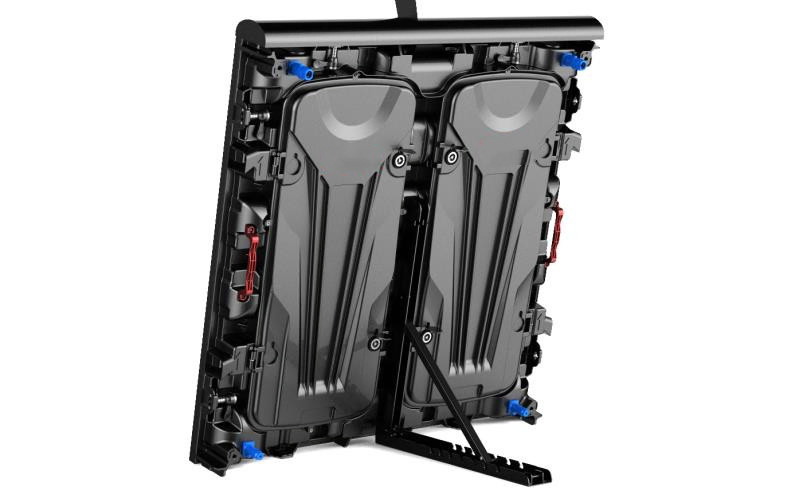

Installation & Craftsmanship

Cabinets are designed for quick wall-mounted installation with both front and back access. High-precision die-casting aluminum ensures splicing distance is controlled within 0.1mm for a perfectly smooth surface.

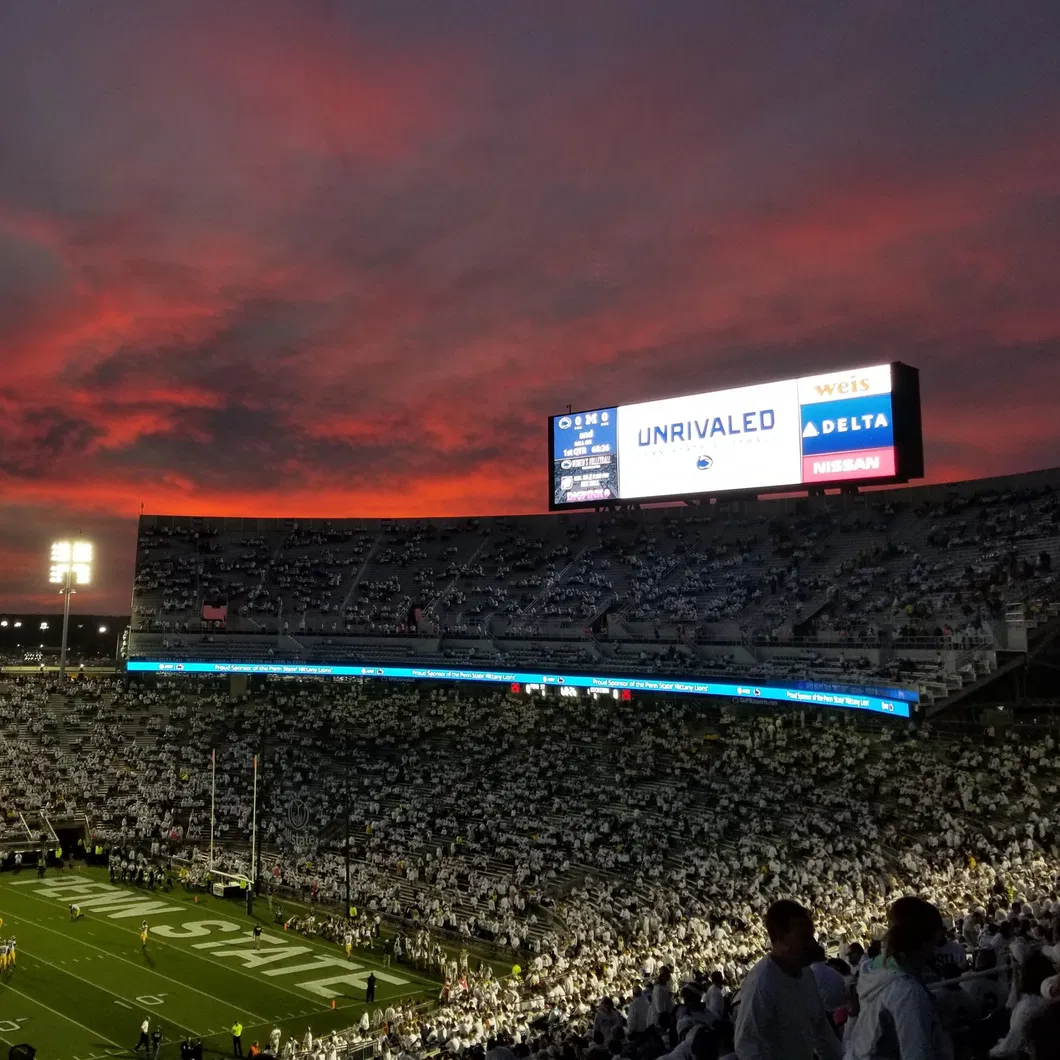

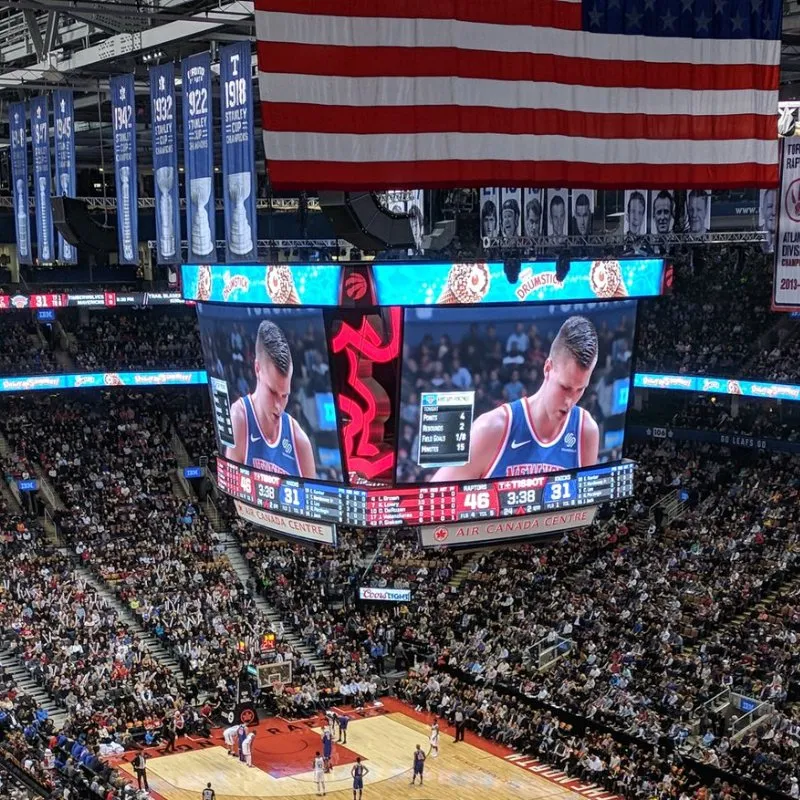

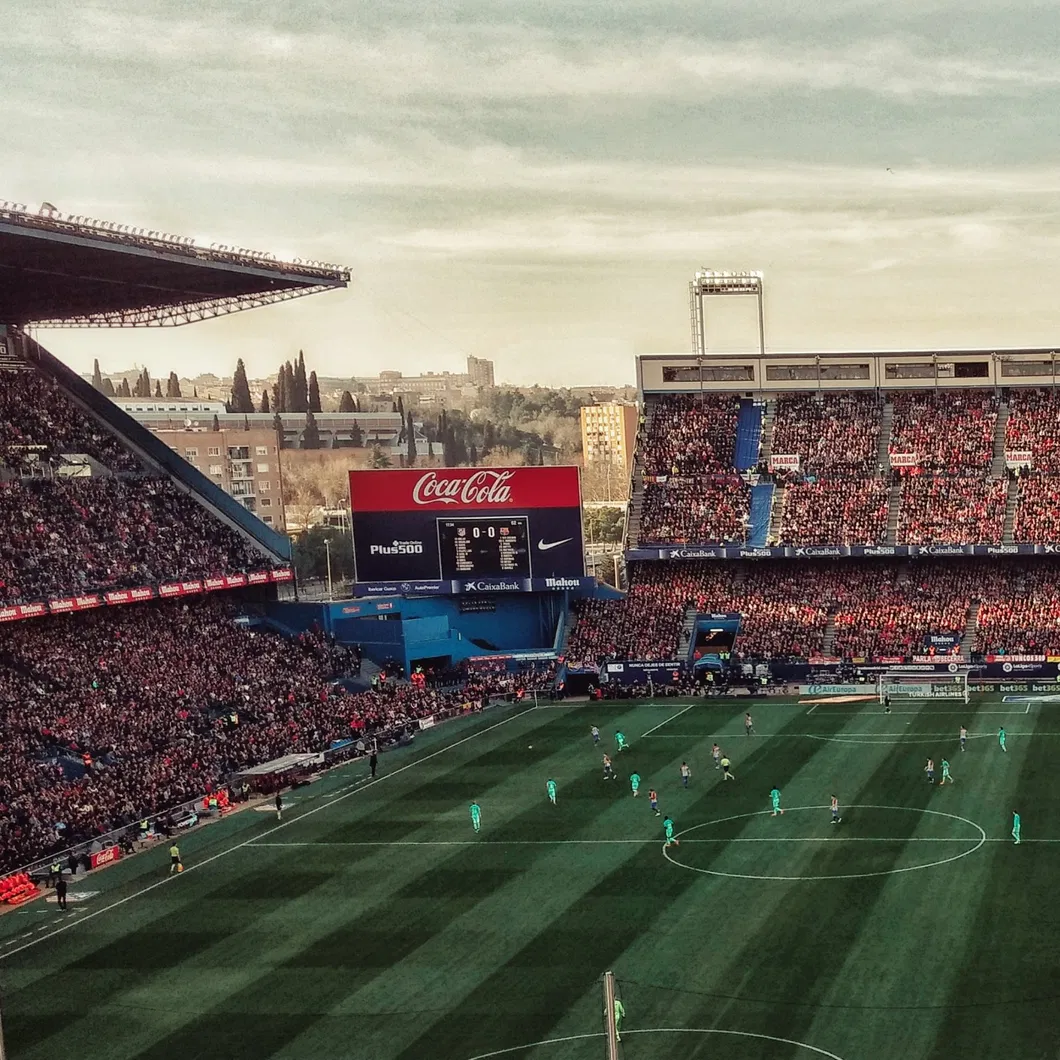

Application Scenarios

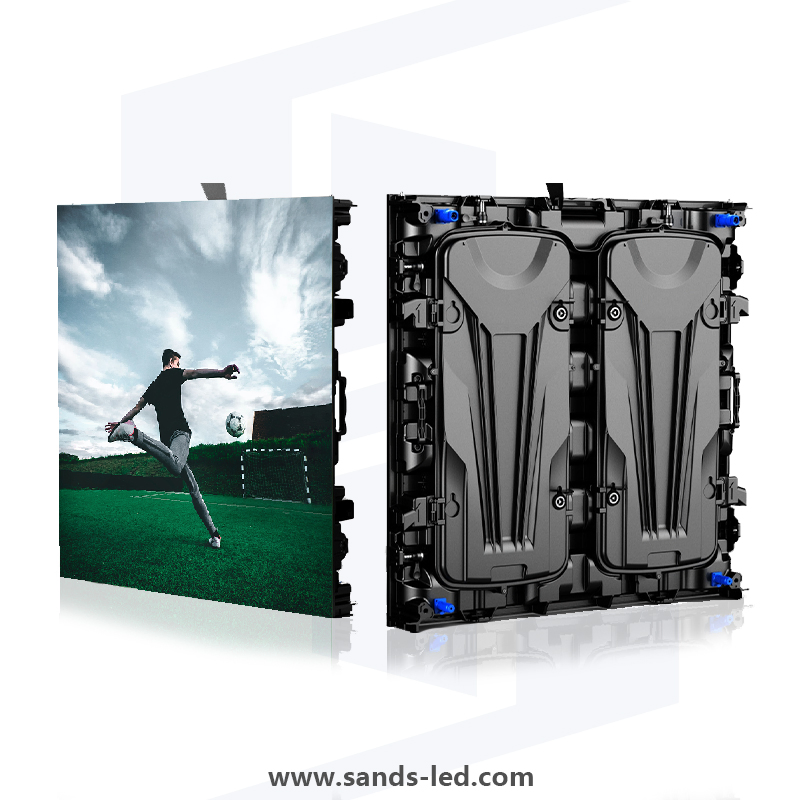

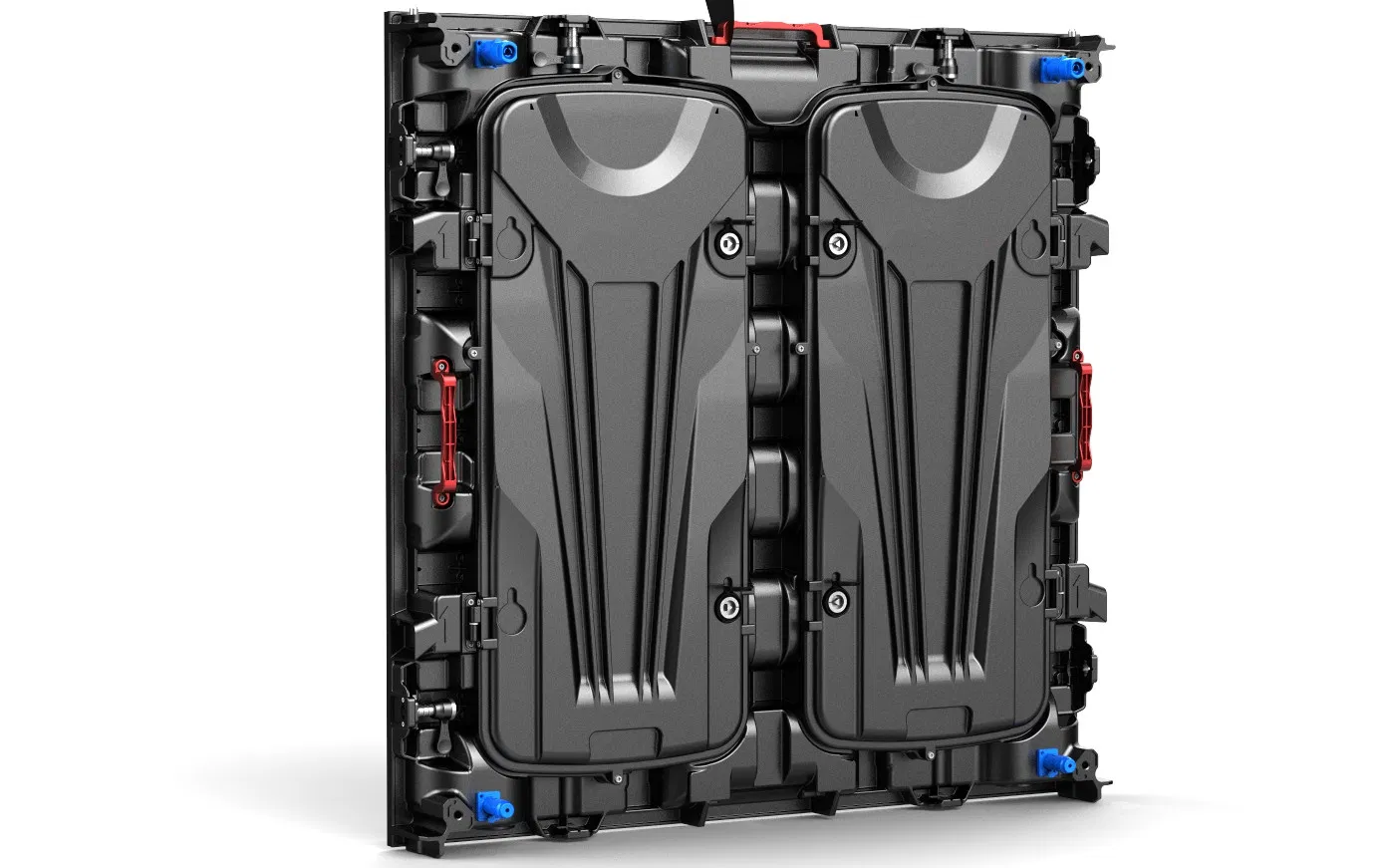

Hardware Features

Modular design facilitates easy installation, disassembly, and maintenance.
New cast aluminum shell provides high precision and fast heat dissipation.
Point-to-point design supports both front and back maintenance access.
Seamless connection technology for a smooth visual experience.

Attention: It is recommended to purchase sufficient LED modules at once for spare replacement. Modules from different batches may have slight color differences due to production variations.

Frequently Asked Questions

Q1. Can I have a sample order for the LED display?

Yes, we welcome sample orders to test and check quality for both individual LED modules or complete display units.

Q2. What is the typical lead time?

Standard orders take about 2-3 weeks. For customized LED display solutions, the lead time is normally around 35 days.

Q3. How are the goods shipped and how long does it take?

We primarily operate under FOB terms. Shipping by sea usually takes 20 to 30 days plus a few days for customs clearance.

Q4. How do I proceed with an order?

First, share your requirements or application. We provide a quote and suggestions. Once the design is confirmed and the deposit is placed, we arrange production.

Q5. Do you offer a guarantee for your products?

Yes, we offer a 1-2 year warranty depending on the specific product type and specifications.

Q6. Can the screens be maintained from the front?

Yes, the FS-A series is designed for modular maintenance, supporting both front and back access for convenient servicing in stadium environments.
