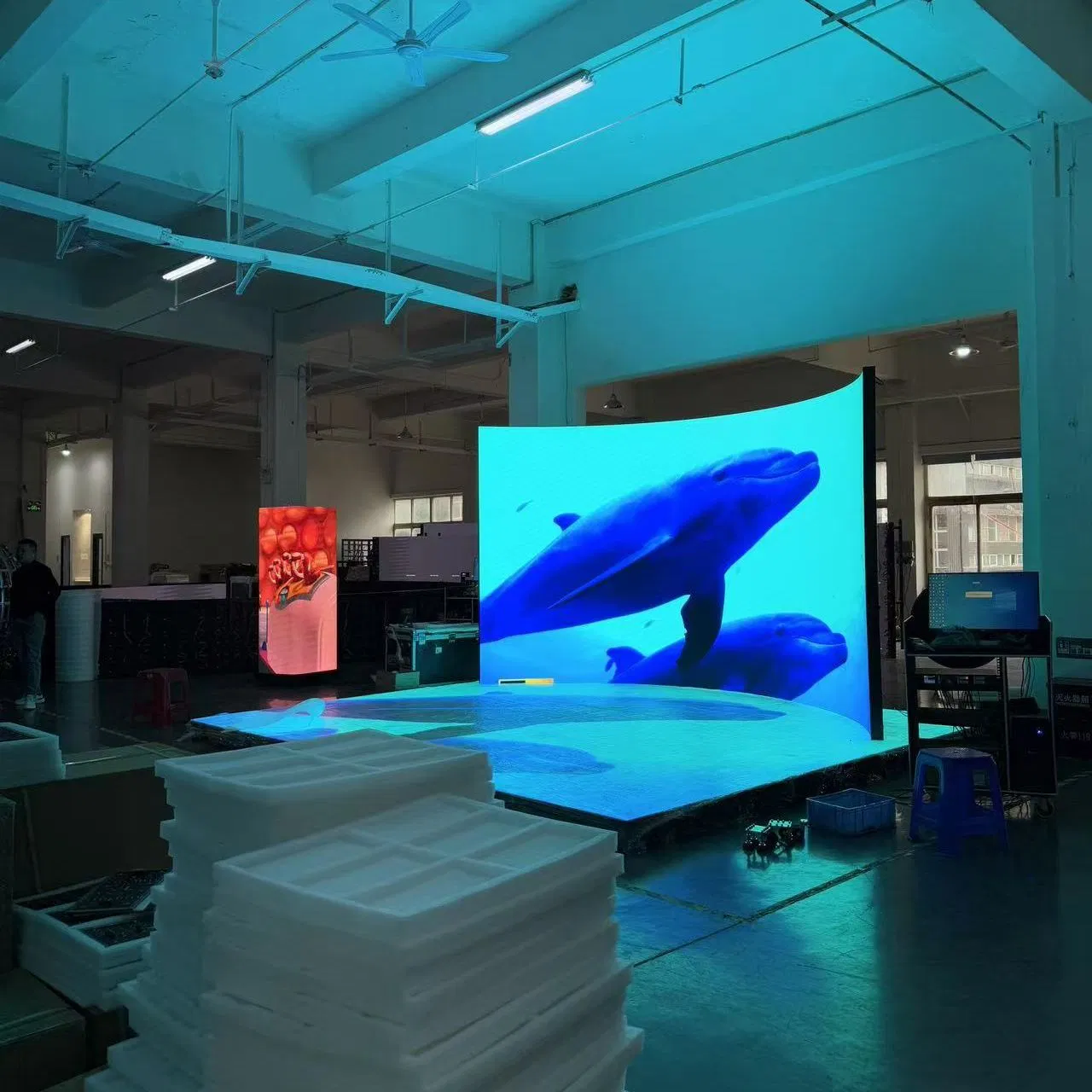

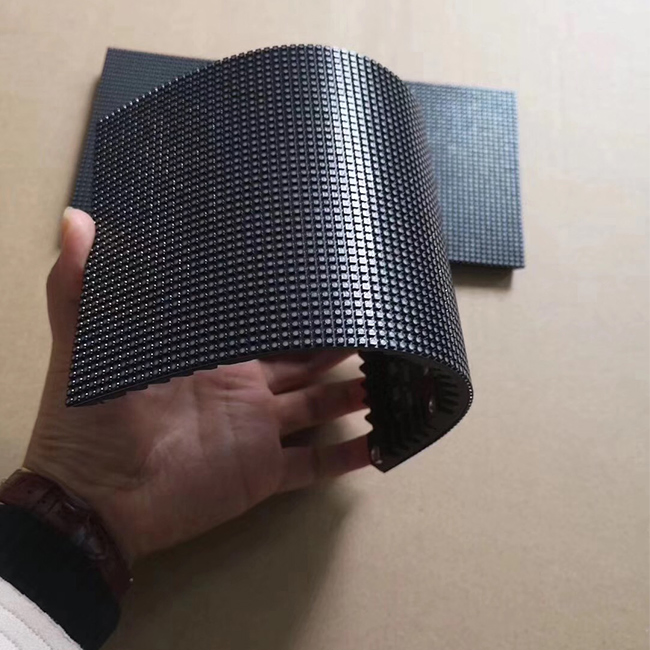

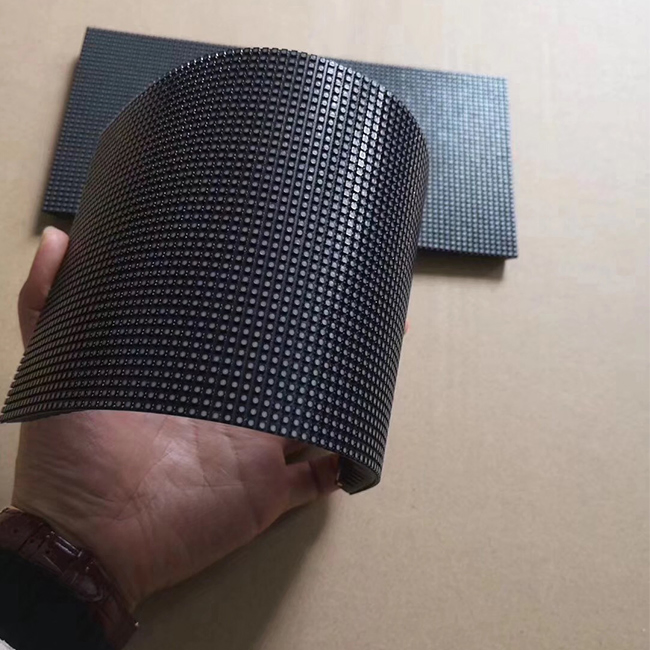

P4 LED Module Indoor Soft Curved Flexible LED Display for Digital Signage Displays

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
FFI
Pixel Pitch
1.875mm
Pixel Density
284444 DOT/M2
Display Type
LED Video Display
Scanning Mode
1/32 Scan
IP Rating
IP30
Module Feature
Flexible
Cabinet Material
Steel
Module Size
240*120*14 mm
Certification
CE, FCC

Introduction & Features

1. Indoor flexible LED screen range: P1.875, P2, P2.5, P3, P4 (Indoor use only).
2. Standard cabinet size: 960*960mm (Customized sizes supported).
3. Designed for fixed installation with flexible shape capabilities.
  • Fine pitch LED screen for perfect high-definition presentation.
  • Superior color performance with ingenuity and beauty.
  • Intimate snap-on mask design for structural integrity.
  • Professional back maintenance support.

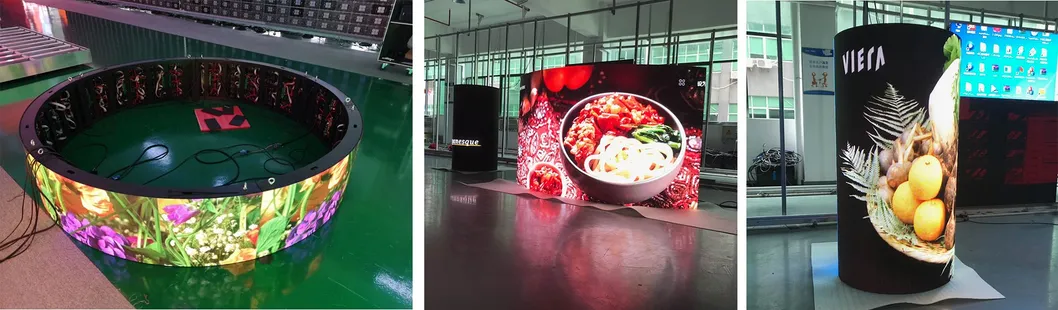

Flexible LED Display 1

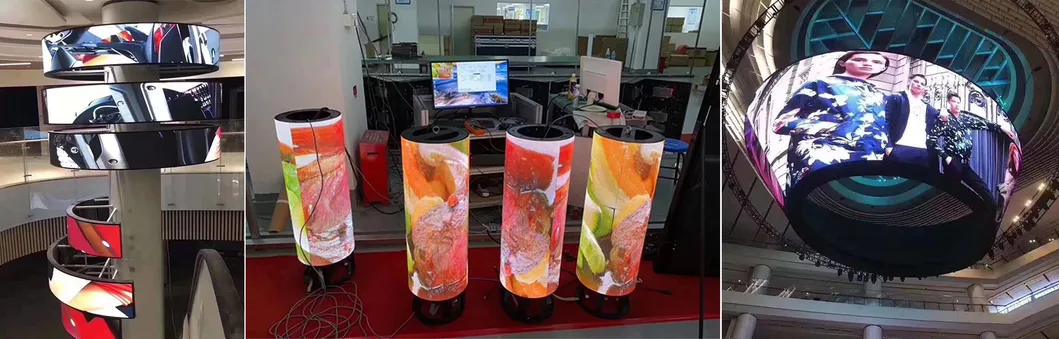

Flexible LED Display 2

Technical Specification Sheet

Model P1.875 P2 P2.5 P3 P4
Pixel Pitch (mm)1.875mm2.0mm2.5mm3mm4mm
LED Lamp BrandNationStarNationStarKINGLIGHTKINGLIGHTKINGLIGHT
Brightness (cd/sqm)60060080010001000
Pixel Density (pixels/sqm)28444425000016000011111162500
Refresh Rate (Hz)38403840384038403840
Scanning Method1/321/301/321/241/15
Cabinet Resolution512*512480*480384*384320*320240*240
Max Power (W/sqm)462380380450450

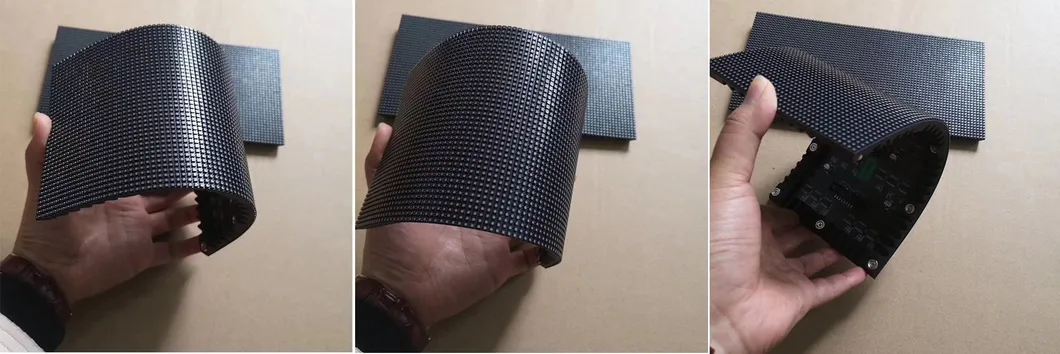

Module Details 1

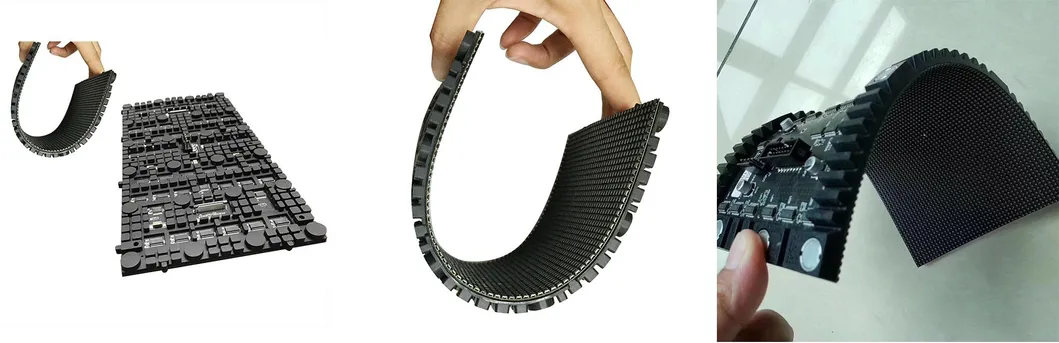

Module Details 2

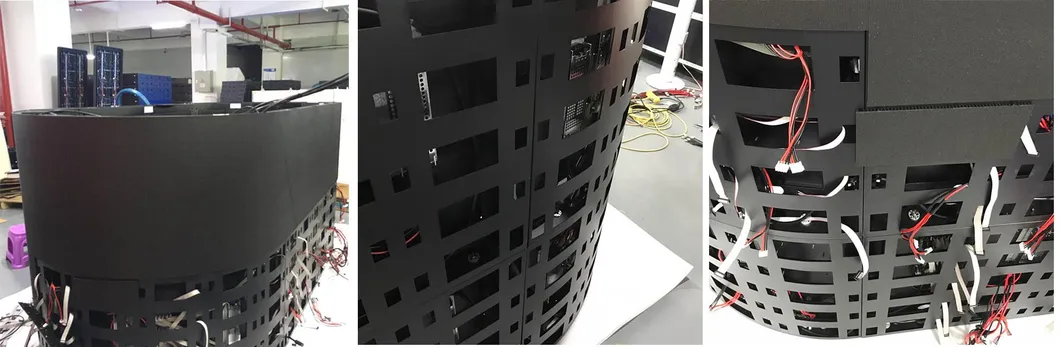

Module Details 3

Project Development & Capabilities

We offer comprehensive project support including all accessories and software:
  • Complete system integration: Sending cards, video processors, and software.
  • Full hardware kit: Flight cases, power boxes, power/data cables, and module masks.
  • Extensive experience in designing high-end, customized curved LED solutions.
  • Rigorous aging and grayscale testing for every single module.

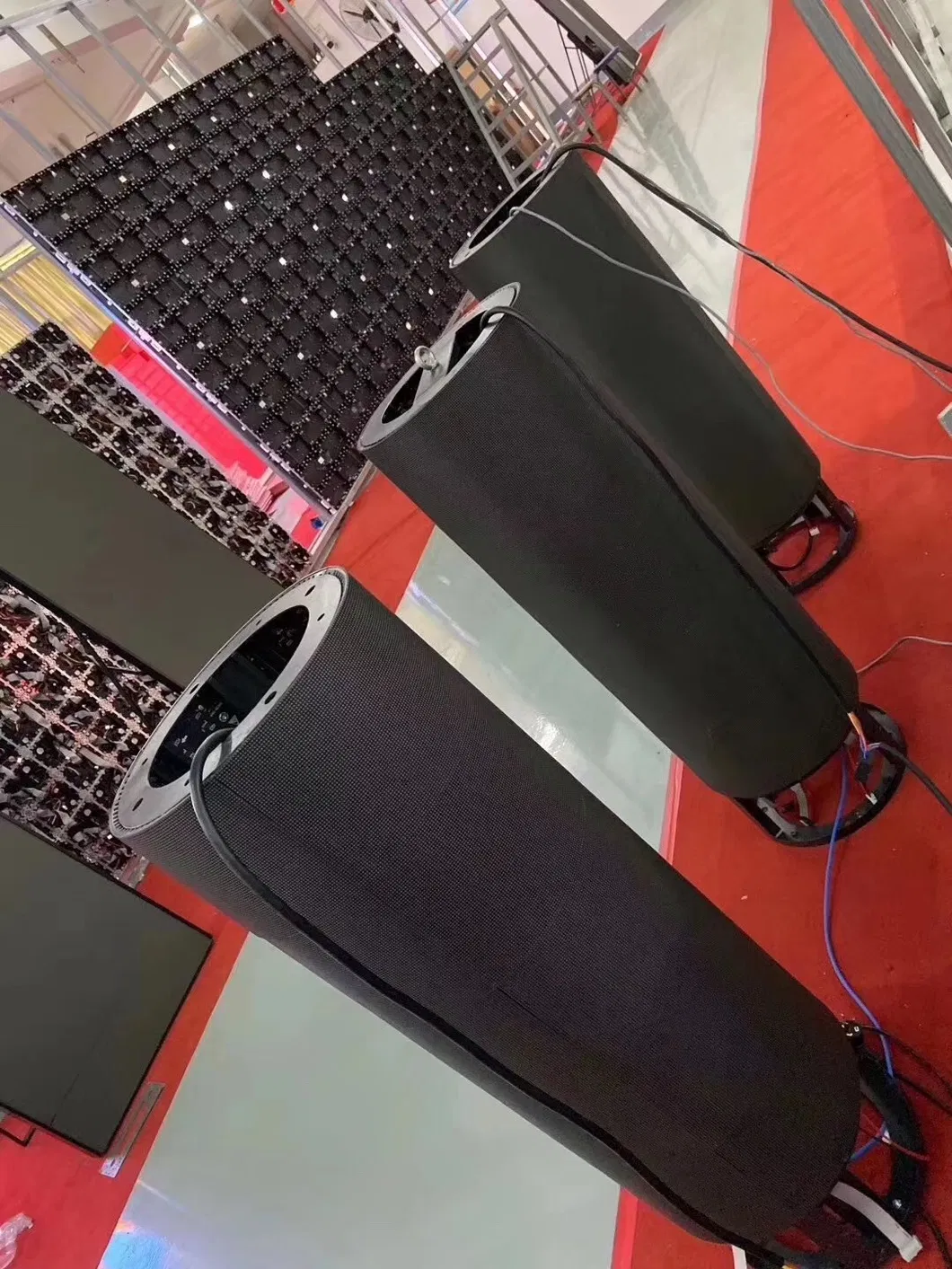

Project Case 1

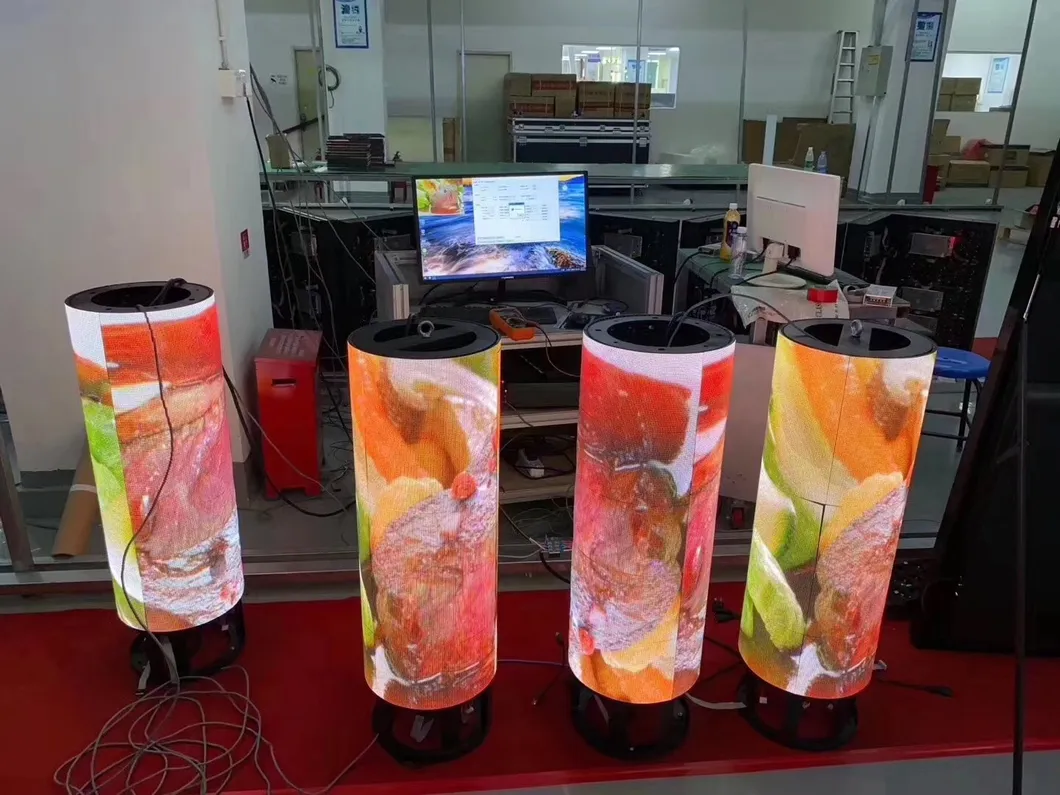

Project Case 2

Delivery & Production

Production Time
Approx. 25 days (0-200 m²)
Payment Terms
30% advance, 70% before shipping
Trade Terms
FOB, CIF, DDU, DDP
Packaging
Plywood case or Flight case

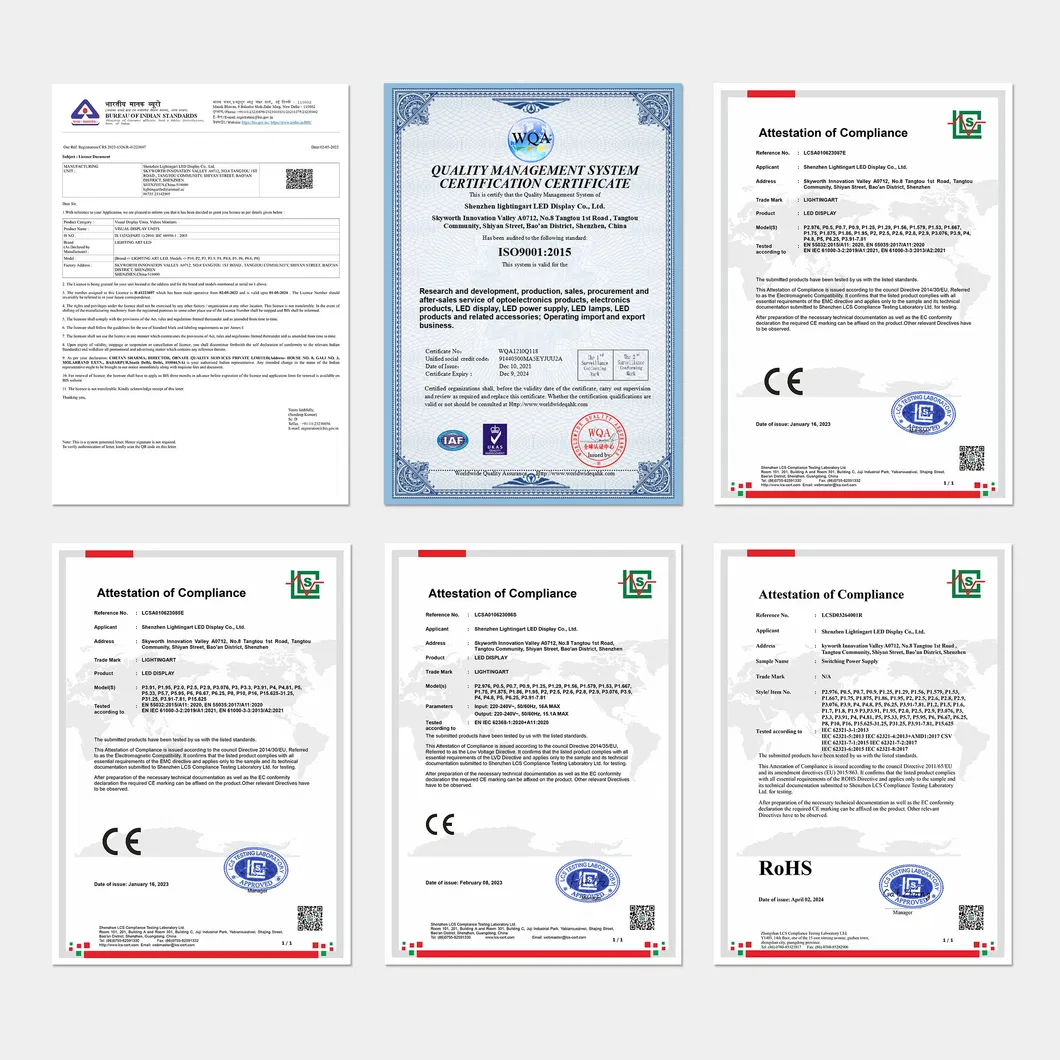

Certificates
Exhibition

Frequently Asked Questions

What pixel pitches are available for the flexible LED screen?
We provide a range of indoor flexible LED modules including P1.875, P2, P2.5, P3, and P4.
Can these screens be used outdoors?
No, the models listed (P1.875 to P4) are strictly for indoor fixed installation. They feature an IP30 rating.
Is the cabinet size customizable?
Yes. While the standard cabinet size is 960*960mm, we fully support customized sizes to fit your specific project requirements.
What is the typical lead time for an order?
For an area between 0-200 m², the production time is approximately 25 days, which includes mandatory aging and grayscale testing.
How is maintenance handled for these flexible screens?
These screens are designed to support back maintenance only, ensuring the front display remains seamless and aesthetically pleasing.
What shipping terms do you offer?
We offer flexible trade terms including FOB (Shenzhen), CIF, DDU, and DDP to accommodate different international shipping needs.
