Basic Information
Model NO.:P10
Pixel Pitch:10mm
Pixel Configuration:1R, 1G, 1B
Display Function:Video, Image, Text, Advertising
Power Consumption:300W / m² (Average)
Pixel Density:10000 dot / m²
Scanning Mode:1/2 Scan

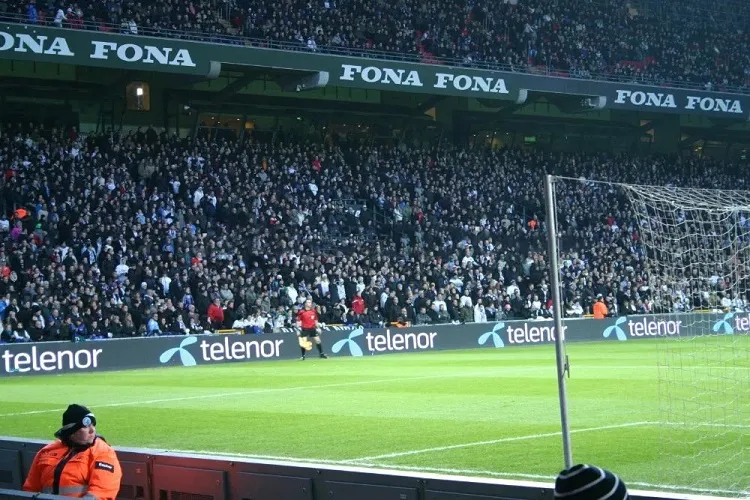

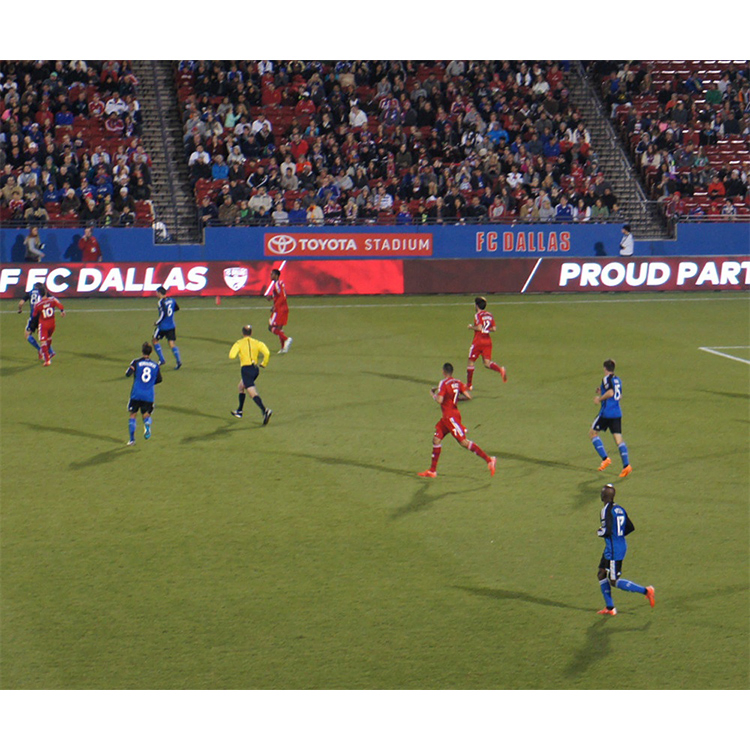

Application:Stadium Perimeter
Brightness:6500CD/Sq.M
Refresh Rate:1920Hz
Warranty:2 Years
Specification:960x960mm
Product Technical Specifications
| Item |
P6 |
P8 |
P10 |
| Pixel Pitch | 6mm | 8mm | 10mm |
| LED Type | SMD3535 | SMD3535 | SMD3535 |
| Module Size | 192*192mm | 320*160mm | 320*160mm |
| Pixel Density | 27777dots/m2 | 15625dots/m2 | 10000dots/m2 |
| Brightness | >=6500CD | >=6500CD | >=6500CD |
| Cabinet Material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Cabinet Size | 960*960*150mm | 960*960*150mm | 960*960*150mm |
| Waterproof Grade | IP65 | IP65 | IP65 |
Core Features & Description

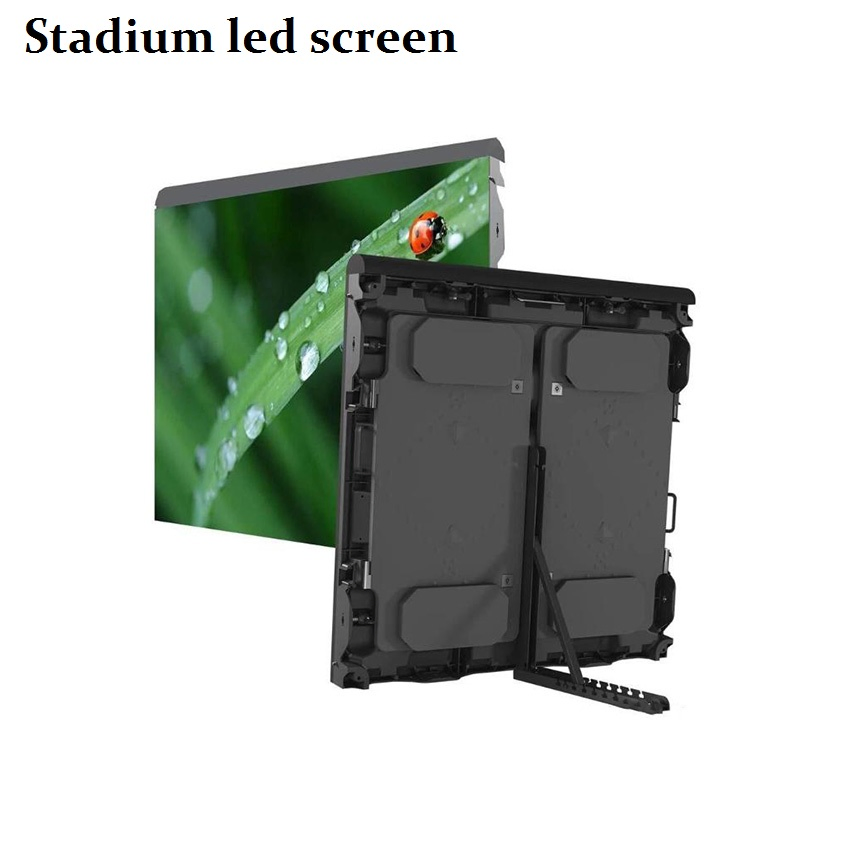

P10 Sports LED Die Casting Aluminum Display 960x960mm Stadium Perimeter Sport LED Screen
🛡️

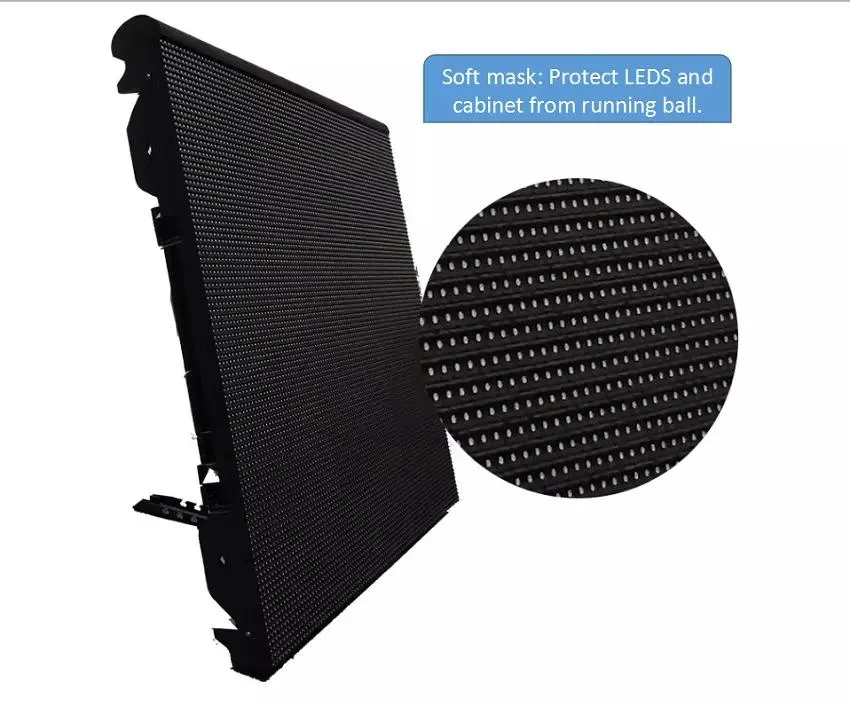

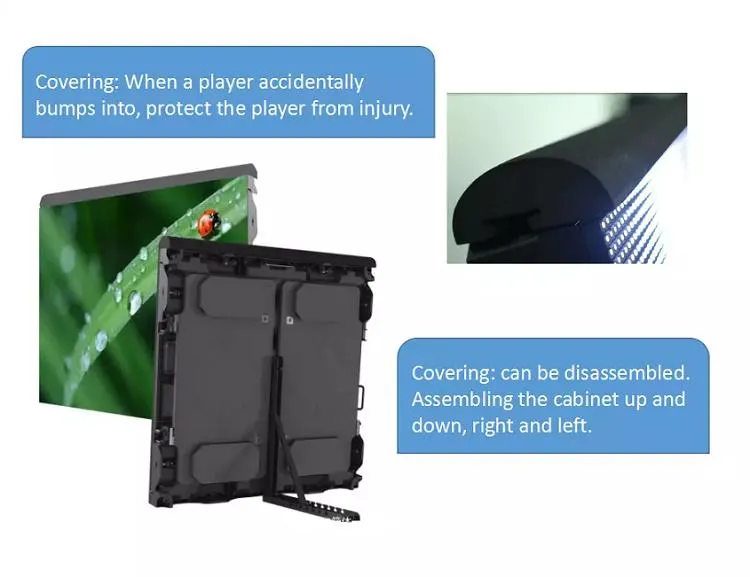

Soft Mask Protection: Protects both the LEDs and the cabinet from impact by balls. Crucially, it protects players from injury if they accidentally bump into the screen.
📐

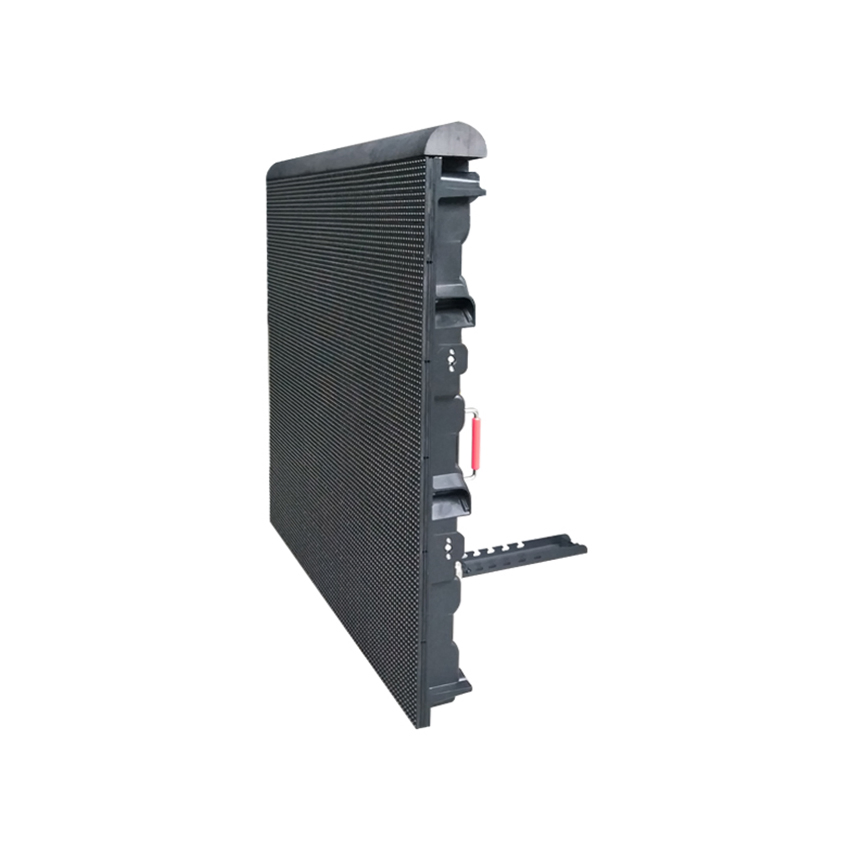

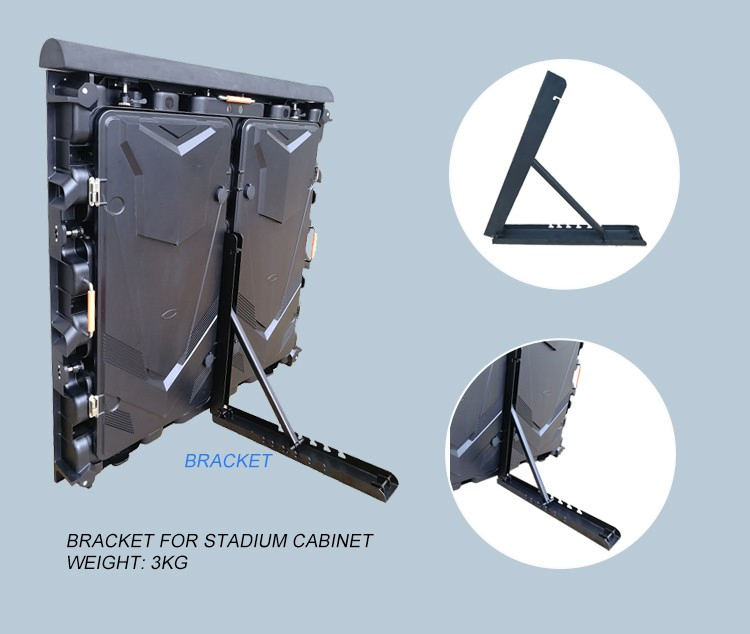

Adjustable Inclination: The bracket features seven inclination grooves, allowing the cabinet angle to be adjusted between 85 and 40 degrees for optimal viewing.
🔗

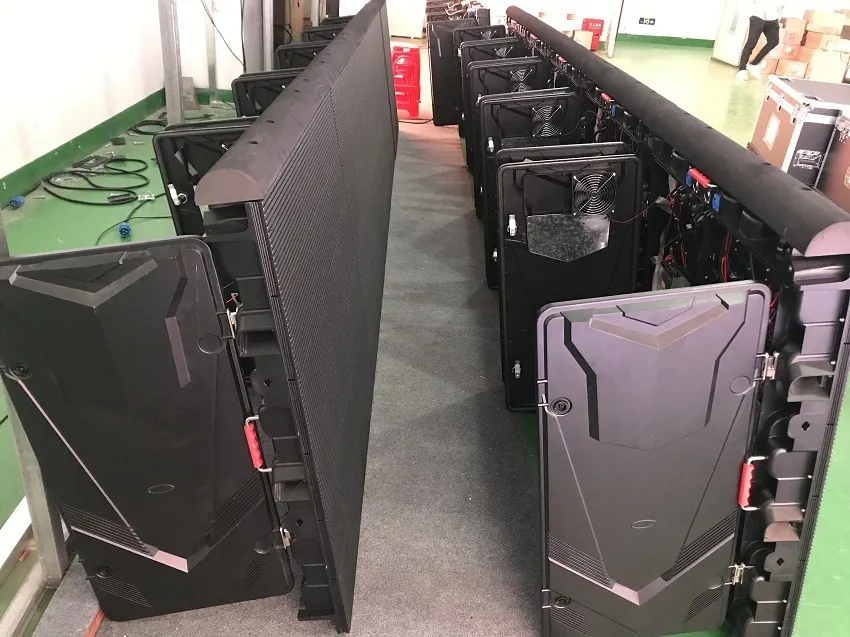

Seamless Splicing: Slim and lightweight design with quick disassembly features. High degree of protection and high durability for stadium environments.
Quality Assurance & Testing

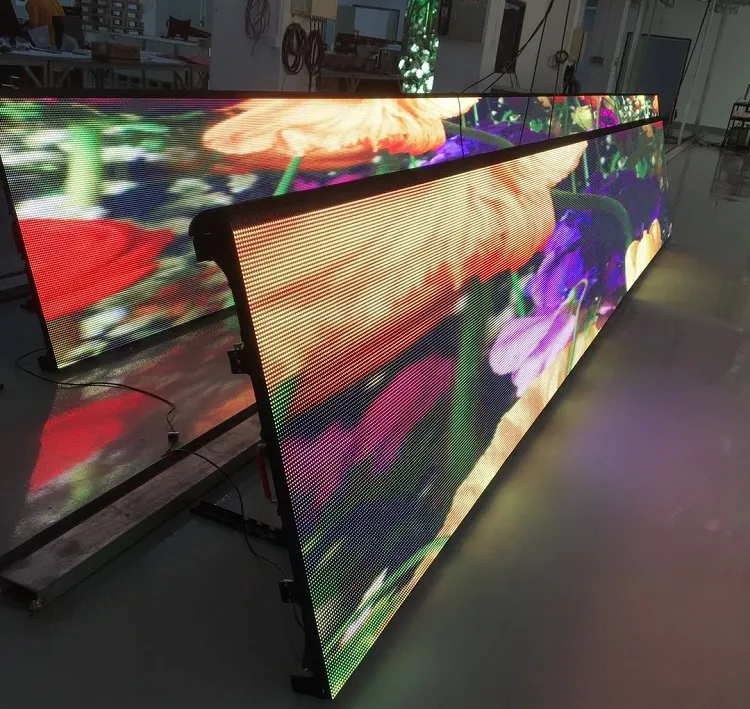

Each product undergoes rigorous testing for more than 72 hours before shipment to ensure stability and performance.
Frequently Asked Questions
Q1: How quickly can I expect a response to my inquiry?
We provide support and reply to all inquiries within 24 working hours.
Q2: What control systems are compatible with these LED screens?
Our screens support Nova star, Linsn, and Colorlight control systems for both indoor and outdoor applications.
Q3: Do you offer customized design or OEM services?
Yes, customized design is available, and we warmly welcome both OEM and ODM requirements.
Q4: Is technical guidance available for installation?
We offer online guidance for installation and usage. For large projects, we can provide free training or send engineers for on-site guidance if needed.
Q5: What is the standard warranty period for the stadium LED display?
The standard warranty period is 2-3 years after shipment, ensuring long-term reliability for your sports venue.
Q6: Are the screens protected against physical impact?
Yes, the screens feature a soft mask designed specifically for sports environments to protect LEDs from balls and prevent player injuries.
