Outdoor P2.6 Flexible Rental Screen LED Curved Soft Module Video LED Display

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
AB2.604
Pixel Pitch
2.604mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text Display
Power Consumption
235W/M2 (Average)
Pixel Density
147456dots/M2
Refresh Frequency
3840Hz
Certification
CE, RoHS, CCC
Lifespan
50,000 Hours
Maintenance
Front/Rear Access
IP Rating
IP66
Package Size
50.00cm * 8.50cm * 100.00cm

Product Features

(1) Four-level energy-saving technology
Includes dynamic energy saving, black screen energy saving (current drops to 0.6mA), full-screen energy saving, and shunt power supply step-down technology to reduce conduction internal resistance.
(2) True color, high-definition visual display
Refresh rate up to 3840Hz with 16bit grayscale. SMD LED beads ensure consistency and a viewing angle of over 140°.
(3) Structural optimization and flexible installation
Supports floor, hanging, and wall mounting. Modular design allows for front and rear maintenance with hard connections.
(4) Advanced Drive solutions
Features fading functions, first row darkening improvement, and low gray off-color correction.
(5) Stable and high protection
IP66 protection grade with all-aluminum design. Corrosion-resistant and flame retardant, suitable for temperatures from -40ºC to 80ºC.
T

Technical Parameters

Parameter Name P1.95 P2.604 P2.97 P3.91 P4.81
Pixel pitch (mm) 1.95mm 2.604mm 2.97mm 3.91mm 4.81mm
Module size (mm) 250*250*18
Cabinet size (mm) 500*1000*85 / 500*750*85 / 500*500*85
Pixel density (dots/m²) 262144 147456 112896 65536 43264
White balance (cd/m²) 4500
Refresh frequency (Hz) 3840
Scanning Mode 1/32s 1/24s 1/21s 1/16s 1/13s
P

Product Gallery

LED Screen Display 1

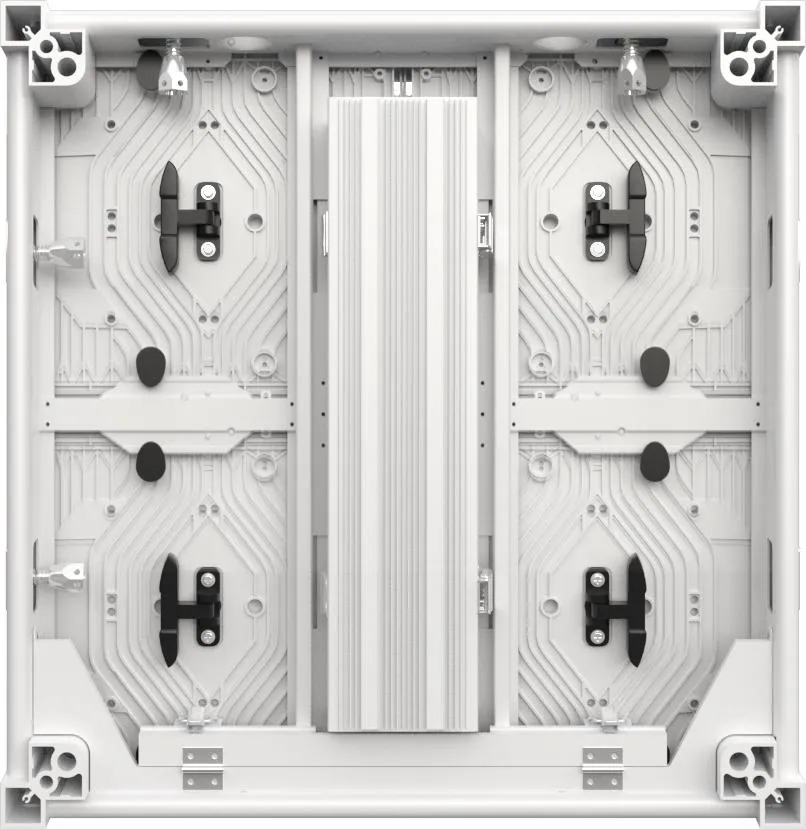

LED Screen Display 2
Production View
Quality Control

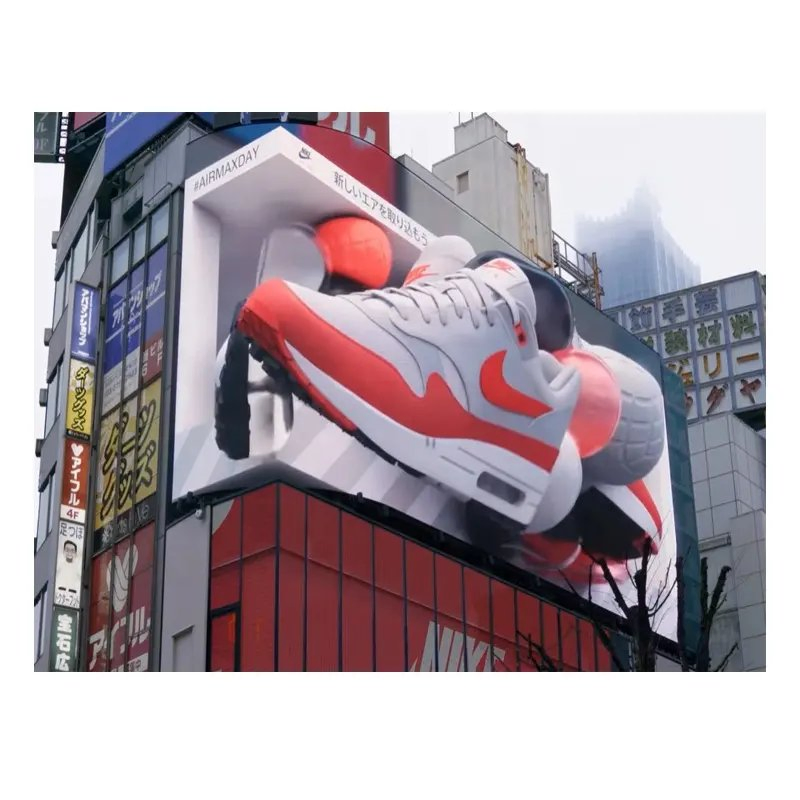

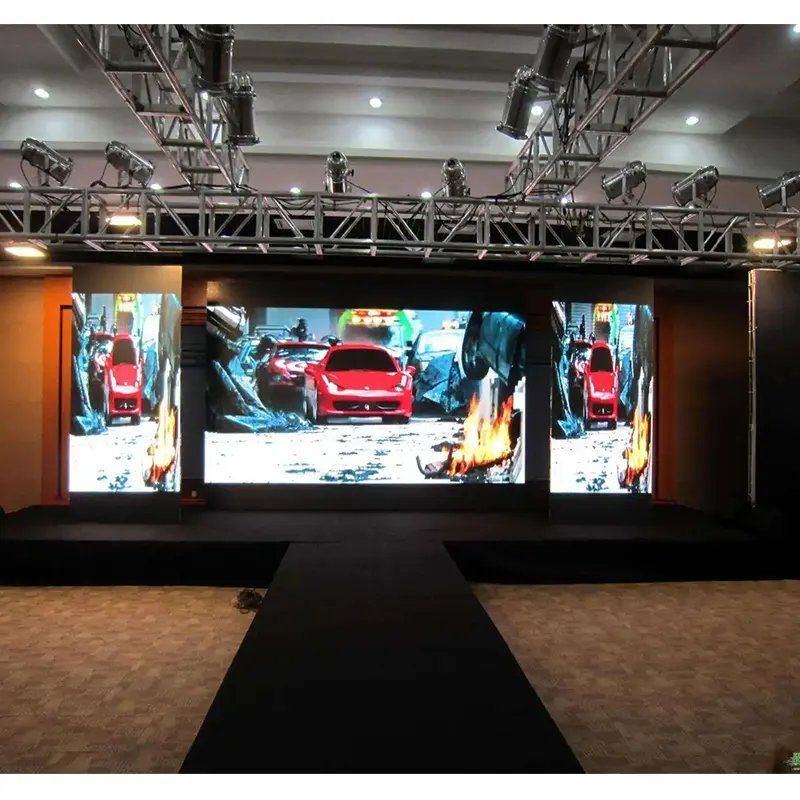

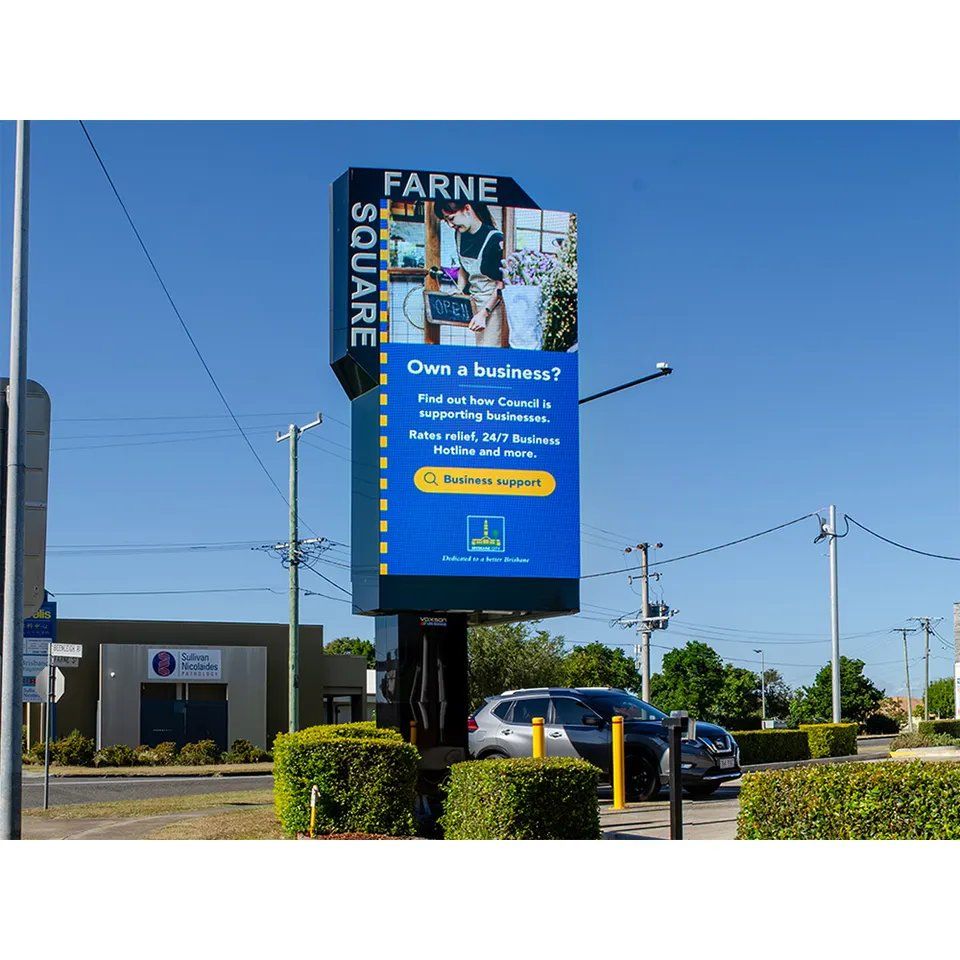

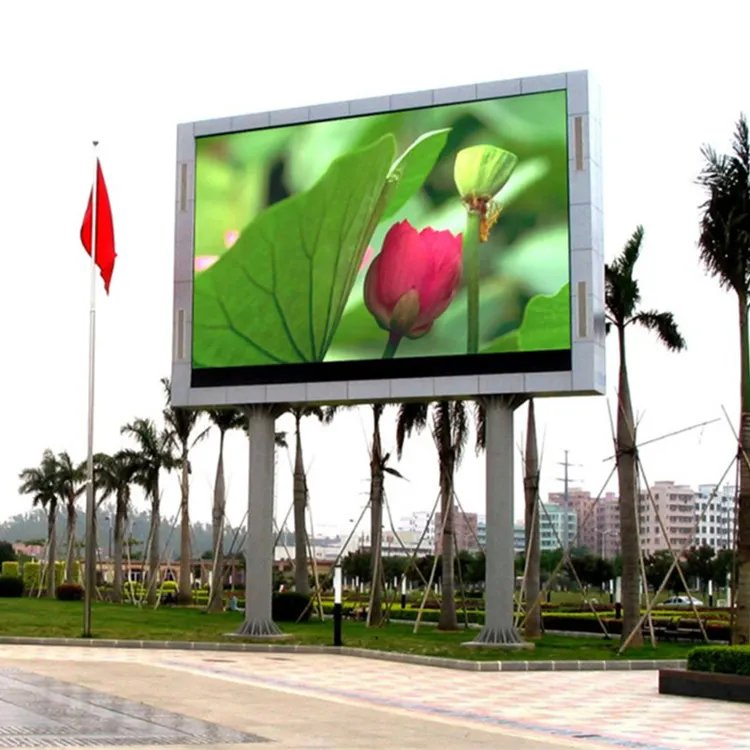

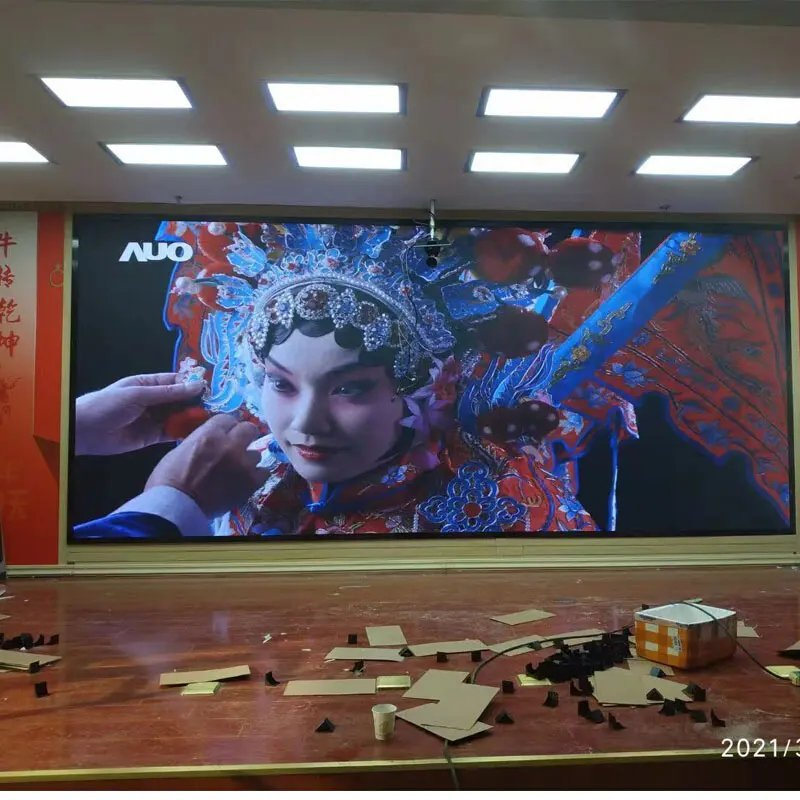

Application Case
?

Frequently Asked Questions

What kind of LED display do you offer?
Our products cover LED full color displays for indoor and outdoor, rental displays, advertisements, stage, sports, and customized irregular-shape displays.
Can I have a sample order for LED screen?
Yes, sample orders are available for quality checks and market tests for both LED modules and whole screens.
How is the protection performance for outdoor use?
The product features an IP66 protection grade with an integrated all-aluminum design, making it resistant to corrosion, fire, moisture, and salt spray.
What is the refresh rate of this LED display?
The display offers a high refresh rate of up to 3840Hz, ensuring a realistic and delicate visual experience without graininess.
Does the display support different installation methods?
Yes, it supports floor mounting, hanging, and wall mounting. The modular design allows for both front and rear maintenance.
What is the operating temperature range?
The screen is designed to operate normally in environments ranging from -40ºC up to 80ºC, making it highly adaptable to various climates.
