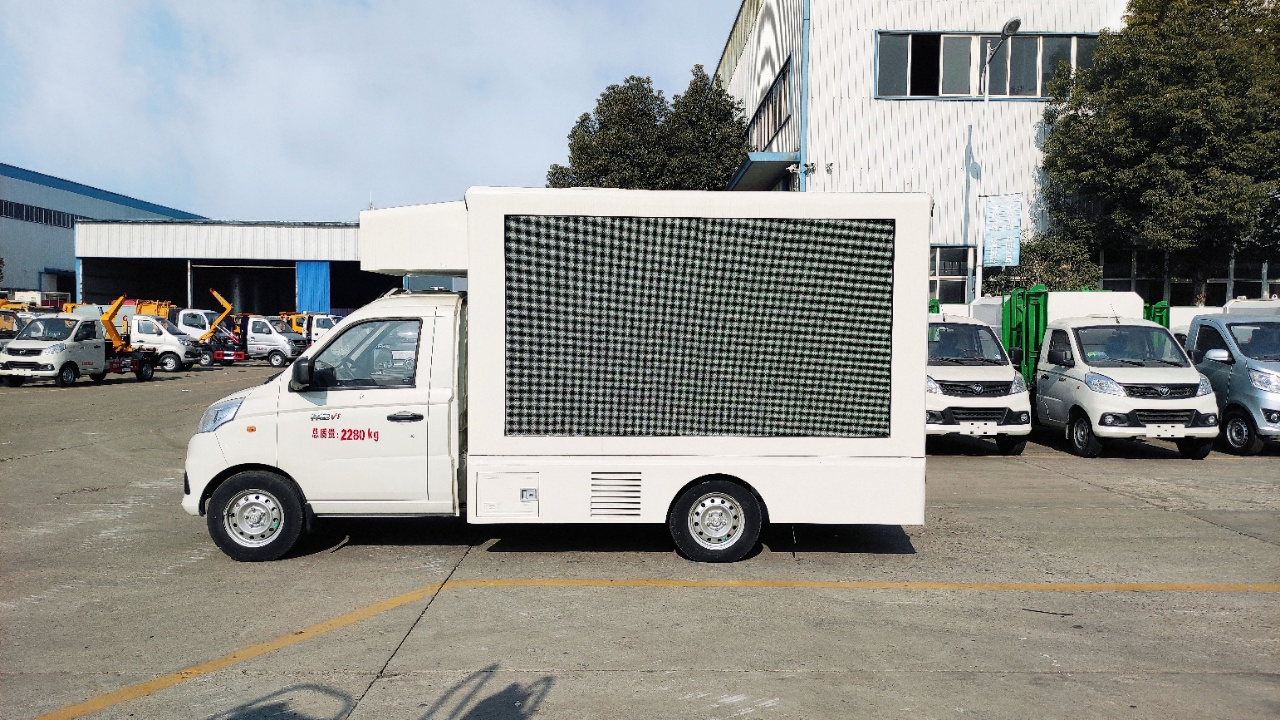

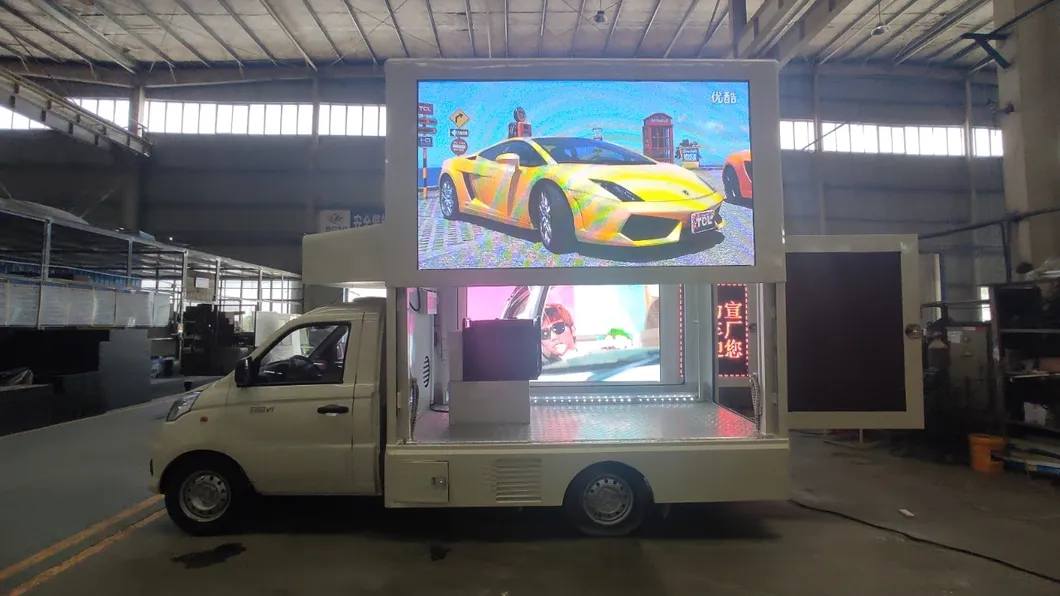

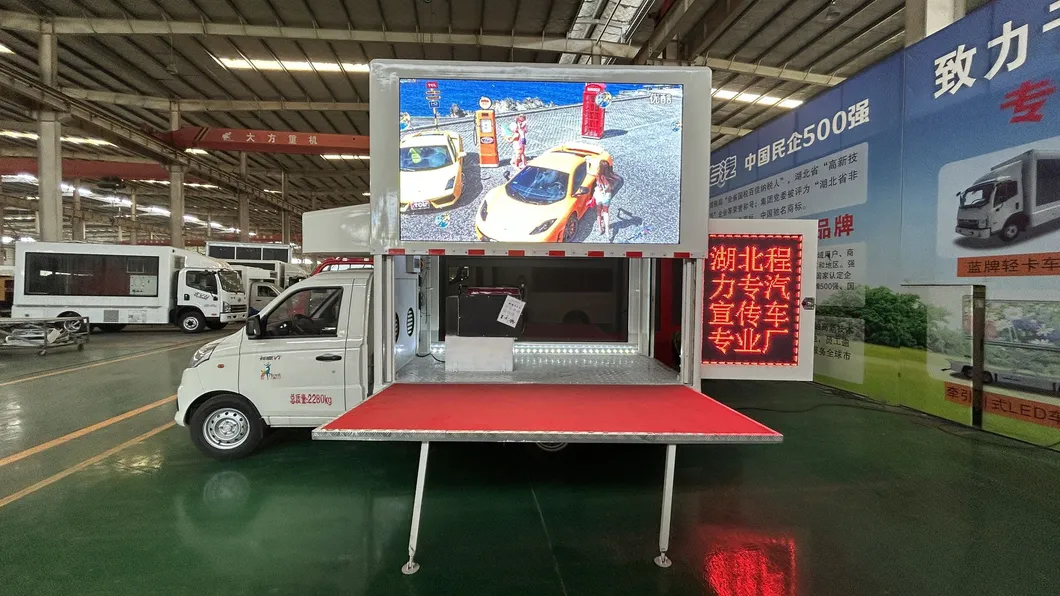

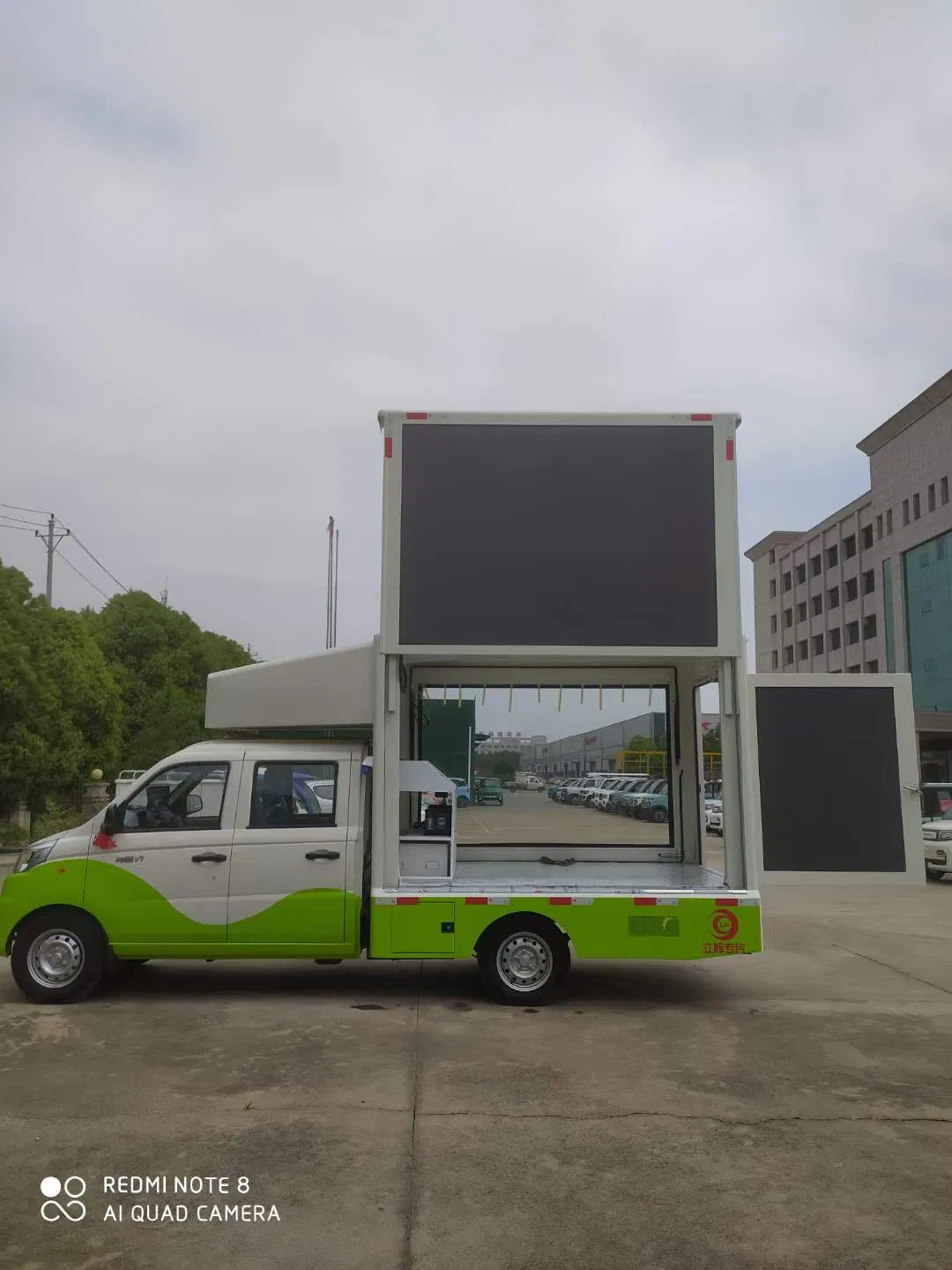

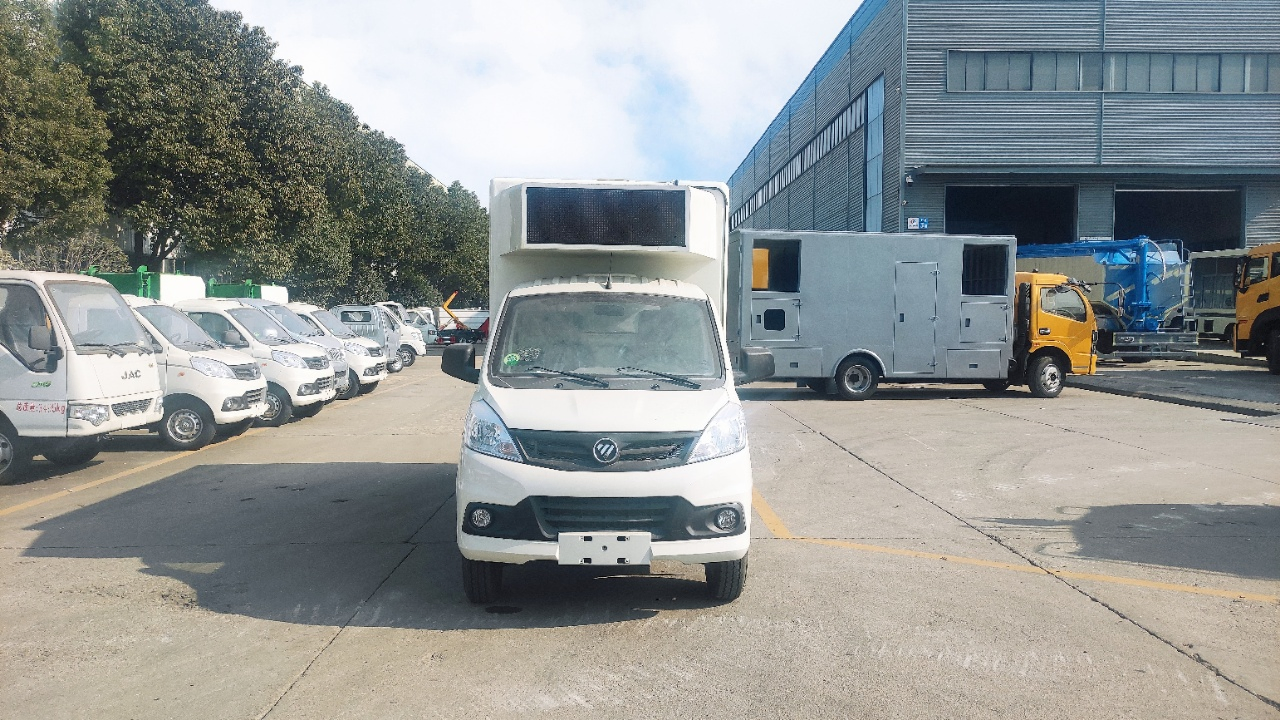

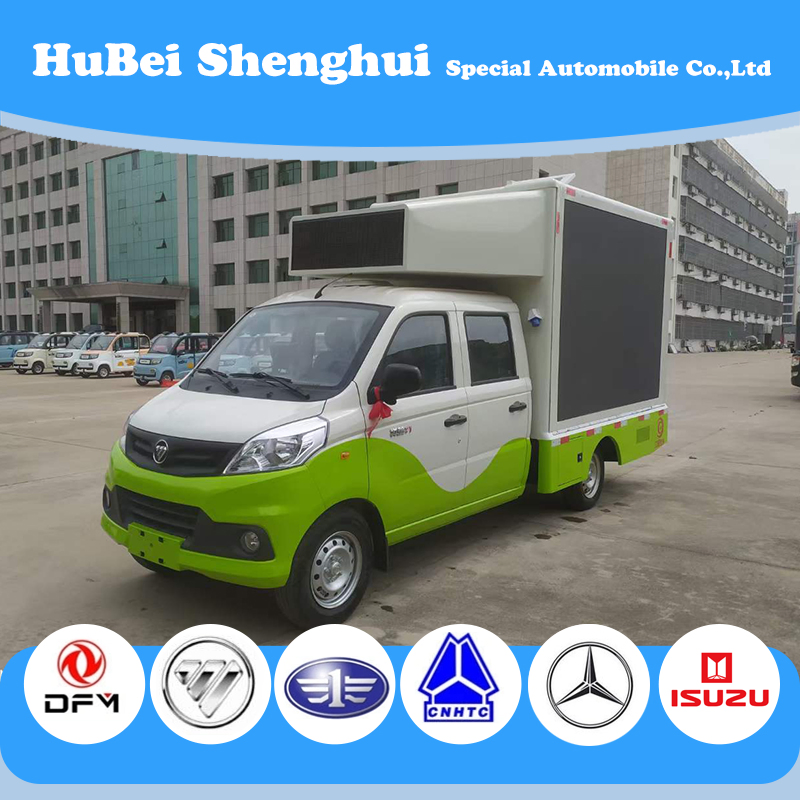

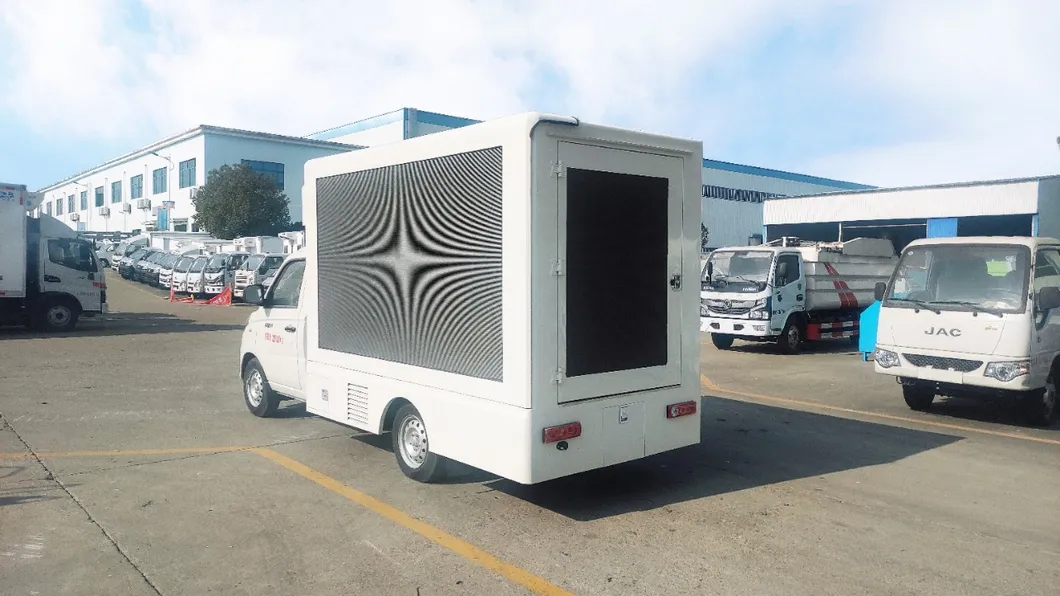

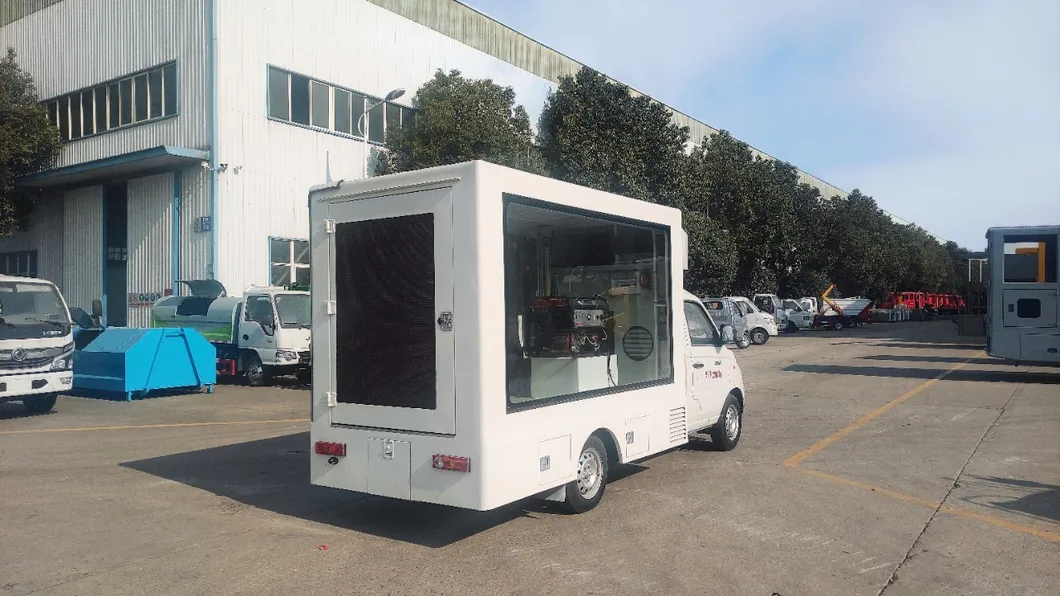

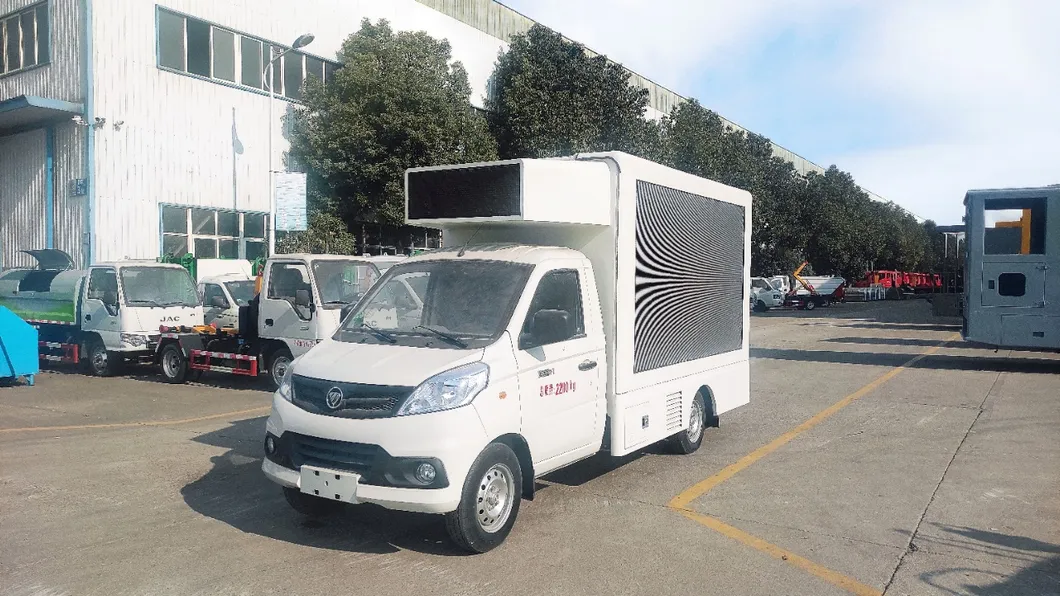

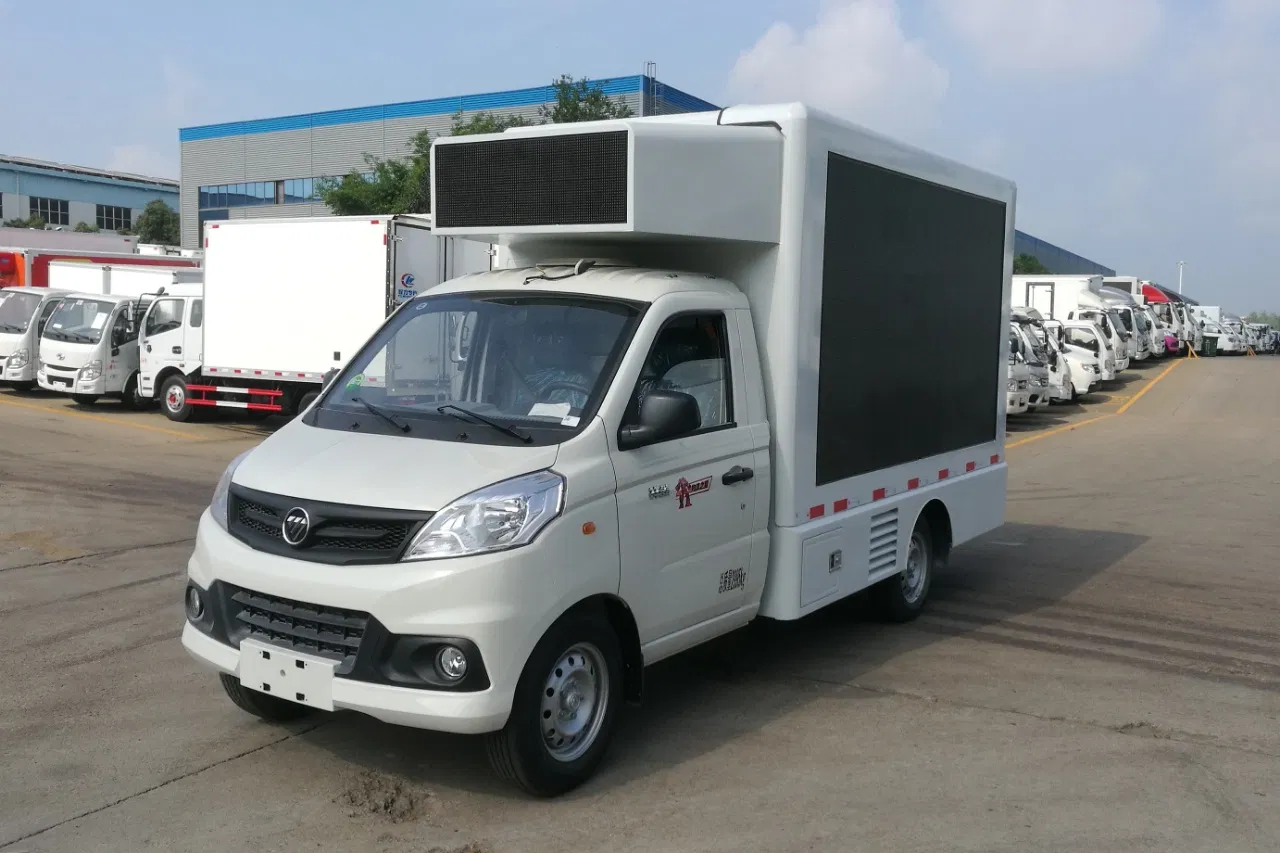

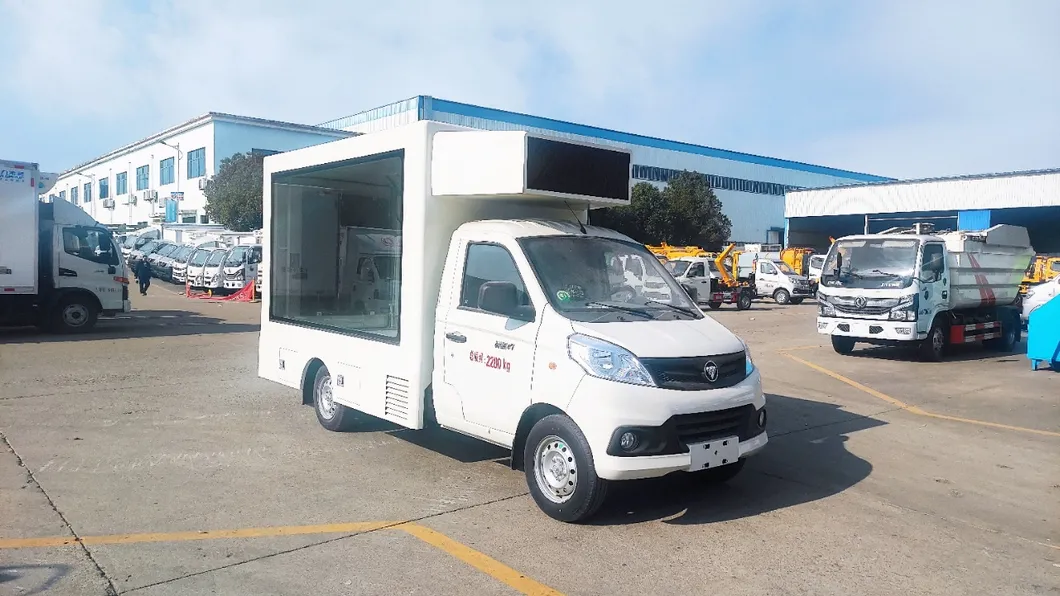

FOTON 4X2 Led Mobile Billboard Advertising Truck
LED advertising truck aim at the mobile advertising market as a display solution. It is an extension of LED advertising media, used for mobile outdoor advertising, stage background, information media, live matches. The flexibility to move the electric chassis, can lift the screen, ultra-thin design, easy to install easy to dismantle, use aluminum alloy box, greatly reducing the weight of car display, easy to light and flexible movement. IP65, Car Screen work from the weather, the use of industrial computer control, stable and reliable performance.
| Overview | |
| Name | LED ADVERTISING TRUCK |
| Dimension (LxWxH) | 5100×1710×2640 mm |
| Total Mass | 2280kg |
| Curb Weight | 2150kg |
| Chassis Parameters | |
| Model | BJ1030V4JV5-01 |
| Driving Type | 4X2 left/right hand drive |
| Wheelbase | 3070mm |
| Tire | 175R14LT 8PR |
| Engine Parameters | |
| Rated Power | 115Hp |
| Fuel Type | Diesel oil |
| Displacement | 1498ml |
| Equipment Specifications | |
| LED Screen Size | 2560*1440mm |

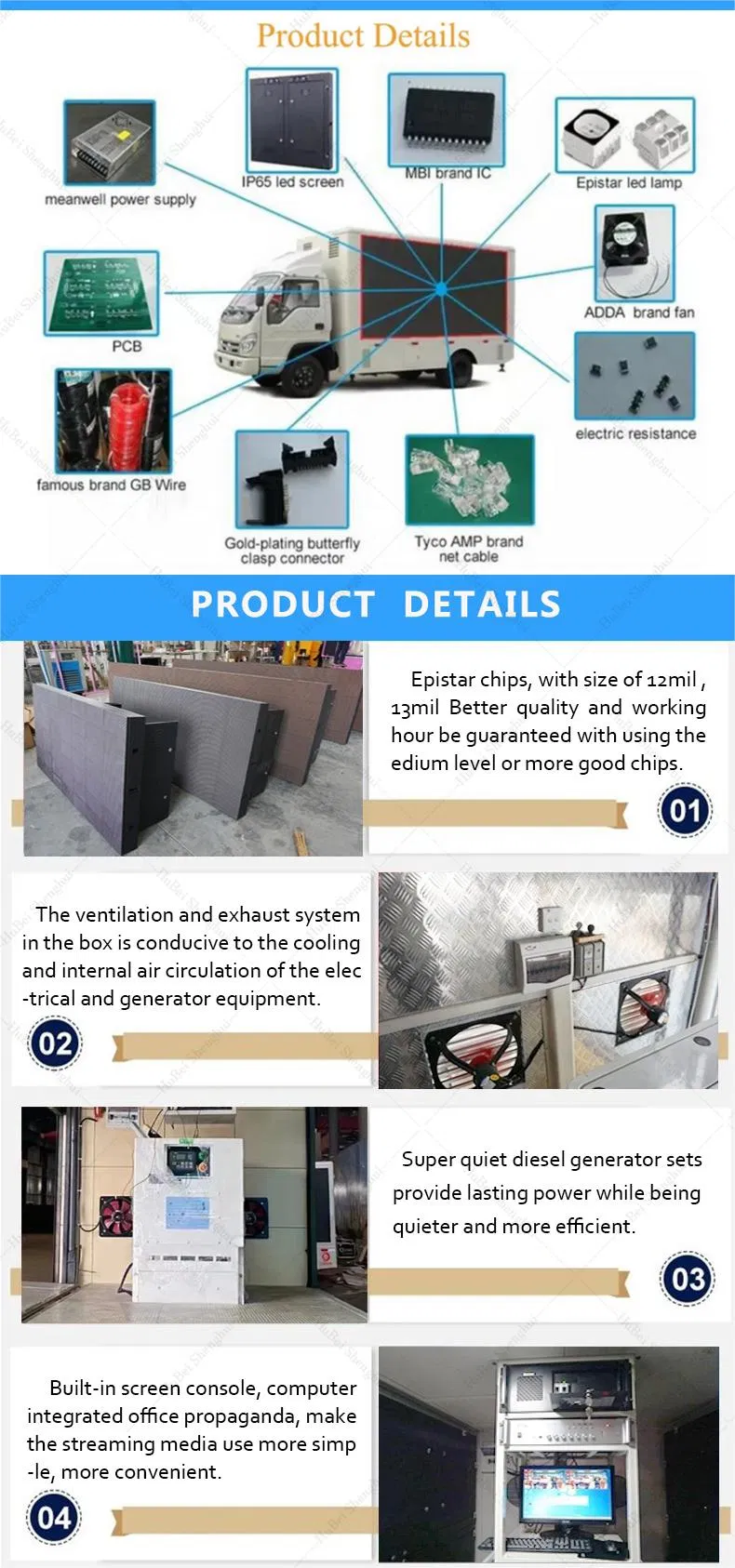

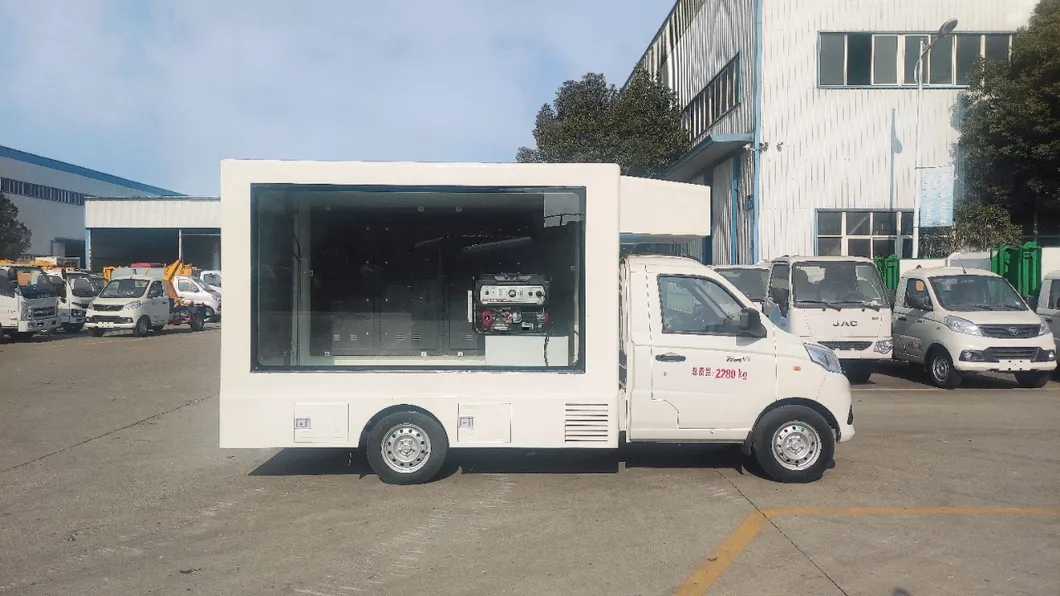

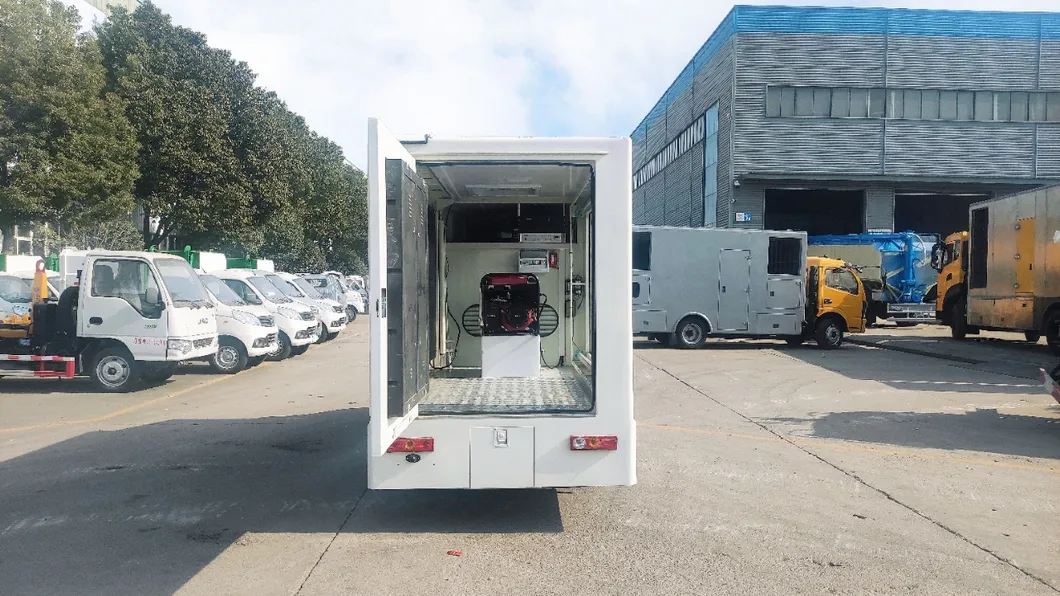

| General Configuration | Silent diesel generator 6.5KW, industrial computer control, 4pcs Loudspeakers, Amplifier, Cooling system. |
