Product Introduction
- Front Service Design: Specifically engineered for easy front maintenance access.
- Versatile Pixel Pitches: Available in P6.67, P8, and P10 configurations to meet various resolution needs.
- Space Efficient: Ideal for locations where rear service access is restricted or unavailable.
- Secure Locking System: Modules are secured to the frame using a specialized structure for stability.
Technical Parameters
| LED Chip & Module Details |
| Pixel Pitch |
P10 (1R1G1B) |
LED Type |
Nationstar SMD3535 |
| Module Dimension |
320mm x 320mm |
Module Resolution |
32 x 32 dots |
| Brightness |
6500 mcd/sqm |
Refresh Rate |
>1920 Hz |
| Working Voltage |
5V (Module) / AC110-220V (Cabinet) |
Protection Level |
IP65 Front/Back |
System & Performance
| Viewing Angle | Horizontal 140° / Vertical 105° |
| Best Viewing Distance | > 20 meters |
| Gray Scale | 14 bit |
| Control Distance | UTP Net Cable <100m; Fiber Optic up to 10km |
| Input Signal | AVI, MOV, MPEG, DAT, VOB, BMP, JPG, etc. |
| Lifespan | ≥100,000 Hours |

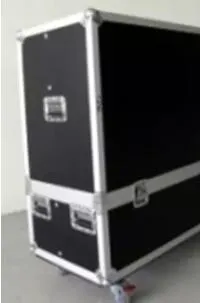

Quality Assurance & Packing
After-Sale Service & Manufacturing
Service Commitment:
- Two years full warranty on hardware.
- Lifetime 24/7 online technical support free of charge.
- Depot repair service with free labor cost.
- Experienced engineers available for global technical guidance.

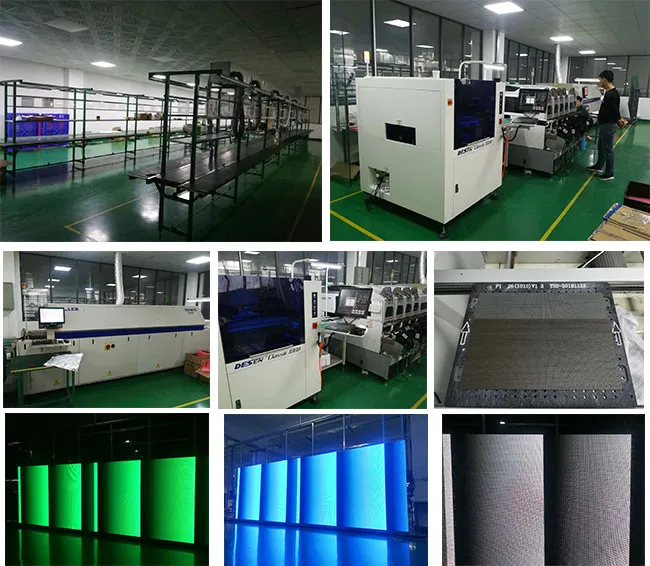

Factory Excellence:
- Original manufacturing facility with 7 years of specialized experience.
- High-technology automatic machinery for precision assembly.

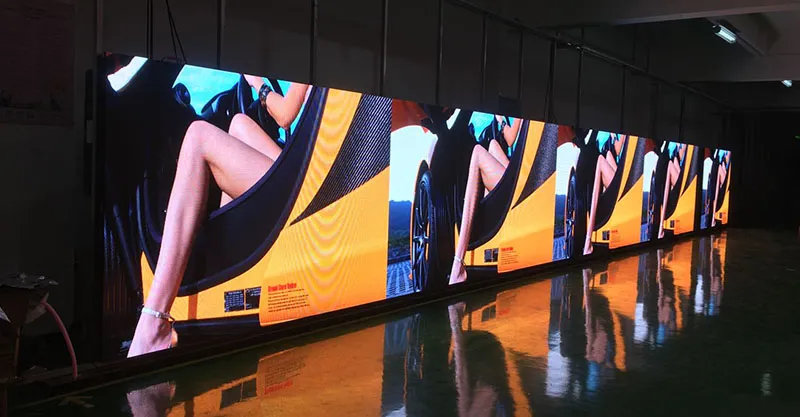

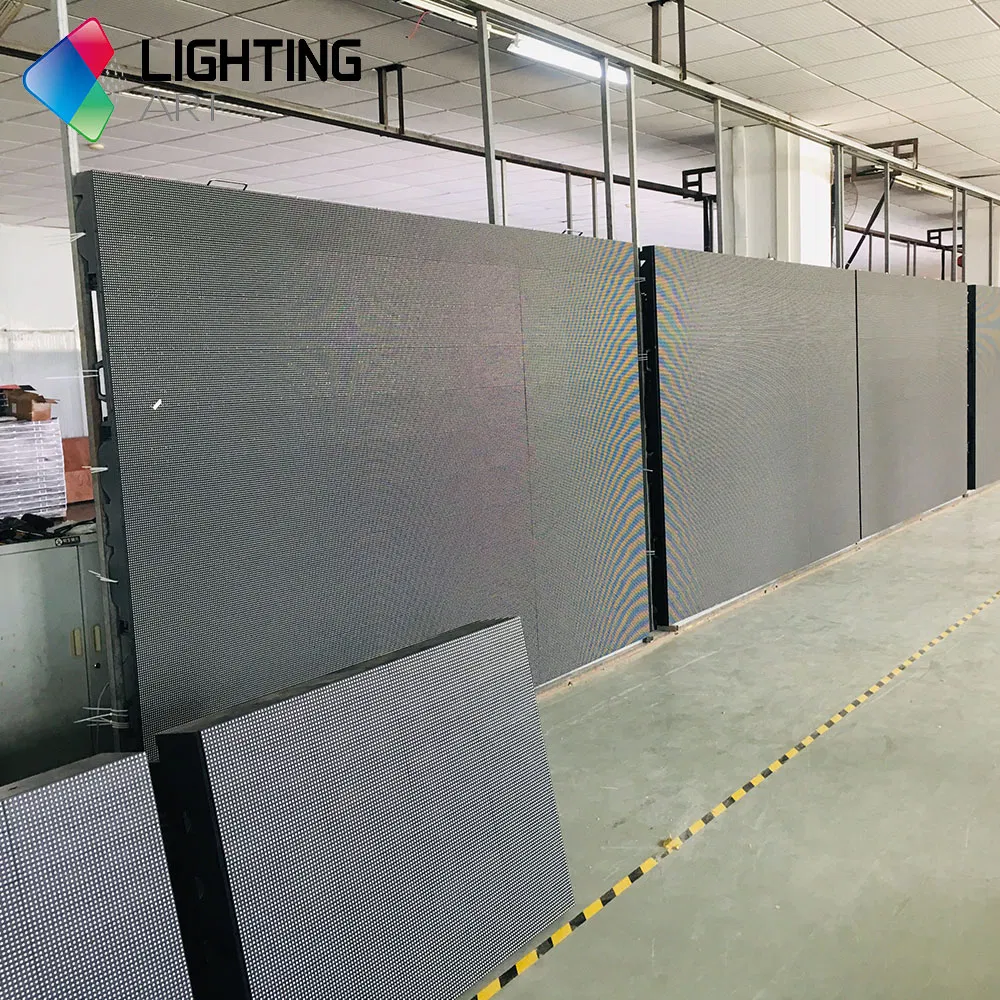

- Rigorous aging and grayscale testing for every module produced.
- Skillful workforce with long-term industry expertise.
Frequently Asked Questions (FAQ)

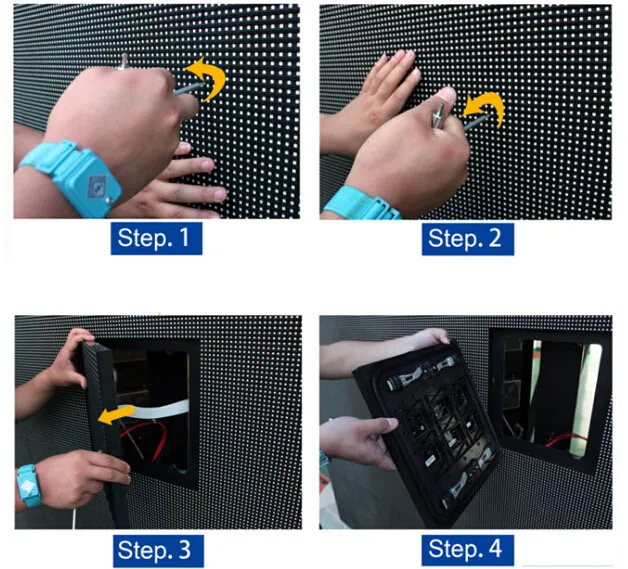

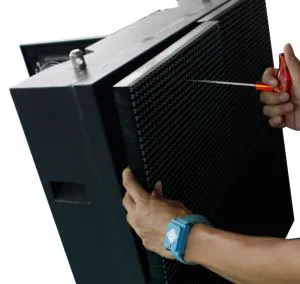

What is "Front Service" maintenance?
Front service means the LED modules and internal components can be accessed and repaired from the front side of the screen. This is essential for wall-mounted installations where there is no space behind the cabinet.
What pixel pitches does the OFC series support?
The OFC series is available in P6.67, P8, and P10 pixel pitches to accommodate different viewing distances and resolution requirements.
Is this screen suitable for harsh outdoor environments?
Yes, it features an IP65 protection level for both front and back, making it waterproof and dustproof, suitable for permanent outdoor advertising.
What is the typical production and delivery time?
Standard production time for screens up to 200 m² is approximately 25 days, which includes a comprehensive aging test period.
What control systems and files are compatible?
The system supports DVI and VGA interfaces and is compatible with most video and image formats, including AVI, MOV, MPEG, JPG, and digital documents.
What kind of warranty is provided?
We provide a two-year hardware warranty along with free lifetime online technical support and repair labor services.
