Basic Information
| Model NO. | P3.91 outdoor Truck screen |
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 65536 Dots/M2 |
| Scanning Mode | 1/16 Scan |
| System Operating Platform | Windows 7/8/10 |
| Display Type | LED Video Display |
| Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | IP43 |
| Certification | CE, RoHS, CCC, ISO9001 ISO14001 FCC |
| Product Name | P3.9 Indoor LED Display |
| Driver IC | 3840Hz |
| Brightness | 6000CD/Sq |
| Grey Scale | 65536 Degree |
| Life Time | More 100,000 Hours (80%) |
| MTBF | More 50,000 Hours |
| Operating Temperature | -30~+80℃ |
| Humidity | 10%-95% |
| HS Code | 8528591090 |
| Production Capacity | 5000sqm/Year |
📝
Product Description
Die-Casting Aluminum Rental P3.91 P4.81 outdoor and indoor led background screen
- Durable, reliable, precisely made Aluminum die-casting, fanless design with small expansion coefficient.
- Spring locks connect the cabinets vertically for seamless integration.
- Signal and power indicator with reset button clearly shows the working condition.
- Fast spring locks connect the cabinets horizontally, requiring only 10 seconds per cabinet.
- Light-weight design at 8kg per panel with a sub-frame structure.
💡
Why Choose LED Display
- High brightness: Rich and colorful, the only large display device capable of outdoor use all day.
- Long life: Reliable performance for up to 100,000 hours or more.
- Large viewing angle: Provides visibility greater than 160 degrees.
- Modular structure: Adjustable screen area from one to thousands of square meters.
- Compatibility: Easy computer interface integration with flexible support software.
- Display network: Control multiple displays simultaneously with diverse content support.
⚙️
Technical Parameters
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536 pixels/m² |
| LED Type | SMD2121 |
| Cabinet Dimension | 500*500mm / 500*1000mm |
| Cabinet Material | Die-casting aluminum |
| Ingress Protection | IP40 / IP21 |
| Brightness | 1000 nits |
| Viewing Angle | 140°/140° |
| Data Refresh Rate | >3840HZ |
📜
Certifications
Fully compliant with EMC, FCC, ROHS, CE, PCE, and ISO international standards.
🛠️
Design & Production

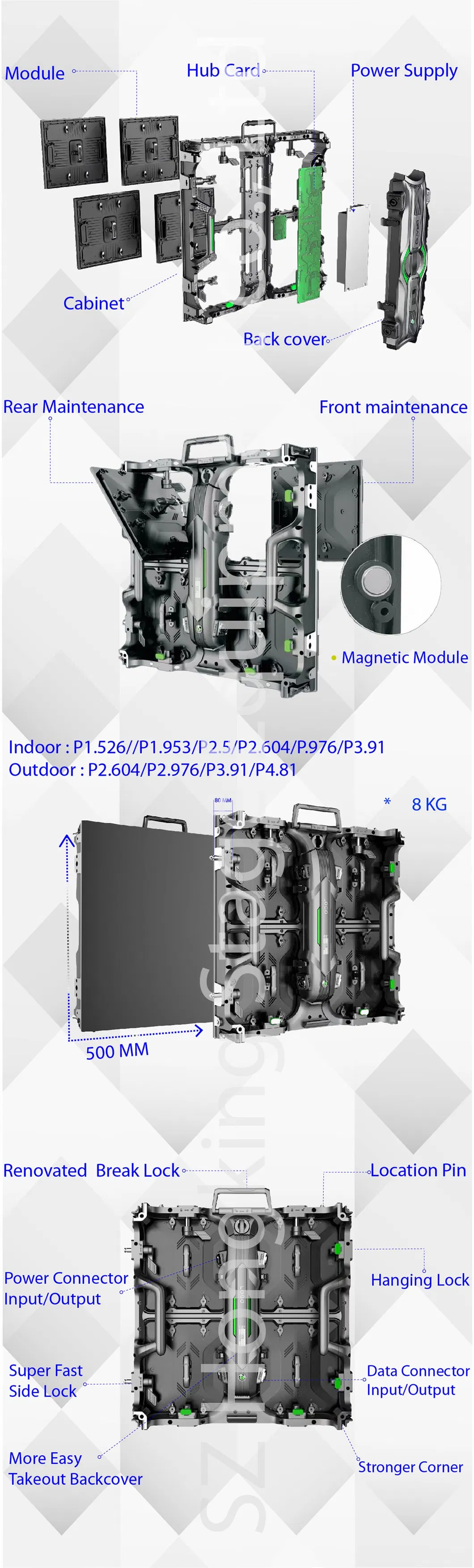

Cabinet design details: Using Hub Cards instead of power/flat cables ensures greater stability during shipping and operation. Rigid connections are utilized for high-level rental applications.
Production Process: Every step follows strict quality checks, including PCB printing, LED SMT, waving soldering, and a dual 72-hour aging test for both modules and finished screens.
🤝
Professional Services
We provide a comprehensive service system including pre-sale market research, professional solutions, in-sale tracking reports, and free spare parts for every order.
🏢
Project Cases
Indoor and outdoor P3.91, P2.976, and P2.604 rental LED Screen Displays are ideal for performances, conferences, exhibitions, weddings, and stage backgrounds at concerts and annual parties.
❓
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a Professional OEM/ODM manufacturer specializing in the LED display industry for over ten years.
How do you ensure quality control?
Quality is our priority. We focus on every detail from the start to the end, and our factory has gained CE, ROHS, FCC, and IP65 authentication.
What is your Minimum Order Quantity (MOQ)?
Any quantity is acceptable for your order. Prices are negotiable for larger quantities.
What is the standard delivery time?
Generally, we can make the delivery within 10 working days, depending on the size and quantity of the order.
What technical supports are available?
We provide comprehensive technical training for free, including operation and maintenance training for the LED screens.
How long is the warranty period?
The standard warranty is 2 years, which can be extended upon request.
