LYRA LED
1 / 5

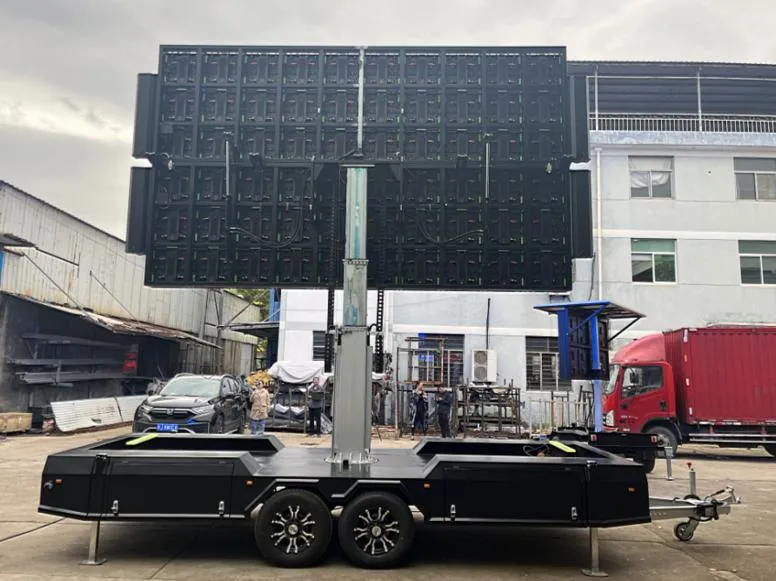

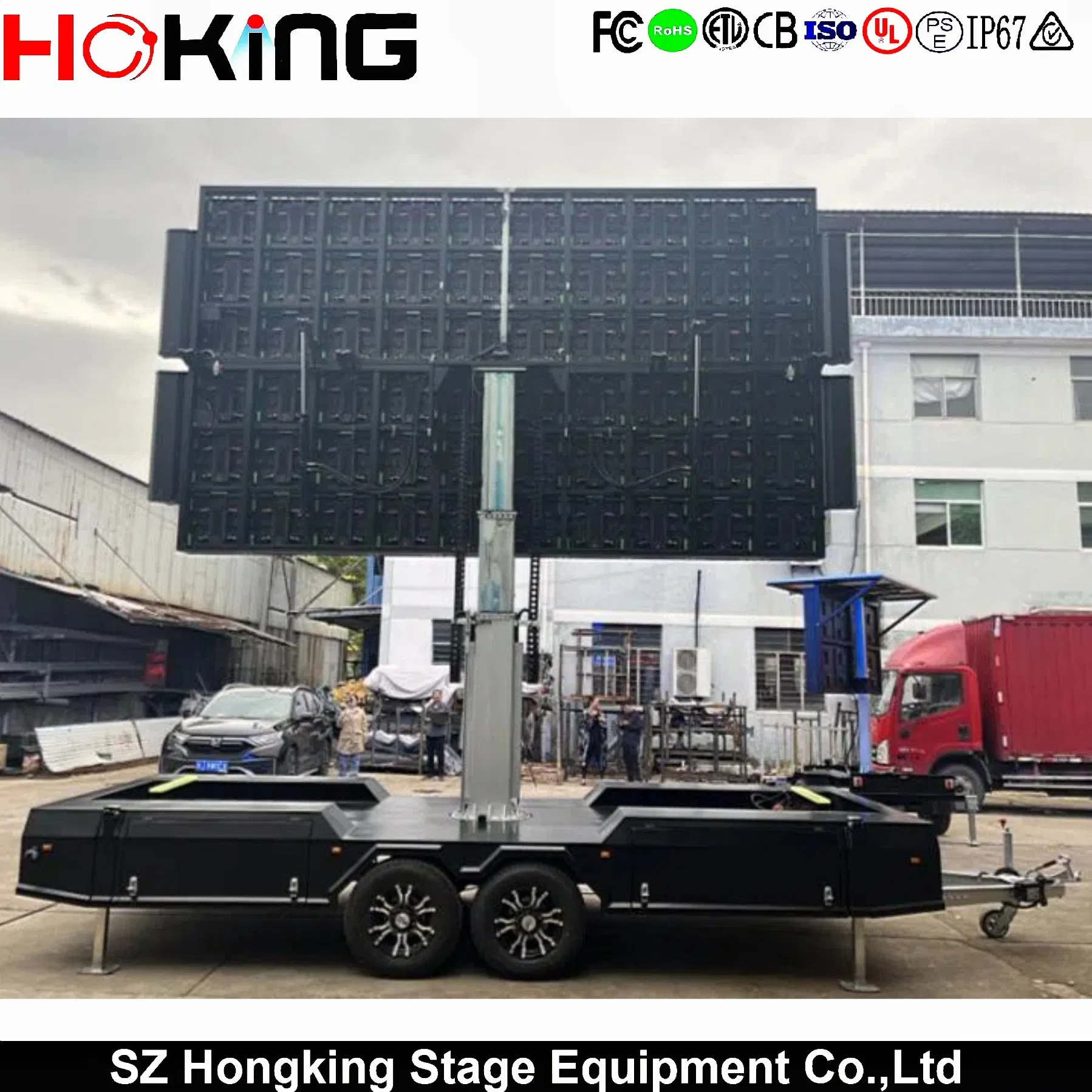

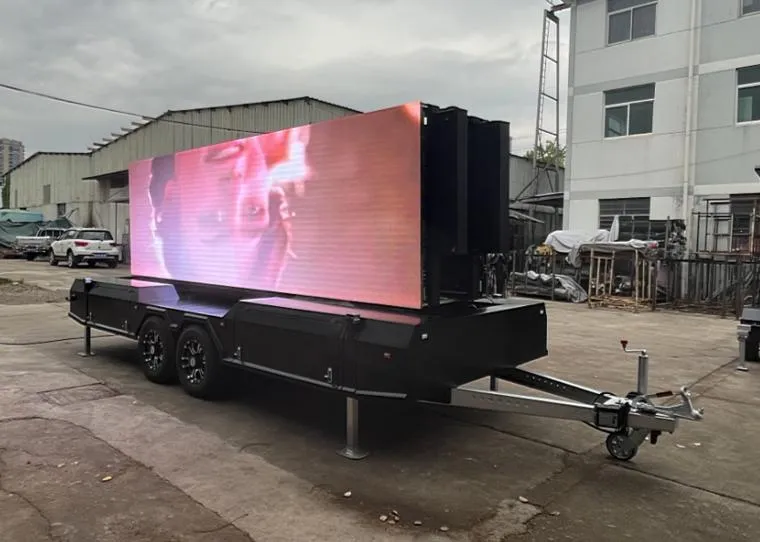

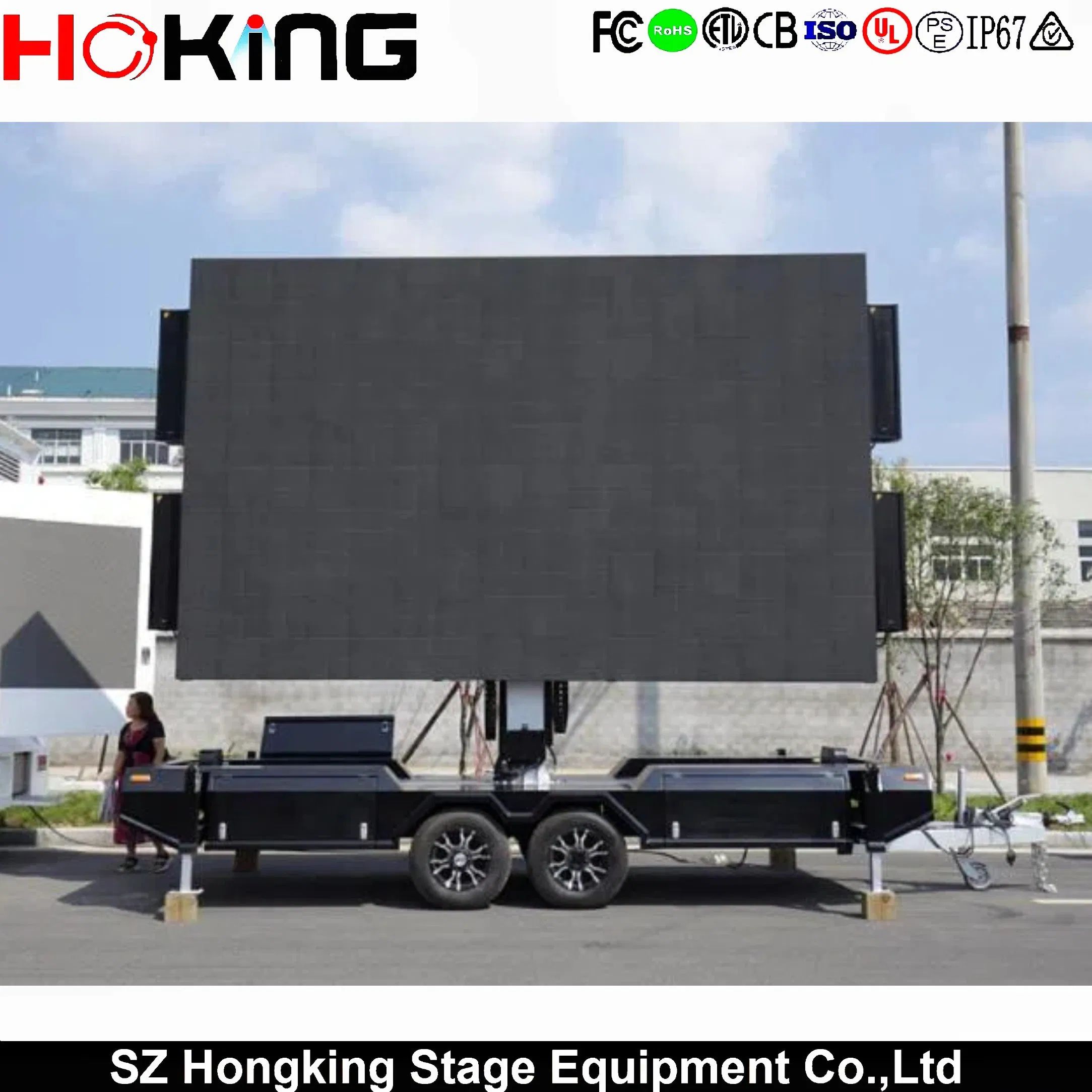

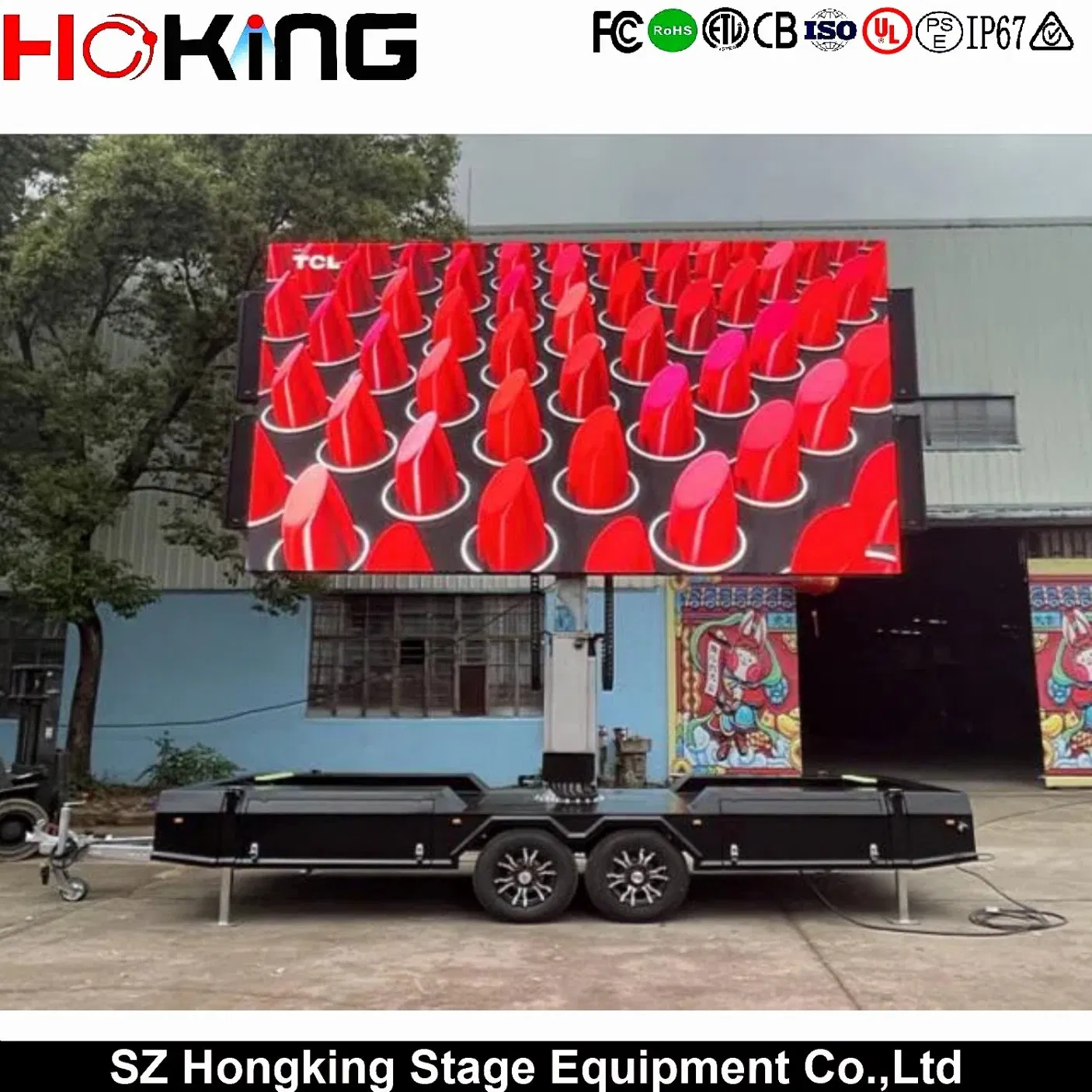

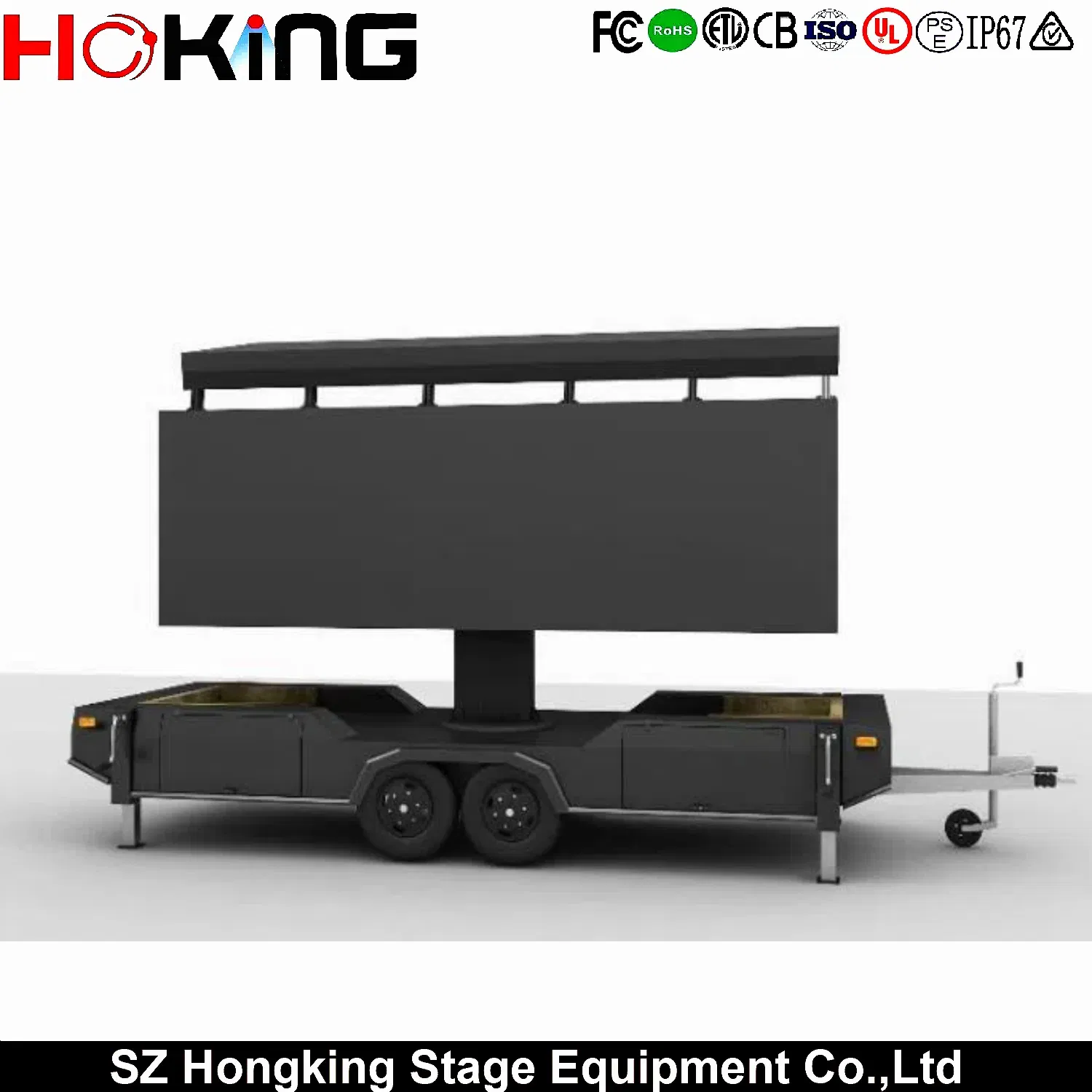

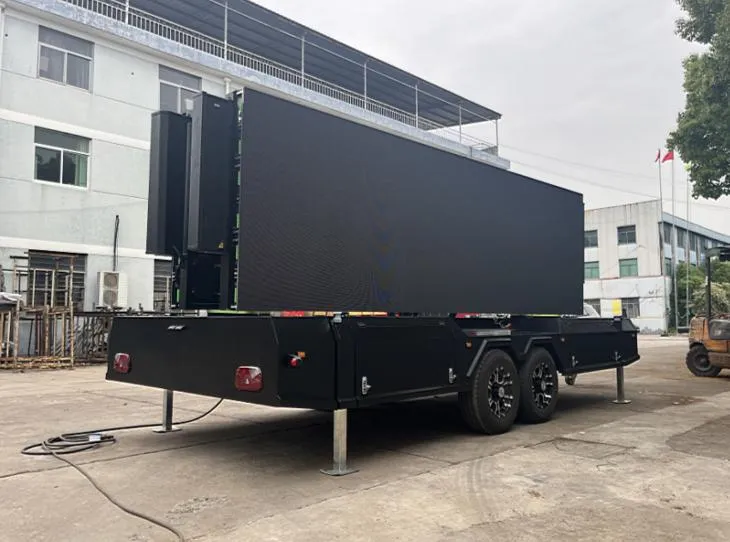

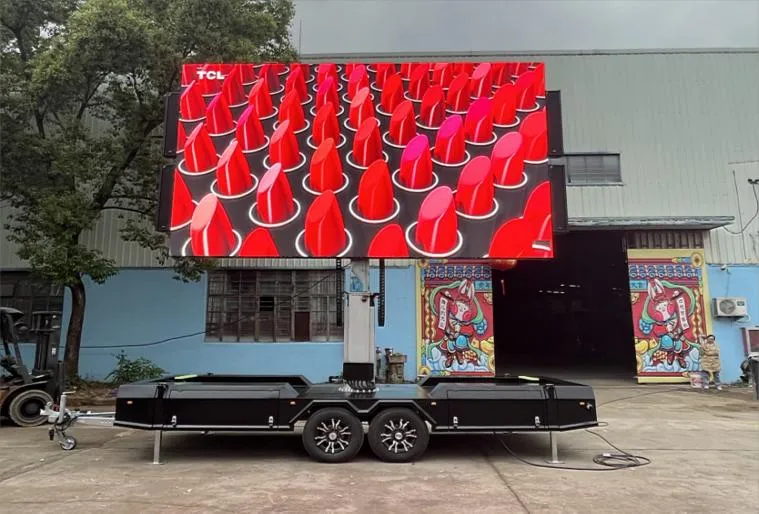

| Model NO. | P3.91 outdoor Truck screen |
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 65536 Dots/M2 |
| Scanning Mode | 1/16 Scan |
| System Platform | Windows 7/8/10 |
| Display Type | LED Video Display |
| Application | Stage, Advertising, Shopping Guide |
| IP Rating | IP43 |
| Certification | CE, RoHS, CCC, ISO9001, FCC |
| Driver IC | 3840Hz |
| Brightness | 6000 CD/sqm |
| Grey Scale | 65536 Degree |
| Life Time | >100,000 Hours (80%) |
| MTBF | >50,000 Hours |
| Operating Temp | -30~+80℃ |
| HS Code | 8528591090 |
| Production Capacity | 5000sqm/Year |
Die-Casting Aluminum Rental P3.91 P4.81 Outdoor/Indoor LED Screen
| LED Type | SMD2121 / 1R1G1B |
| Cabinet Dimension | 500*500mm / 500*1000mm |
| Cabinet Resolution | 128*128 pixels / 128*256 pixels |
| Cabinet Material | Die-casting Aluminum |
| Ingress Protection | IP40 / IP21 |
| Viewing Angle | 140° / 140° |
| Frame Refresh Rate | ≥60Hz |
| Data Refresh Rate | >3840Hz |

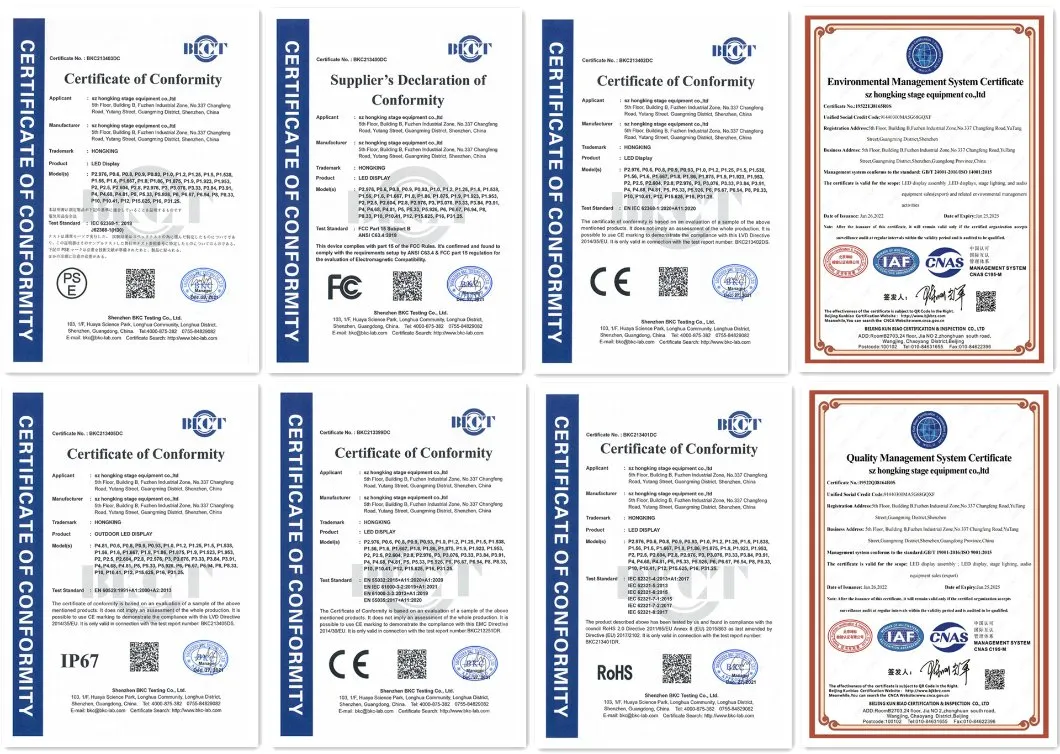

EMC, FCC, ROHS, CE, PCE, ISO certified quality assurance.

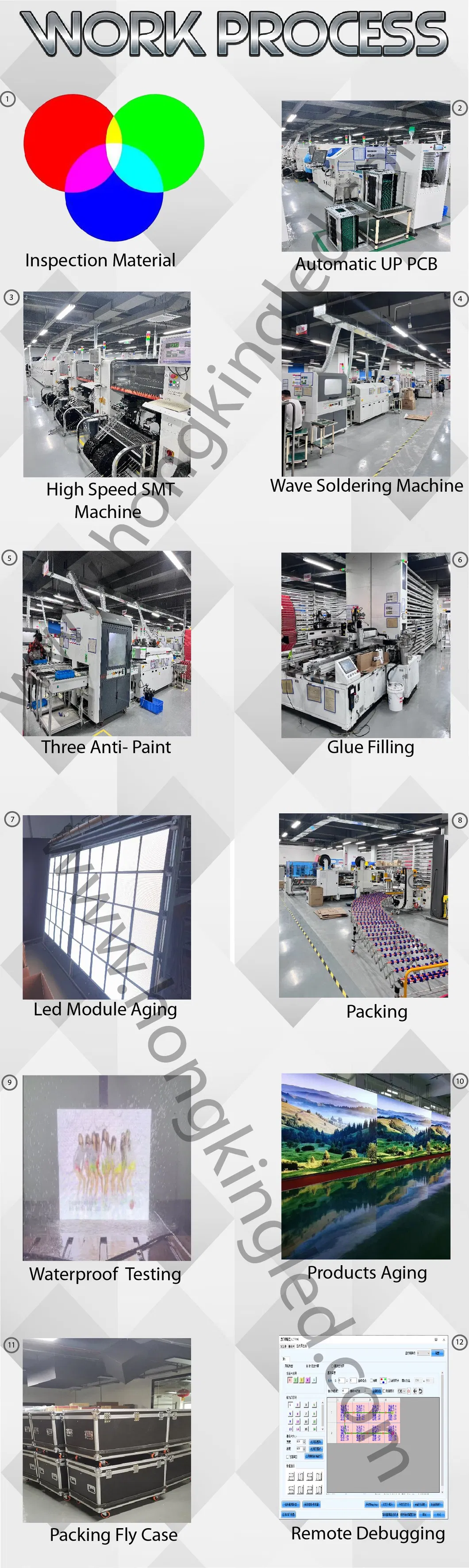

Our production follows strict 6S Quality Checks: Material Verification - PCB Printing - LED Lamp SMT - Wave Soldering - Initial Testing - 72-hour Aging Test for modules and the entire screen.

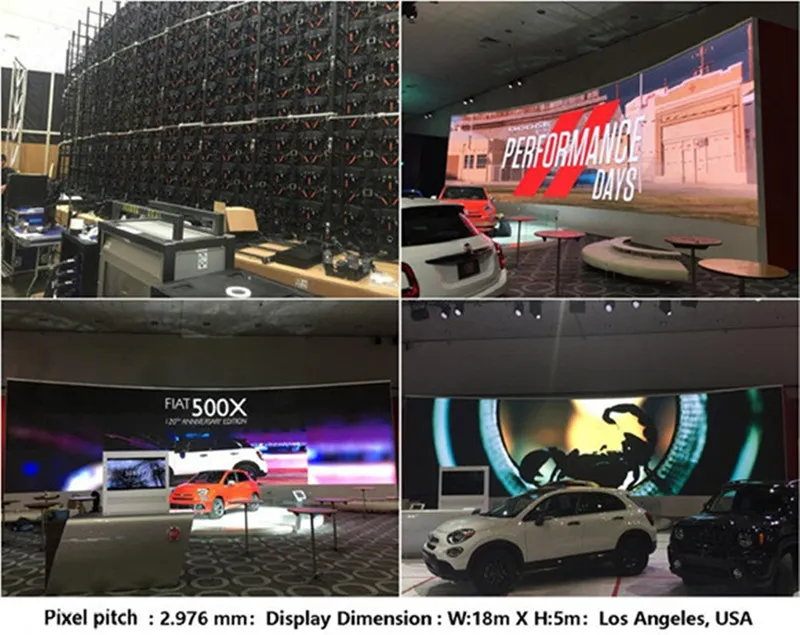

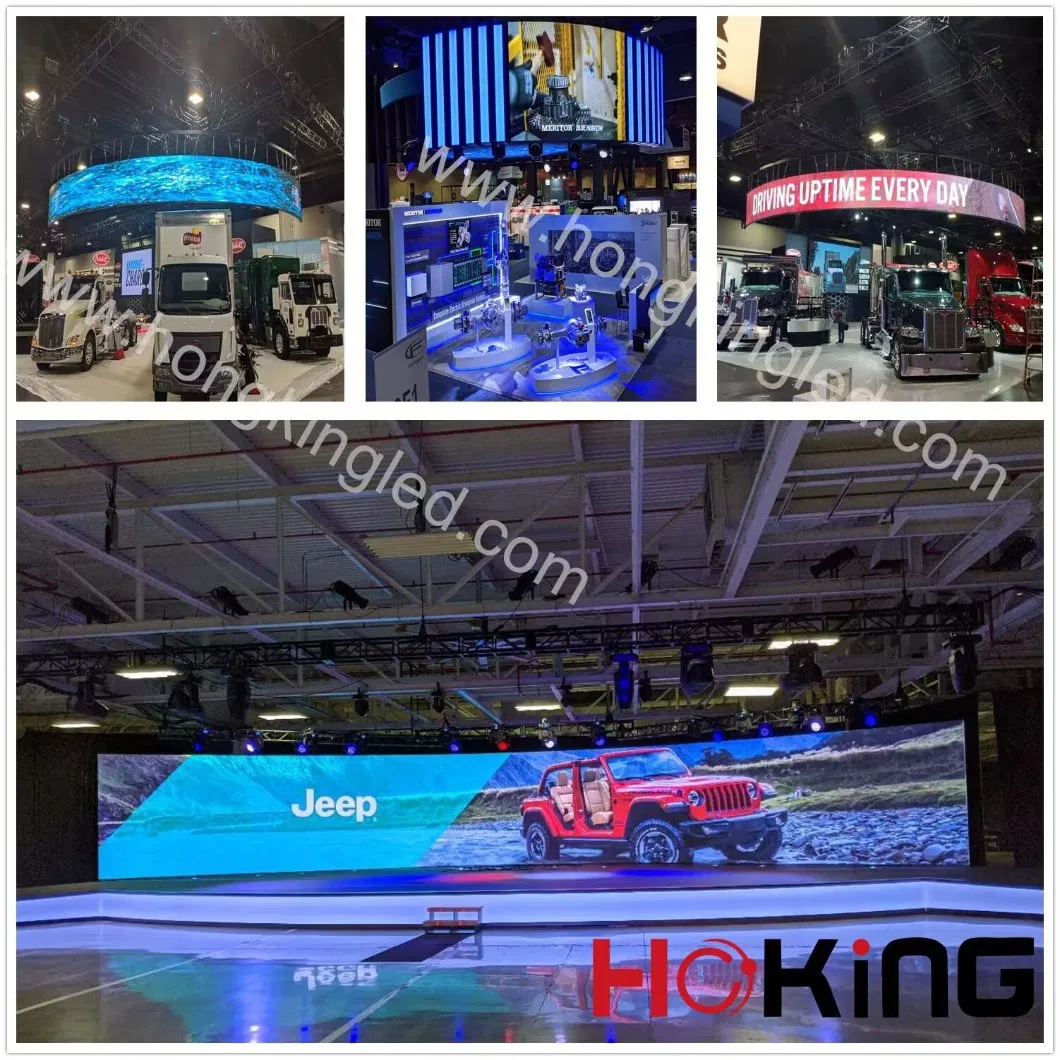

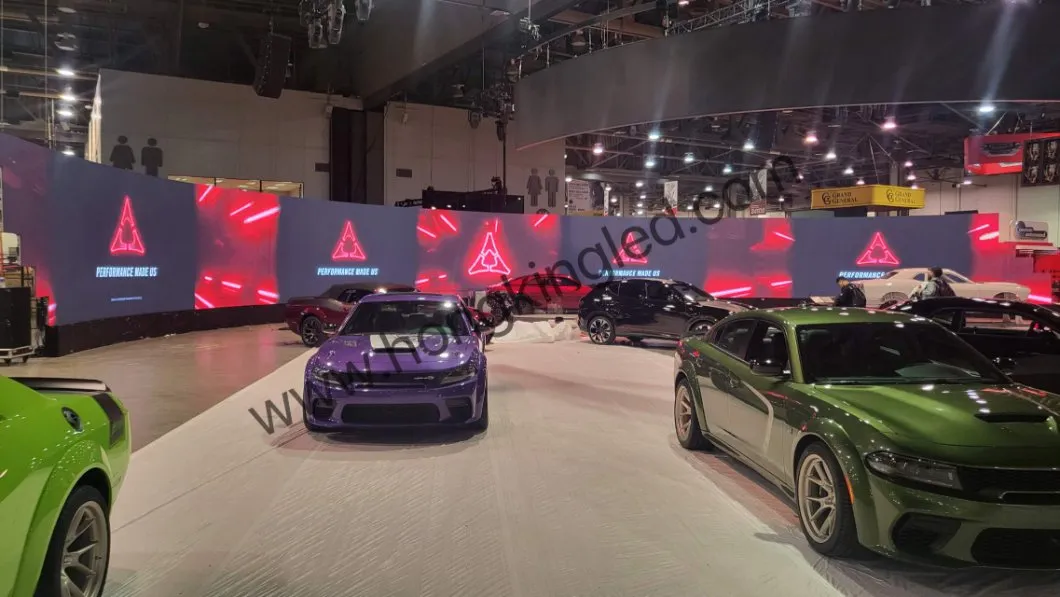

Suitable for performances, conferences, exhibitions, weddings, opening ceremonies, and stage backgrounds. Perfect for concerts, annual parties, and DJ bars.
