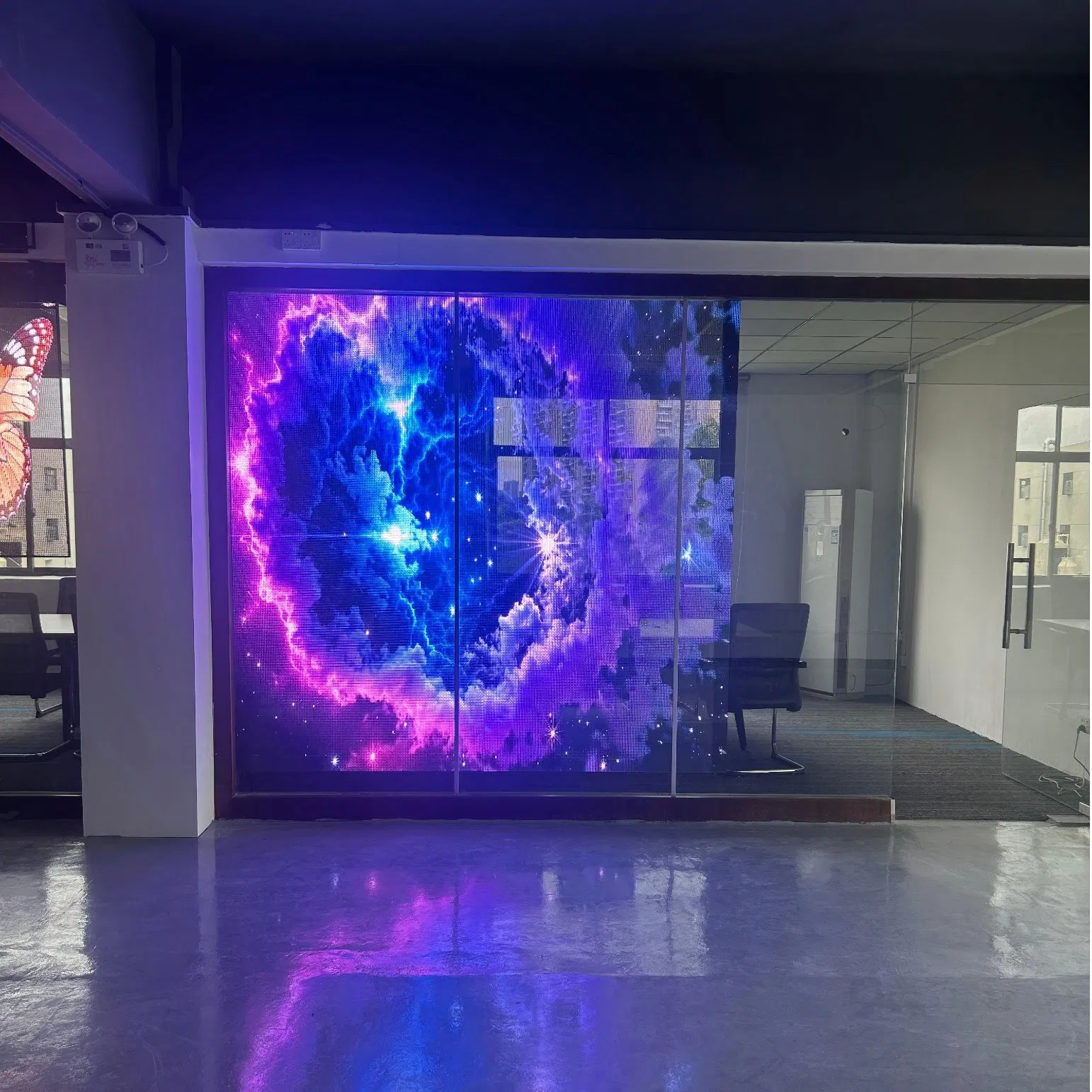

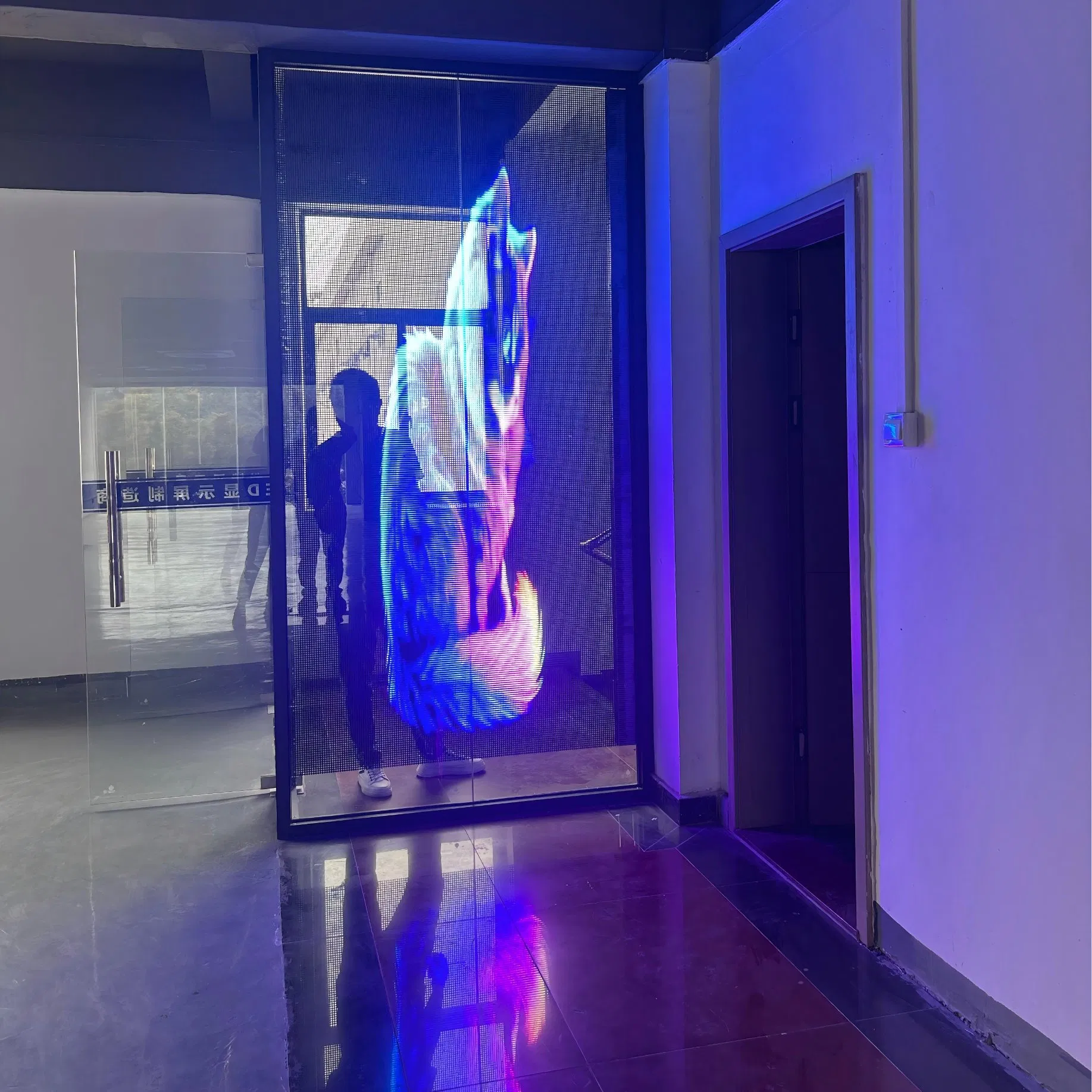

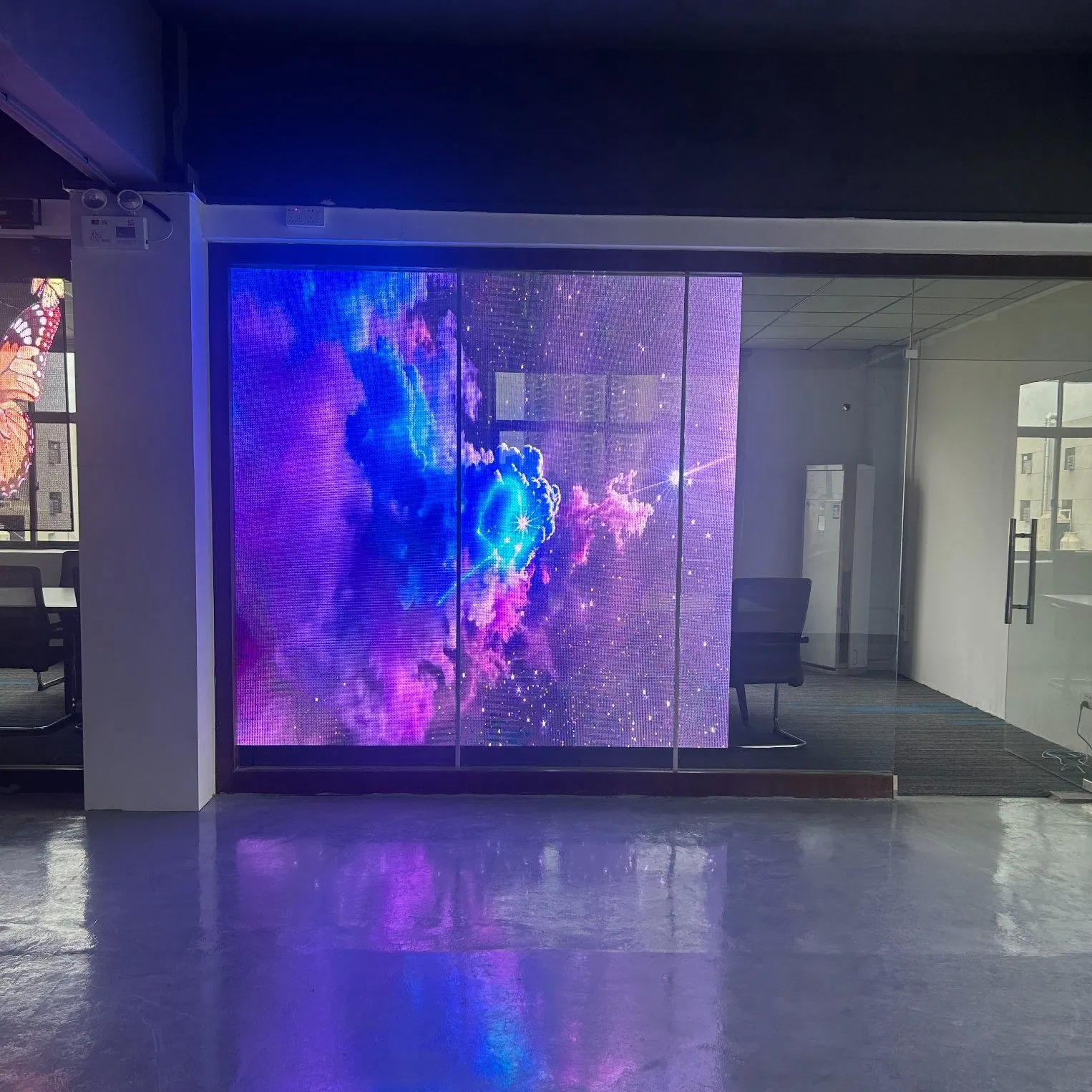

Shopping Mall Holographic Transparent 3D LED Digital Display Screen for Indoor Advertising

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.:G3-120M
Pixel Pitch:3.91mm
Pixel Configuration:1R,1G,1B
Pixel Density:65536
Scanning Mode:1/16 Scan
Display Type:LED Video Display
IP Rating:IP43
Certification:CE, RoHS
Material:Fiberglass
Net Weight:3 kg / sqm

Technical Parameters

Item G3-120H G3-120M G4-120H G3-150H G3-150M G3-200H G3-200M
Pixel pitch(mm) P3.91 P4.81 P3.91
Brightness (nits) 5,000 1,600 4,000 5,000 1,600 5,000 1,600
Visual Transparency 80% 85% 80%
Refresh Rate 3840Hz
Contrast Ratio 4000 : 1

Key Features

01
High Performance MIP Technology: New MIP1210 technology for transparent 3D holographic LED displays ensures superior visual quality.
02
Enhanced Brightness: Offers a wide brightness range from 1600nits up to 5000 nits, suitable for various indoor environments.
03
Energy Efficient: Lower power consumption with a maximum of 800W/sqm and an impressive average of only 240W/sqm.
04
Low Heat Emission: Advanced technology results in minimal temperature rise (≤3°) during continuous operation.
05
Ultra-Light & Slim: Film-like design with a net weight of just 3kg per square meter for easy installation.

Visual Display & Applications

LED Display Overview

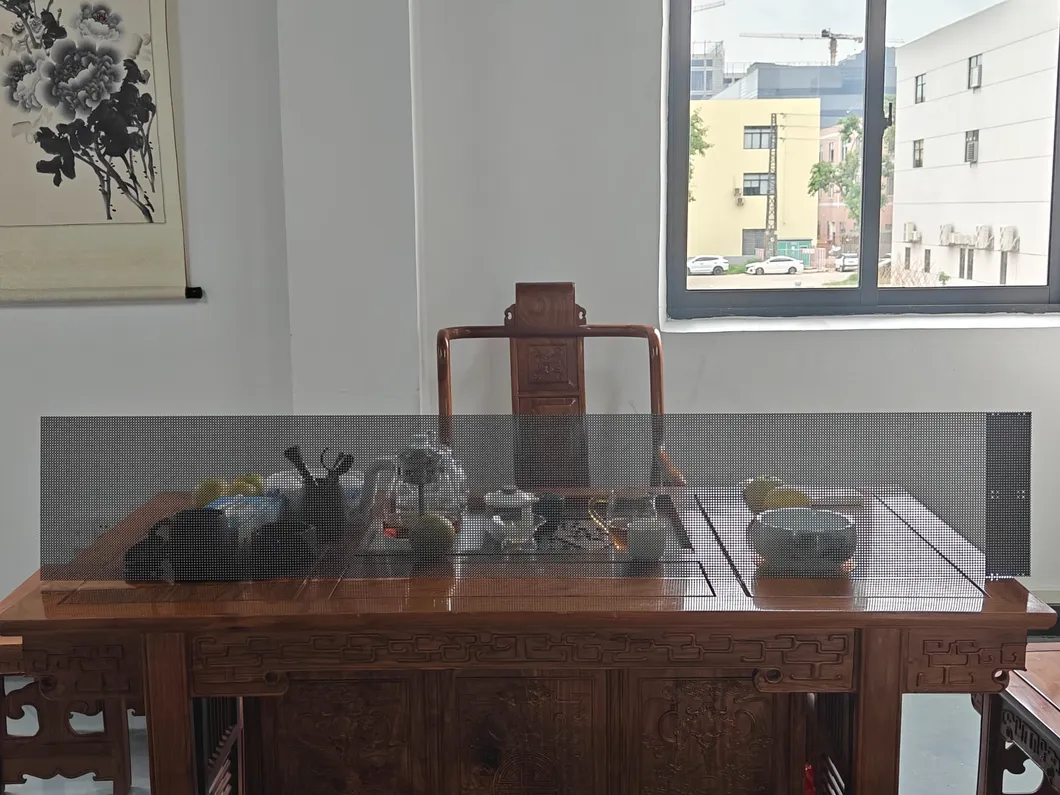

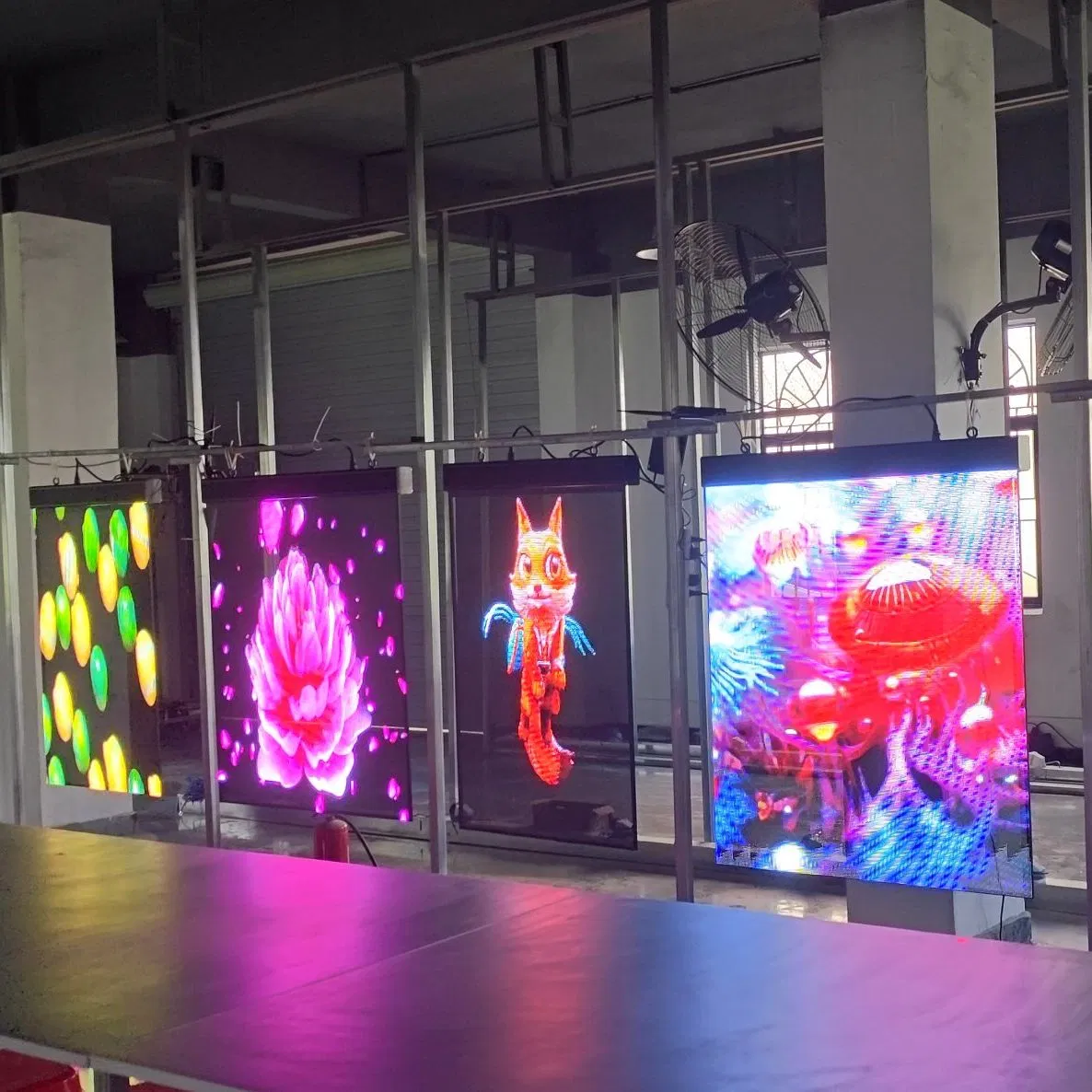

Holographic Screen Detail

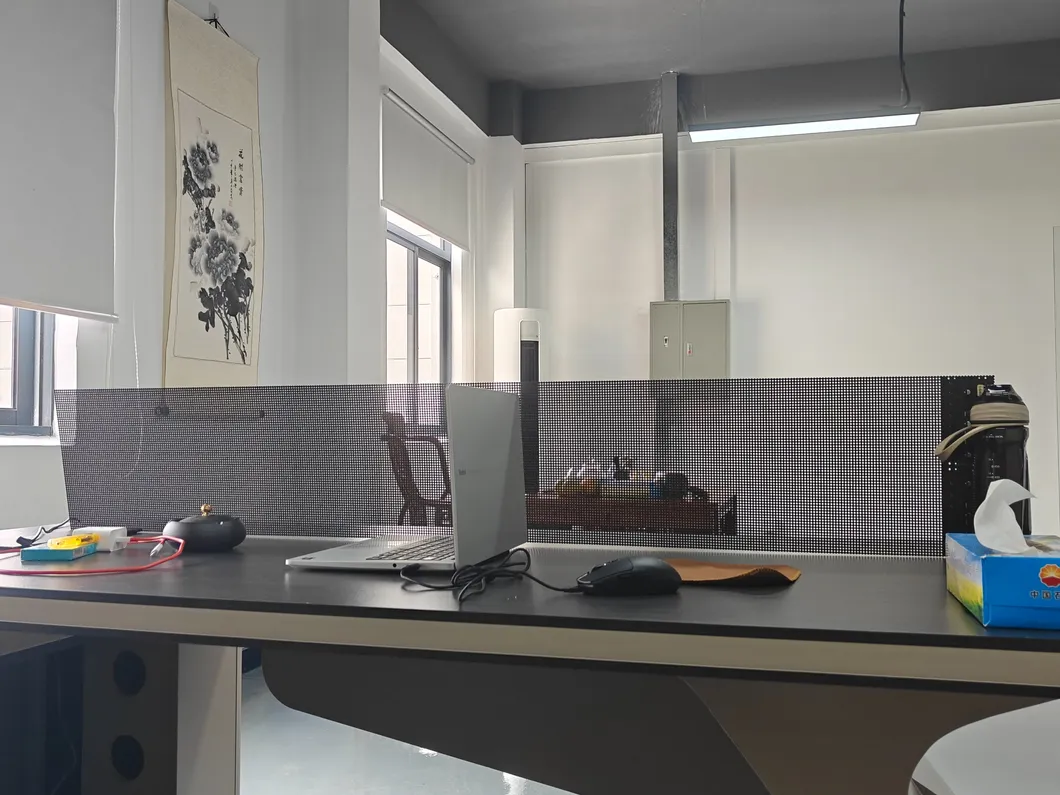

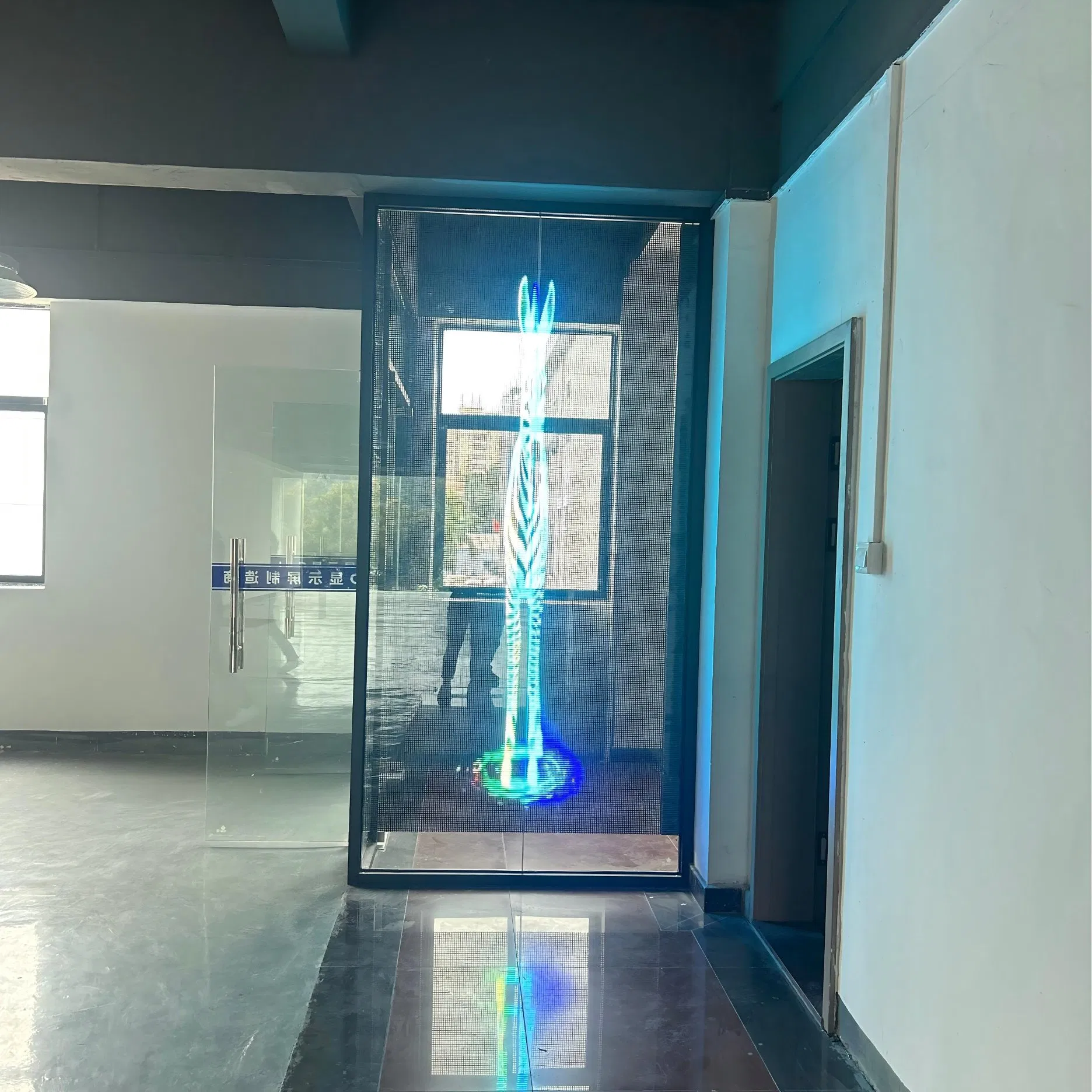

Indoor Advertising Display

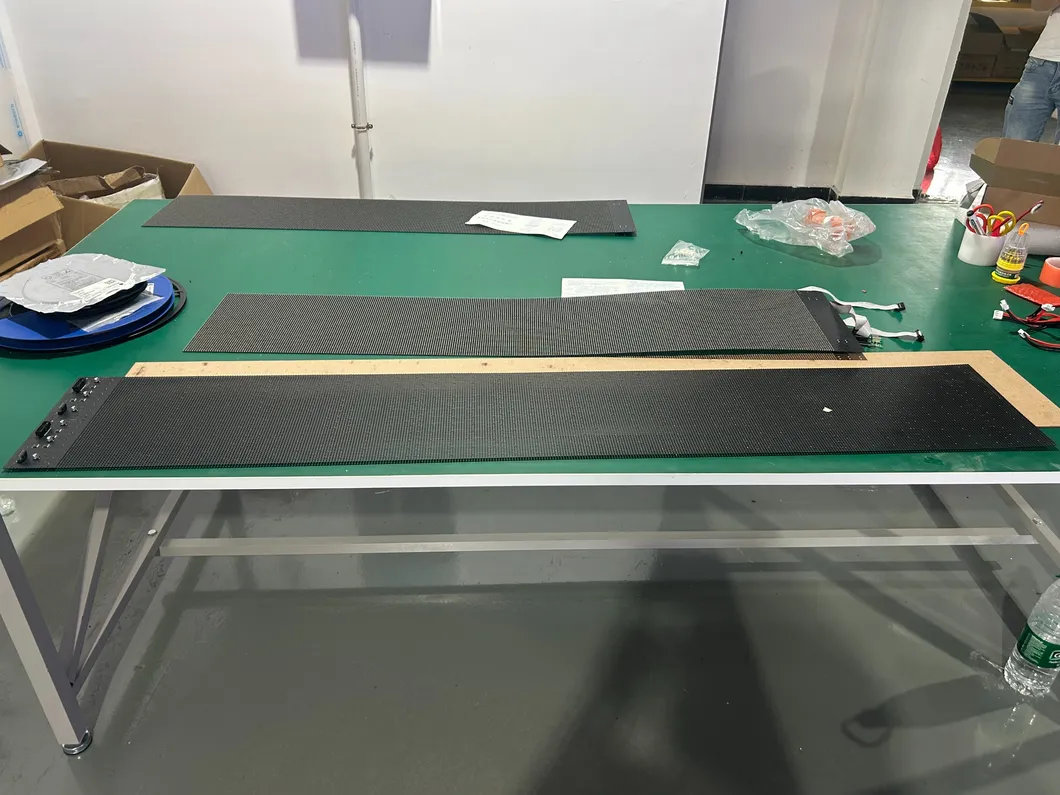

Shopping Mall Installation
Exhibition Show
Product Certifications
Product Catalog

Frequently Asked Questions

Q1: How transparent is the holographic LED screen? The visual transparency ranges from 80% to 85%, depending on the specific model, allowing for clear sightlines through the glass while displaying content.
Q2: What is the benefit of MIP1210 technology? MIP (Micro LED in Package) technology provides higher brightness (up to 5000 nits) and significantly lower heat dissipation, maintaining a temperature rise of ≤3° during use.
Q3: Is the screen difficult to install? No, it is designed for versatility. It supports glass direct mounting, back frame installation, ceiling mounting, and even inner arc installation or bending.
Q4: What is the weight of the display? The display is ultra-lightweight, weighing only approximately 3kg per square meter, making it one of the lightest options for mall advertising.
Q5: Can it be used for outdoor advertising? This specific series has an IP43 rating and is primarily designed for indoor advertising, such as in shopping malls, airports, and hotels.
Q6: What is the typical lifespan of these LED screens? The LEDs are rated for a long operational lifespan of over 100,000 hours, ensuring reliable performance for years of promotion and branding.
