Indoor Small Pitch LED Display with Very High Resolution and High Performance for Digital Signage and Commercial Displays, etc.

Basic Info

Model NO.AV1.8

Pixel Pitch1.875mm

Pixel Configuration1R,1G,1B

Pixel Density51200pixels/Tile

Scanning Mode1/45s

Display TypeLED Video Display

ApplicationStage Performance, Advertising

IP RatingIP50

CertificationCE, RoHS, CCC

LED TypeSMD

Unit Resolution320*180dots

Unit Size600mm*337.5mm*27mm

Refresh Frequency3840Hz

Package Gross Weight4.500kg

Product Description

📏

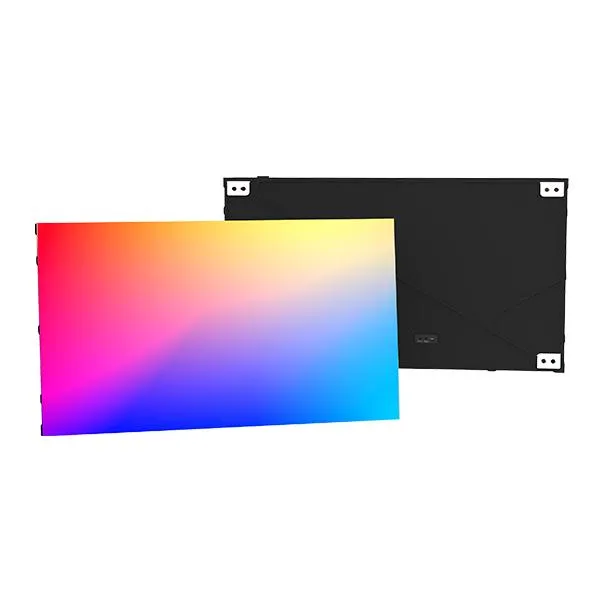

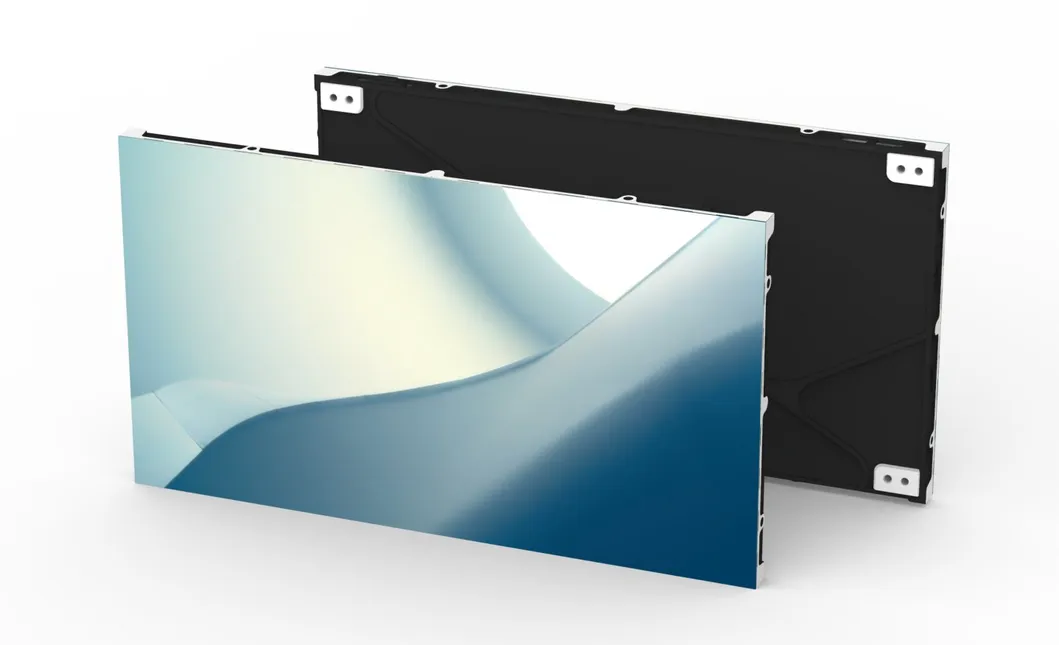

Ultra-thin panel design
The thickest part is only 27mm, weight is less than 5KG.

⚙️

Three-in-one design
Power supply, HUB card and receiving card combined for easy maintenance.

📺

16:9 Aspect Ratio
Perfect for 720P, 1080P, 4K, and 8K point-to-point splicing.

🌈

High Performance
14bit grayscale at 300nits and 5000:1 contrast ratio.

❄️

Cast Aluminum Technology
Easy heat dissipation, lightweight, and high precision.

🔧

Front Maintenance
Pure front maintenance design for convenient servicing.

🔇

Silent Operation
Fanless and silent design for quiet environments.

Technical Parameters

Category	Parameter Name	Specifications
Unit Parameters	Pixel Pitch	1.875mm
	Pixel Configuration	1R1G1B (SMD)
	Unit Resolution	320*180 Dots
	Unit Weight	4.5kg/panel
	Unit size (WxHxD)	600mm×337.5mm×27mm
	Unit Ratio	16:9
	Material	Die-casting Aluminum
Optical/Electrical	Brightness	600nit (7500K)
	Viewing Angle	H: 160°; V: 160°
	Max Contrast Ratio	5000:1
	Input Voltage	AC 90~264V (50/60Hz)
	Refresh Frequency	3840Hz
Performance	Processing Depth	13bit
	Gray Scale	16384 levels per color
	Lifespan	≥ 50,000 Hours

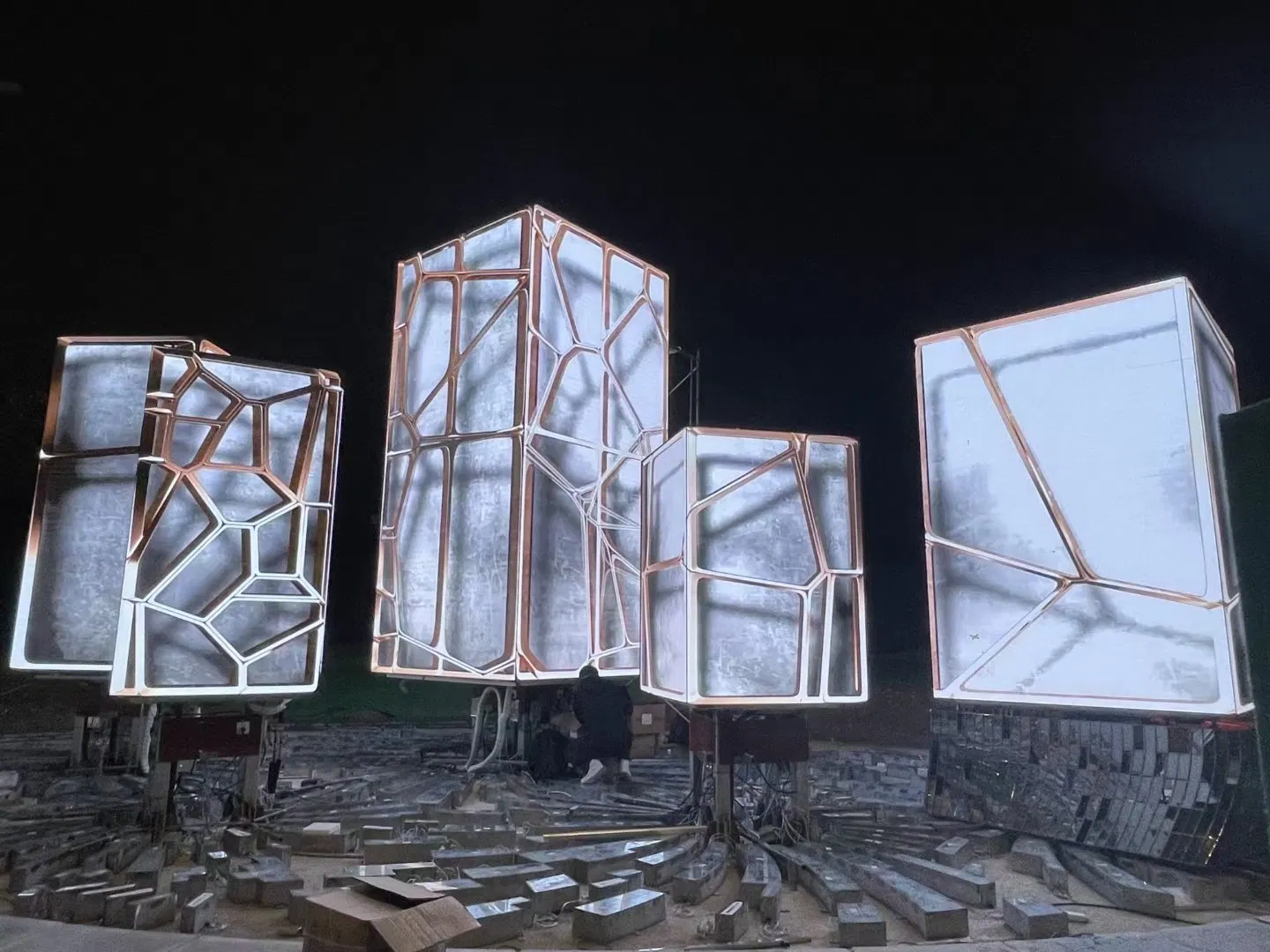

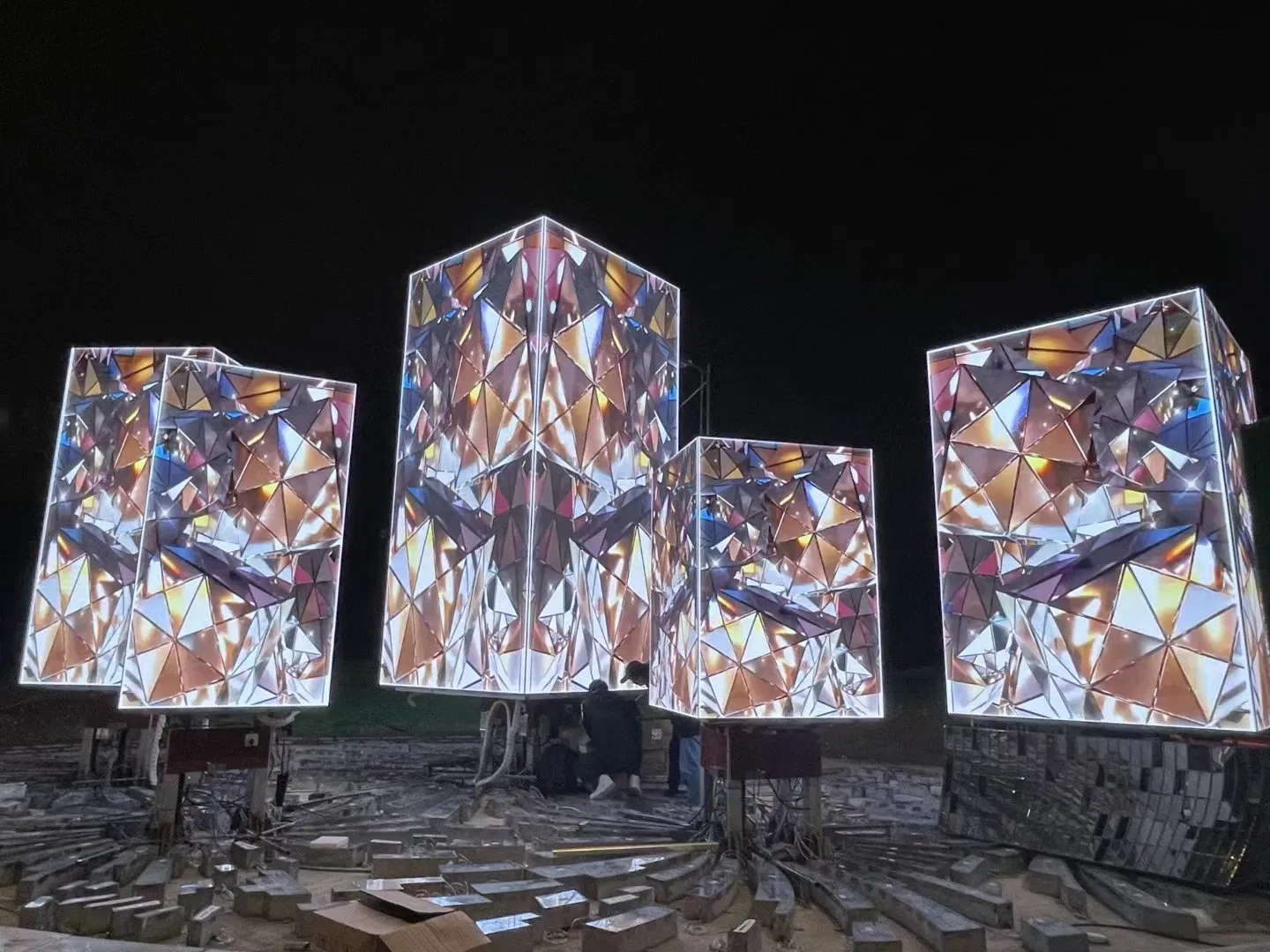

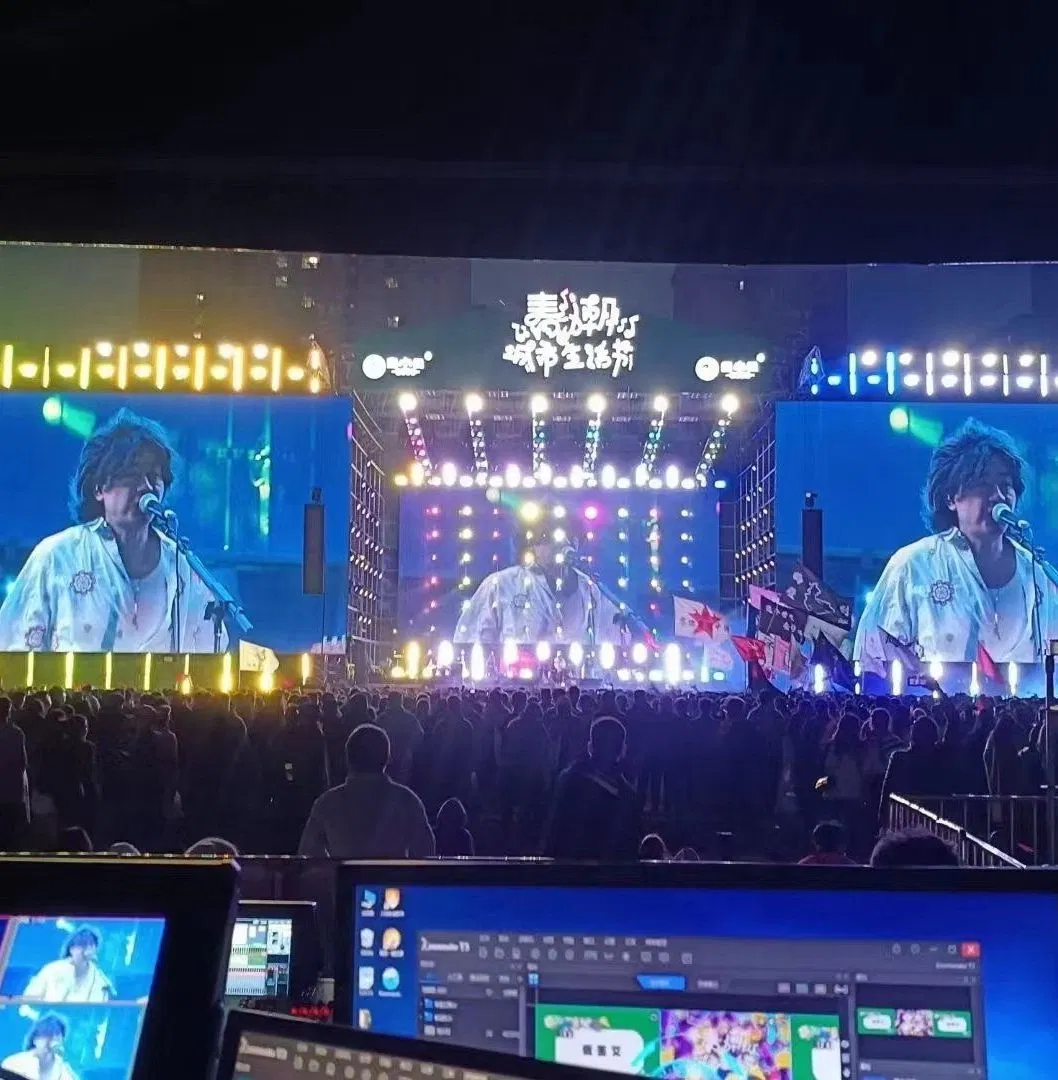

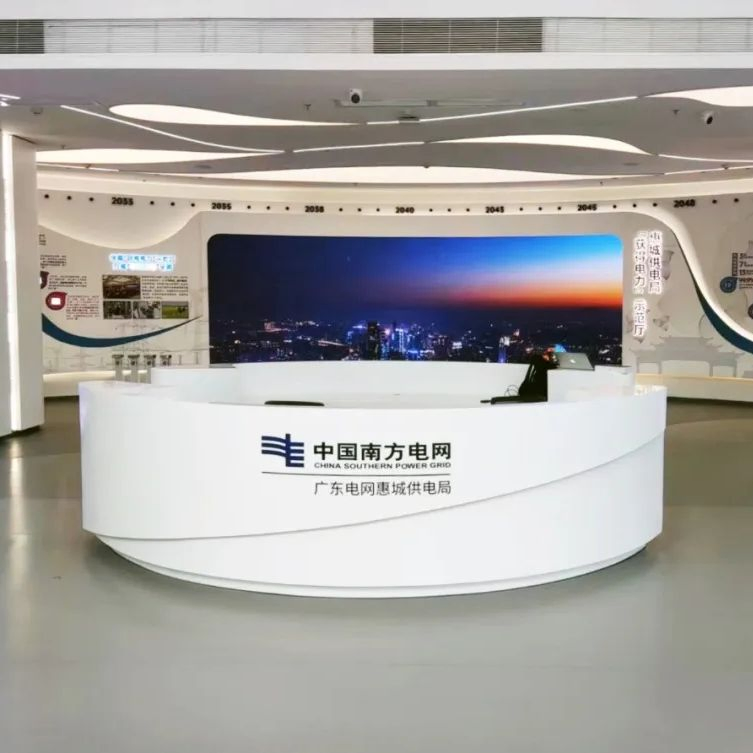

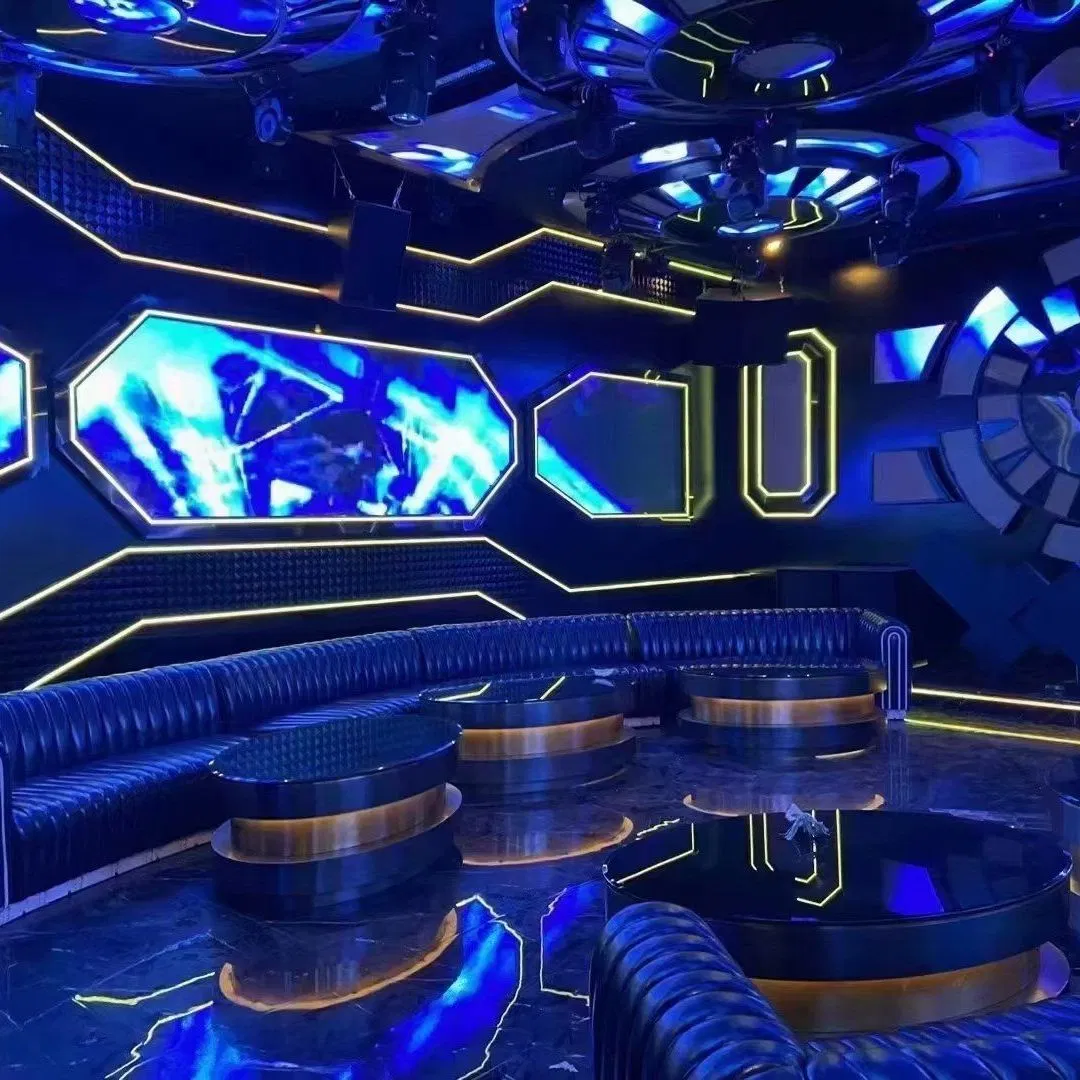

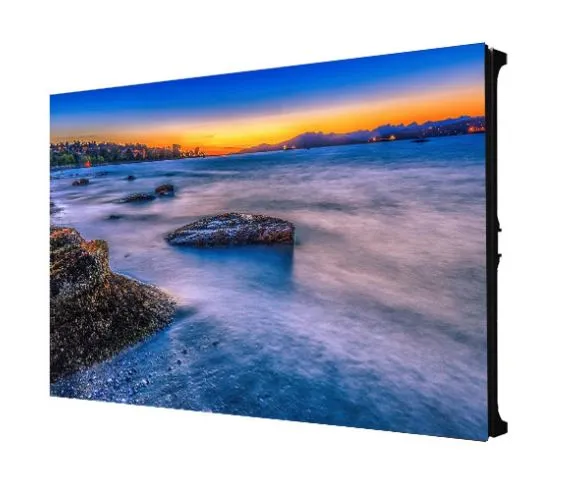

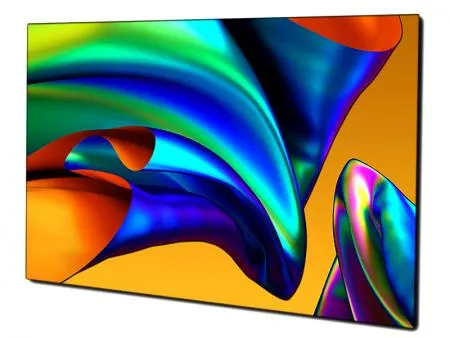

Product Display

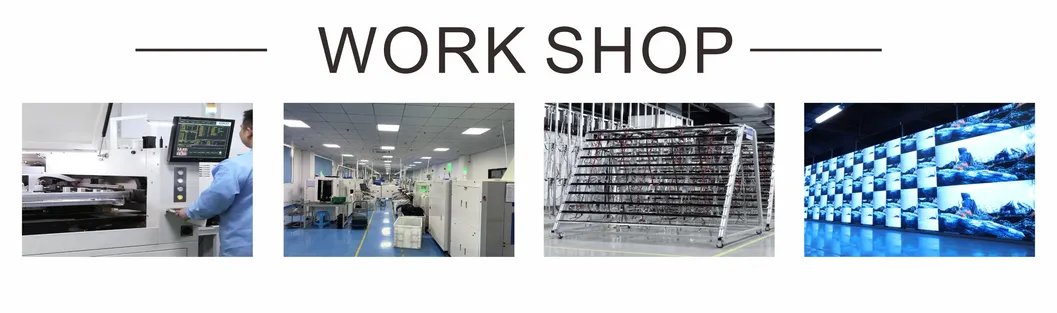

Production Environment

FAQ

Q: What kind of LED display do you offer? A: Our range includes indoor and outdoor full-color LED displays, rental displays, advertising screens, stage displays, sports displays, and customized irregular-shape displays.

Q: How to proceed with an order for an LED display? A: First, share your requirements or application. Second, we provide a quote. Third, once the design is confirmed and deposit is placed, we move to formal production. Finally, we arrange delivery.

Q: What are the benefits of the 16:9 unit aspect ratio? A: The 16:9 ratio is the standard for high-definition video. It allows for seamless point-to-point splicing to reach 720P, 1080P, 4K, and 8K resolutions without image distortion.

Q: Is the display difficult to maintain? A: Not at all. This product features a pure front maintenance design, and the three-in-one integrated card system makes component replacement quick and easy.

Q: Does the display generate much noise? A: No, the unit utilizes a fanless design combined with cast aluminum technology for heat dissipation, ensuring completely silent operation.

Q: How thick is the LED panel? A: It is an ultra-thin design with the thickest part being only 27mm, making it ideal for sleek, professional installations.
