Indoor LED display models are categorized by the distance between LED points. A P2 model features a 2mm center distance, catering to high clarity and various application requirements. Available models include: P1.25, P1.53, P1.86, P1.95, P2, P2.5, P2.604, P2.976, P3, P3.91, P4, P4.81.
For optimal visual quality, consider the screen size and viewing distance. Finer point spacing ensures superior resolution. For example, a P2 model delivers higher definition than a P3, offering unmatched clarity and performance.
| Area of LED Screen | Recommended Model |
|---|---|
| ≤5 m² | P0.9 / P1.25 |
| 5-10 m² | P0.9 / P1.25 / P1.53 / P1.86 / P2 |
| 20-50 m² | P0.9 / P1.25 to P3 |
| ≥40 m² | P0.9 to P4 |
| Product name | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P4 |
|---|---|---|---|---|---|---|
| Pitch Size | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm | 4mm |
| Module Pixel | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 80*40 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920/3840Hz | 1920/3840Hz |
| Scan Mode | 1/64 | 1/8 | 1/32 | 1/16 | 1/32 | 1/20 |
| Life Time | ≥100,000 hours | |||||
| View Angle | 160/160 degree | |||||

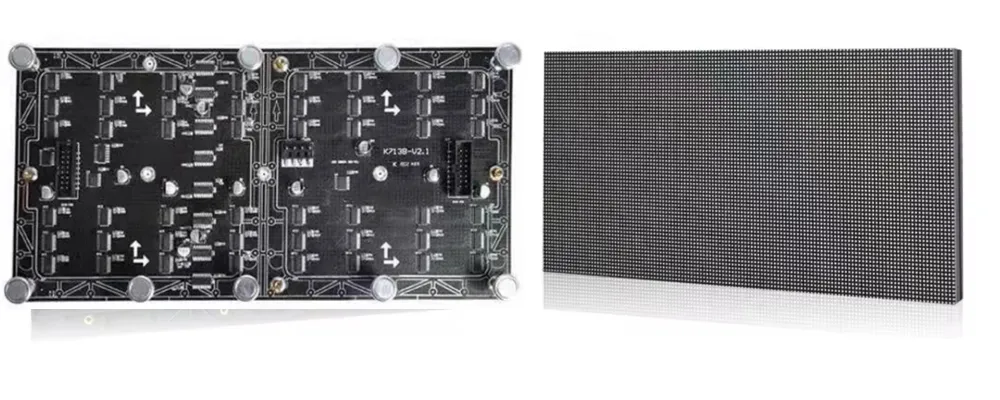

LED MODULE: Standard dimensions of 320*160mm with high-quality SMD options.

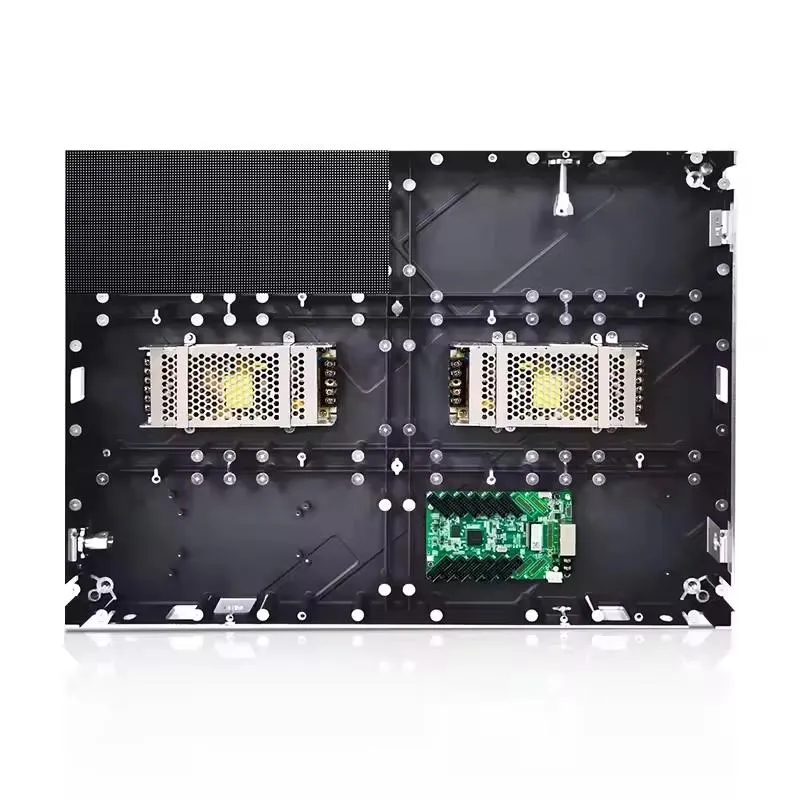

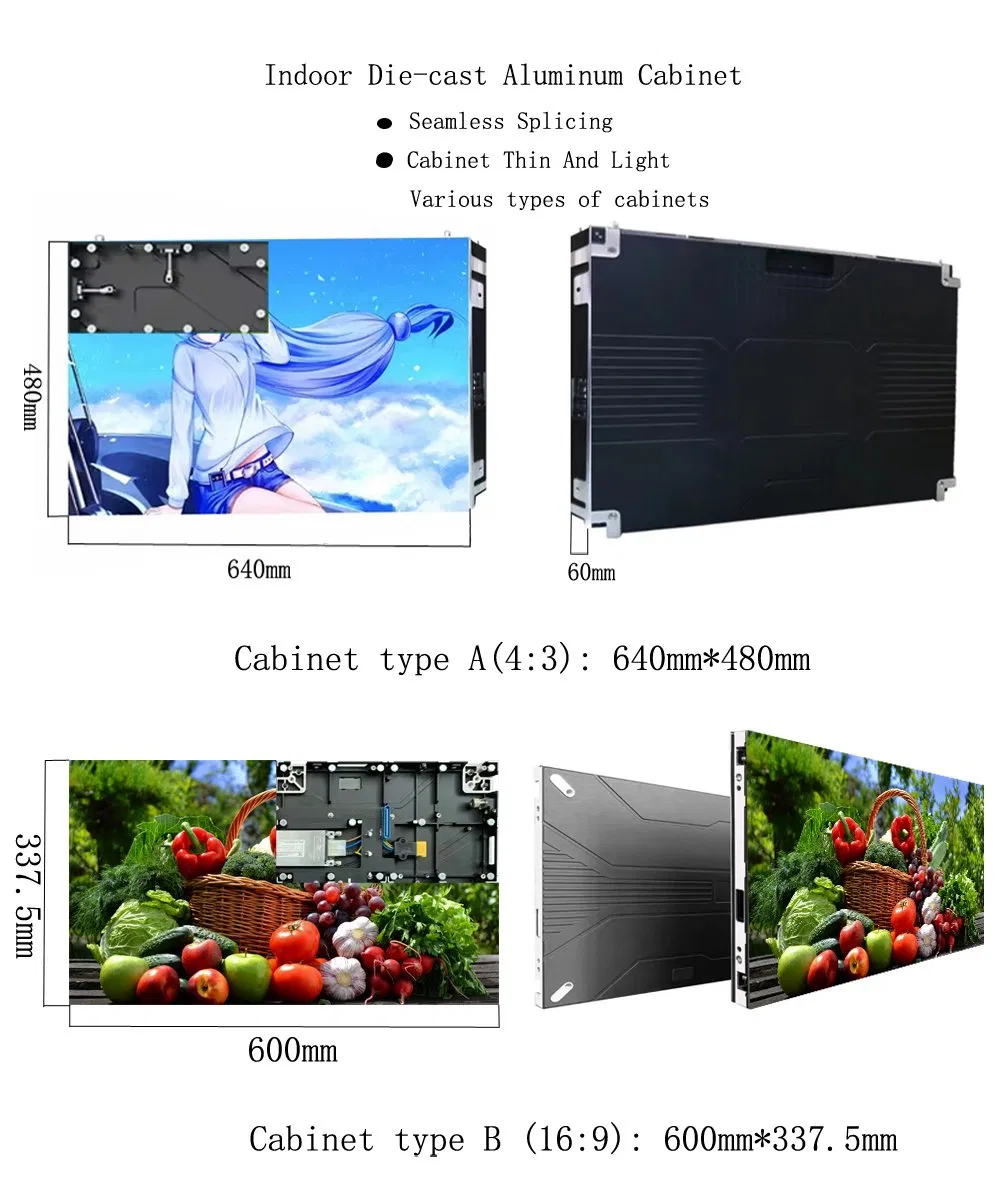

CABINET: Die-casting cabinets sized at 640mm*480mm (4:3) or 600mm*337.5mm (16:9), optimized for fixed installation.

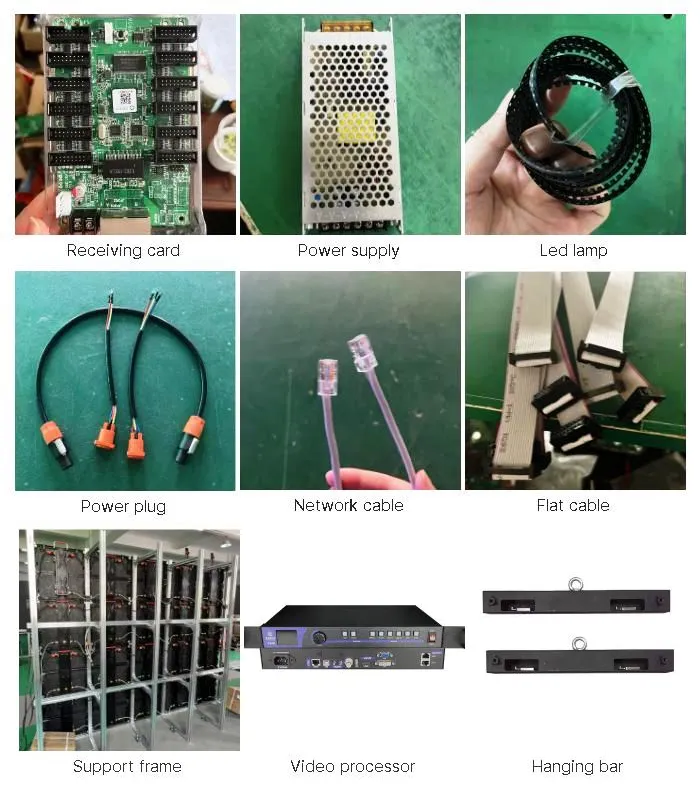

INTERNAL STRUCTURE: Comprehensive equipment and high-precision accessories.

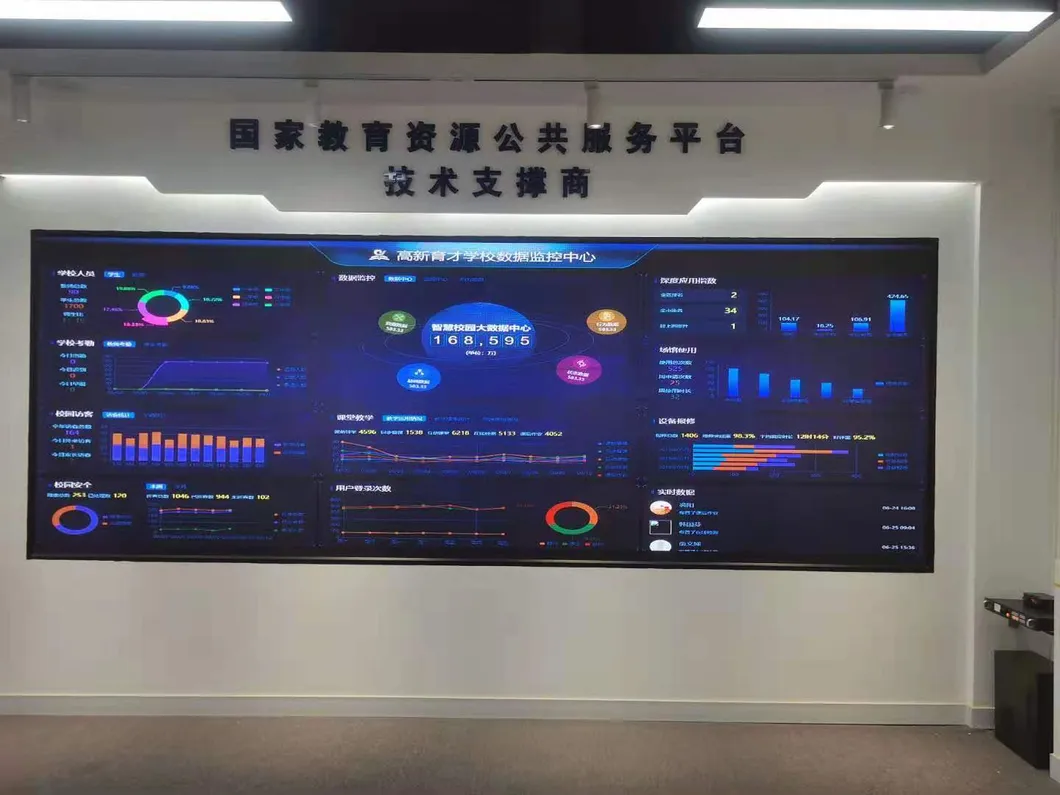

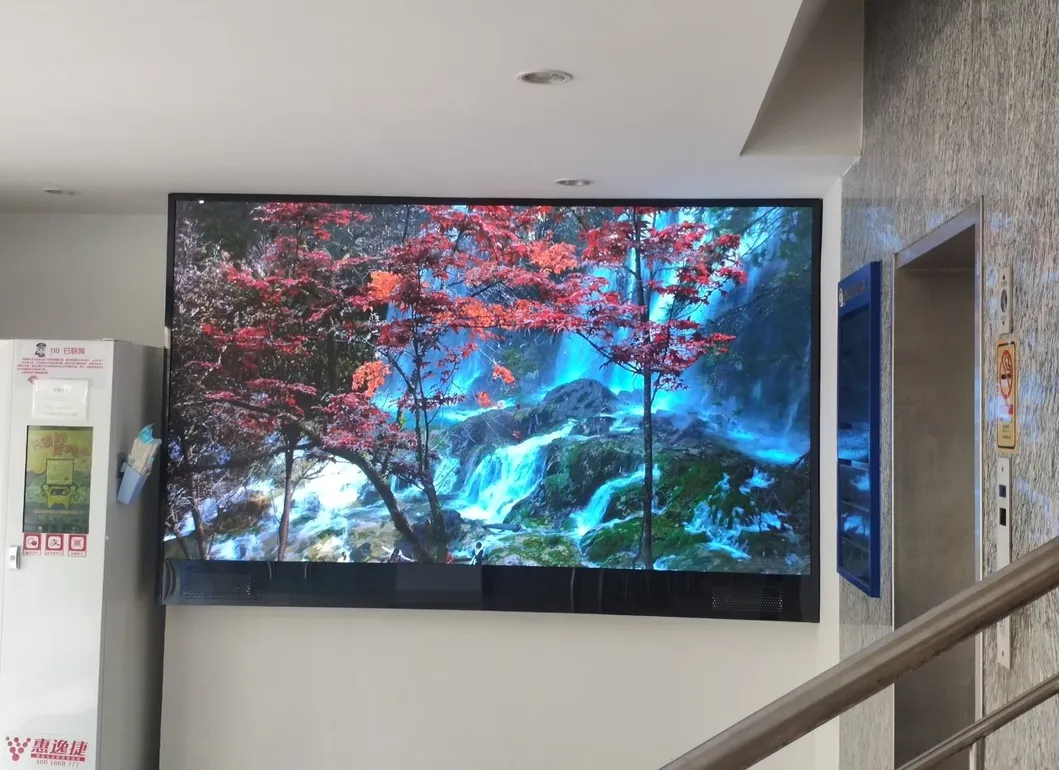

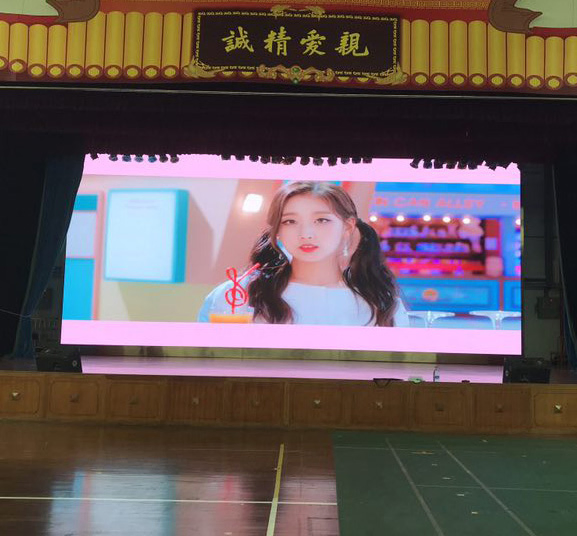

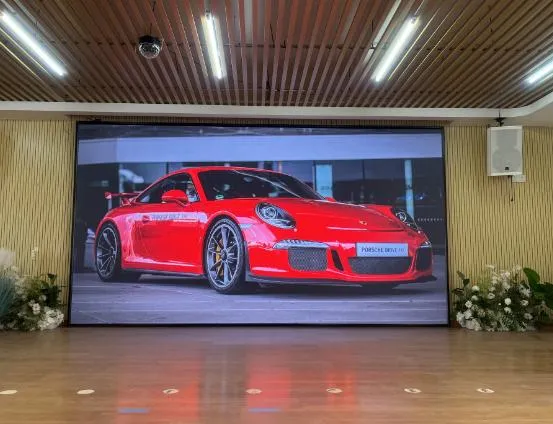

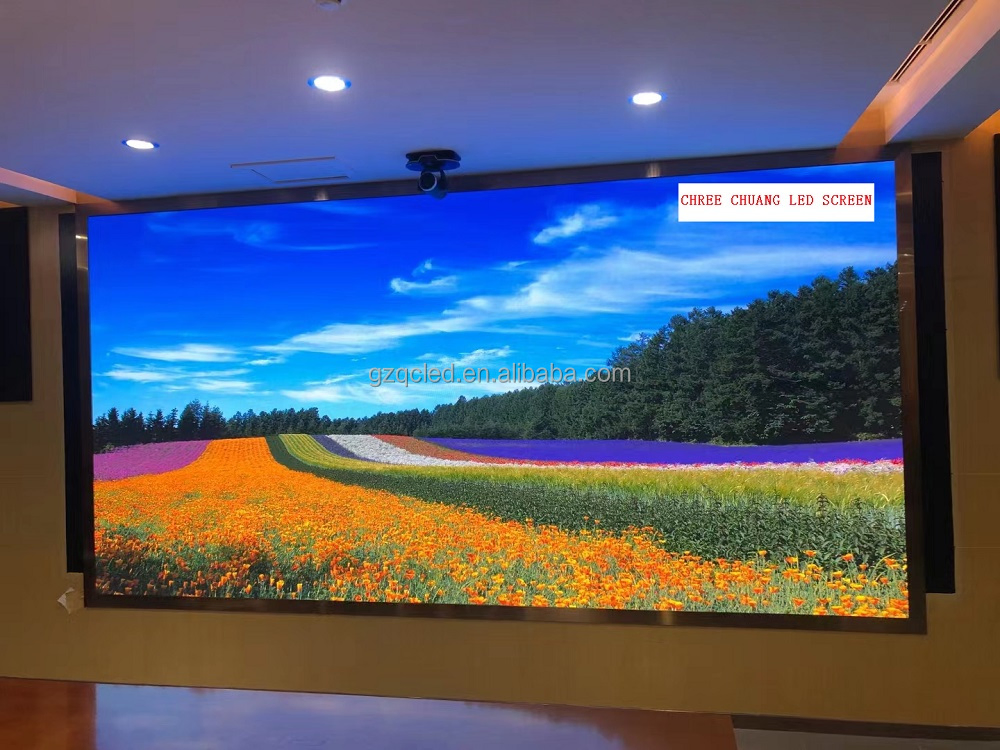

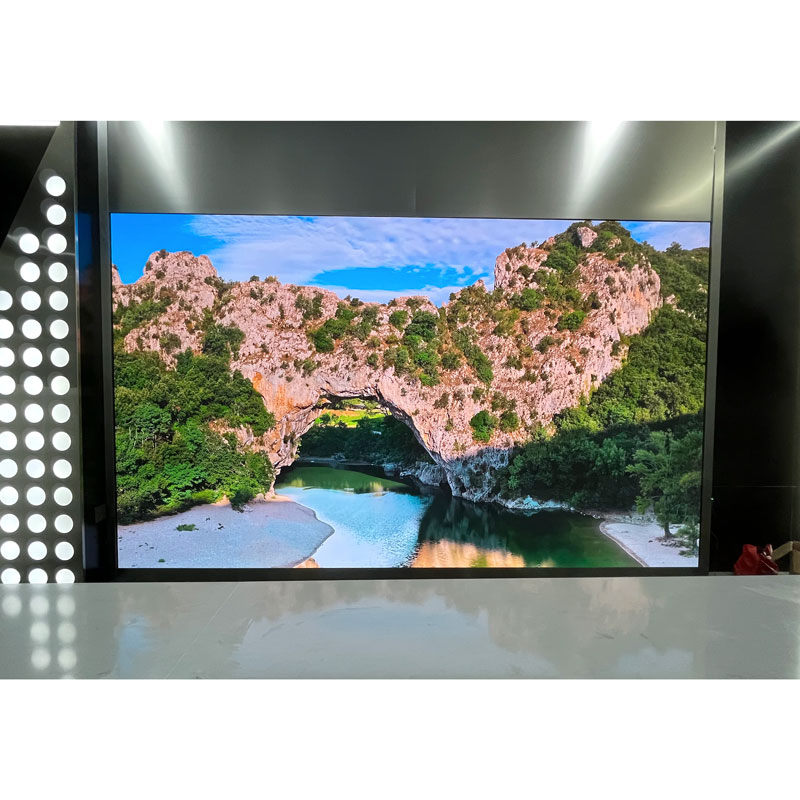

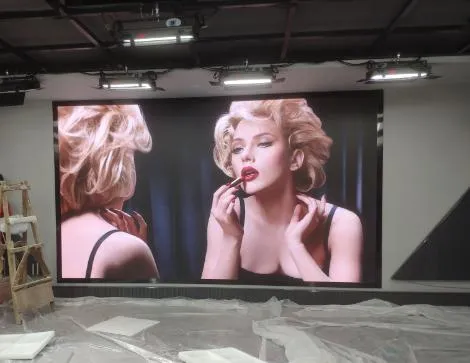

Our displays elevate efficiency in Control Rooms, transform Public Areas into hubs of engagement, and provide captivating clarity for Live Broadcast Rooms. They are also ideal for Libraries, Hotels, and Meeting Rooms.
Established in 2005, our company is a leader in the LED display industry. We integrate research, development, production, marketing, and after-sales service. Our products are synonymous with high resolution, longevity, and energy efficiency, serving customers in over 100 countries including the USA, Germany, France, and the UAE.
All products are packed in secure wooden cases to ensure safe transit. We offer 100% factory prices and strict quality control to guarantee every product is qualified before dispatch.
A: The "P" stands for Pixel Pitch. P2 means 2mm, P3 means 3mm, etc. It determines the resolution; a smaller pixel pitch means a higher resolution.
A: It is mainly determined by the viewing distance, the total size of the screen, the desired visual effect, and your budget.
A: Please provide the required width and height, main application (use case), viewing distance, and any special installation requirements.
A: Yes, we provide detailed steel structure drawings, wiring diagrams, and remote debugging. If needed, engineers can be sent to guide the installation on-site.
A: For orders less than 50 square meters, the lead time is approximately 15 working days.
A: We offer a long-term warranty of 3-5 years, covering quality-related issues during this period.
