Giant 3D Outdoor Advertising LED Screen for Landmark Building

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info.

Model NO.O25
Pixel Pitch2.5mm
Pixel Configuration1R, 1G, 1B
Display FunctionVideo/Image/Text
Avg Consumption600W / m²
Pixel Density160000DOT/Sqm
Scanning Mode1/16 Scan
ApplicationAdvertising
Module Size320*160mm
Refresh Rate3840/7680Hz
Brightness4500CD/Sqm
Waterproof GradeIP65

Product Description

Outdoor LED Module Features:
1. Unique mask design, dark black color, high contrast.
2. Standard module size of 320*160mm.
3. Symmetrical, uniform, sturdy and flat construction.
4. Utilizes SMD1415 lamps for excellent heat dissipation and weather resistance.
5. Constant current drive with 1/16S scanning for stability.
6. High brightness exceeding 4500 cd/sqm with superior angle consistency.
Outdoor LED Display
Giant 3D Advertising Screen
Waterproof Cabinet Design:
1. 960 * 960mm standard iron cabinets, compatible with all 320 * 160mm modules.
2. Unified installation holes, waterproof gaskets, and standard screw specifications.
3. Professional IP65 waterproof rating for outdoor durability.
LED Cabinet Front
LED Cabinet Back
Application System Diagram
Application System Diagram

Application Scenarios

  • • Shopping Malls
  • • Outdoor Landmark Buildings (3D Display)
  • • Schools & Educational Institutions
  • • Sports Stadiums
  • • Corporate Office Buildings
  • • Highway Advertising Billboards
Application Scenario

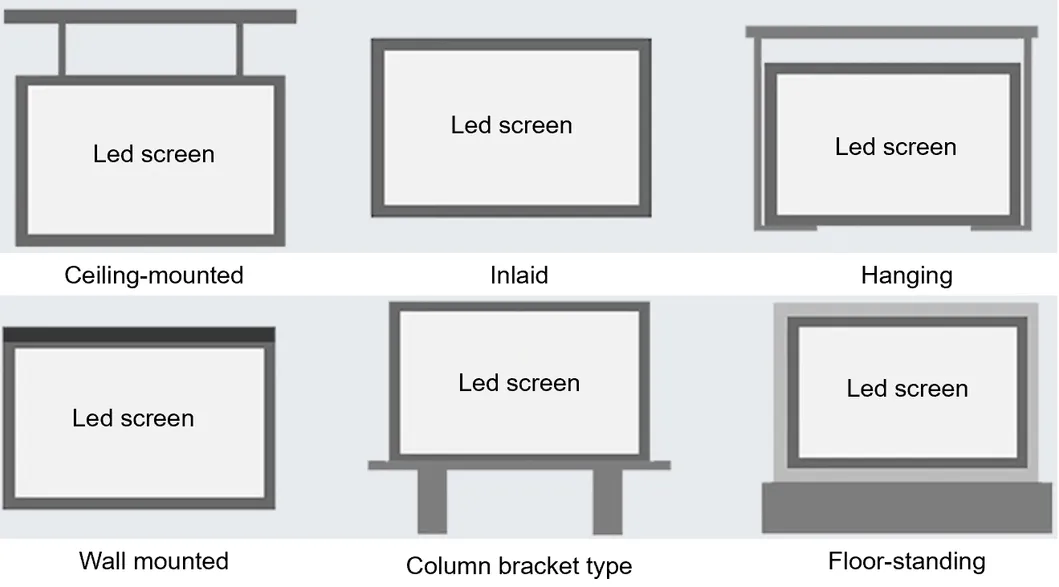

Installation Instructions

Installation Instructions

Product Parameters

Item P2.5 P4 P5 P6 P8 P10
Pixel Pitch 2.5mm 4mm 5mm 6mm 8mm 10mm
Pixel Density (dot/sqm) 160,000 62,500 40,000 27,777 15,625 10,000
Pixel Configuration SMD1415 SMD1921 SMD2828 SMD3535 SMD3535 SMD3535
Brightness (cd/sqm) ≥4500 ≥4500 ≥4500 ≥4500 ≥4500 ≥4500
Refresh Rate (Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Drive Mode 1/16 Scan 1/10 Scan 1/8 Scan 1/8 Scan 1/4 Scan 1/4 Scan
Viewing Angle (H/V) 170°/120° 160°/140° 140°/140° 140°/120° 140°/120° 140°/120°

Packaging & Shipping

Packaging Box
Shipping Logistics

Company Profile

The company was originally engaged in the production of performance stage trusses, covering design, production, and leasing. Since 2008, the company expanded into the LED display field, focusing on LED chip packaging, module production, aging testing, and full-screen installation. We have developed into experts in performing arts technology and full-scene solutions, providing intelligent equipment integration for global stages, cultural venues, and commercial spaces.

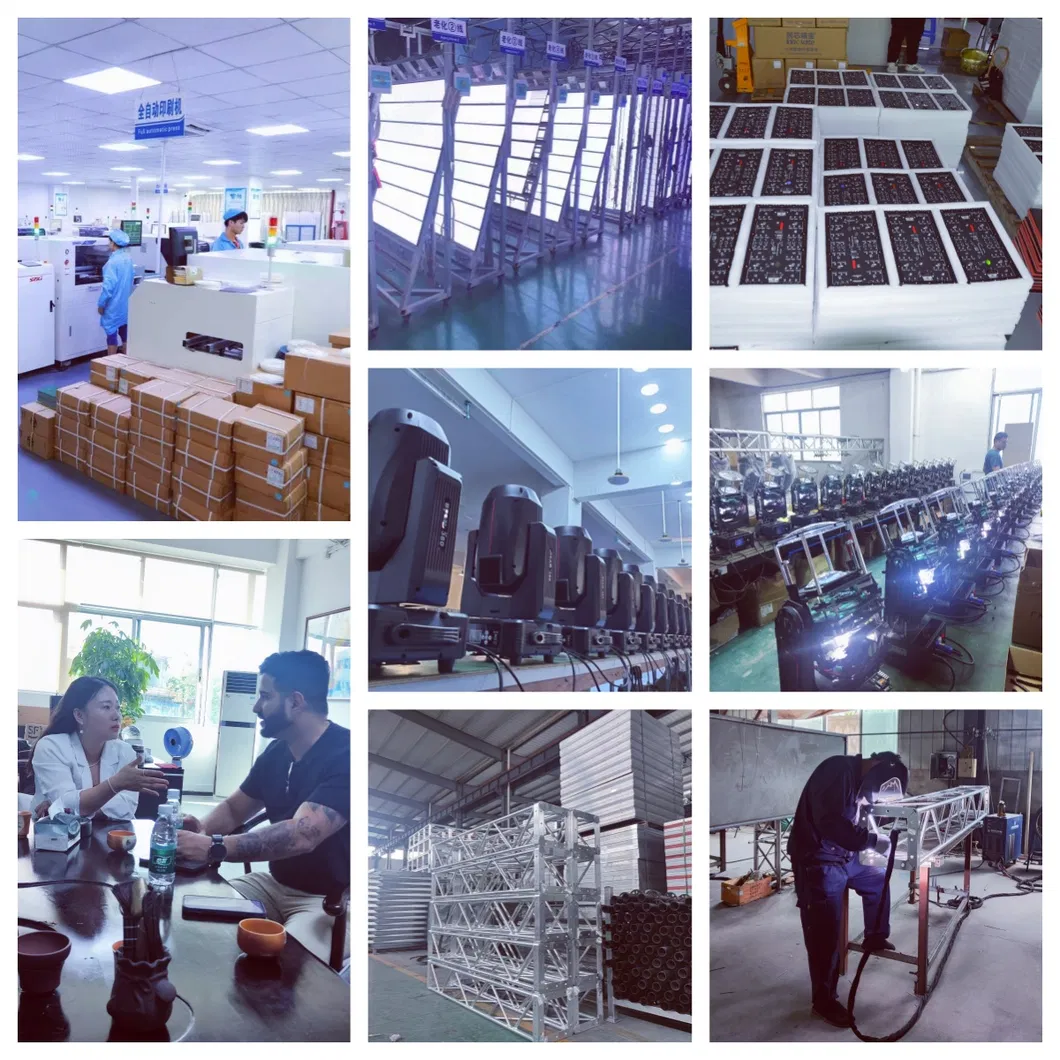

Factory Profile

Our Advantages

1
One-stop solution: Custom solutions provided according to specific customer needs.
2
Complete supply chain: Covering materials, modules, standard, and customized products.
3
Customer-centric: Value-oriented service aimed at solving problems rather than just selling.
4
Refined service system: Excellent stages of packaging, transportation, and follow-ups.
5
Global layout: Markets in North America, South America, and Europe, serving 1,000+ customers.
Company Advantages

Frequently Asked Questions

Q1: What is your minimum order quantity?
A1: We accept orders of any quantity. Prices for large quantities are negotiable.
Q2: What is the lifespan of an LED display?
A2: LED displays typically have a lifespan of 100,000 hours, depending on usage conditions and component quality.
Q3: When will you deliver the product?
A3: Based on order size and quantity, finished screens are usually delivered within 10-20 days.
Q4: How long is the warranty period?
A4: Our standard warranty is 2 years. This can be extended based on specific requirements.
Q5: Do you provide free installation design?
A5: Yes, we provide free design drawings tailored to your screen installation site environment.
Q6: How is after-sales service guaranteed?
A6: We assign a professional technical team to provide remote guidance, debugging, and problem-solving. On-site technical services are available upon request.
