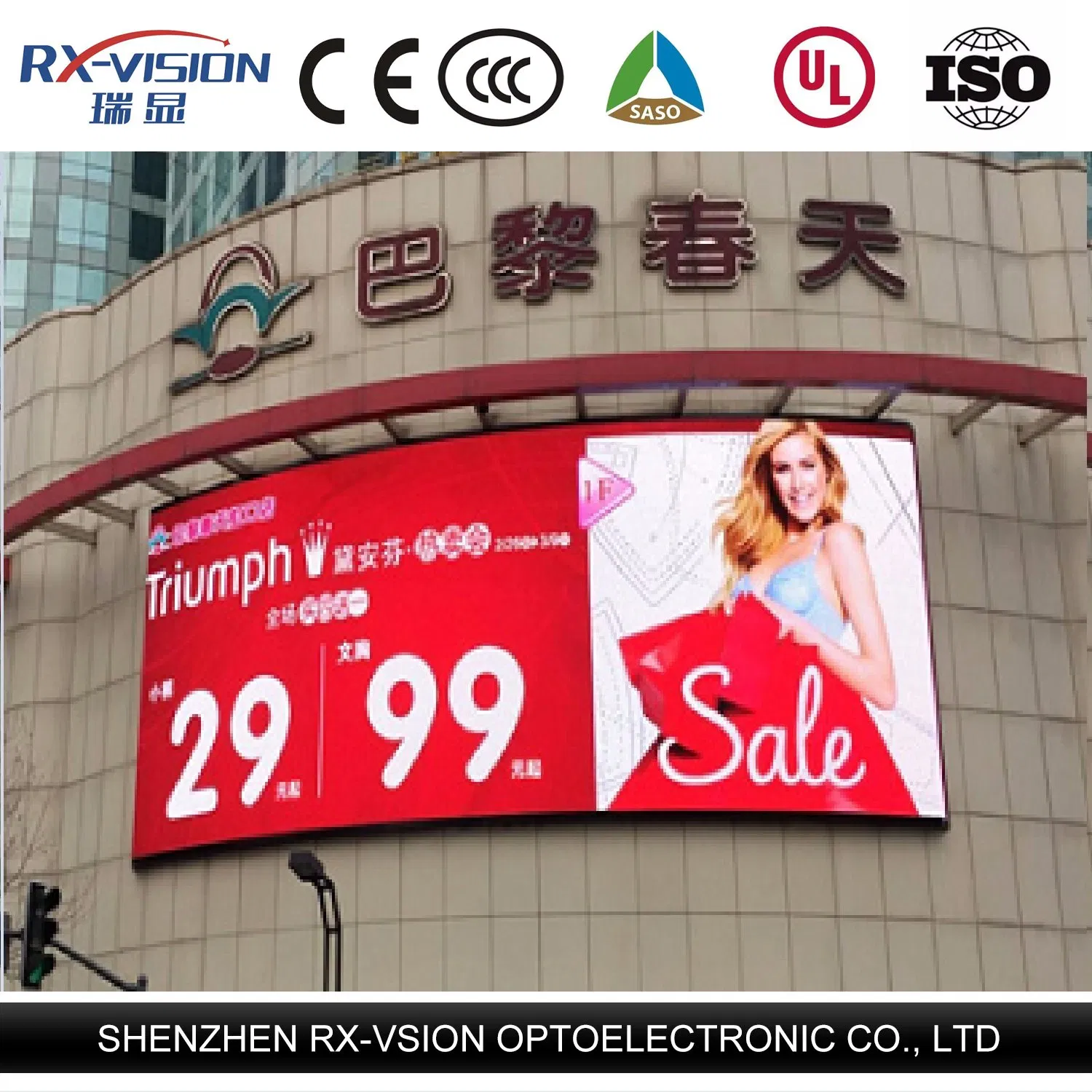

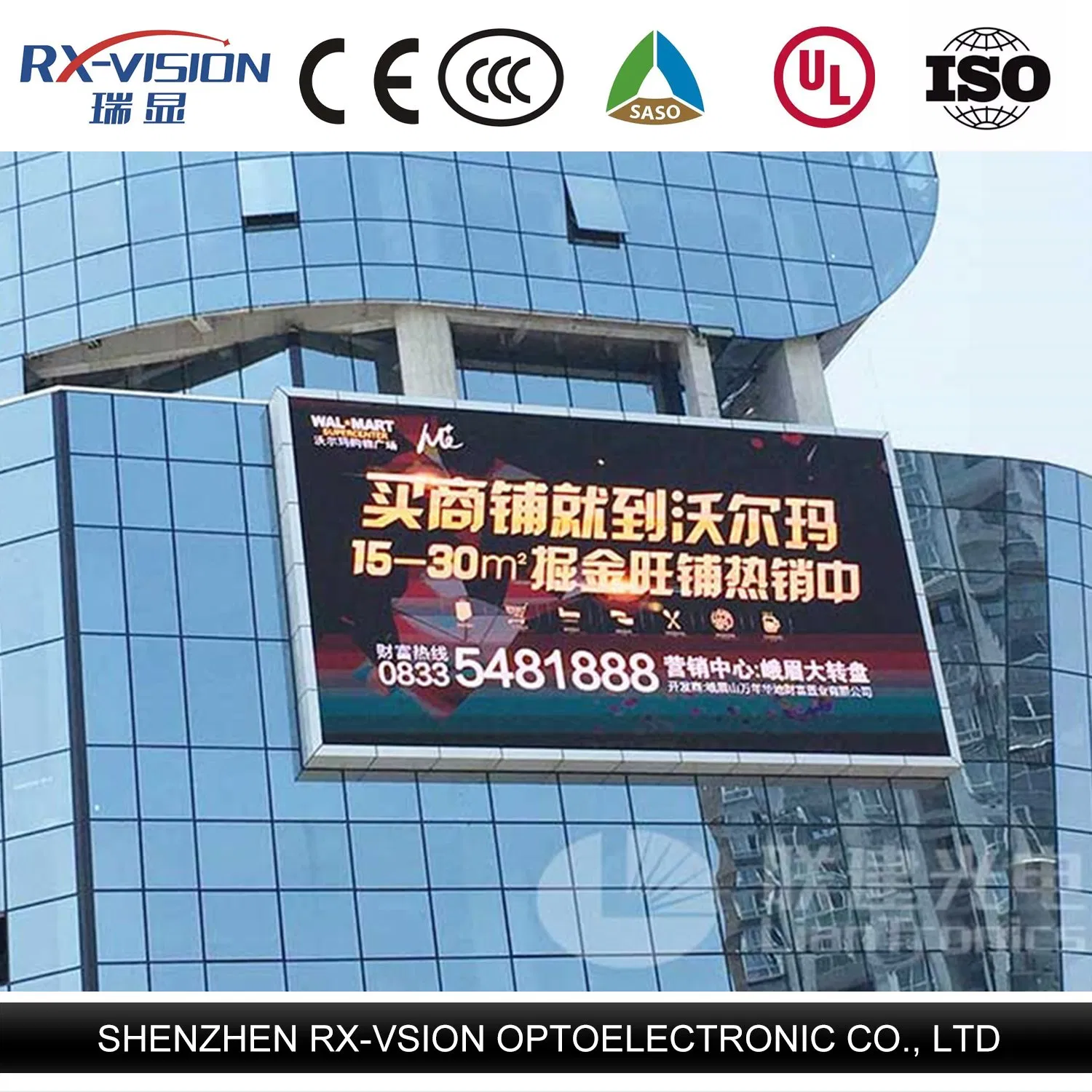

Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
1 / 5
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation
Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation

Full Color Outdoor LED Display Screen P6 P8 P10 P16 SMD Advertising Billboard for Fixed Installation

Customization: Available
Tube Chip Color: Full Color
IP Rating: IP65
Send Inquiry

Product Description

⚙️

Basic Info

Model NO.
Outdoor P8
Pixel Pitch
8mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video, Image & Text
Average Power
600W / m²
Pixel Density
15,552 dots/Sqm
Scanning Mode
1/4 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC, ETL
Brightness
6000-6500CD
LED Lamp
Nationstar LED
IC
Mbi5124IC
PCB
1.6mm PCB
Cabinet Weight
38kg
Cabinet Thickness
110mm
📦

Packaging & Delivery

Package Size
96.00cm * 96.00cm * 8.00cm
Package Gross Weight
15.000kg
Transport Package
Wooden Case
Production Capacity
10000 Square Meters
📊

Technical Parameters

NO. Product Name Technical Parameter
1Pixel Pitch(mm)8mm
2Pixel Configuration1R1G1B / SMD3535
3Pixel Density15,526 dots / Square meter
4Brightness≥6500 cd / Square meter
5Module Size (W*H)320mm × 160mm
6Cabinet Size (W*H)960mm × 960mm
7Viewing Angle (V/H)140º
8Grey Scale65536 degree
9Life Time>100,000 Hours (50%)
10Refresh Rate≥1920 HZ
11Operating Temperature-30 to 60 ºC
12Operating VoltageAC110V/220V±10%
🖼️

Cabinet Design

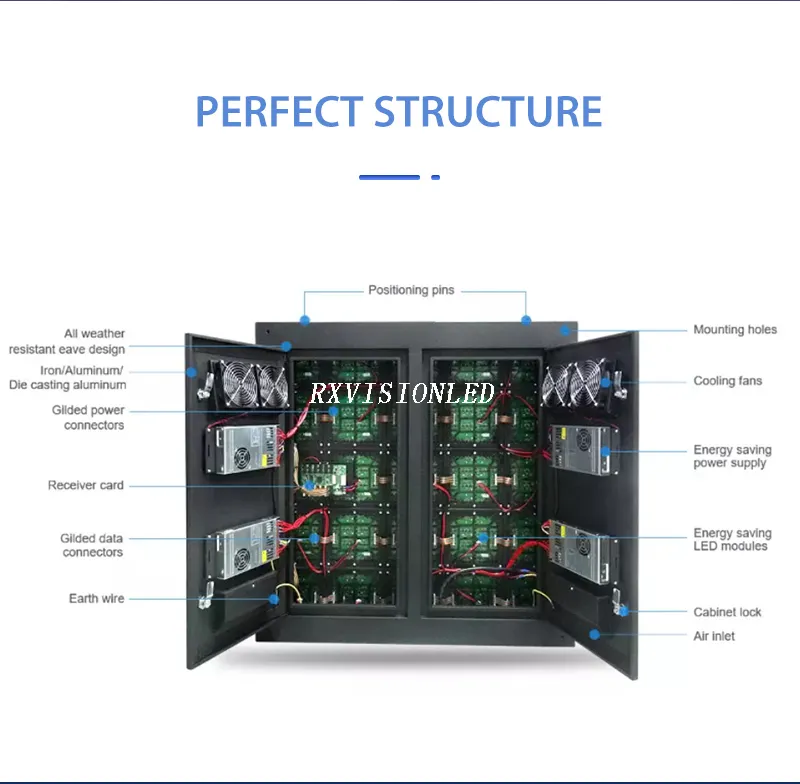

Cabinet Design 1
Cabinet Design 2

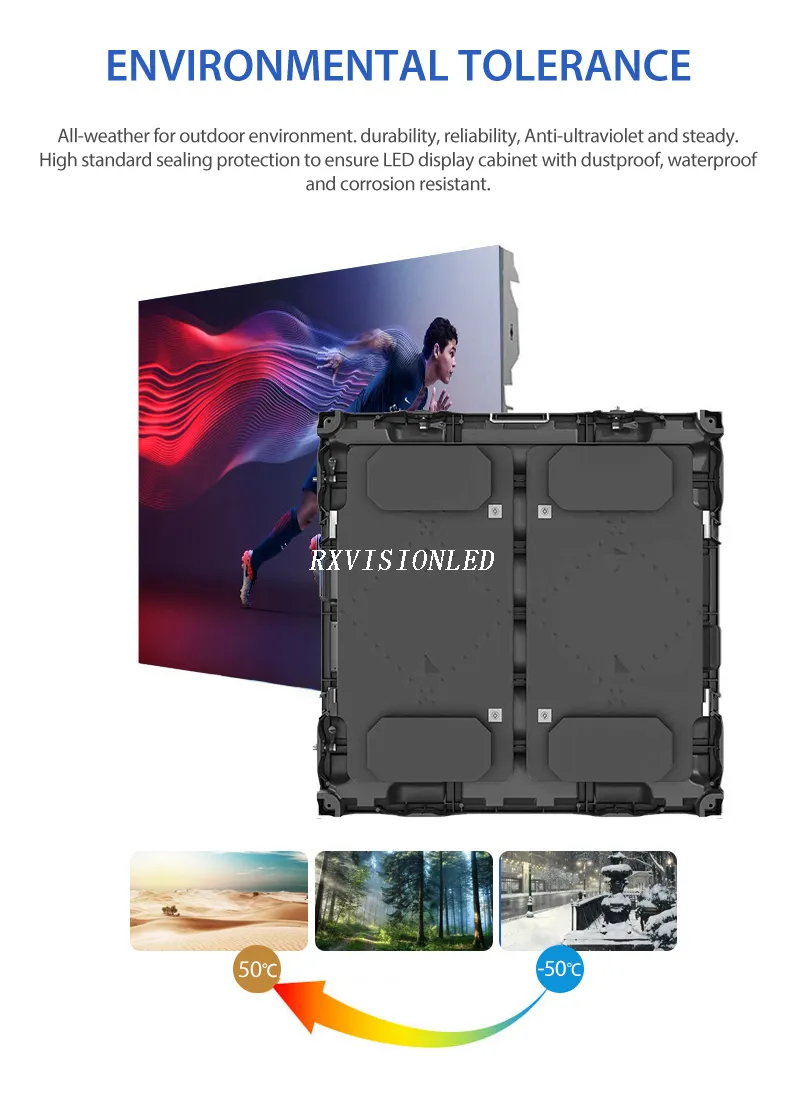

Cabinet Design 3
💡

Why Cooperate with Us

Advantage 1

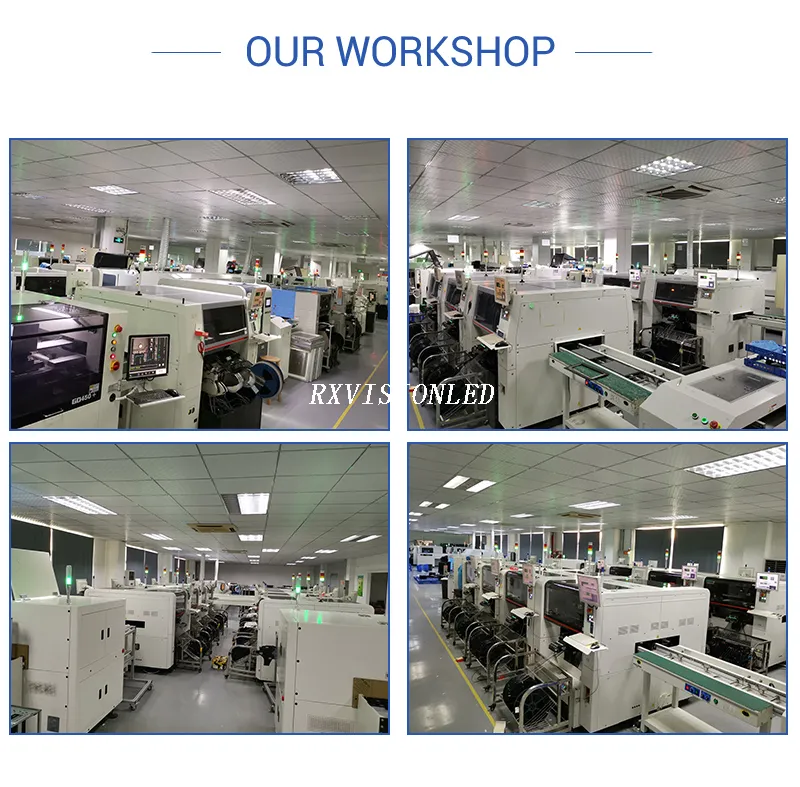

Advantage 2

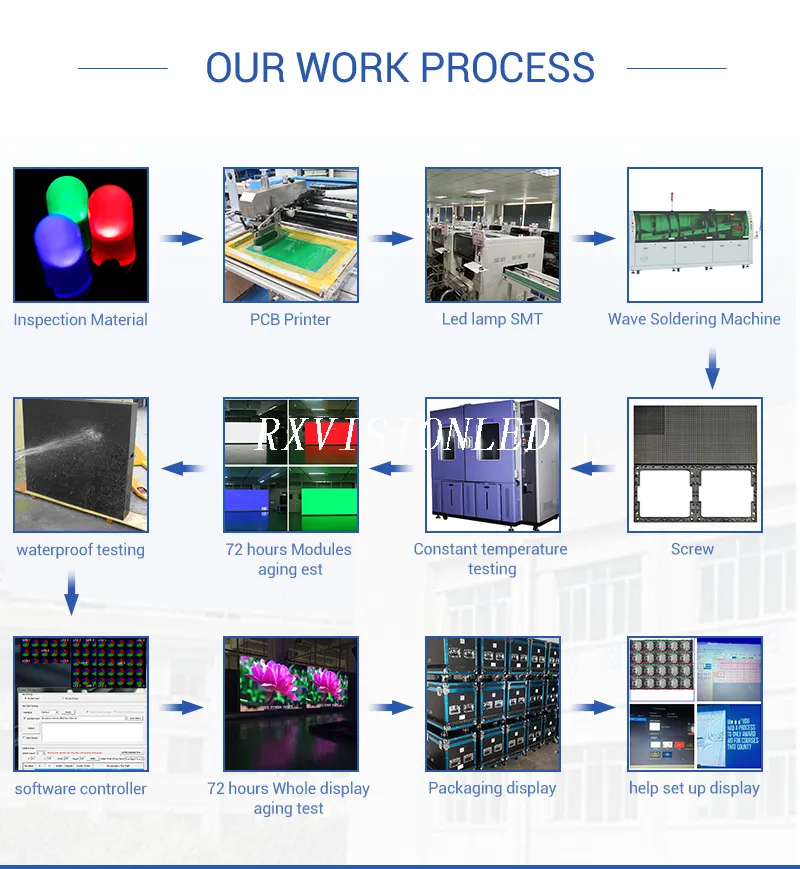

Advantage 3
🏗️

Our Project Cases

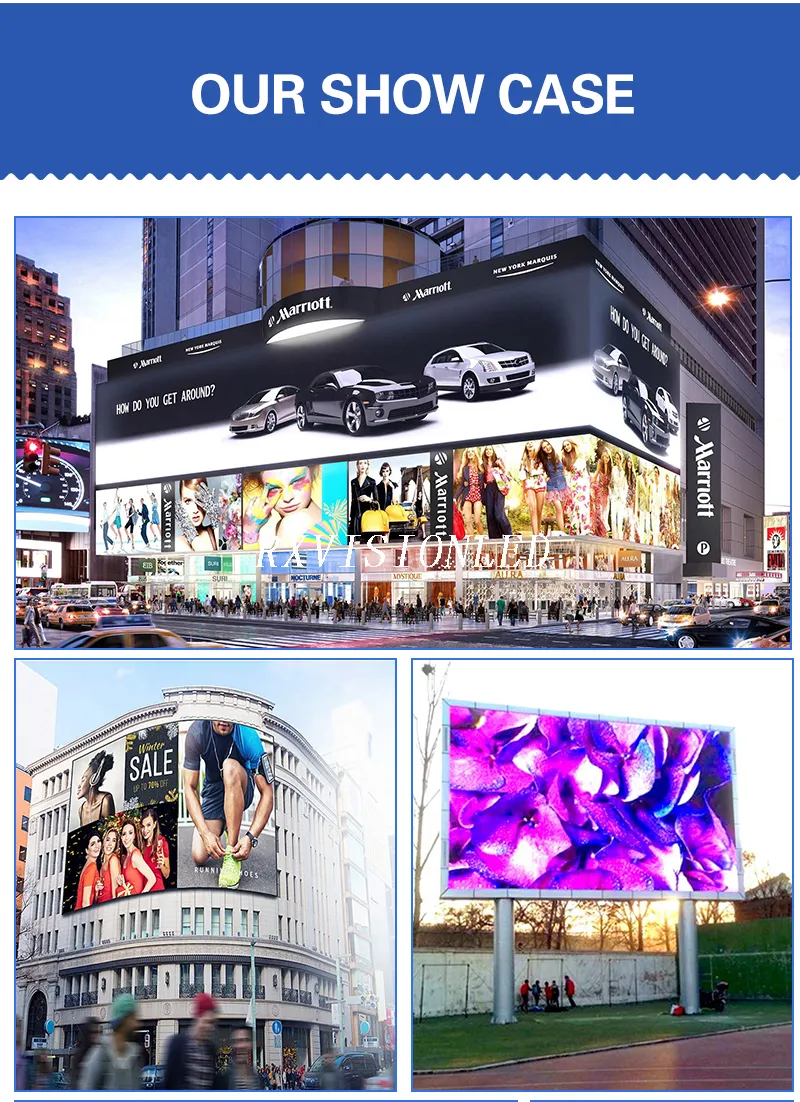

Project Case 1

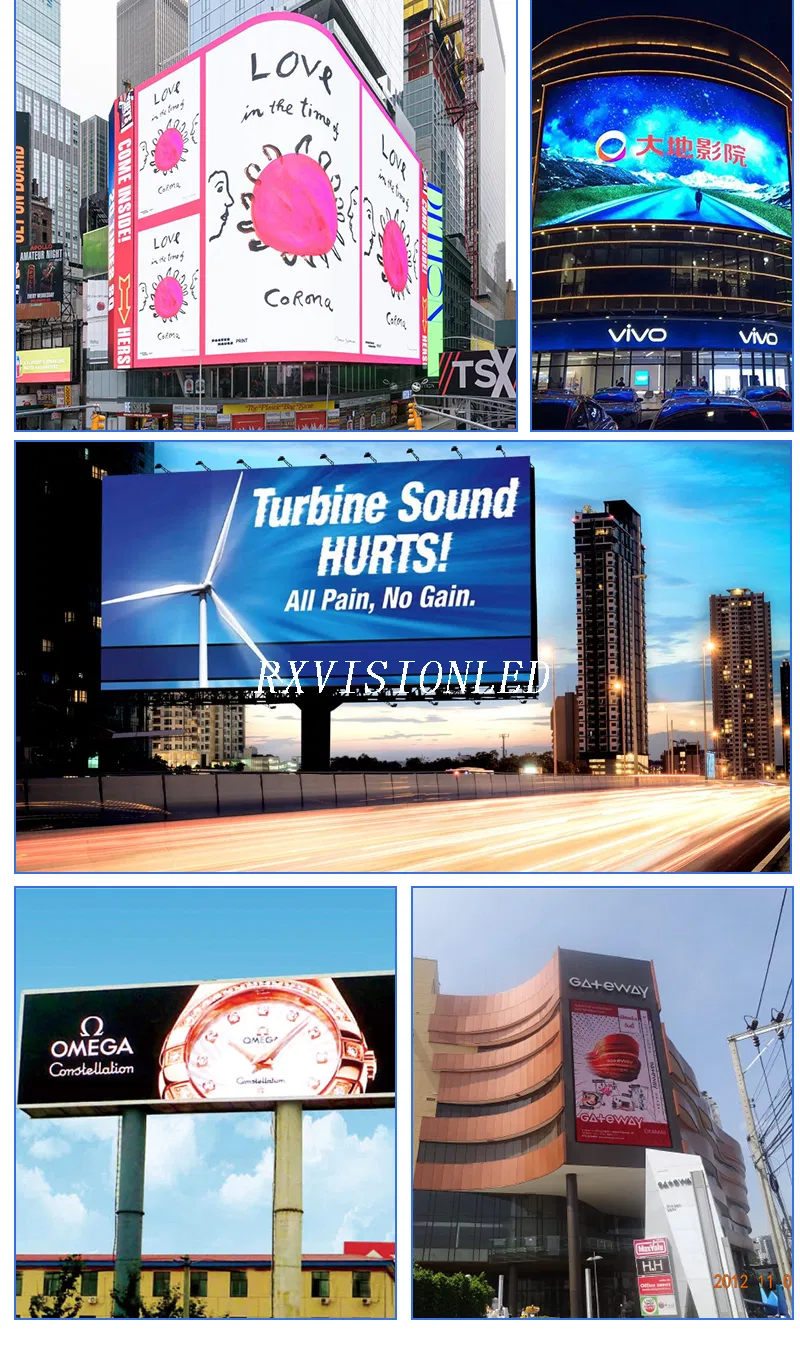

Project Case 2
📝

Terms & Service

📌 Payment Term:
30% T/T in advance and balance before delivery.
📌 Delivery Time:
Within 15-20 working days after 30% advance payment.
📌 Installation:
We will guide you to install the screen by remote control.
📌 After-Sales Service:
Response within 24 hours via email or call to offer effective solutions for any product questions.
❓

Frequently Asked Questions

What is the pixel pitch of this outdoor LED display?
The Outdoor P8 model features an 8mm pixel pitch, providing a balance of high resolution and cost-effectiveness for outdoor advertising.
Is the display bright enough for direct sunlight?
Yes, with a brightness level of ≥6500 cd/Sqm, it ensures clear visibility even under strong outdoor sunlight.
What are the main certifications for this product?
The display is fully certified with CE, RoHS, CCC, and ETL standards, ensuring safety and quality compliance.
How long is the expected lifespan of the LED screen?
The screen has a life time of over 100,000 hours (at 50% brightness) and an MTBF of over 50,000 hours.
What control systems do you support?
The display is compatible with major control systems including LINSN, Nova-star, and Colorlight.
How do you handle shipping and packaging?
We use professional wooden cases for transport to ensure the safety of the LED cabinets during delivery.
