LYRA LED
1 / 5

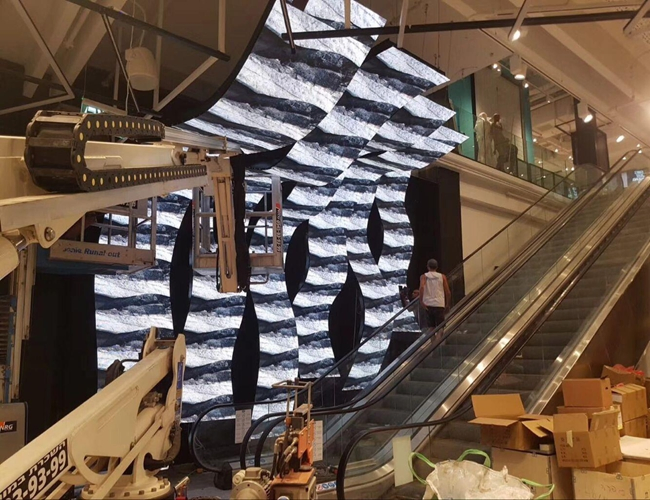

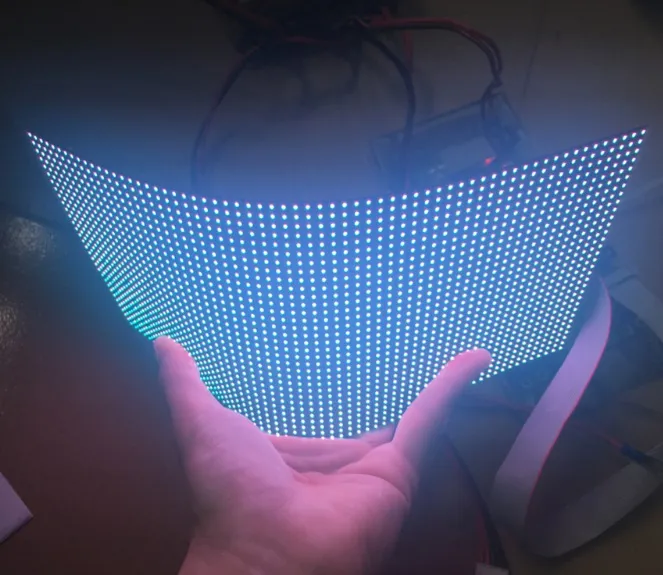

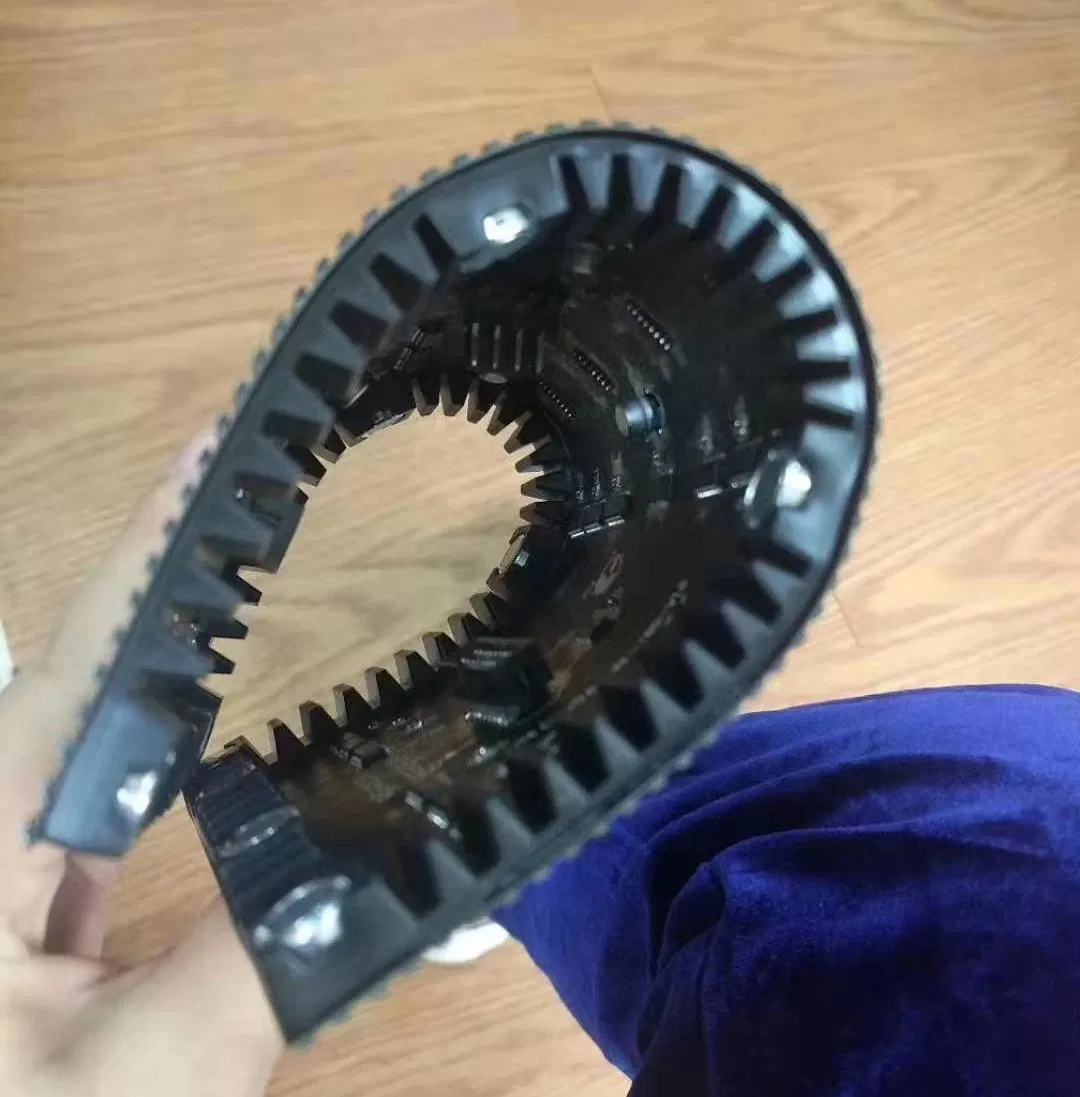

1. The P2 flexible LED module is an innovative design of high-end technology, which saves costs and is widely applicable to irregular shapes such as circles and columns. Ideal for artistic modeling, personalized stage design, exhibition halls, and indoor conference rooms.
2. Adopts modular and magnetic design for reliable stability and convenient front-desk maintenance. Features high grayscale and high refresh rates with no image delay or ghosting.
3. Ultra-thin product design that breaks through traditional heavy cabinets, suitable for any complex installation environment.

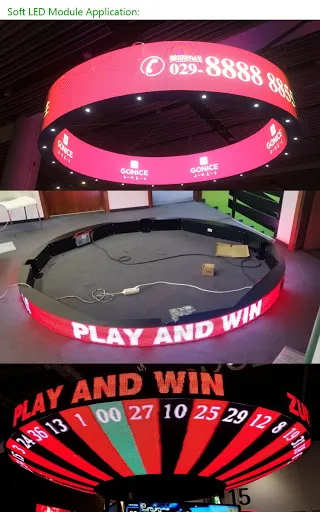

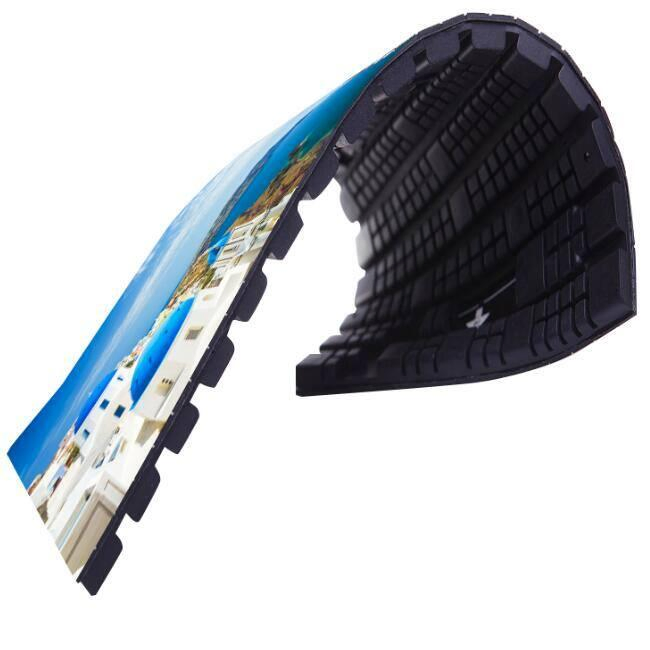

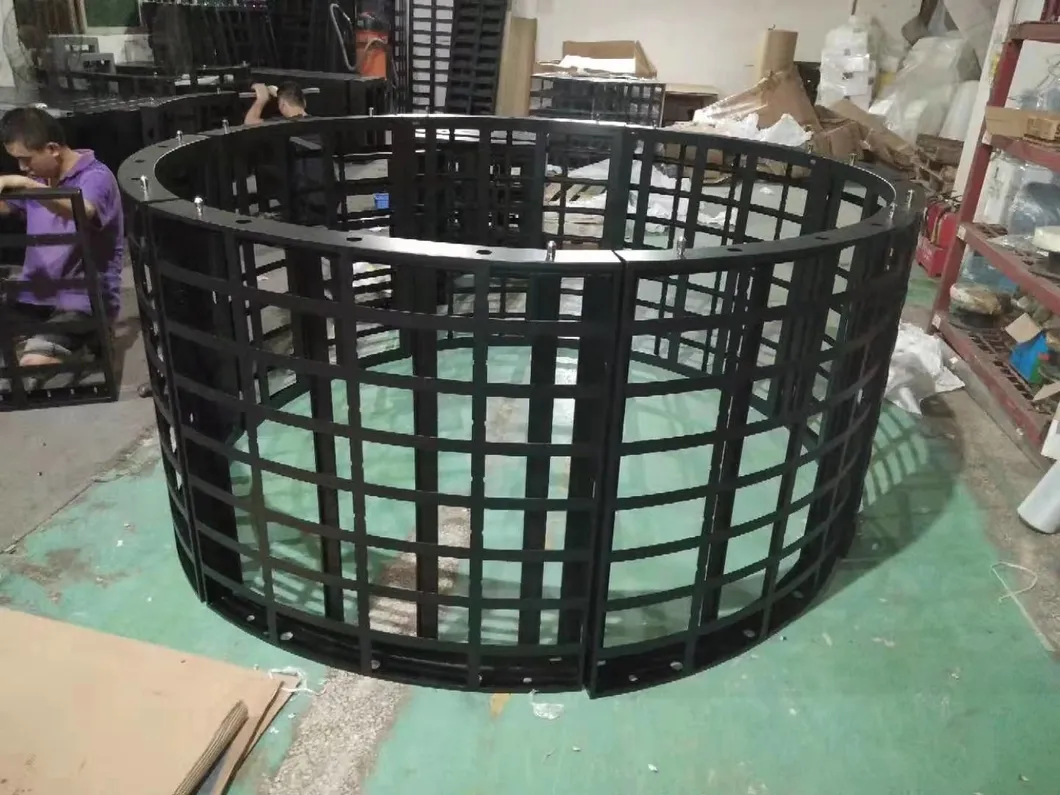

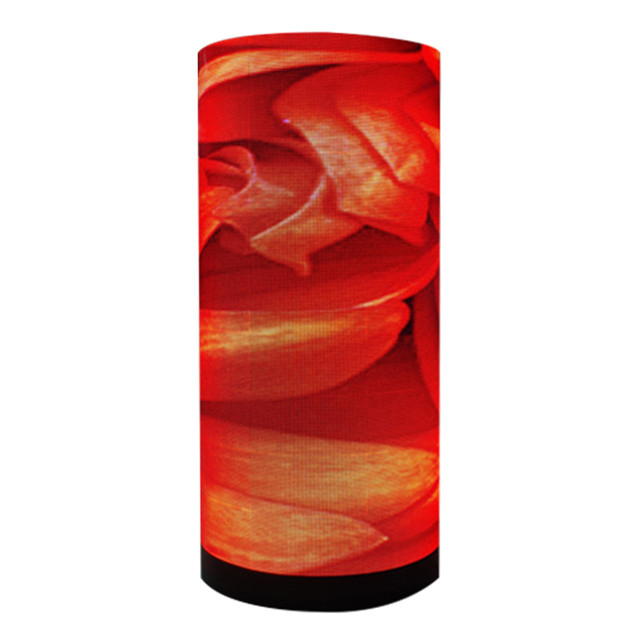

4. Unmatched flexibility allows bending in any way—create curved, cylindrical, or wavy 360° shapes for creative, customizable designs.
| Light Chip Parameters | |||
|---|---|---|---|
| Type | SMD1010 | Red | λd:(620-625nm) IV:(800-960mcd) |
| Color | 1R1G1B | Green | λd:(520-525nm) IV:(1350-1650mcd) |
| Brand | Epister | Blue | λd:(470-475nm) IV:(330-400mcd) |
| LED Display Performance | |||
|---|---|---|---|
| Pixel Density | 250000 Dots/m2 | Frame Frequency | ≥ 60 frame/sec |
| Cabinet Resolution | 240×240=57600 Dots | Input Voltage | AC110-220V±10% |
| Grey Scale | 16bit | Viewing Angle | H: 140°, V: 140° |
| Brightness | ≥1000 nits | Protection Level | IP43 |
| Max Consumption | 800 w/m2 | Working Temp | -30ºC~50ºC |
A: Yes, we welcome sample orders to test and check quality, for both individual LED modules or complete screens.
A: The lead time is approximately 7 to 10 working days depending on the order specifications.
A: We offer a low MOQ. Sample checking for 1 square meter or a single module is available.
A: We generally accept FOB terms. Shipping by sea usually takes 20-30 days, while air and express options are faster for urgent needs.
A: We offer a 2-year warranty on our products and lifelong maintenance support.
A: Our products are manufactured under a strict quality control system with a defective rate of less than 0.2%.
