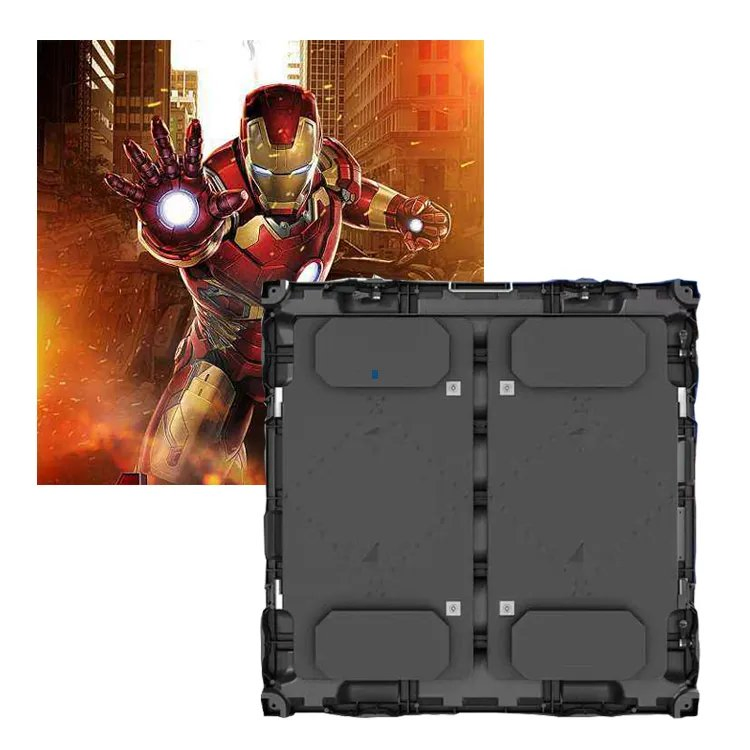

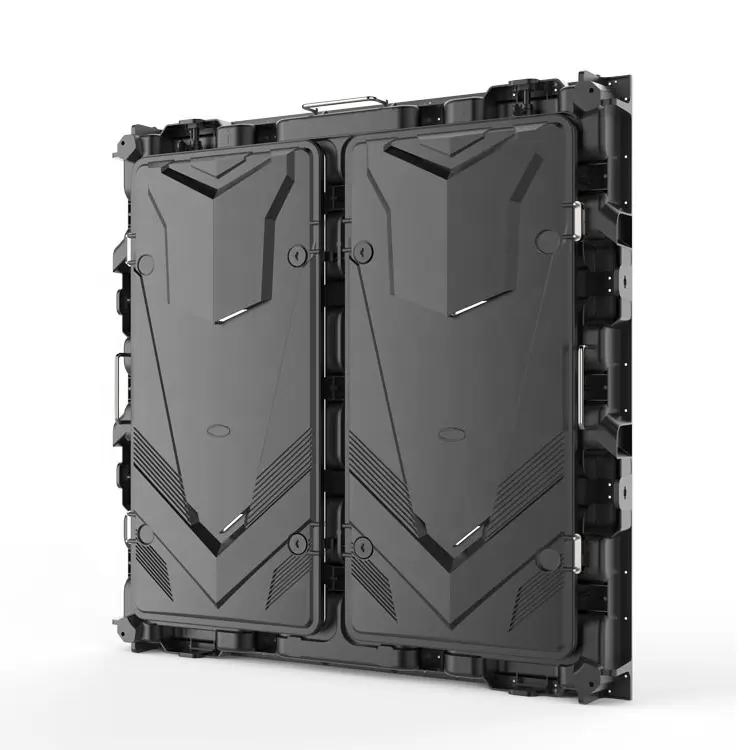

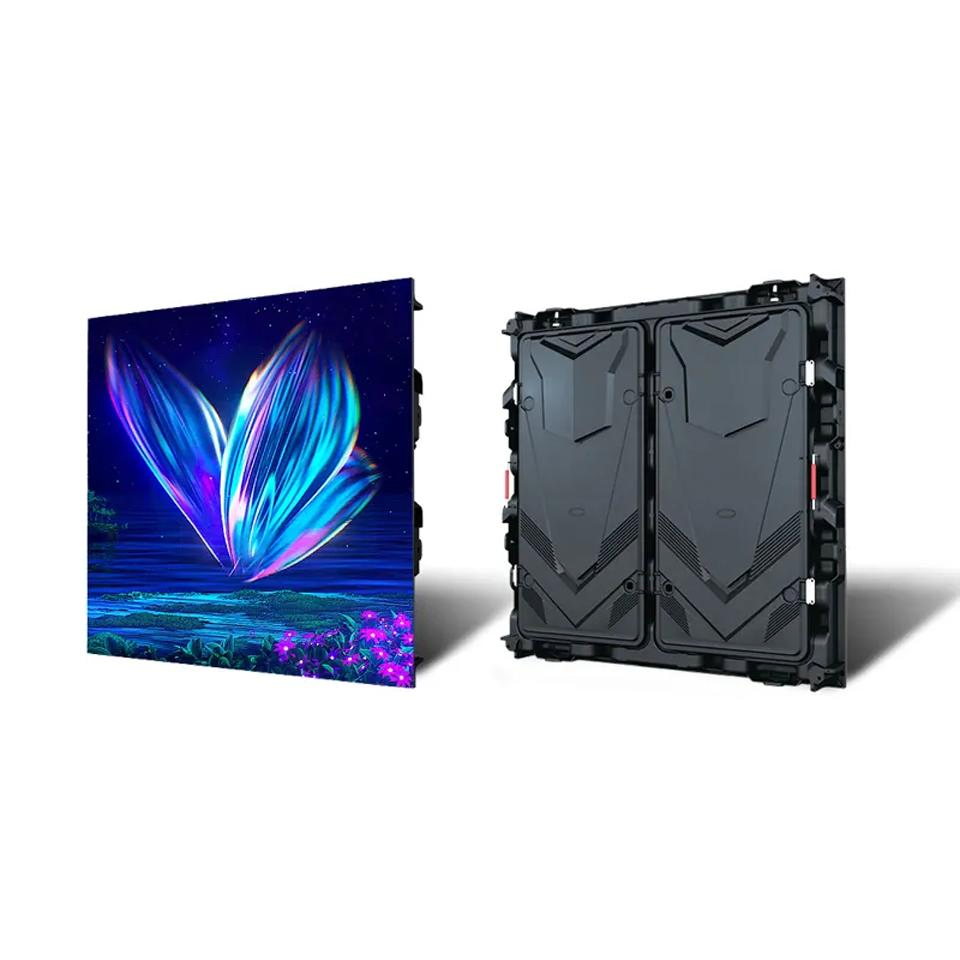

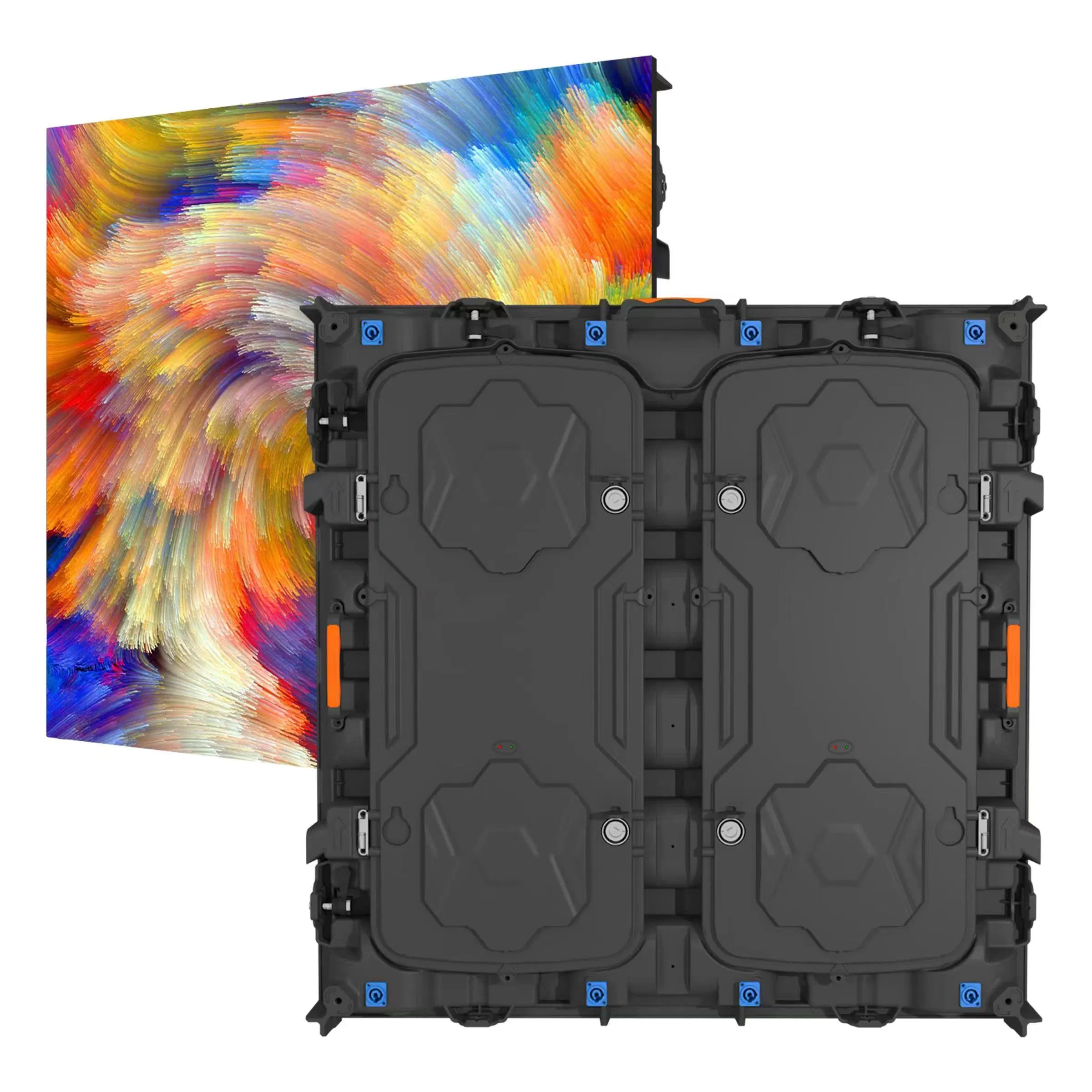

Die-Cast Aluminum Cabinet 960X960mm Full Color P4 P5 P6.67 Fixed Outdoor LED Billboard

Basic Specifications

Model NO.

P5 P6 P6.67 P8

Pixel Pitch

8 mm

Configuration

1R, 1G, 1B

Function

Video, Image & Text Display

Power Consumption

Avg. 200W

Pixel Density

15625 Dots/M2

Scanning Mode

1/4 Scan

Application

Outdoor Advertising

Certification

CE, RoHS, CCC

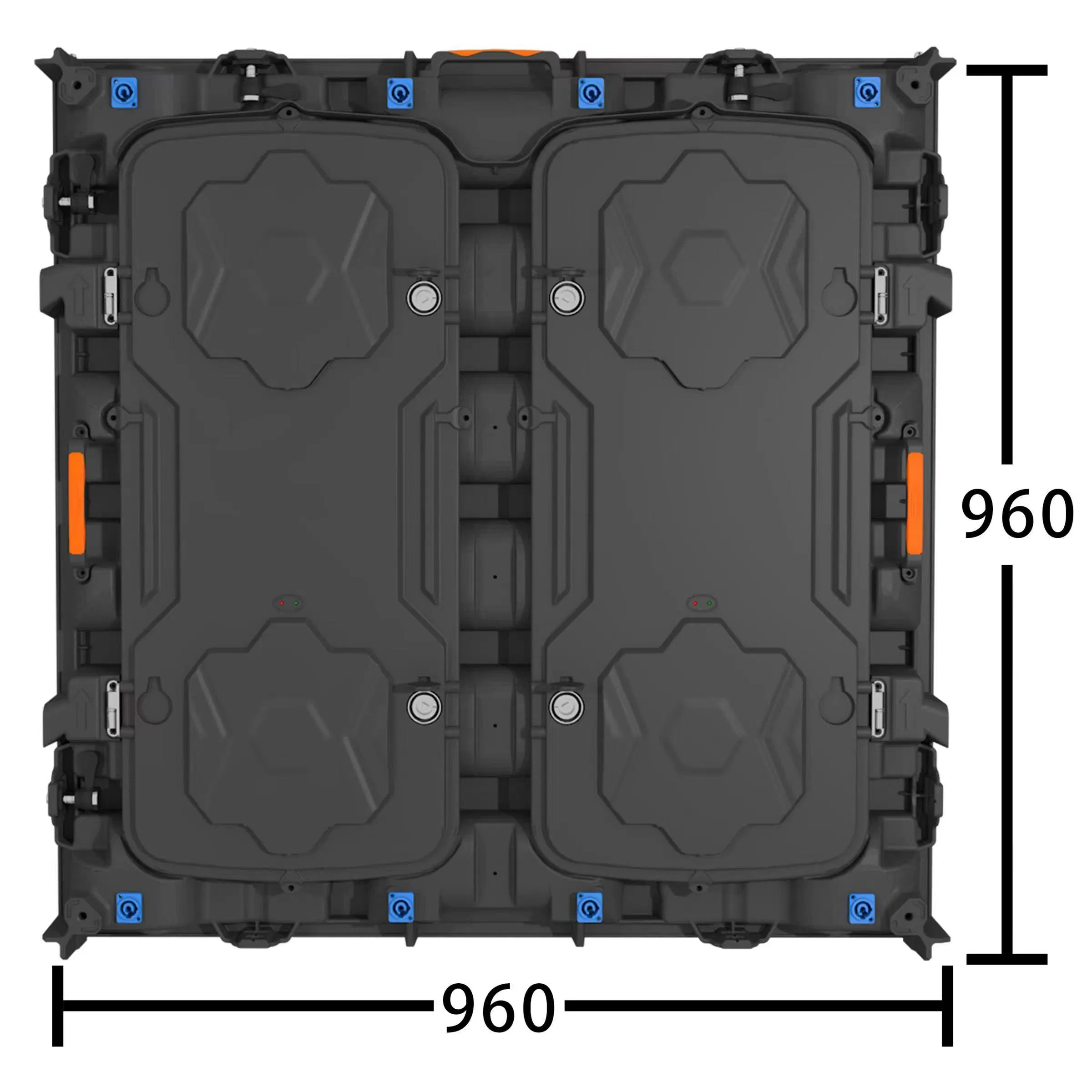

Cabinet Size

960x960mm

Product Overview

P4 P5 P6 Die-cast Aluminum Cabinet 960X960mm Full Color Fixed Outdoor LED Billboard

Core Features

Customizable cabinet material based on specific requirements.
High refresh rate options: 1920HZ / 3840HZ for flicker-free viewing.
Low power consumption design with superior heat dissipation.

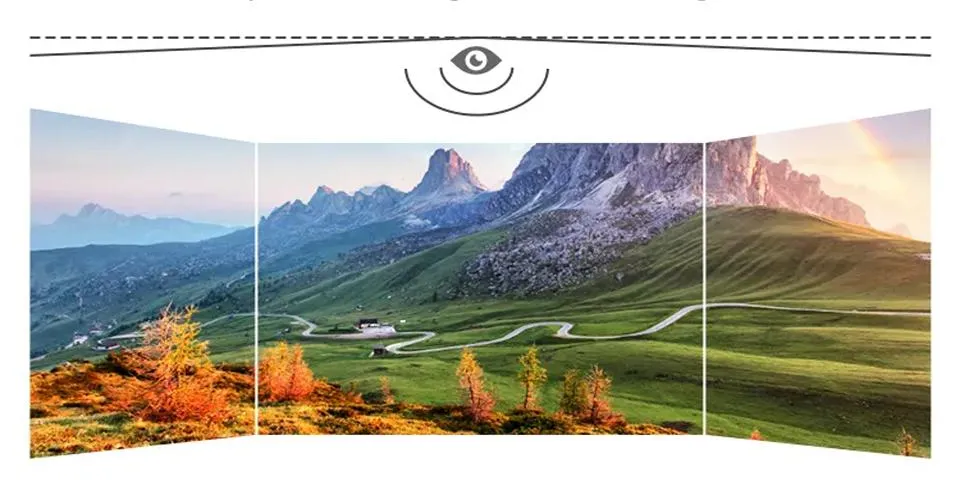

Ultra-wide viewing angle for maximum audience coverage.

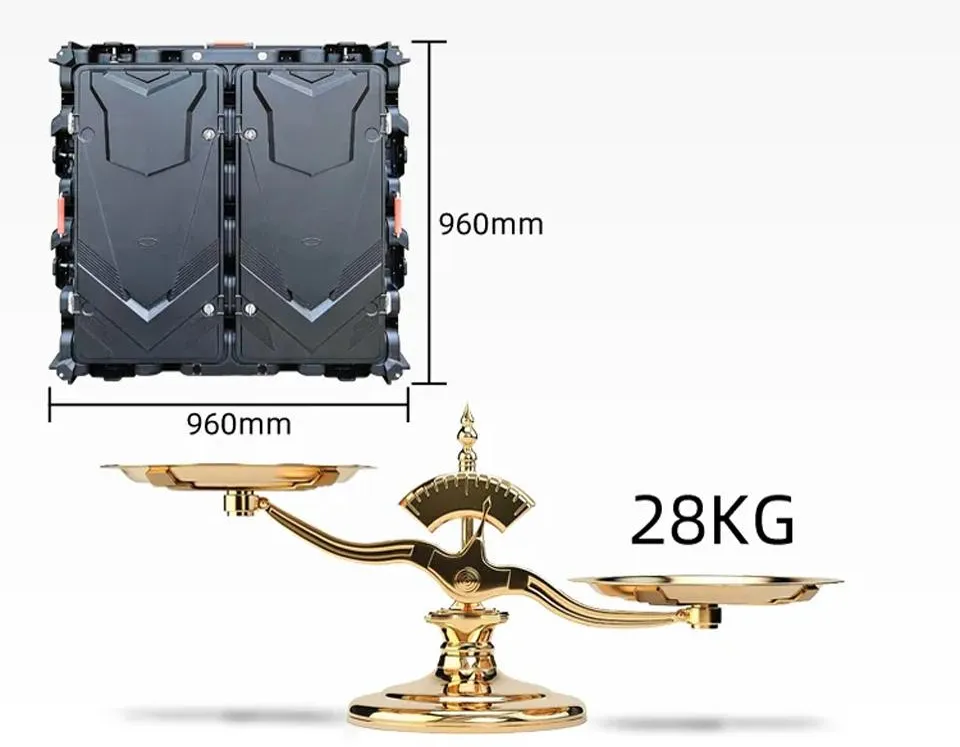

Lightweight and thin design to minimize shipping and installation costs.
Versatile maintenance: Supports both front and back access.
Full IP65 waterproof protection for outdoor durability.

Detailed Features & Performance

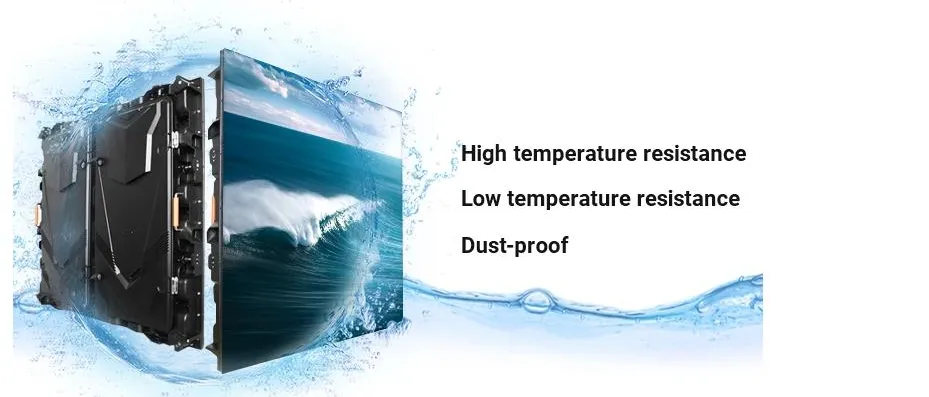

1. IP65 Waterproof Protection: Front-side protection ensures stable operation in harsh outdoor weather conditions.

2. Ultra Lightweight Magnesium Alloy: Advanced material provides a sensory-rich experience with reduced structure load.

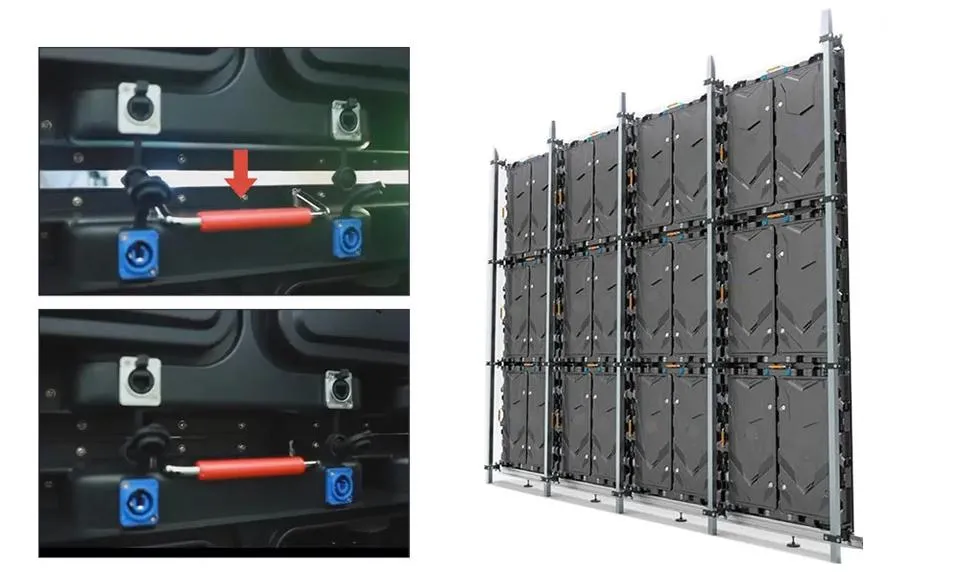

3. Seamless Splicing: Unique locking mechanism allows precision adjustment from six directions.

4. High Brightness & Gray Scale: Equipped with high-brush ICs for a smooth, non-flickering display.

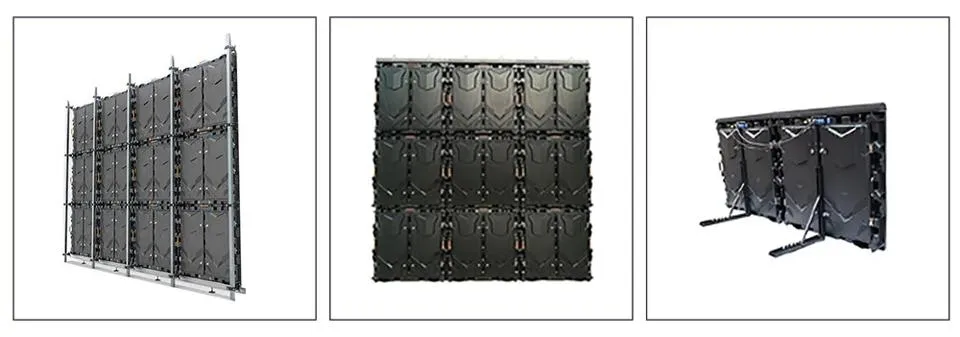

5. Multi-Installation Support: Suitable for fixed advertising, rental hanging, or perimeter sports stadium setups.

Technical Parameters

Item	PH5mm	PH6.67mm	PH8mm	PH10mm
LED Configuration	SMD1921	SMD3535	SMD3535	SMD3535
Pixel Density	40000/m2	22478/m2	15625/m2	10000/m2
Module Size	320*160mm	320*160mm	320*160mm	320*160mm
Cabinet Resolution	192*192px	144*144px	120*120px	96*96px
Cabinet Weight	27.6kg/pcs
Brightness	5500cd/m2
Refresh Rate	3840Hz
Lifespan	100,000 Hours

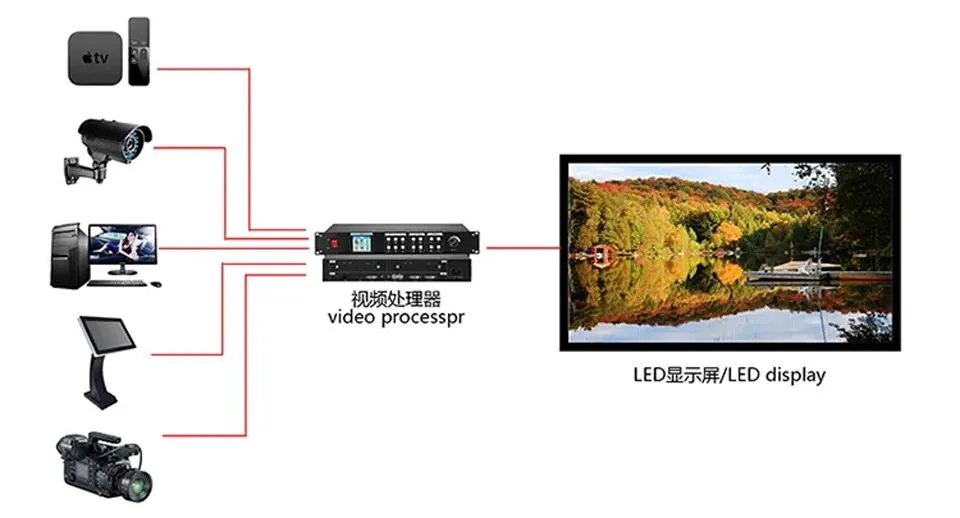

System & Delivery

Frequently Asked Questions

What is the standard warranty for the outdoor LED billboard?

We provide a two-year quality warranty with lifelong maintenance. During the warranty period, we repair or replace defective parts. Technical support is available online or via phone.

What are the accepted payment and delivery terms?

We accept T/T (30% deposit, 70% balance before shipment), L/C, PayPal, and Western Union. Delivery usually takes 10-15 working days after receiving the deposit.

Can these LED screens be used in extreme weather?

Yes, the cabinets feature IP65 waterproof protection and are designed for stable operation in various outdoor environments, featuring efficient heat release for hot climates.

Do you offer technical training for the display system?

Yes, we provide up to 6 days of on-site technical training at our facility to ensure you are fully equipped to operate and maintain the LED display.

What is the expected lifespan of the LED panels?

Our high-quality LED modules are designed for a lifespan of up to 100,000 hours, ensuring long-term reliability for your advertising needs.

Can the modules be maintained from the front?

Yes, the modules are designed for dual-maintenance, allowing them to be serviced from both the front and the back for maximum convenience.
