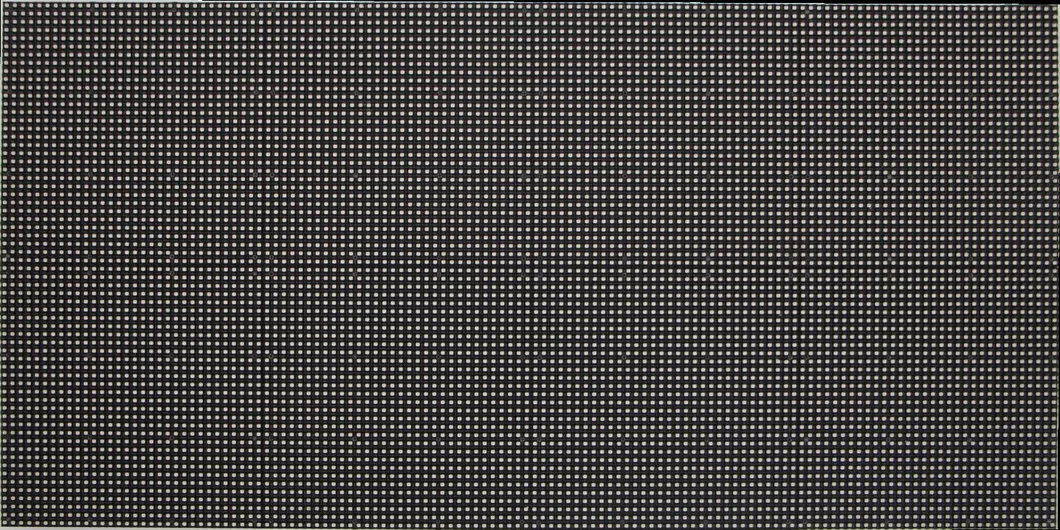

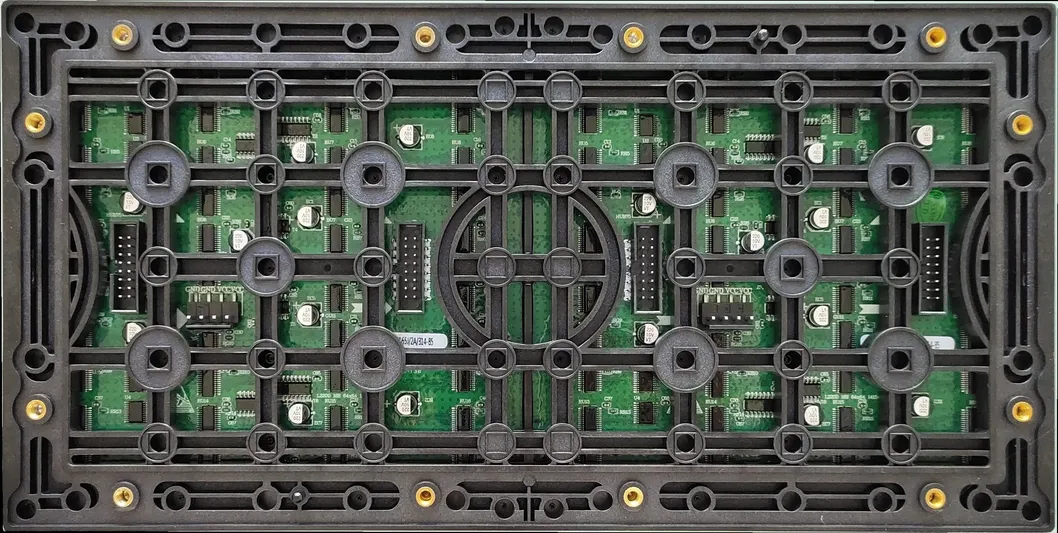

Outdoor LED Module Features
1. Unique mask design, dark black color, high contrast.
2. Standard module size 320*160mm.
3. Symmetrical and uniform, sturdy and flat construction.
4. Adopts SMD1415 lamp for superior heat dissipation and weather resistance.
5. Constant current drive system.
6. High brightness over 4500 cd/sqm with excellent light distribution consistency.

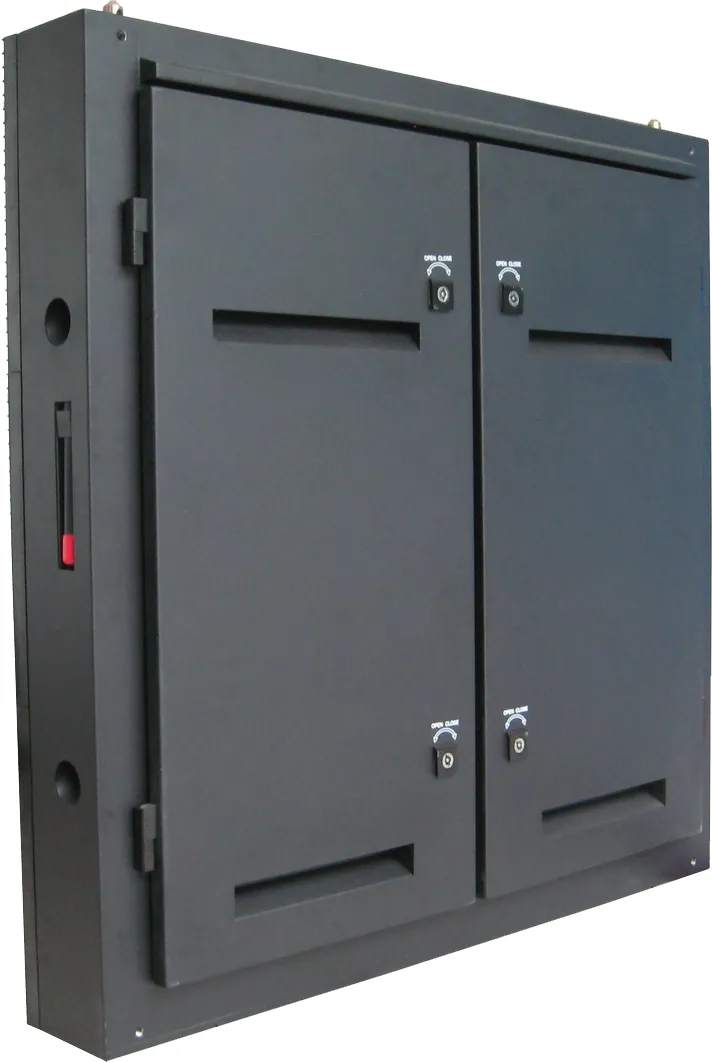

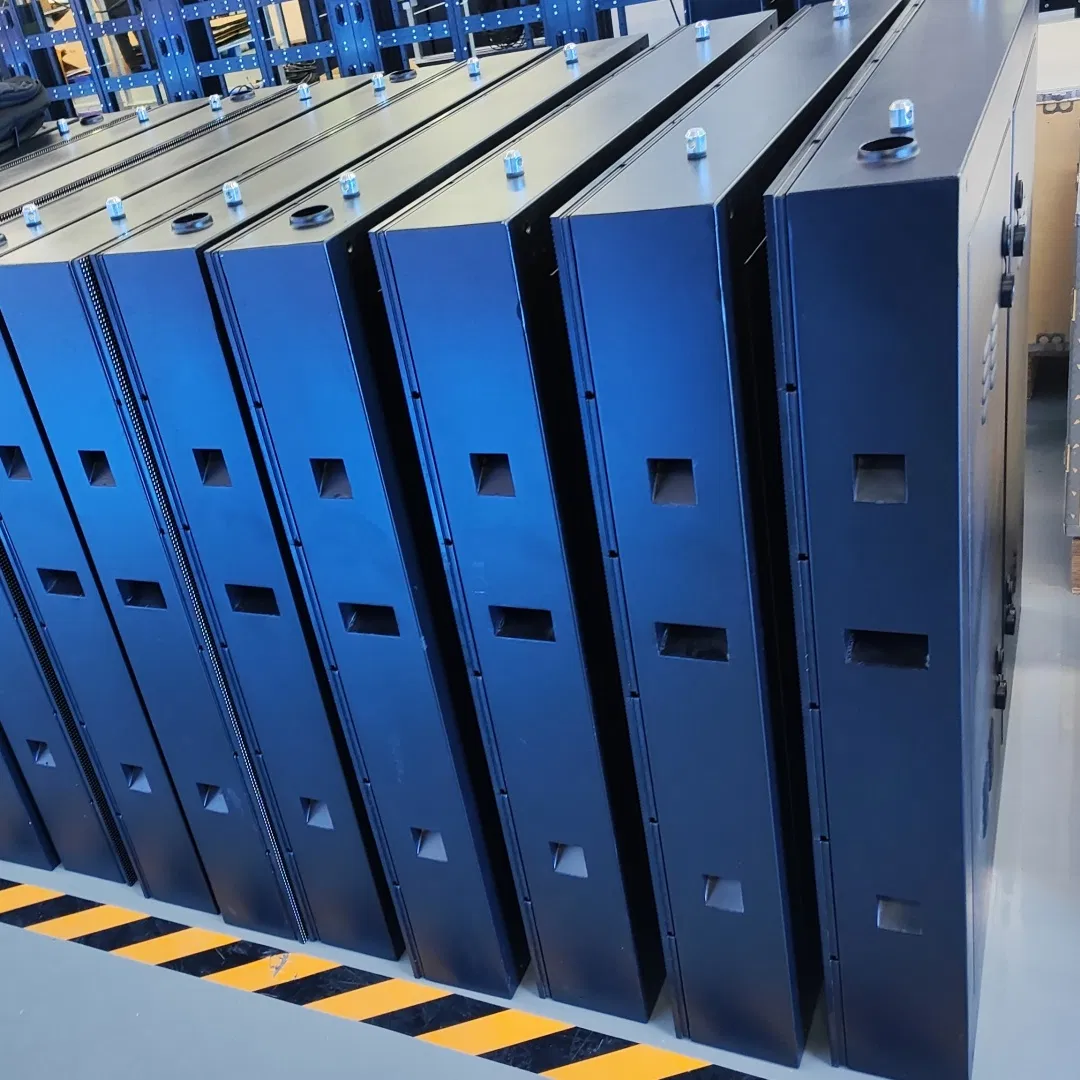

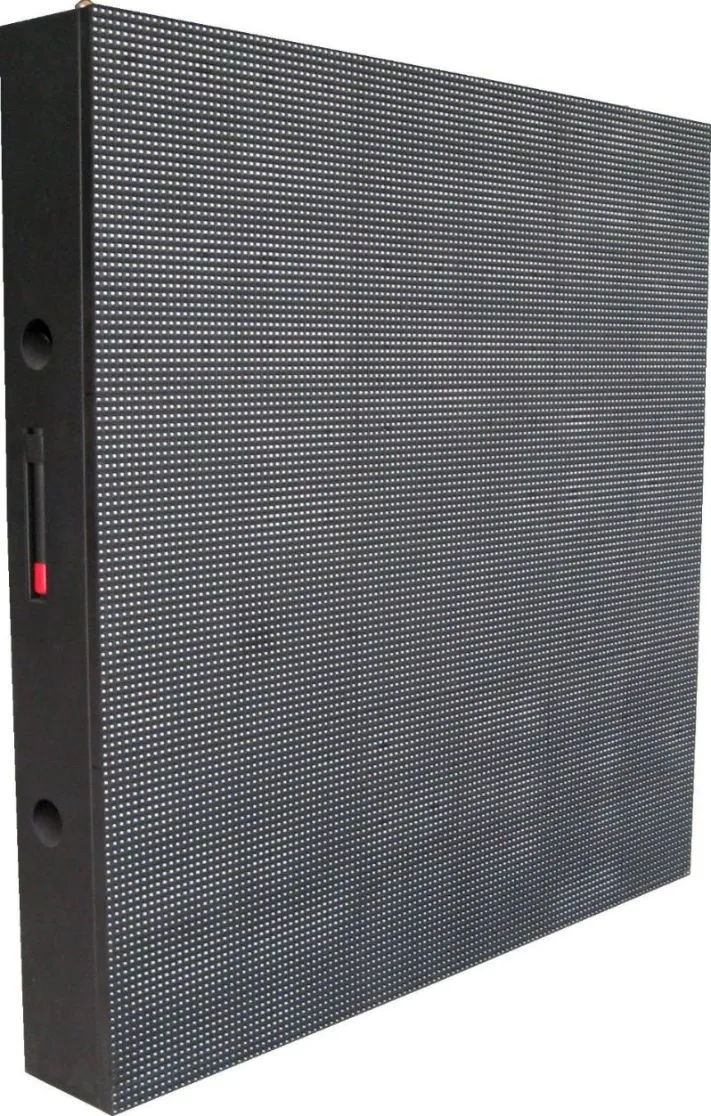

Waterproof Cabinet Design
1. 960 * 960mm standard iron cabinets, fully compatible with all 320 * 160mm modules.

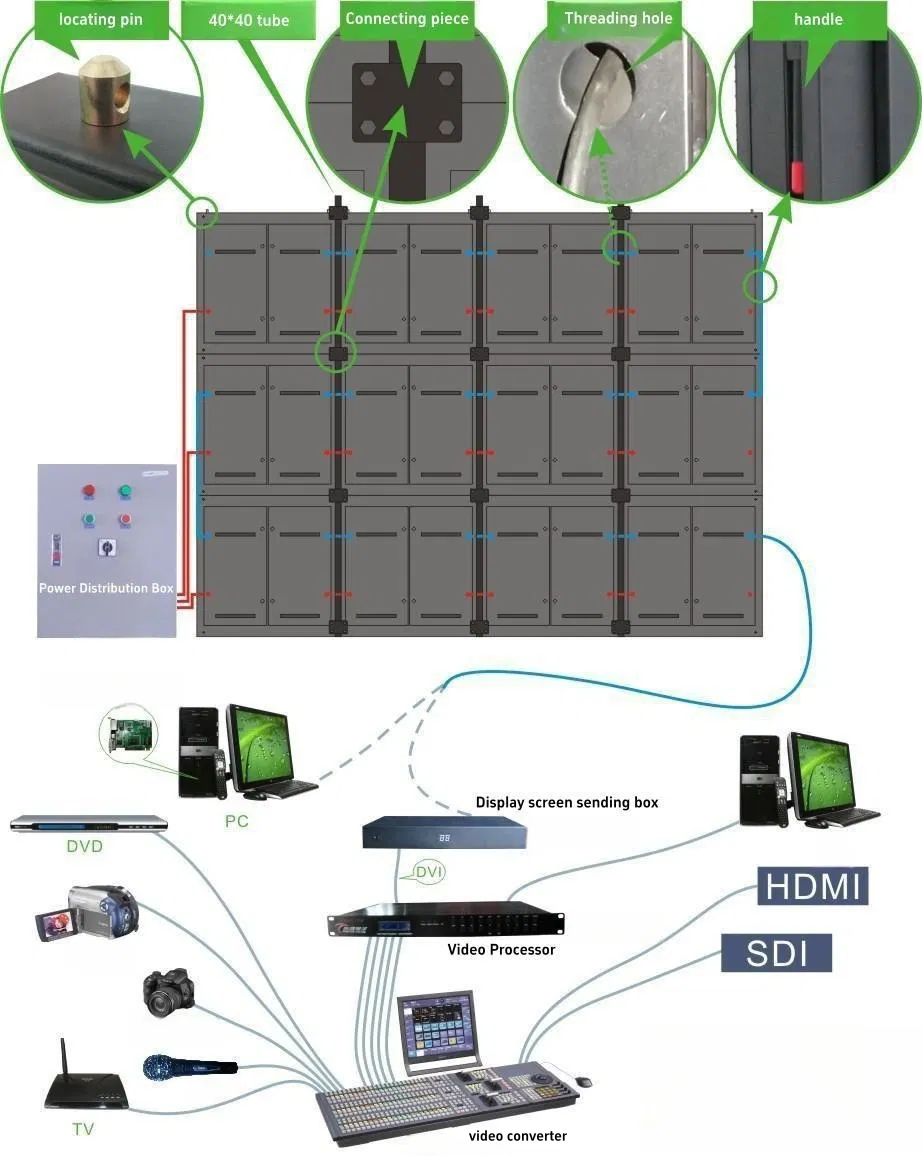

2. Standardized installation holes, waterproof gaskets, and power interface design.
3. IP65 industrial-grade waterproof rating for reliable outdoor performance.
| OUTDOOR FULL-COLOR DISPLAY TECHNICAL PARAMETERS | ||||||
|---|---|---|---|---|---|---|
| Item | P2.5 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch | 2.5mm | 4mm | 5mm | 6mm | 8mm | 10mm |
| Pixel Density | 160,000/sqm | 62,500/sqm | 40,000/sqm | 27,777/sqm | 15,625/sqm | 10,000/sqm |
| LED Type | SMD1415 | SMD1921 | SMD2828 | SMD3535 | SMD3535 | SMD3535 |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 192*192mm | 256*128mm | 320*160mm |
| Viewing Angle | 170°/120° | 160°/140° | 140°/140° | 140°/120° | 140°/120° | 140°/120° |
| Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
| Brightness | 4500 cd/sqm | |||||
| Max Power | 600W / sqm | |||||
| Waterproof | IP 65 | |||||

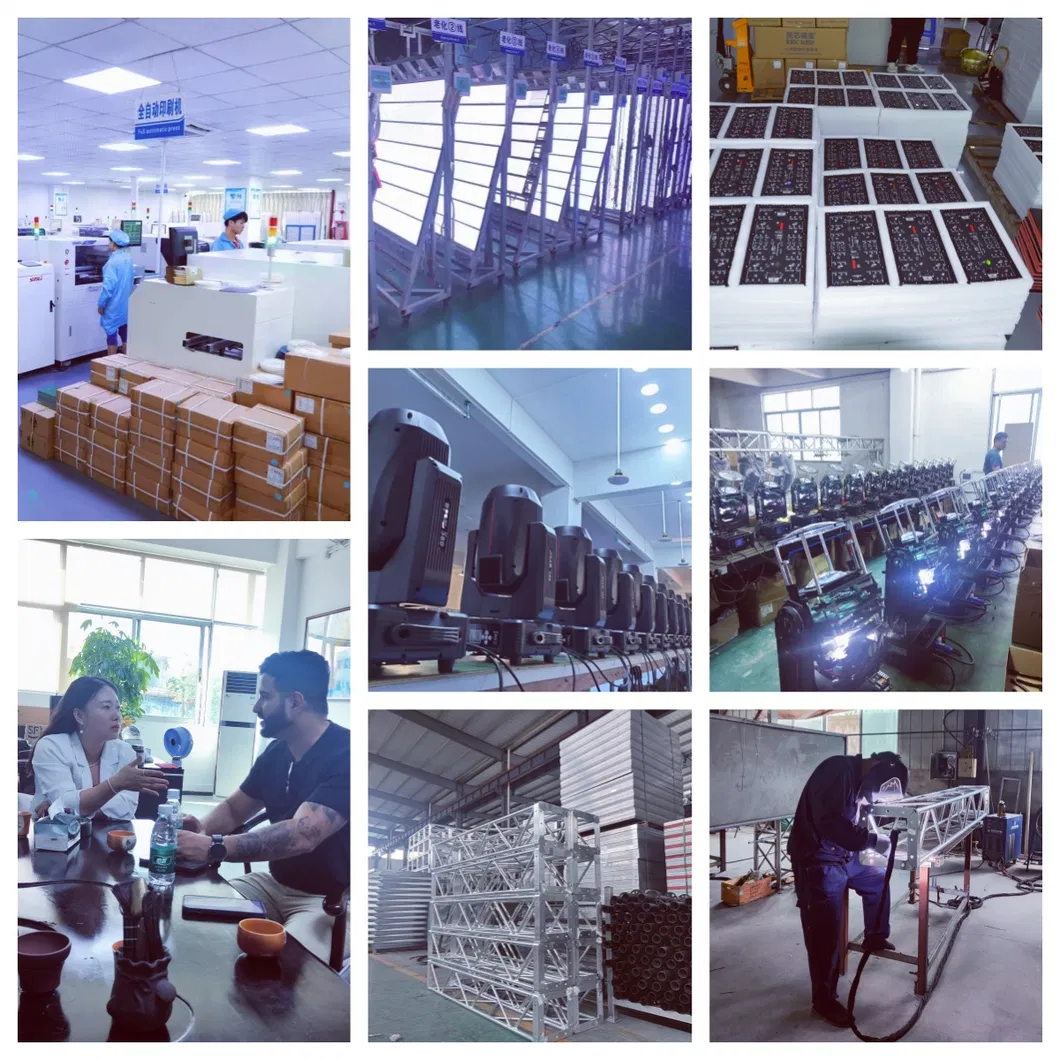

The company was originally engaged in the production of performance stage trusses, covering design, production, sales, and leasing. With continuous growth, the company expanded into the LED display field in 2008, establishing headquarters to focus on LED chip packaging, module production, aging testing, and full-screen installation.
We have developed into an expert in performing arts technology full-scene solution services, providing intelligent equipment integration and innovative application solutions for global stage performing arts, cultural venues, and commercial spaces.
