Chinese Indoor Glass Flexible LED Film Screen Advertising Digital Soft Video Wall LED Display for Fixed Poster Billboard

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Text Display, Market Display

Send Inquiry

Product Description

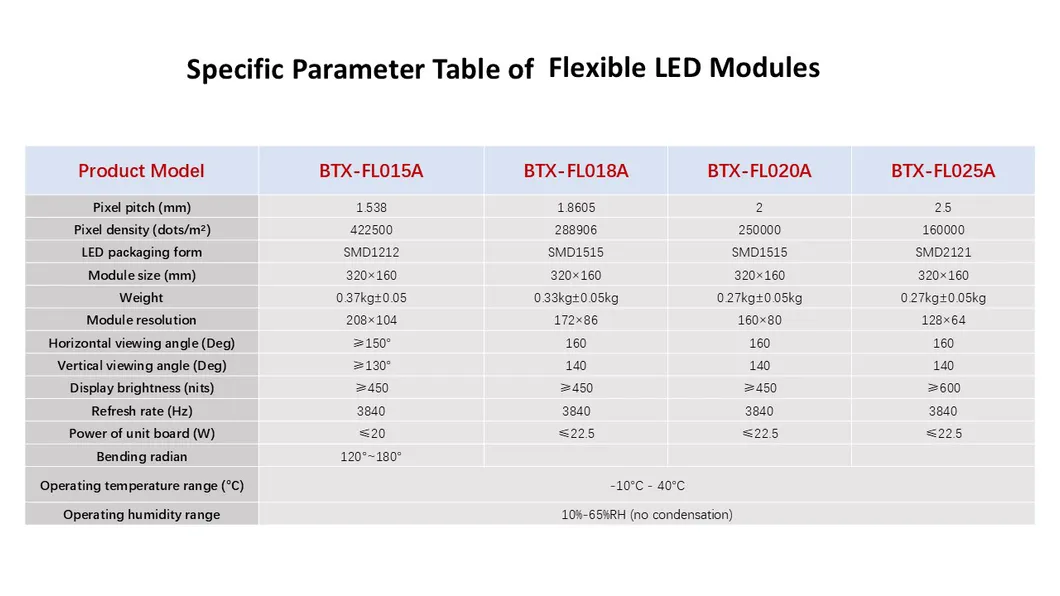

Basic Specifications

Model NO.

BTX

Pixel Pitch

1.58/1.8605/2/2.5mm

Pixel Configuration

1R,1G,1B

Display Type

LED Video Display

Application

Stage, Advertising, Shopping Guide

IP Rating

IP43

Module Size (mm)

320×160

Refresh Rate (Hz)

3840

Viewing Angle

H≥150°, V≥130°

Brightness

≥450 Nits

Product Introduction

Traditional LED display modules are made from rigid PCB boards and bottom cases, lacking flexibility for arc-shaped or curved areas. Special manufacturing for these needs increases costs and often results in unsatisfactory aesthetics.

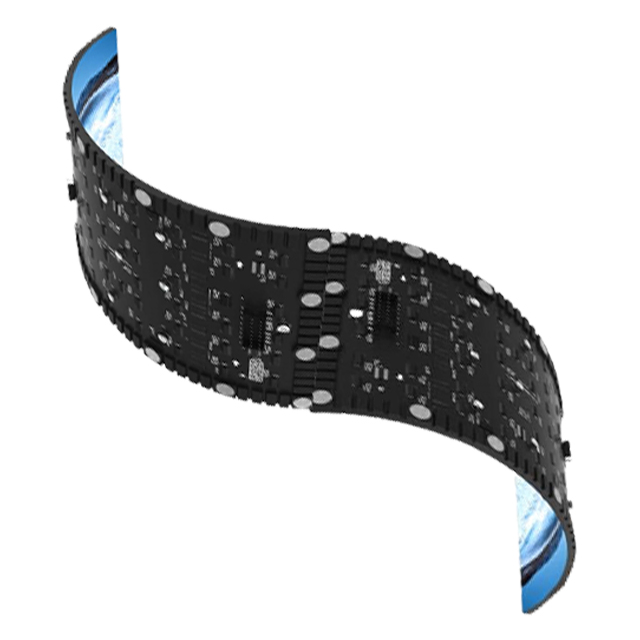

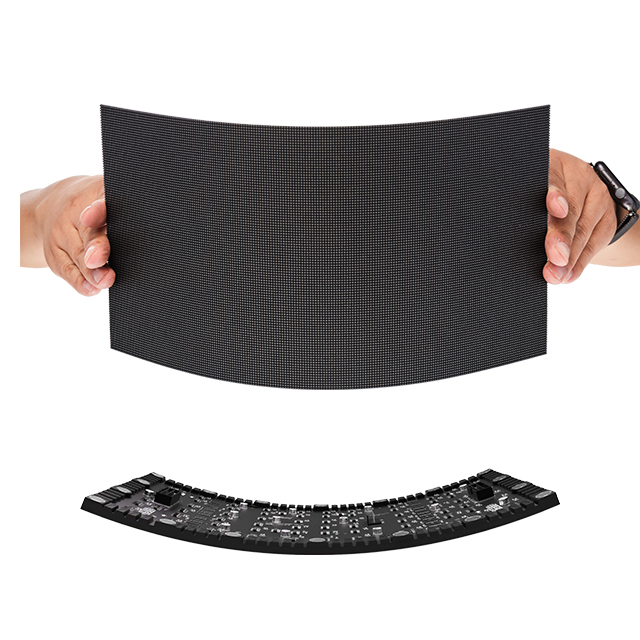

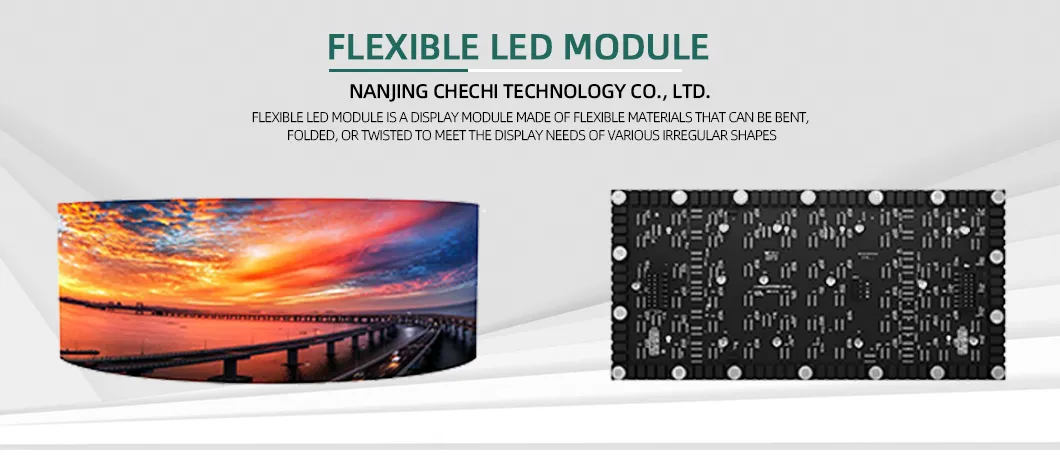

The emergence of flexible LED modules perfectly addresses these issues. Made of flexible materials with high softness and bendability, these modules allow LED displays to be designed in arc, cylindrical, wavy, or other creative shapes, achieving the best overall display effect.

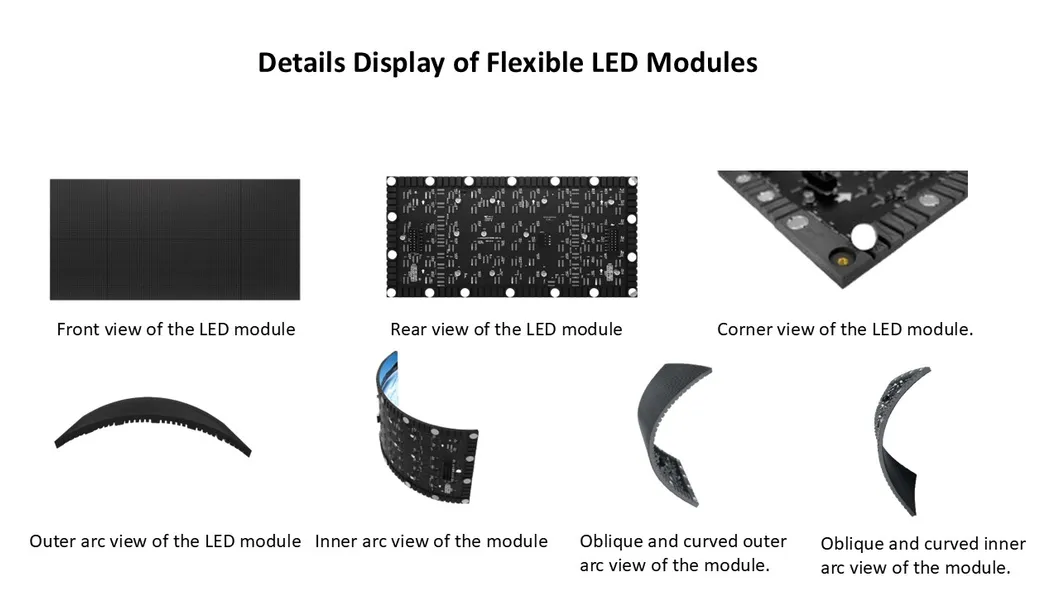

Main Features

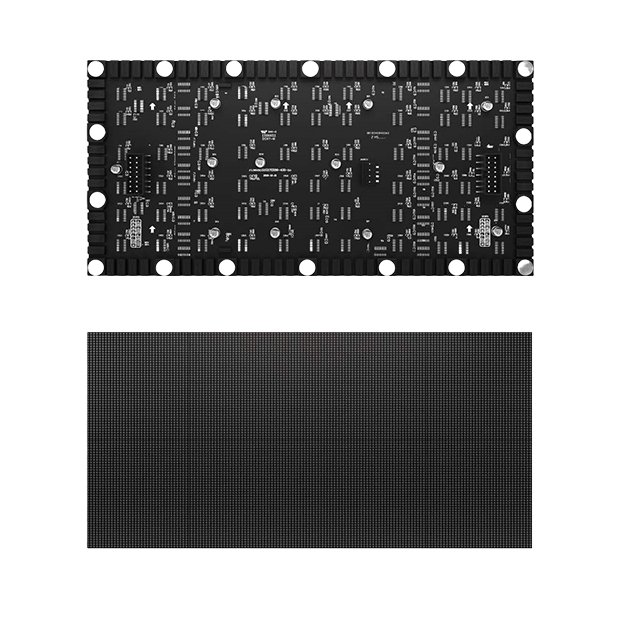

Standardized size: 320x160mm.

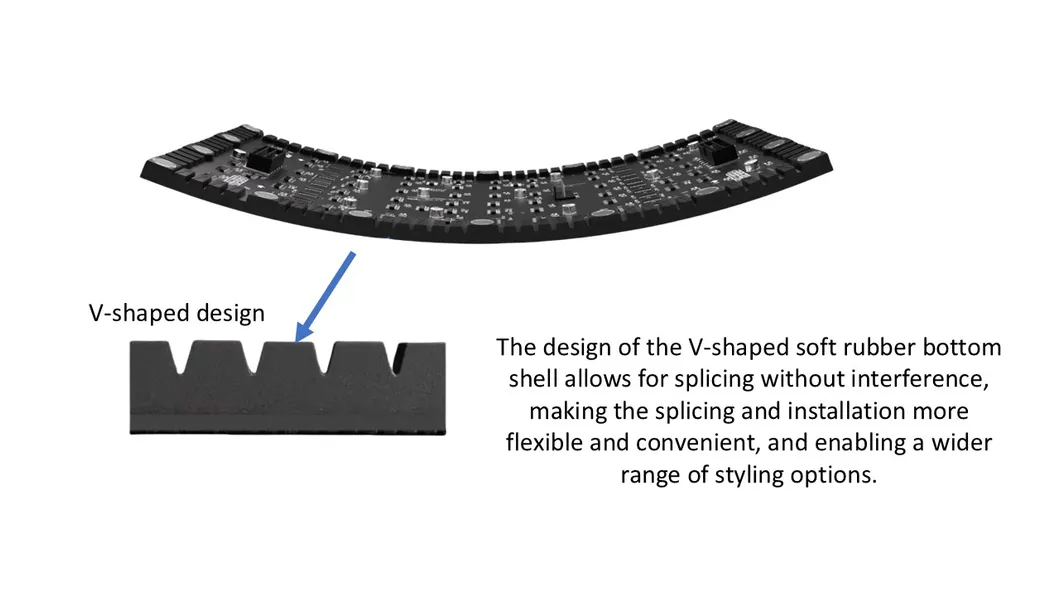

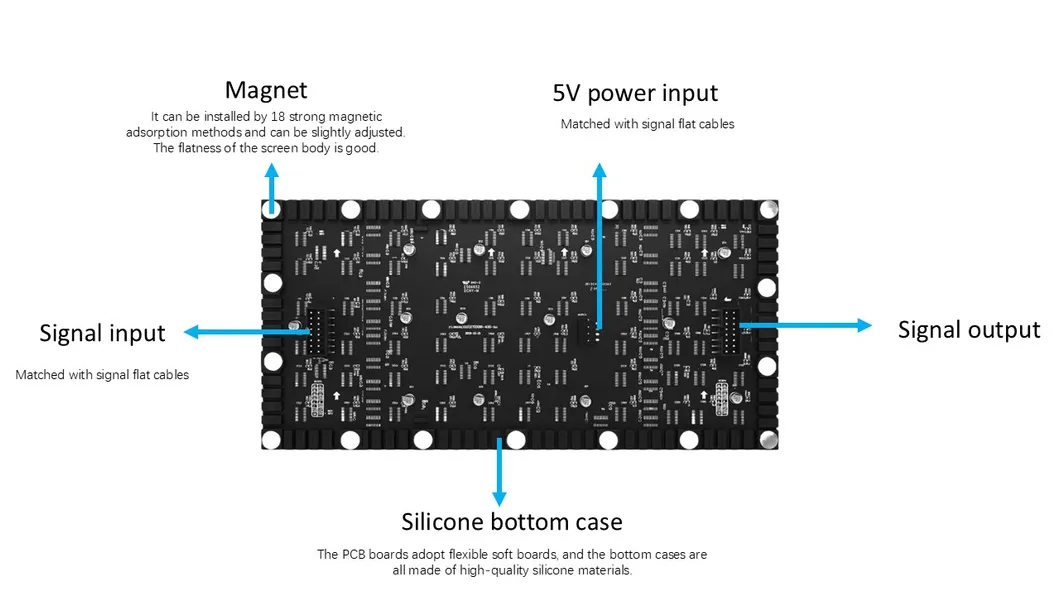

Flexible soft PCB board with high-quality silicone bottom shell.

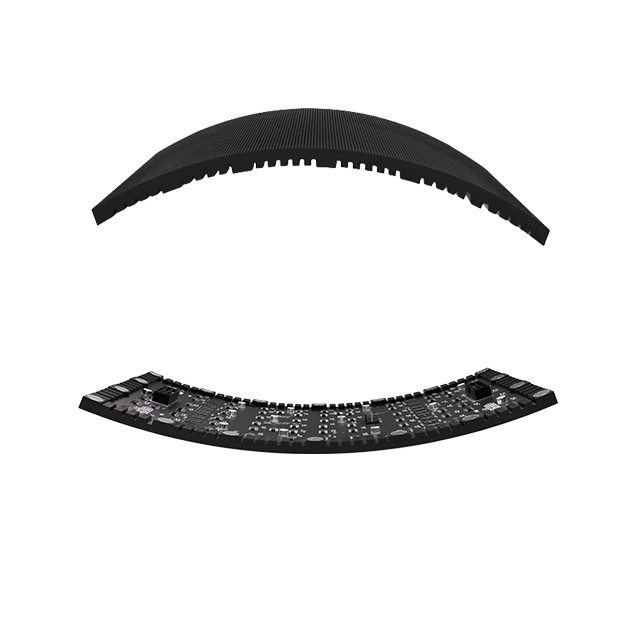

Module bending angle between 120° and 180°.
High refresh rate (over 3840Hz) and high grayscale IC for uniform heat dissipation.
Wide viewing angle up to 160°, ideal for creative artistic shapes.

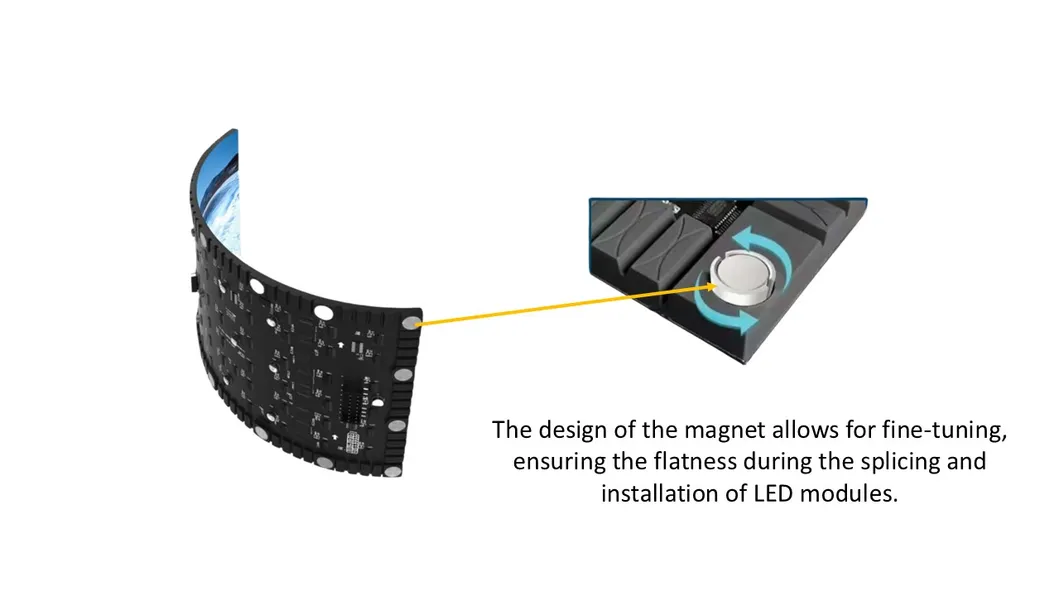

Strong magnetic adsorption (18 magnets) for easy micro-adjustment and flatness.

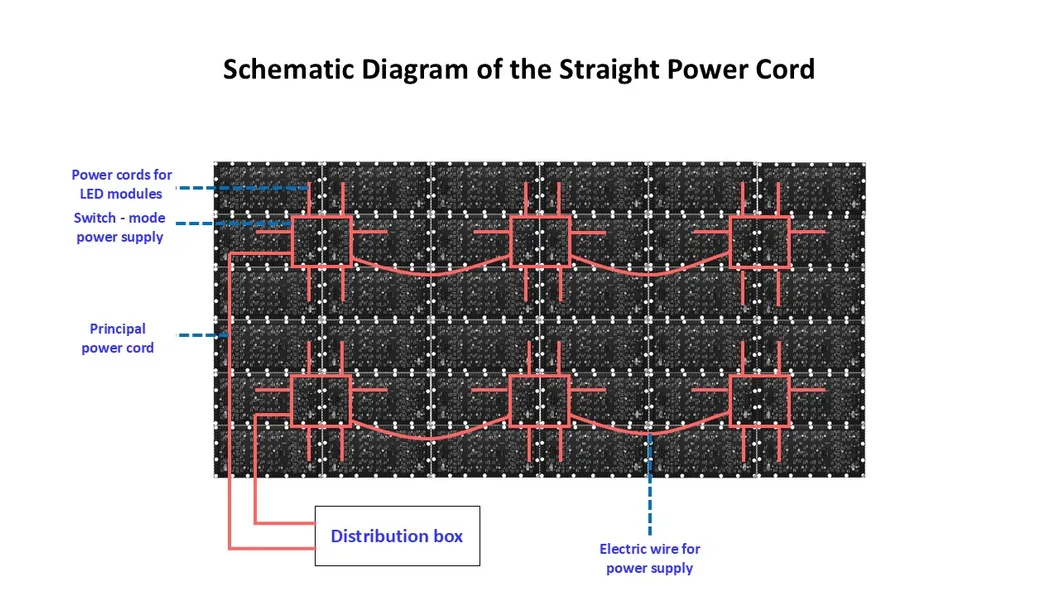

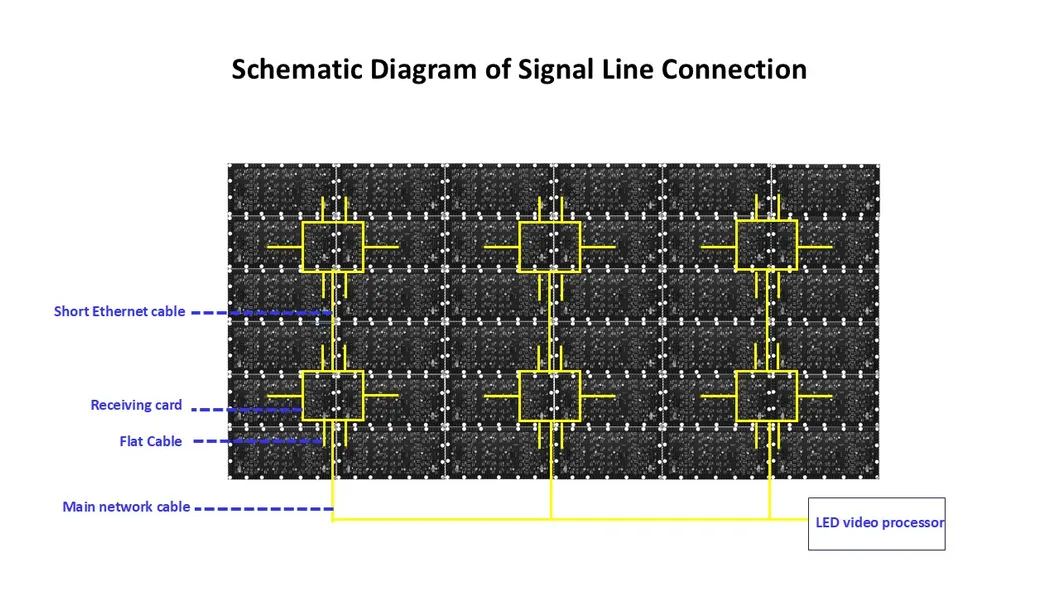

Technical Highlights

Precautions for Use:
Avoid violent tearing during installation to protect copper pillars and PCB. Bending should remain between 120° and 180°. For best flatness, sheet metal sandblasted iron boxes are recommended over galvanized square pipes.

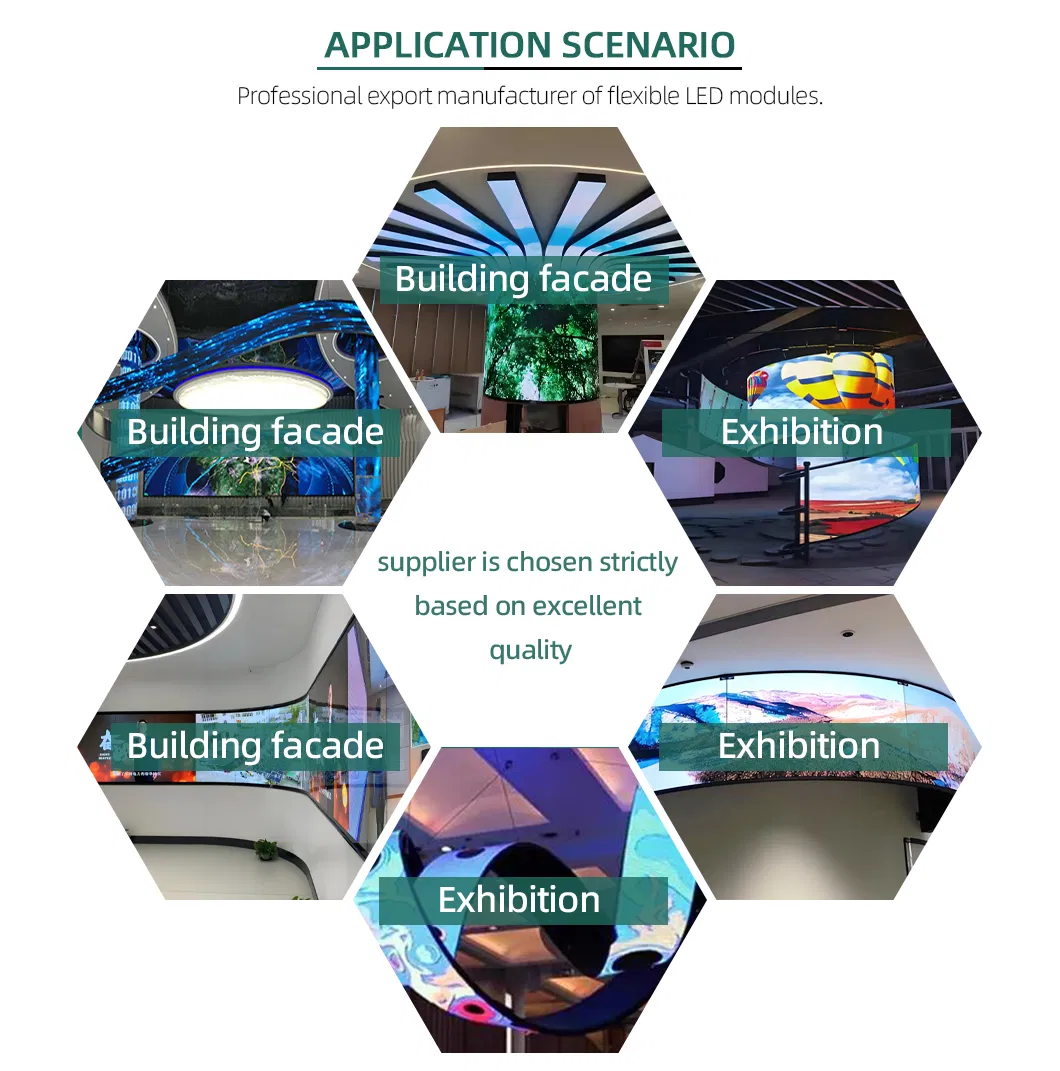

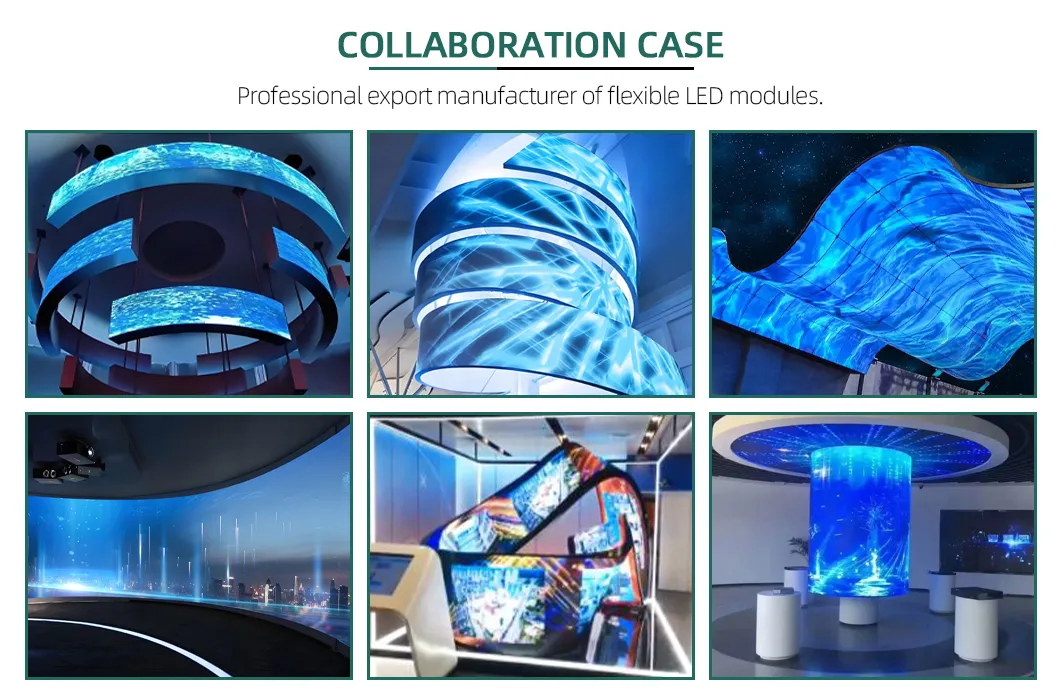

Application & Cases

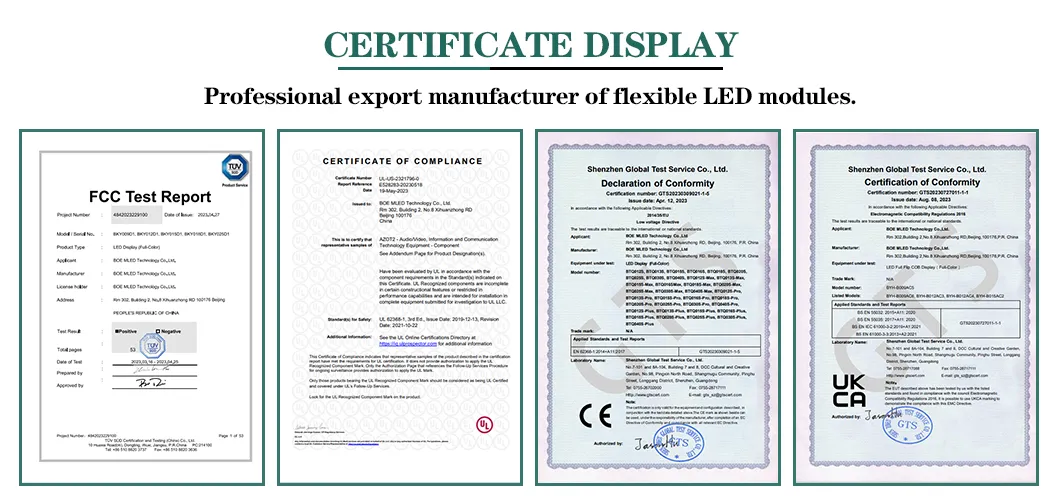

Certifications

Frequently Asked Questions

How to get an accurate quotation for LED products?

Please inform us of your budget, application scenario, and specific dimensions (length/width). Providing a CAD design drawing helps us configure the most suitable plan for your requirements.

How long does it take to receive a quotation?

Generally, we reply immediately upon receiving your inquiry. For urgent requests, please contact us via direct messaging or email for a prioritized response.

How do I choose the right dot pitch?

Selection depends on your resolution requirements, application scenario, and viewing distance. Share your needs with us, and we will calculate the optimal pitch for you.

What is the typical lead time and warranty?

Standard products usually ship within 15 days, while customized orders take 30-45 working days. We provide a one-year warranty, with options to extend upon request.

How is the installation handled?

The process involves structure construction, cabling, module installation, and final debugging. We provide free remote guidance to ensure a successful setup.

Do you offer sample services?

As these are specialized branded products, we do not offer free samples. We recommend purchasing a single basic unit for evaluation if required.
