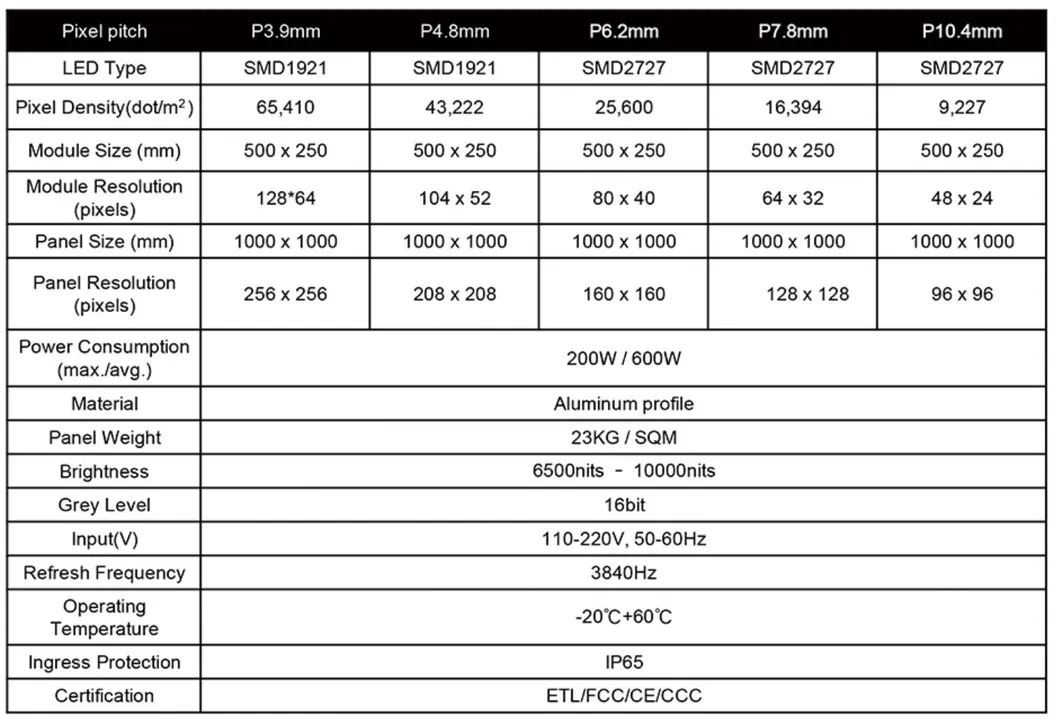

Basic Info

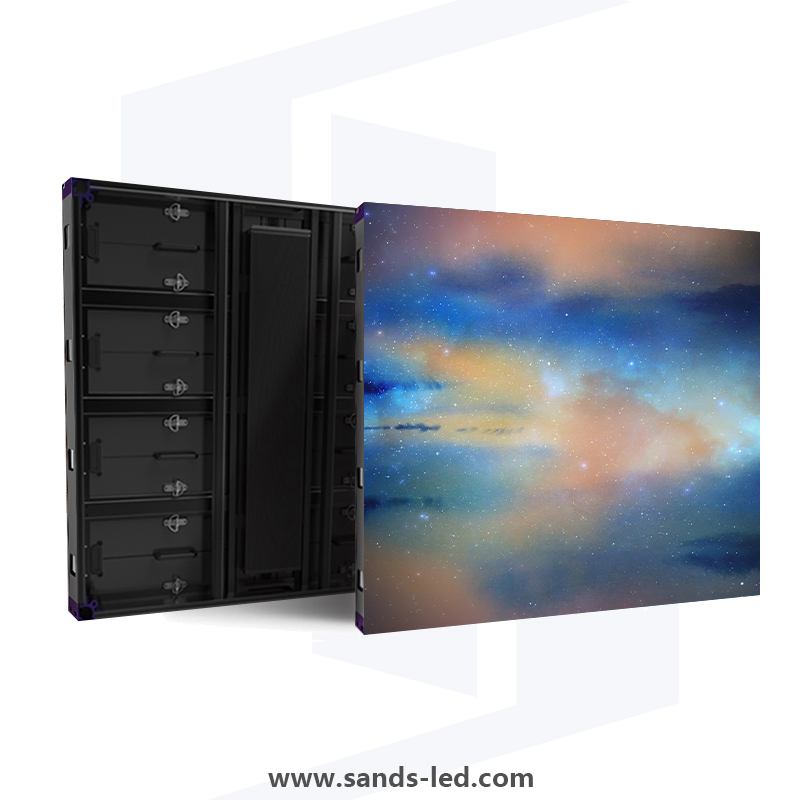

Model NO.:FO-B 1000*1000
Pixel Pitch:6.2mm
Pixel Configuration:1R, 1G, 1B (SMD 2727)
Display Function:Video, Image, Text, Market Display
Avg Power Consumption:200 W/M^2
Pixel Density:25,600 Dots /M^2
Scanning Mode:1/32 Scan

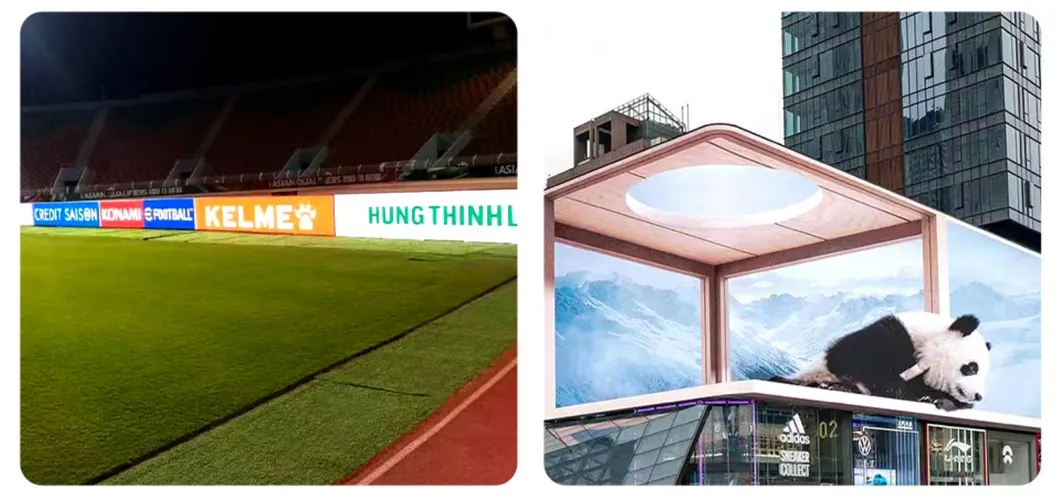

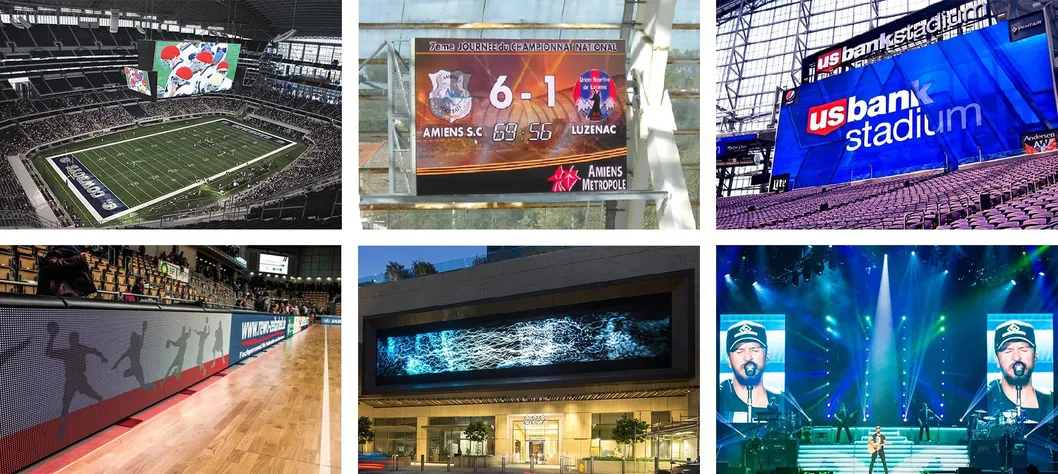

Application:Advertising
Cabinet Material:Die-Casting Aluminum
Cabinet Size:1000mm*1000mm
Cabinet Weight:23 Kg/Sqm
Refresh Frequency:3840 Hz
Brightness:6500~1000 Nits
Life Span:About 100,000 Hours

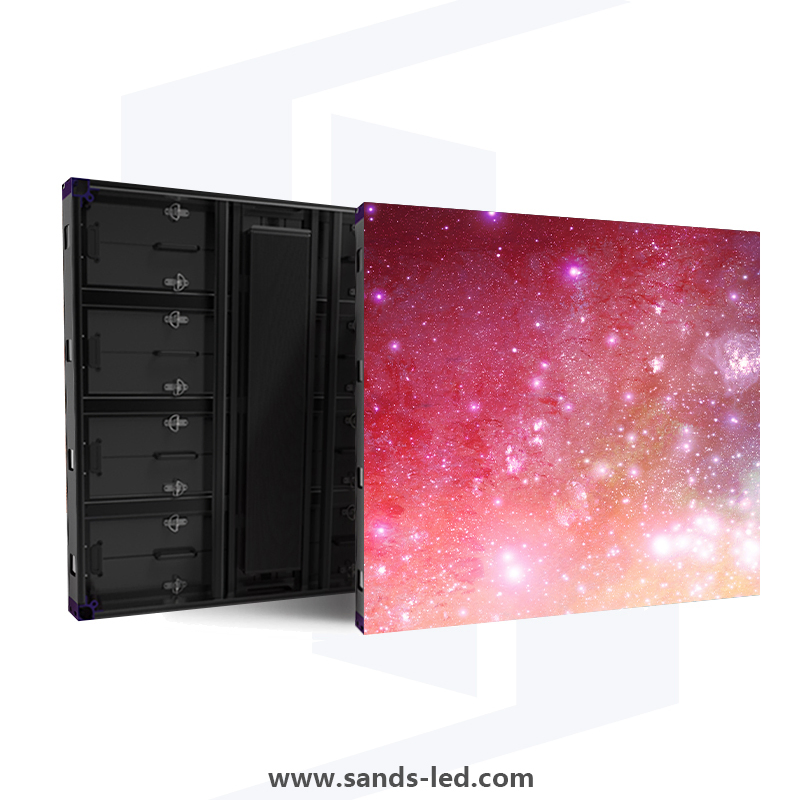

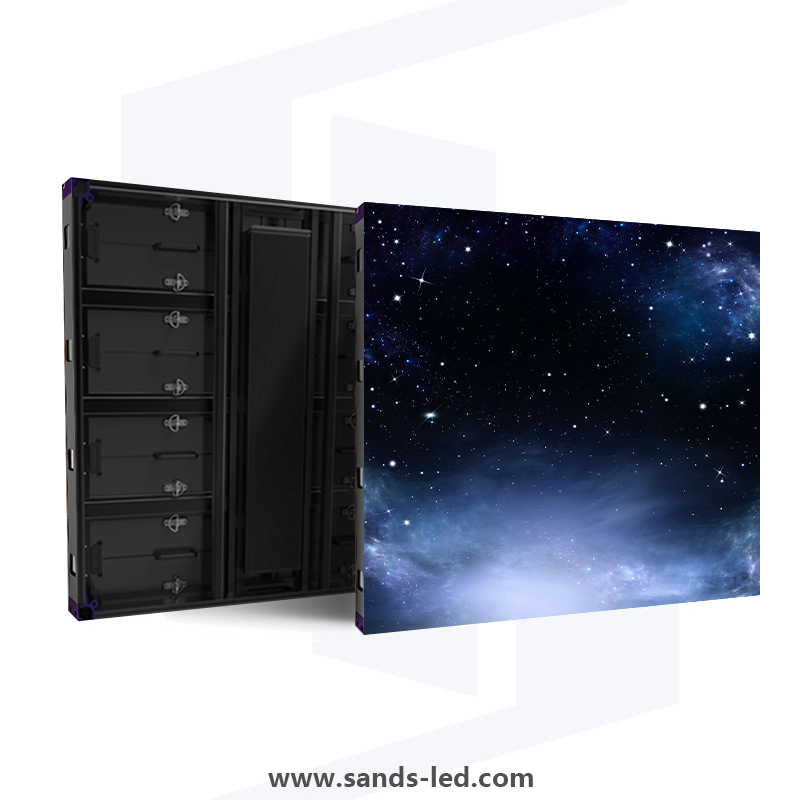

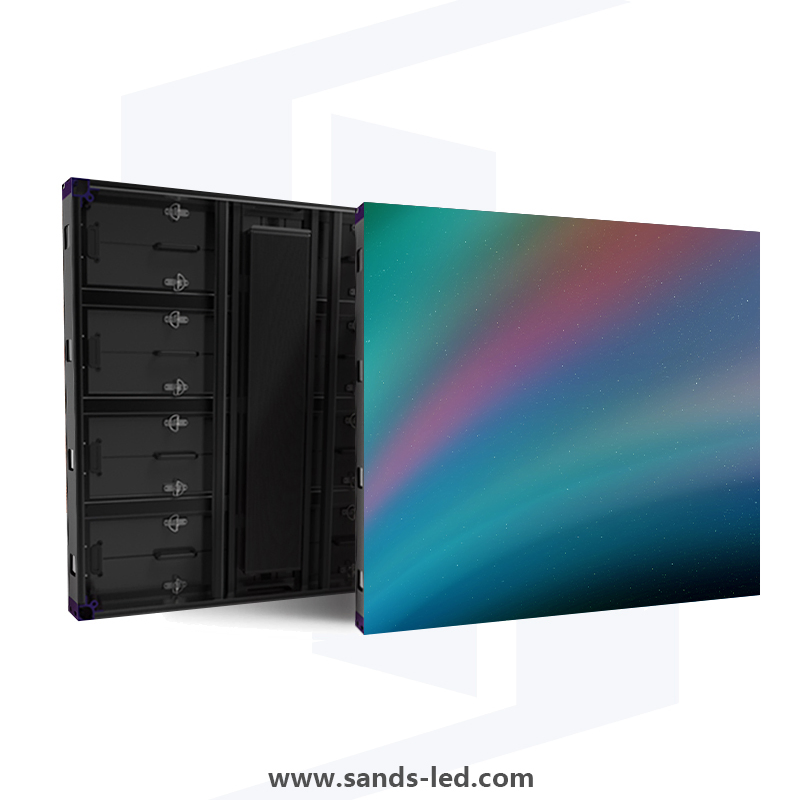

Product Description
FO-B Series LED Displays have good heat dissipation, low power consumption, good waterproof effect, high contrast, wide color gamut, high color reproduction, constant brightness, large viewing angle, and simple appearance. They are super cost-effective, perfect seamless stitching. Optional splicing combination, can be customized any size modeling.

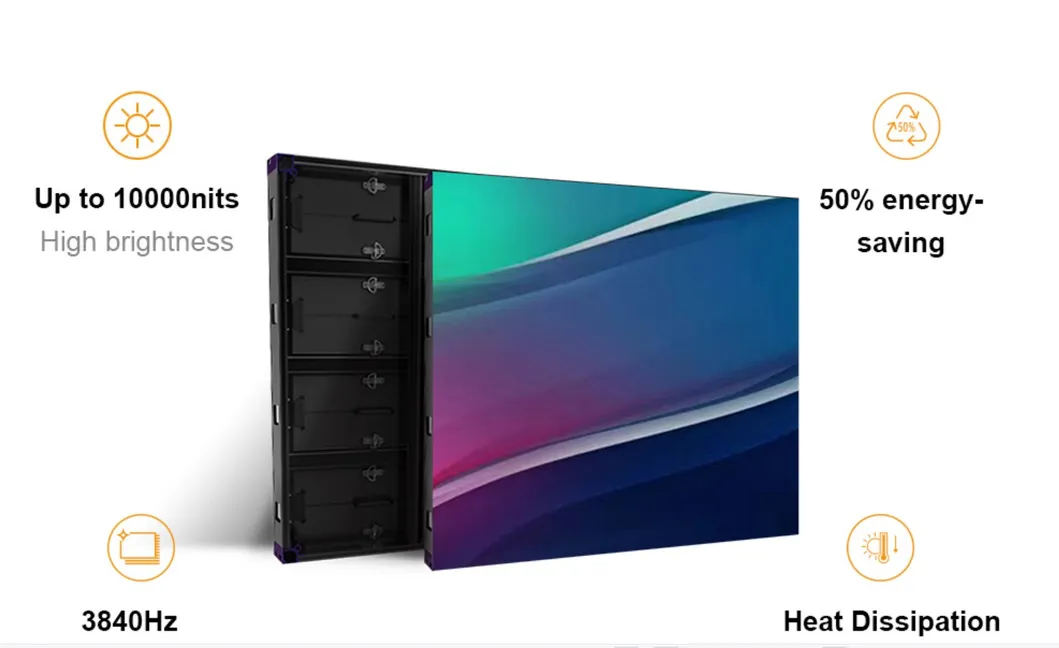

Main Features
Stable and Reliable Performance: High brightness up to 10,000 nits provides the highest level of the color gradient. Better and nature gray scale shifting reduce shooting stripes effectively. Excellent waterproof effect, 50% energy-saving and heat dissipation.
Uniform Color: Broadcast color gamut, color temperature and brightness are intelligently adjustable, high contrast, beautiful and natural picture.

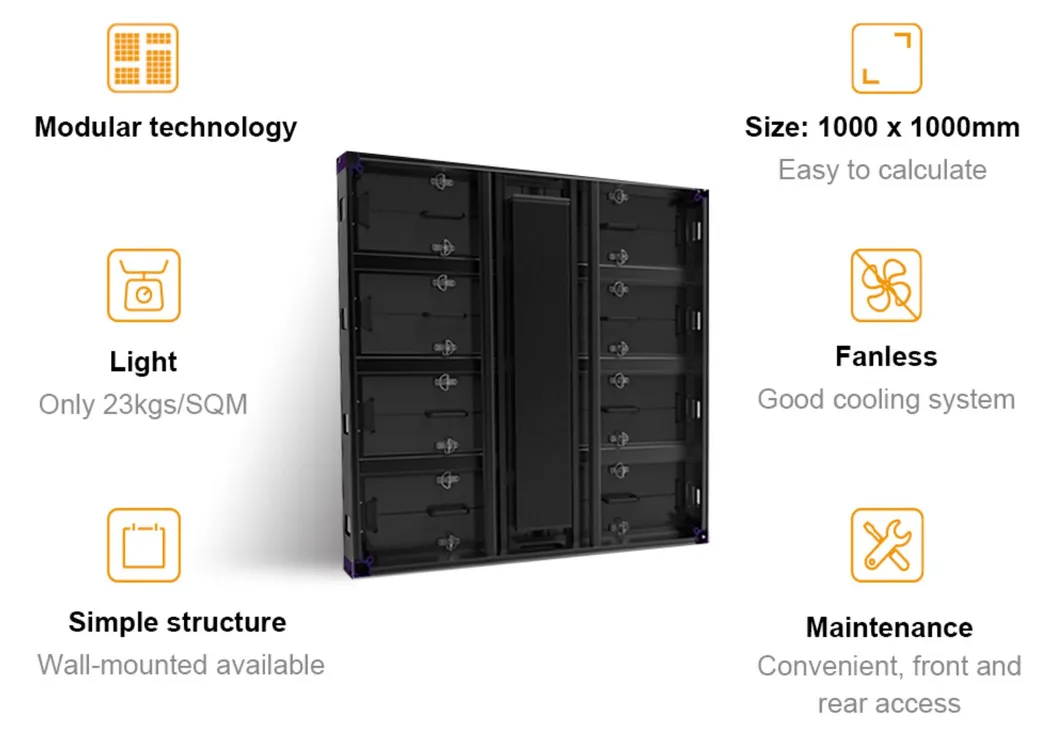

Installation & Maintenance
LED displays cabinets are designed for wall-mounted installation. They can be fully accessed from the back & front creating. They can be assembled quickly by inner cable connection. High-precision cabinet plane splicing distance is controlled within 0.1mm ensure that the cabinet splicing is smooth.
Hardware Features
- Connecting plug-in without arrangement improve stability, modular design facilitate installation and maintenance.
- Unit structure adopts a new cast aluminum shell with lightweight, high precision, and fast heat dissipation.
- Point-to-point module design for both front & back maintenance.
- HD LED video wall modular design is easy for field maintenance.
- Seamless connection and precise modules get a smooth experience.
⚠
Attention: It is recommended that customers purchase enough LED display modules for spare replacement. If modules come from different batches, there may be slight color differences.
Frequently Asked Questions
Q1. Can I have a sample order for LED display?
Yes, we welcome sample orders to test and check quality, both for LED modules or a whole display.
Q2. What about the lead time?
Normally about 2-3 weeks. For customized LED displays, it typically requires around 35 days.
Q3. How do you ship the goods and how long does it take to arrive?
We mostly accept FOB trade terms. Shipping usually takes 20 to 30 days by sea plus a few days for customs clearance.
Q4. How to proceed with an order for LED display?
First, let us know your requirements. We then quote and suggest solutions. Once the design is confirmed and deposit paid, we arrange production.
Q5. Do you offer a guarantee for the products?
Yes, we offer 1-2 years warranty depending on the specific product type.
Q6. Why is it important to buy enough spare modules?
Buying enough modules at once ensures they come from the same production batch, avoiding potential color differences between different purchases.
